Overview

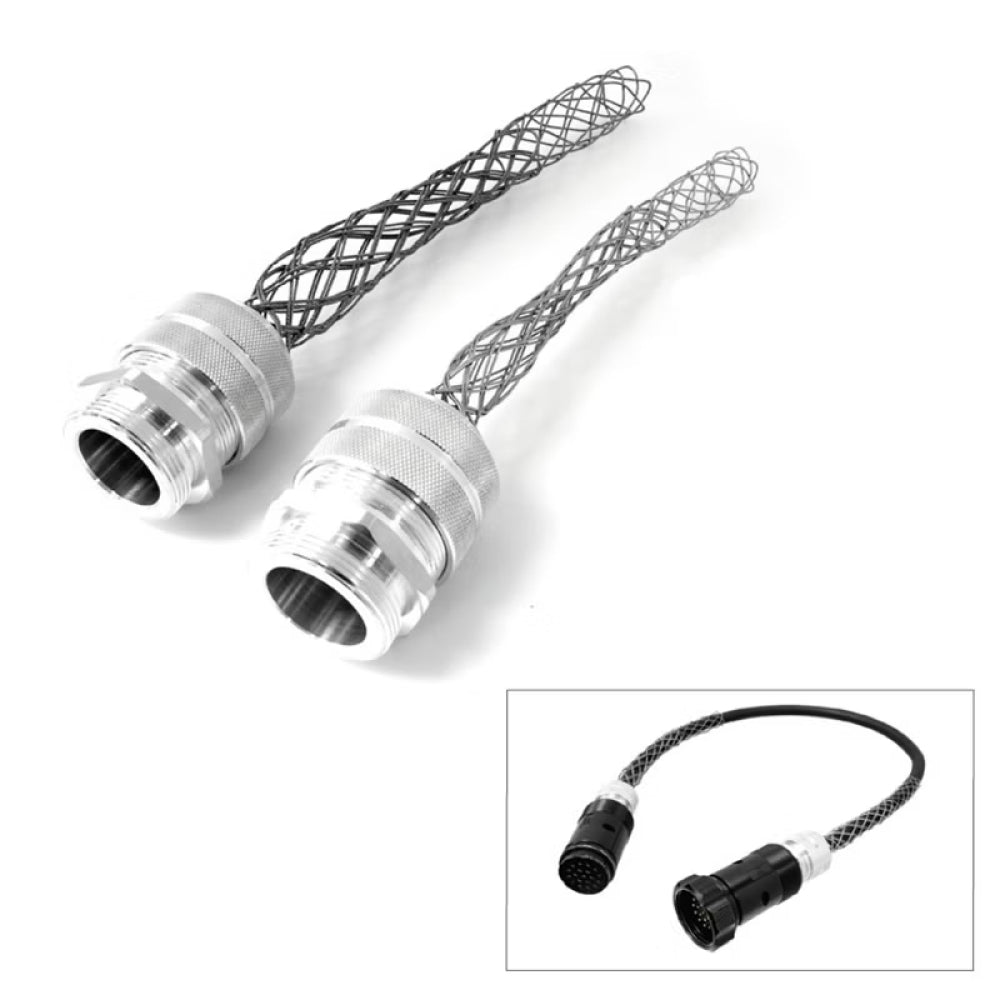

The KUPO PLS-CG21 PLS Cable Grip is designed for KUPO PG29 thread 19-pin connectors where the cable entry needs more control than a simple gland can provide. Its stainless steel wire mesh weave, aluminum alloy fittings, and neoprene bushing help protect the cable entry from pull-out, vibration, flexure, and motion.
Why It Matters
This 21 mm version is matched to 18 C x 2.5 mm² cable, giving heavier multicore assemblies the correct grip size. On touring and rental 19-pin cables, the connector shell is only part of the reliability story; the cable entry also needs to resist repeated handling, coiling, hanging, and strain.
Key Features
- Sized for 18 C x 2.5 mm² cable or O.D. 21 mm
- Stainless steel wire mesh weave controls cable movement
- Aluminum alloy fittings aid installation and corrosion resistance
- Neoprene bushing provides watertight and dustproof sealing
- Compatible with PG29 PLS 19-pin connector housings
Applications
PLS-CG21 is suited to PLS 19-pin cable assemblies, service builds, rental-house repairs, touring looms, and cable entries where tension, vibration, flexure, or motion could stress the connector termination.
Compatibility
Use PLS-CG21 with PLS 19-pin series connectors using PG29 thread and cable size 18 C x 2.5 mm² / O.D. 21 mm.
