Overview

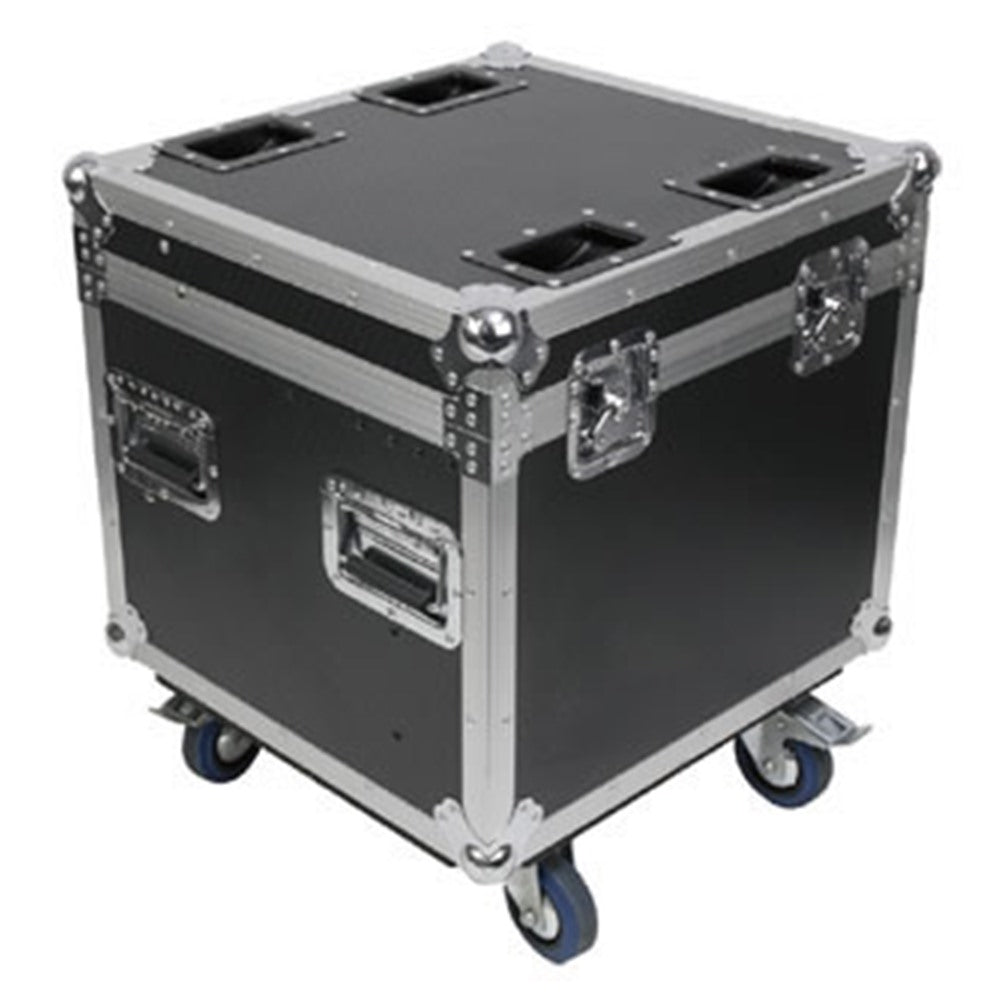

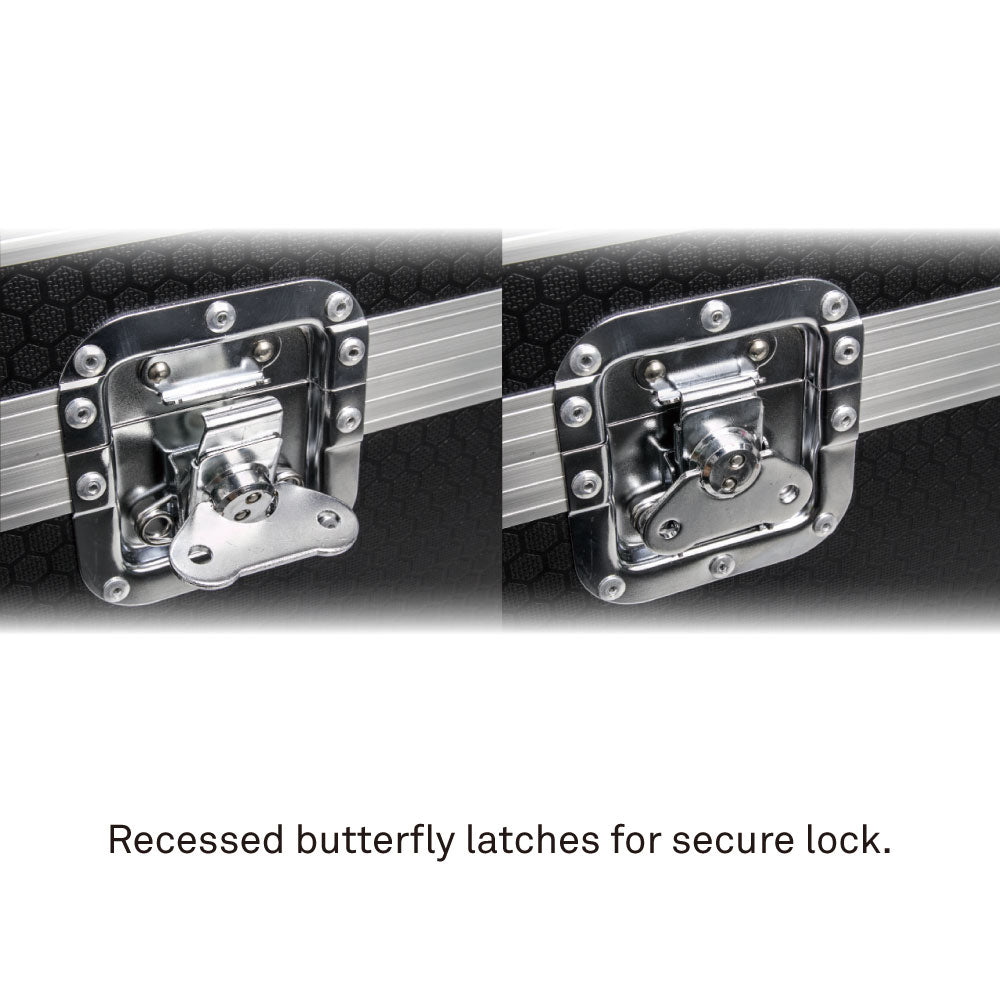

The KUPO RH-1000-1 W is a flight case for RH-1000 and RH-500 chain hoists, built to protect hoist bodies, chain, and power cable during touring transport. It uses robust 10 mm plywood construction, a stackable design, butterfly latches, spring-loaded handles, and four castors, including two with brakes.

Why It Matters

Chain hoists spend much of their life moving between trucks, venues, and storage rooms. A fitted flight case keeps the hoist from sliding around loose, gives the chain and cable their own space, and helps crews move heavy motor inventory faster during load-in and load-out.

Key Features

• 10 mm plywood construction gives the case a durable touring shell.

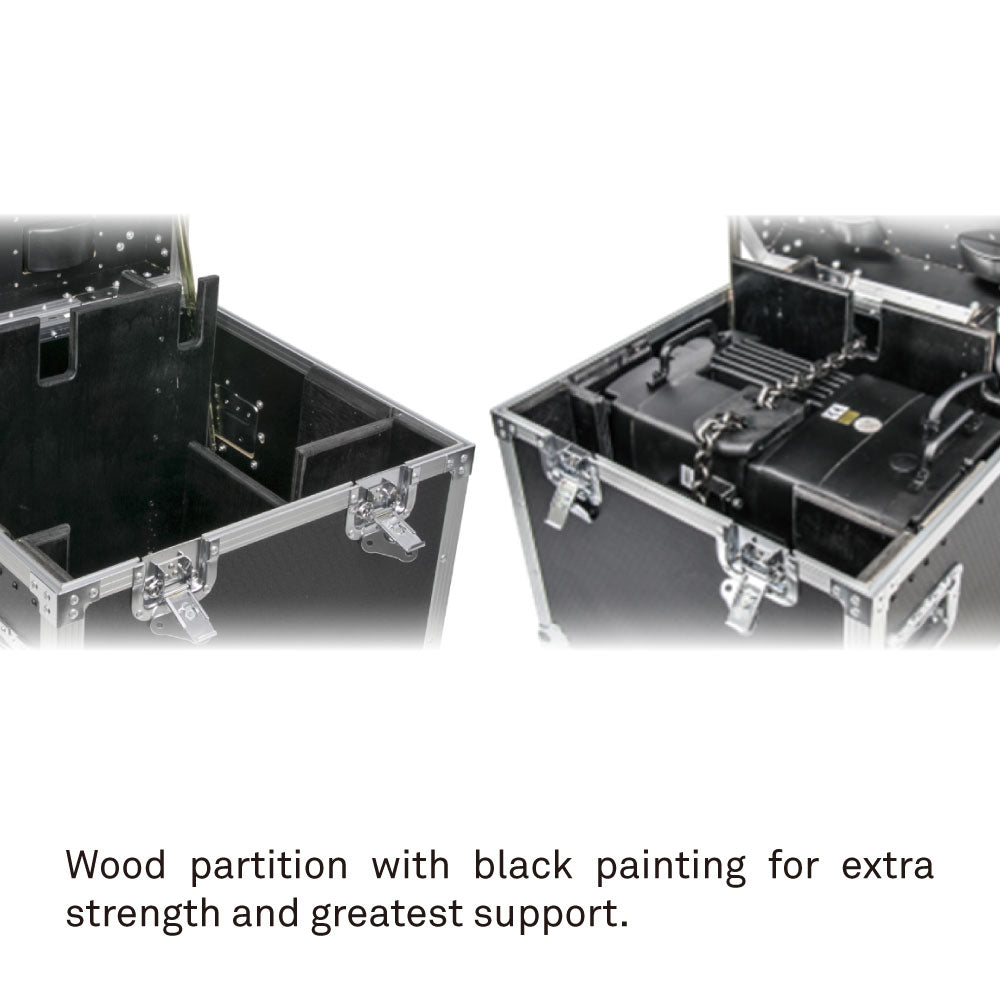

• Internal layout holds the chain hoist firmly with compartment space for chain and power cable.
• Stackable case format saves storage space in trucks and warehouses.

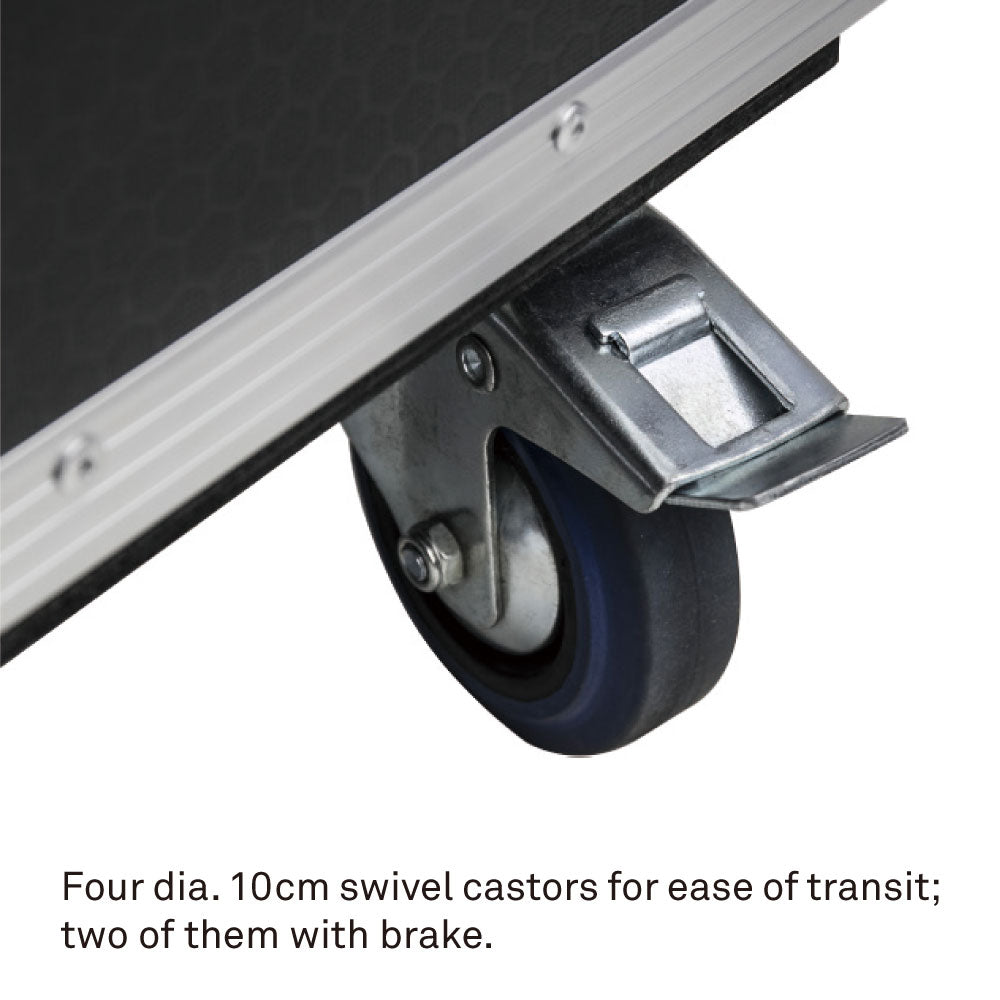

• Four castors, two with brakes, make loaded hoists easier to move around the venue.

Additional Technical Notes

• Chain Fall: 1
• Brake: Spring-loaded heavy-duty DC brake
• Friction Clutch: Yes, for overload protection
• Working Noise: 75 dB(A) at 1 m
• Dimensions: A 600, B 156, C 23, D 247, F 221, H 33, I 33, J 105, M 30 mm
• Motor Isolation Class: F
• Load Wheel: 5-pocket chain sprocket
• Suspension: 360° turnable hook suspension with safety latch
• Chain Link Weight: 0.89 kg per meter

Applications

Use for touring storage, venue inventory, truck pack, motor room organization, and protected transport of compatible RH-1000 and RH-500 chain hoists.

Compatibility

Designed for RH-1000 and RH-500 chain hoists with a standard compartment for 20 m chain. Customized size is available upon request for longer chain.
