Overview

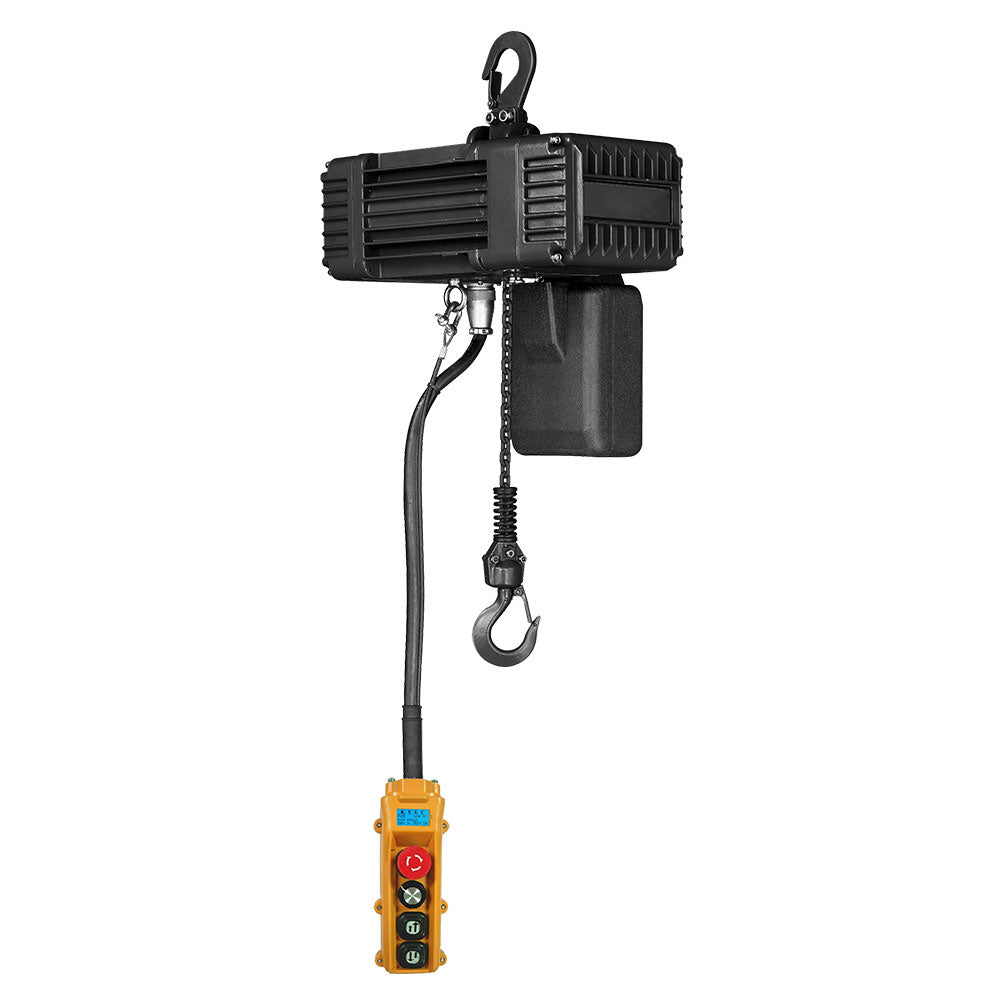

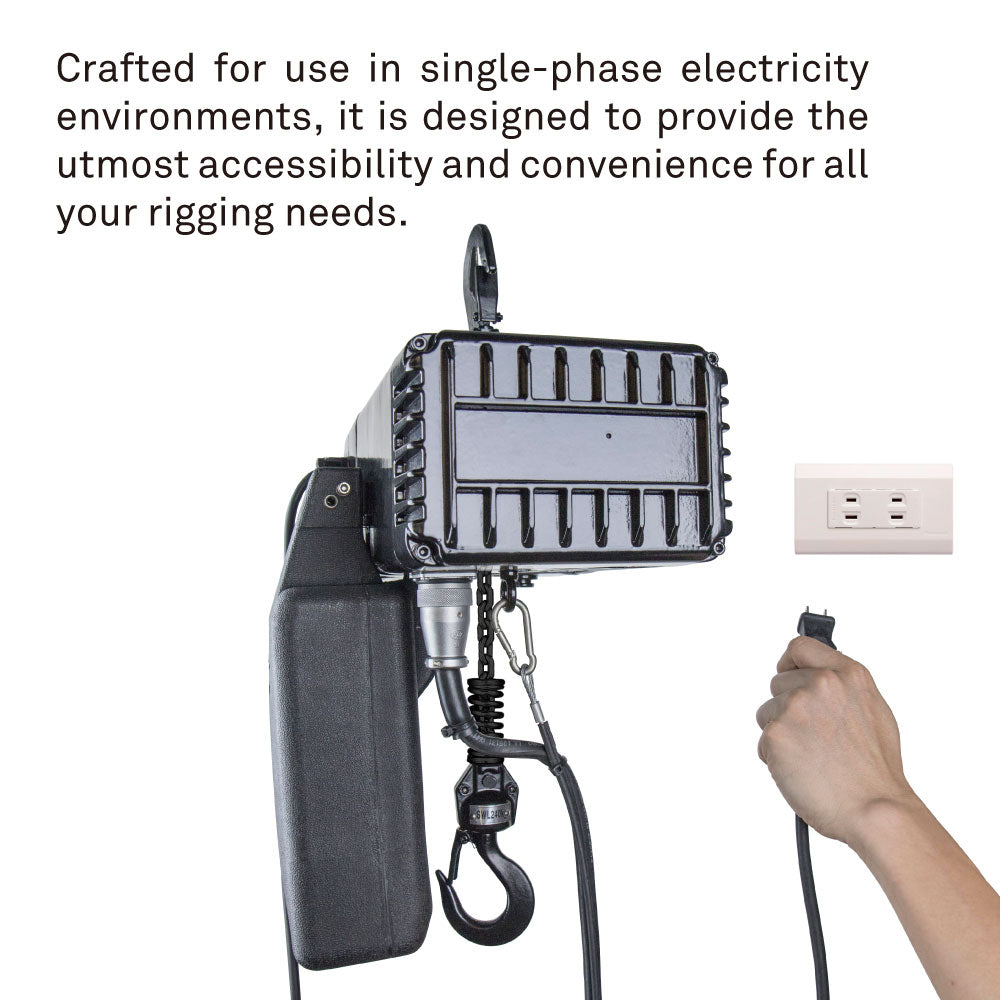

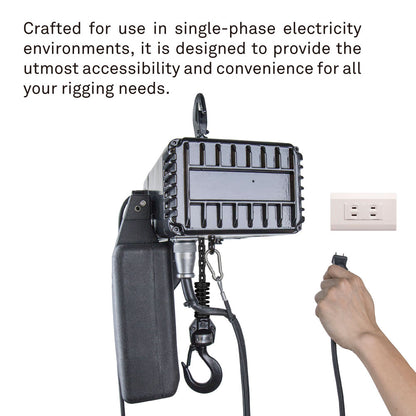

The KUPO RH-SP24 is a 240 kg single-phase brushless DC chain hoist with pendant control. It runs from AC 90-270 V single-phase power, uses a 600 W 8-pole permanent magnet brushless DC motor, and provides slow speed control from 1.25 to 3.2 m/min plus full speed at 12.5 m/min.
Why It Matters
This model is useful when a compact hoist needs to travel without three-phase infrastructure. The pendant keeps control local, while the IP 55 rating, mechanical ratchet load brake, and 4.0 x 12 mm Grade 80 chain make it a practical small hoist for production work.
Key Features
- 240 kg capacity and 1.25-3.2 m/min slow, 12.5 m/min full lifting speed match the intended rigging workload.
- Grade 80, 4.0 x 12 mm, EN 818-7 compliant load chain gives the hoist the correct chain size and pitch for its lift wheel.
- Mechanical ratchet load brake provides the primary holding action when power is removed or a fault occurs.

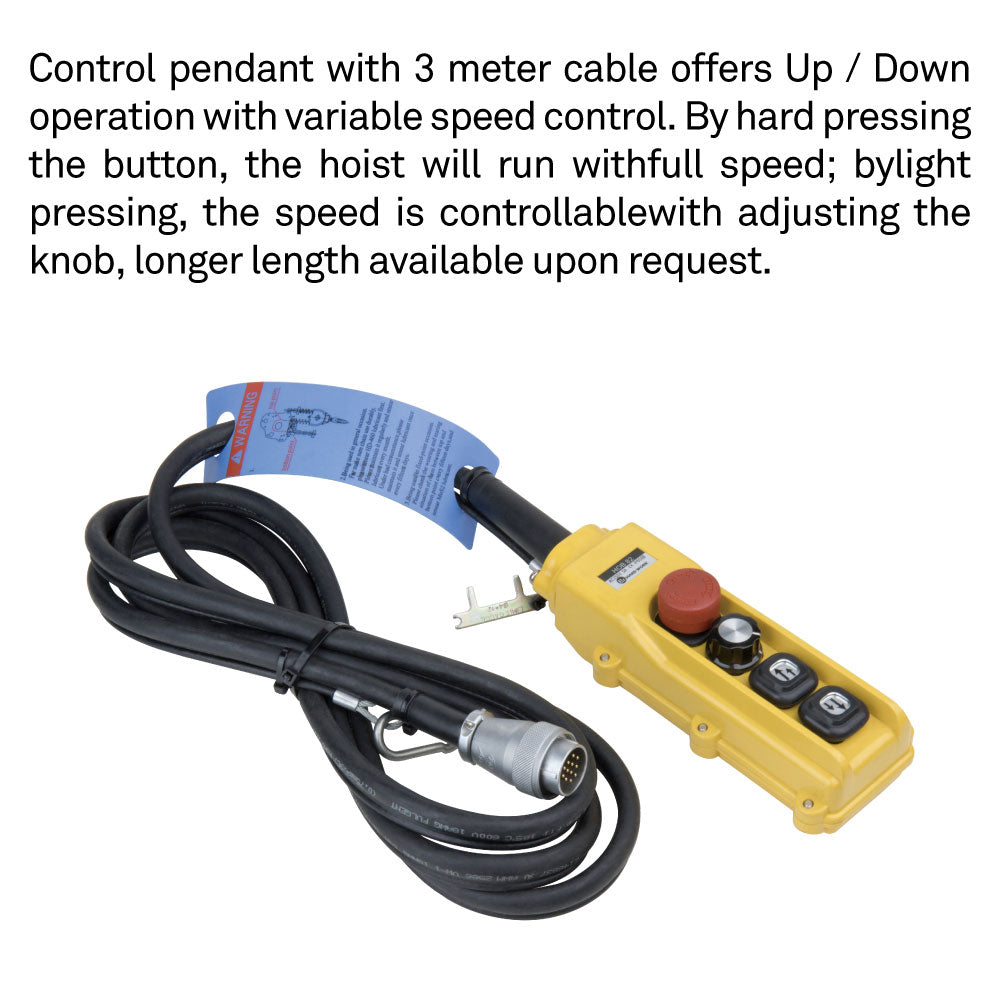

- Pendant control keeps the operator connected directly to the hoist during setup keeps the operator workflow clear for this control version.
Performance & Safety
RH-SP24 is the lighter single-phase brushless DC hoist with pendant control and variable slow/full speed behavior.
- Safe working load: 240 kg.
- Lift speed: 1.25-3.2 m/min slow, 12.5 m/min full.
- Motor: Permanent magnet brushless DC, 600 W, 8-pole.
- Duty cycle: ED 30 % or 180 starts per hour.
- Compliance: EN 818-7 load chain specification.
- Degree of protection: IP 55.
Applications
Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic pieces, broadcast stages, venue installs, and professional overhead lifting where the hoist rating matches the rigging plan.
Compatibility
Use where a 240 kg single-phase pendant-controlled chain hoist is appropriate and the lift request defines the pendant cable length.
Additional Technical Notes
- Power Cable: Pendant control cable length according to lift request
- Chain Fall: 1
- Brake: Mechanical ratchet load brake

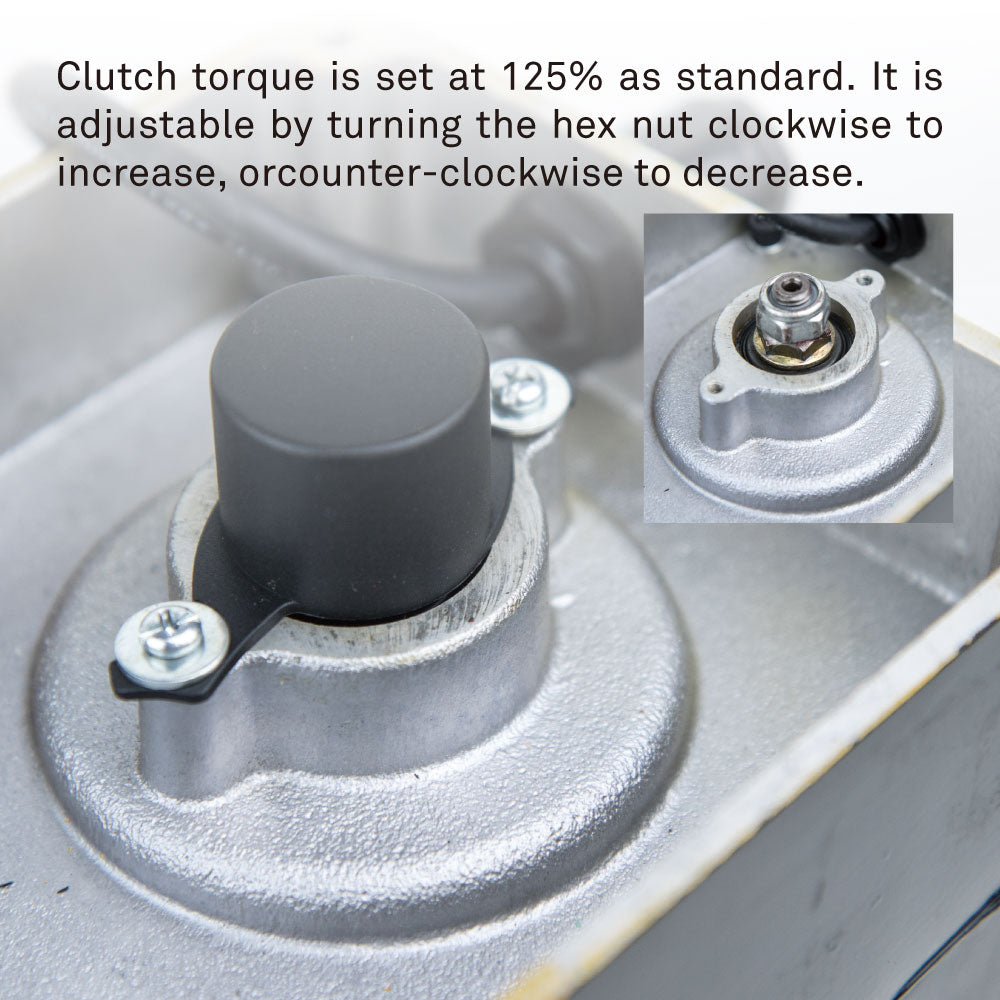

- Friction Clutch: Integrated with brake, set at 125 % and adjustable via hex nut
- Working Noise: ≤75 dB

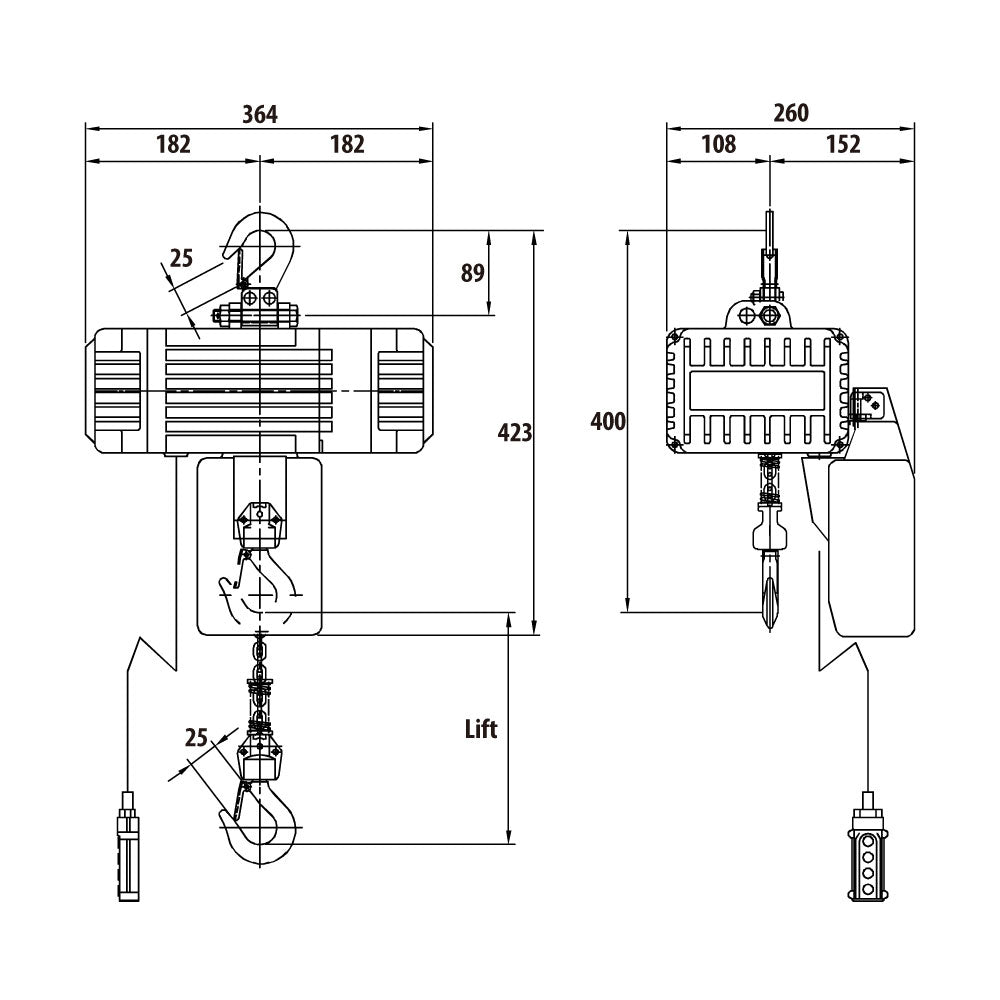

- Dimensions: A 364, B 182, C 25, D 84, F 176, H 423, I 260 mm
- Motor Isolation Class: F
- Load Wheel: 5-pocket chain sprocket
- Suspension: 360° turnable hook suspension with safety latch
- Chain Link Weight: 0.35 kg per meter
Frequently Asked Questions
Is this model for direct control or central controller operation?
RH-SP24 uses pendant control, not a wireless remote.
How is this different from the nearest sister model?
Compared with RH-SP24W, this version uses a pendant instead of wireless remote control.
Can I swap to a different load chain size?
No. Use the specified Grade 80 EN 818-7 load chain size for the hoist. Chain diameter, pitch, and load wheel geometry must match the hoist design.
