Overview

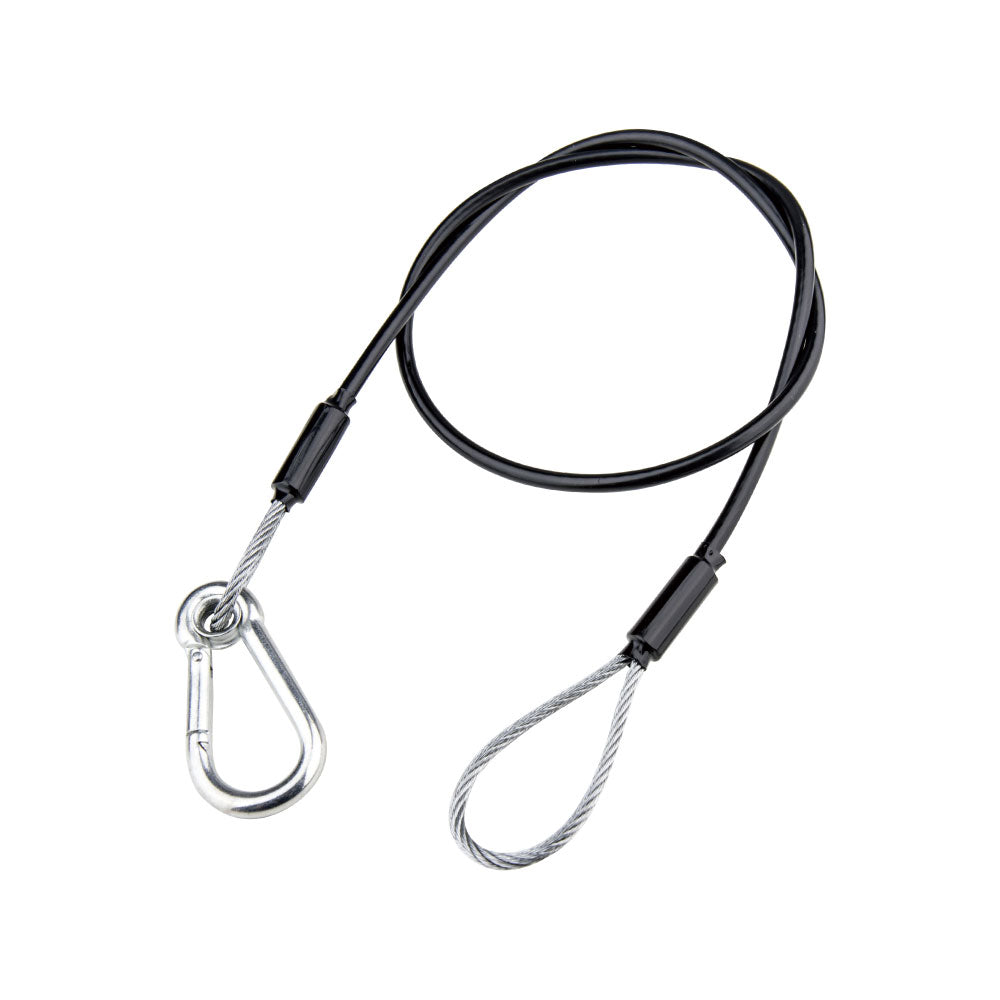

The KUPO SW-04 is a black PVC-jacketed safety wire for low-profile secondary fixture safety. It uses 3.2 mm diameter 7 x 19 wire with a 4.5 mm outer PVC jacket and carries a 10 kg working load limit.

Why It Matters

On dark fixtures and stage hardware, safety equipment still needs to be visible to inspectors but quiet to the audience. SW-04 provides the required static secondary safety function in a black jacket that sits more discreetly in the rig.

Key Features

• 10 kg working load limit for static secondary safety use
• 3.2 mm diameter 7 x 19 wire provides the core safety wire construction
• 4.5 mm outer diameter includes the black PVC jacket

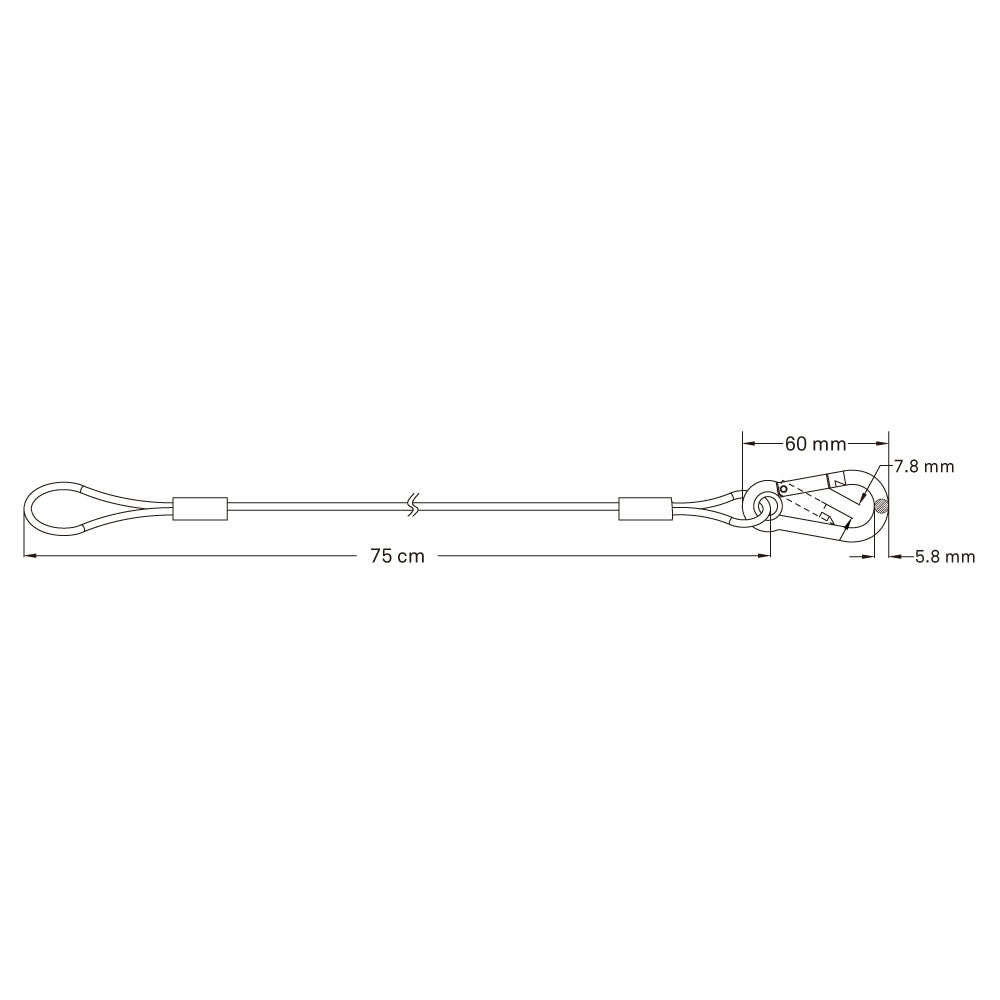

• 75 cm length suits compact fixture safety paths
• Black jacket helps the wire blend with dark lighting equipment and stage hardware
• Steel wire rope conforms to EN 12385-4.

Applications

Use it as a secondary safety wire for static fixtures in theatres, studios, venues, and stage environments where a black, less-visible safety wire is preferred.

Compatibility

For securing static equipment only. It is not for lifting or hoisting.
