Overview

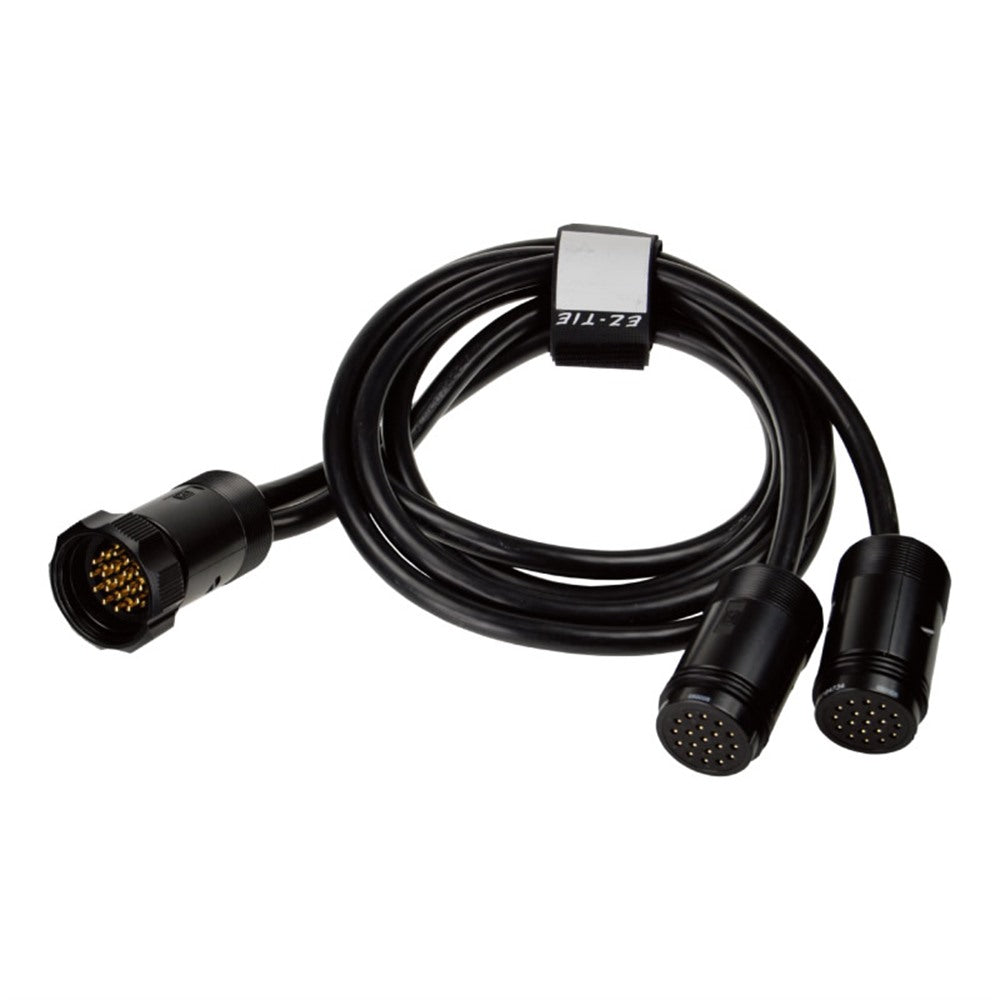

The KUPO TF18/1.5-2 is a 19-pin multicore two-fer assembly that takes one PLS-5219LM 19-pin input and fans it out to two PLS-5219LF outputs. Built for portable entertainment rigs, it lets one six-circuit feed serve two lighting bars or adjacent rigging positions without building an improvised split on site.

Why It Matters

The 2 mm length gives crews more reach when the two receiving positions are separated or when the split needs to route around hardware. The multicore cable uses stranded class 5 copper conductors with PVC insulation and a self-extinguishing flame-retardant jacket, so the split remains manageable through load-in, load-out, and repeated handling.

Key Features

• 18 C x 1.5 mm² multicore two-fer assembly
• 2 mm length with 1 x PLS-5219LM input and 2 x PLS-5219LF outputs
• Splits one 19-pin input into two 19-pin outputs for parallel circuit distribution
• PVC insulation and self-extinguishing flame-retardant outer jacket
• Rated 300/500 V with -15 to 70 °C working temperature

Applications

TF18/1.5-2 is suited to sharing a six-circuit feed between two lighting bars, adjacent truss positions, stage multicore layouts, rental packages, and touring systems using Socapex-style 19-pin connectors.

Compatibility

Use TF18/1.5-2 with compatible PLS-5219 / Socapex 419 / Veam VSC style 19-pin systems and circuit plans that allow one input to feed two outputs safely within system limits.
