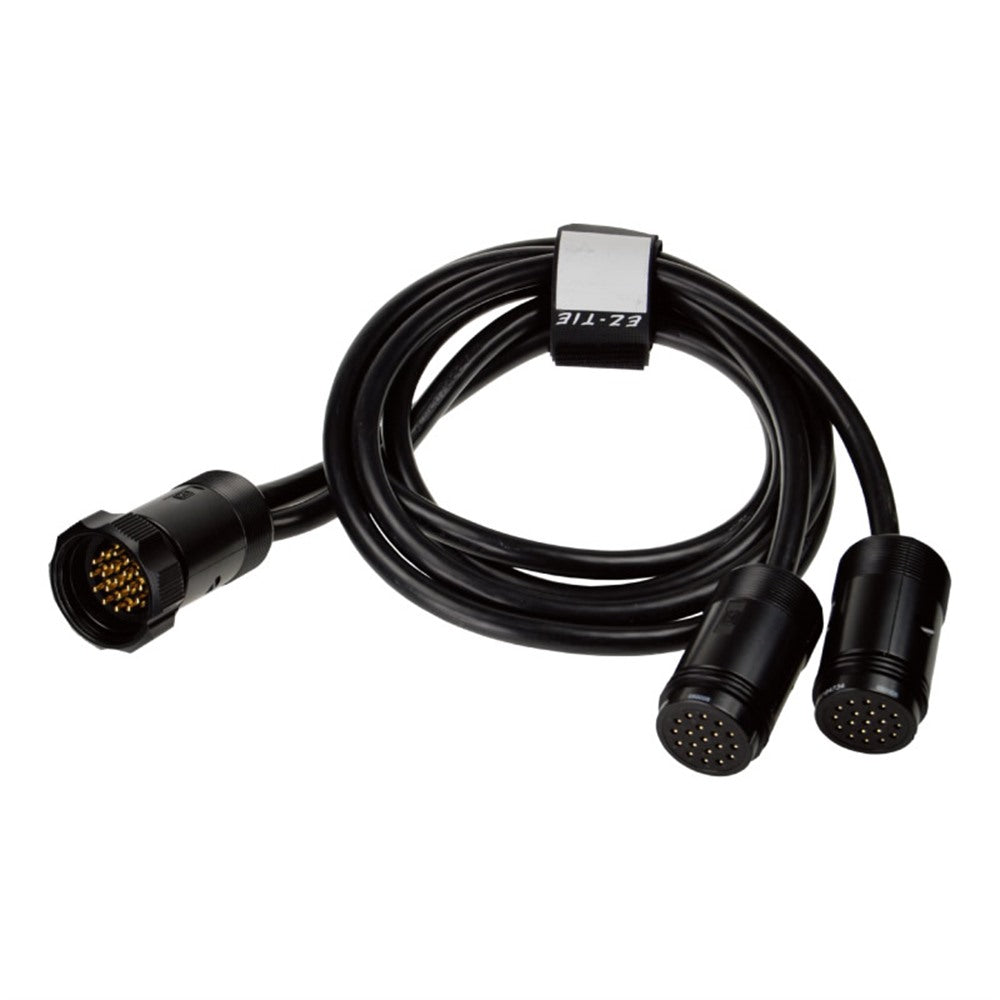

The KUPO TF18/2.5-1 is a 19-pin multicore two-fer assembly that takes one PLS-5219LM 19-pin input and fans it out to two PLS-5219LF outputs. Built for portable entertainment rigs, it lets one six-circuit feed serve two lighting bars or adjacent rigging positions without building an improvised split on site.
Why It Matters
The 1 mm 2.5 mm² version keeps the heavier break-out compact when the two output positions are close to the input. The multicore cable uses stranded class 5 copper conductors with PVC insulation and a self-extinguishing flame-retardant jacket, so the split remains manageable through load-in, load-out, and repeated handling.
Key Features
18 C x 2.5 mm² multicore two-fer assembly
1 mm length with 1 x PLS-5219LM input and 2 x PLS-5219LF outputs
Splits one 19-pin input into two 19-pin outputs for parallel circuit distribution
PVC insulation and self-extinguishing flame-retardant outer jacket
Rated 300/500 V with -15 to 70 °C working temperature
Applications
TF18/2.5-1 is suited to sharing a six-circuit feed between two lighting bars, adjacent truss positions, stage multicore layouts, rental packages, and touring systems using Socapex-style 19-pin connectors.
Compatibility
Use TF18/2.5-1 with compatible PLS-5219 / Socapex 419 / Veam VSC style 19-pin systems and circuit plans that allow one input to feed two outputs safely within system limits.
Frequently Asked Questions
What does TF18/2.5-1 split?
It splits one 19-pin input into two 19-pin outputs for parallel circuit distribution.
What connectors are fitted?
The assembly uses one PLS-5219LM input and two PLS-5219LF outputs.
How is this 2.5 mm² version typically chosen?
The 2.5 mm² version is built on the KHPC18x2.5 base cable for heavier six-circuit multicore use.
