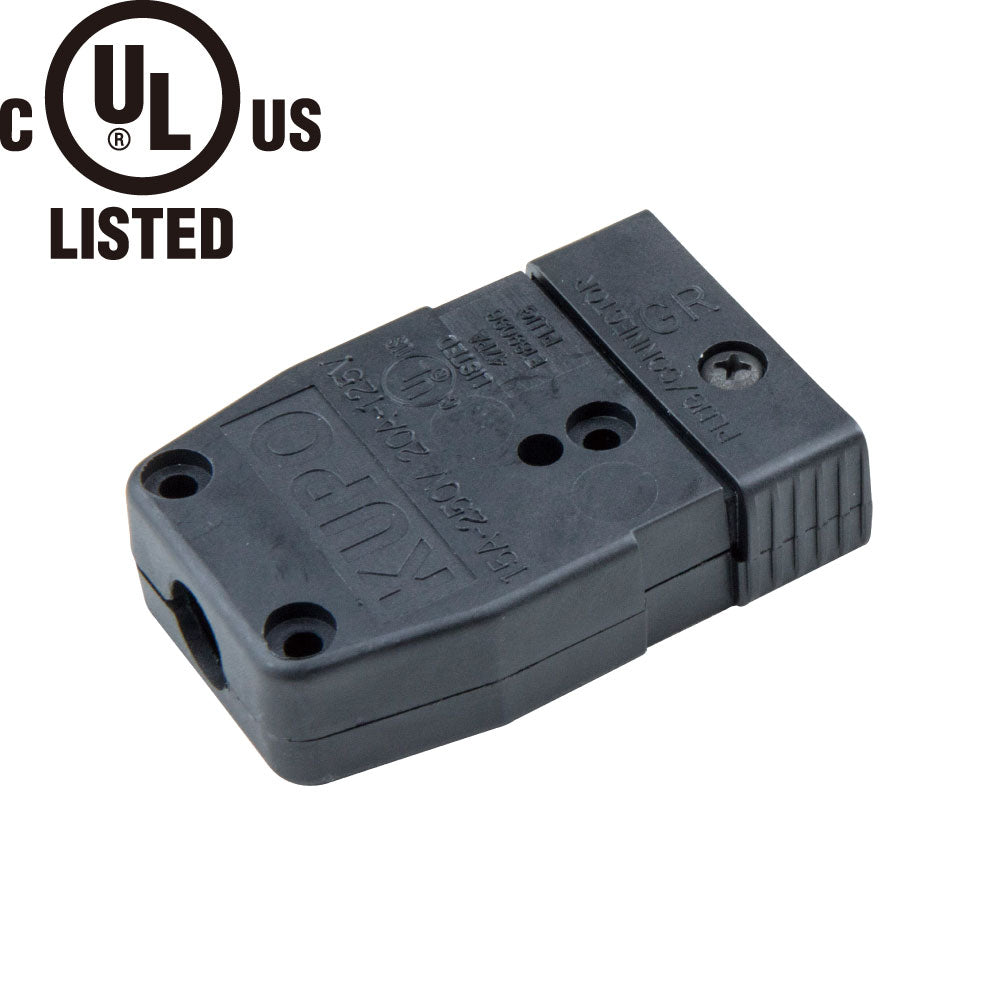

The KUPO TSP-20LF is the inline female connector in the TSP-20 stage pin family. It is built for entertainment power applications where connectors are handled often, wired in the shop, repaired in the field, and expected to mate cleanly with standard 20 A stage pin systems.
Why It Matters
The female side has spring-loaded split sleeves that maintain pressure on the male pin, even when a mating pin has seen real-world wear. Combined with crimpless pressure terminals and clearly marked NEC-standard terminals, the connector is designed to make wiring and long-term service less fussy.
Key Features
20 A inline female stage pin connector
High-temperature thermoplastic body rated up to 250 °C
Crimpless pressure terminal eliminates ring terminals
Solid brass contacts with spring-loaded split female sleeves
Accepts standard 12/3 hard-service cable and is compatible with standard 20 A stage pin connectors
Applications
TSP-20LF is suited to theatre power cables, stage pin extension builds, fixture tails, rental-house repairs, touring cable service, and entertainment power systems using standard 20 A stage pin connectors.
Compatibility
Use TSP-20LF with standard 20 A stage pin connectors and properly rated 12/3 hard-service cable. Follow NEC-standard terminal markings and applicable electrical practice when wiring.
Frequently Asked Questions
Is TSP-20LF the female or male stage pin connector?
TSP-20LF is the inline female version.
Does it need ring terminals?
No. The crimpless pressure terminal design eliminates the need for ring terminals.
What cable entry is it sized for?
The specification lists cable entry for standard 12/3 hard-service cable.
