Overview

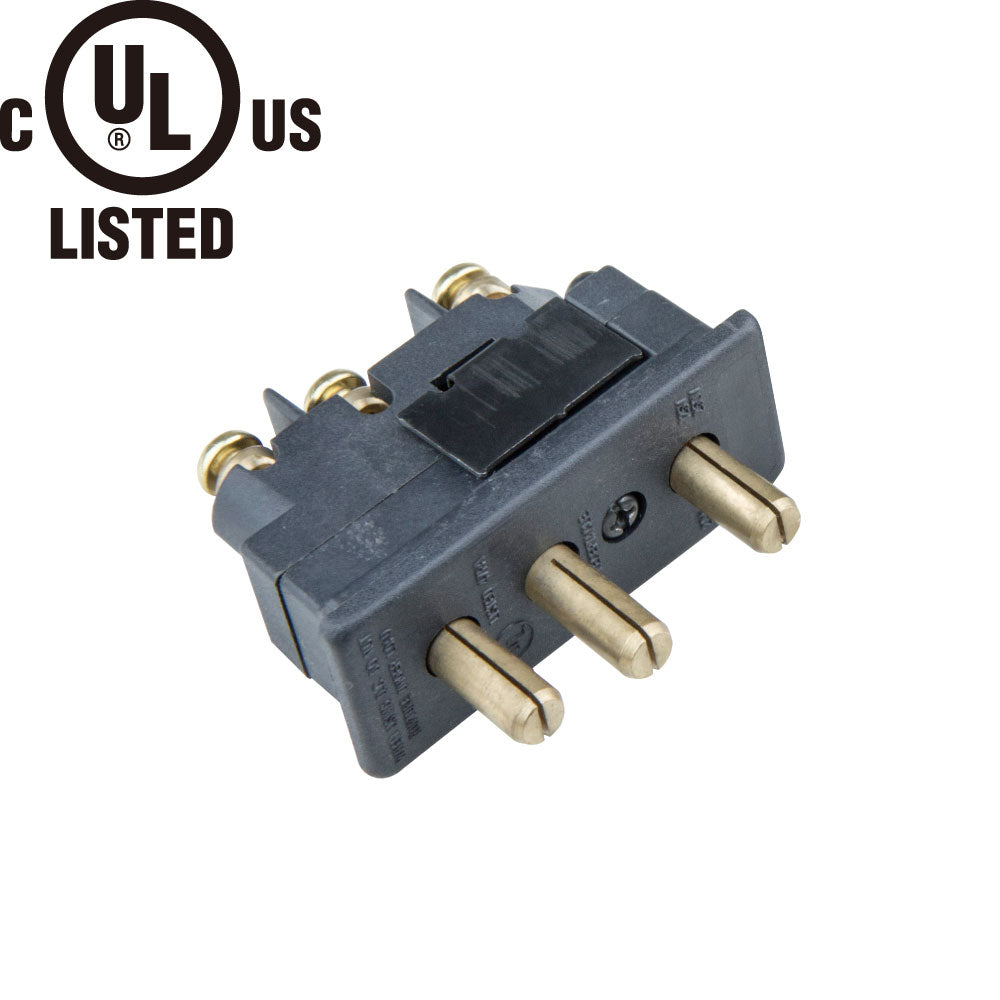

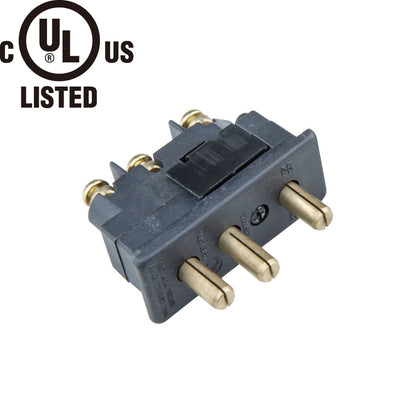

The KUPO TSP-20SM is a 20 A stage pin connector made for entertainment power systems that get handled, patched, repaired, and re-used. Its thermoplastic body resists melting and breakdown up to 250 °C, while solid brass contacts keep the electrical path serviceable over time.
Why It Matters
This panel male version gives distribution panels and racks a 20 A male stage pin interface with flexible termination options. The housing is ergonomic for frequent handling, and the terminal markings follow NEC standards so wiring work is more straightforward in shop and field conditions.
Key Features

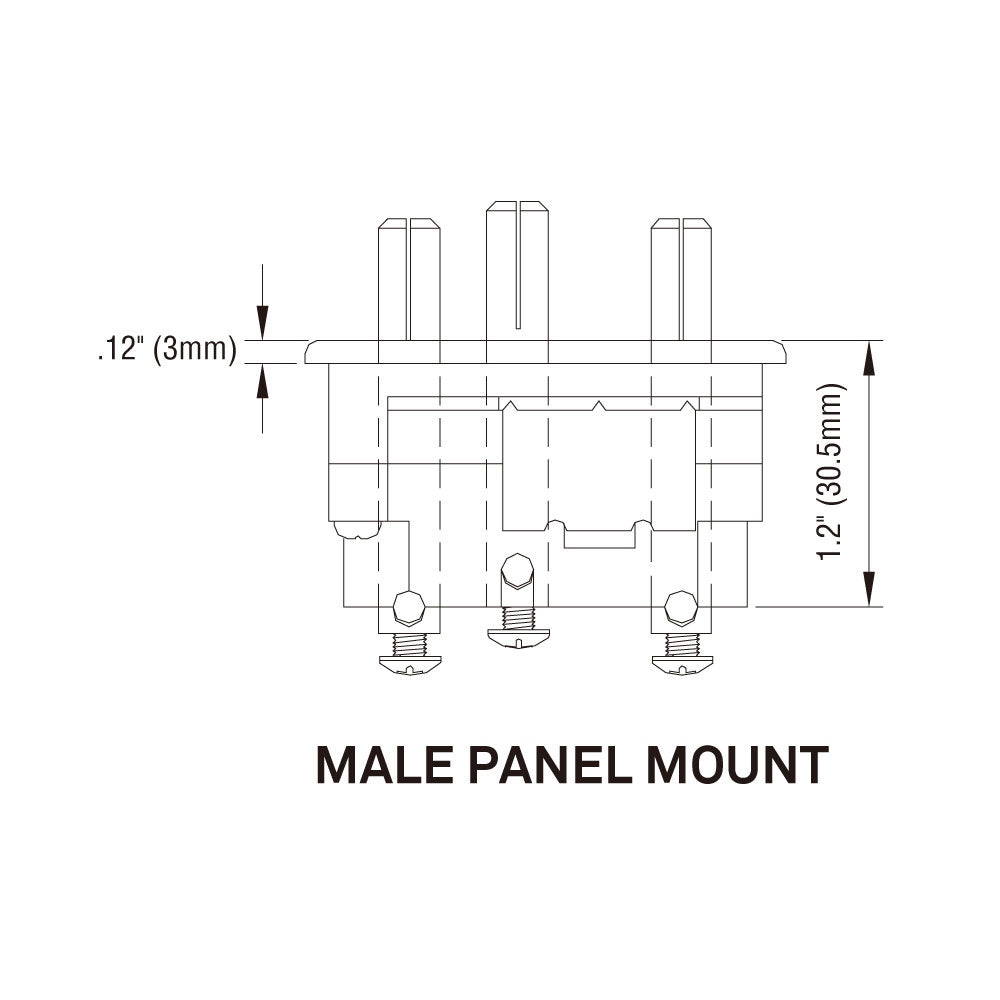

- 20 A panel-mount male stage pin connector
- Screw-driven mounting clip with self-grounding feature

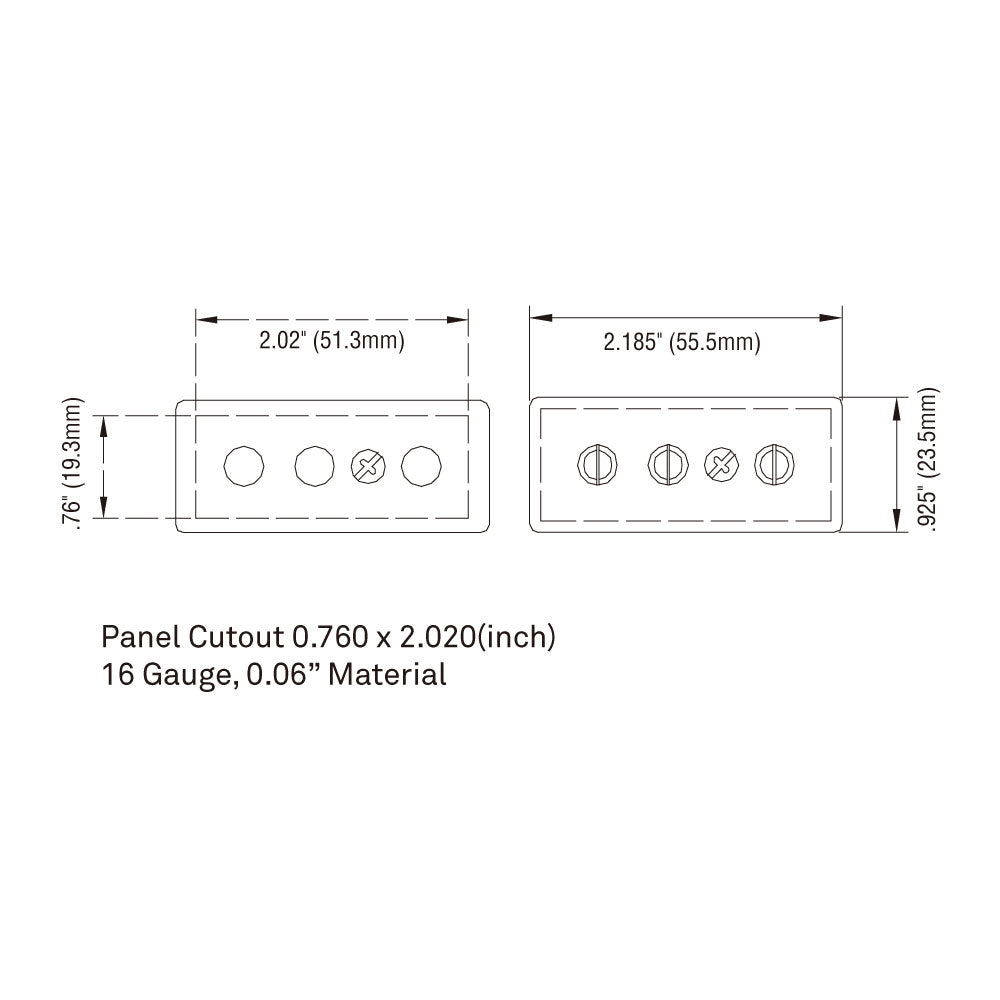

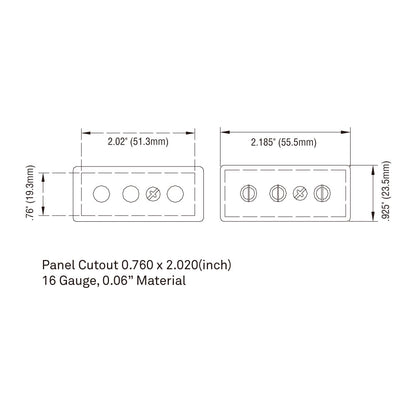

- Panel cutout 0.760 x 2.020" for 16 gauge / 0.06" panel material
- Pressure termination with included wire shoes or ring terminal support
- Precision-machined solid brass contacts
Applications
TSP-20SM is suited to theatre power, stage pin extension builds, fixture tails, distribution panels, AV racks, rental-house repairs, touring cable service, and entertainment power systems using standard 20 A stage pin connectors.
Compatibility
Use TSP-20SM with standard 20 A stage pin connectors and panels cut to 0.760 x 2.020" in 16 gauge / 0.06" material. Follow NEC-standard terminal markings and applicable electrical practice.
