The KUPO XLR3-SM-G is an industry-standard XLR connector for professional audio, video, and stage lighting applications. Its compact die-cast shell, fiberglass-reinforced insert, and gold-plated pins give cable and panel builds a durable connector with reliable conductivity and corrosion resistance.
Why It Matters
This panel male version gives equipment panels a 3-pin side connection for signal pass-through or fixture interfaces. The gold-plated contact finish is useful in professional signal paths where oxidation and inconsistent contact can become intermittent faults that waste time during setup or troubleshooting.
Key Features

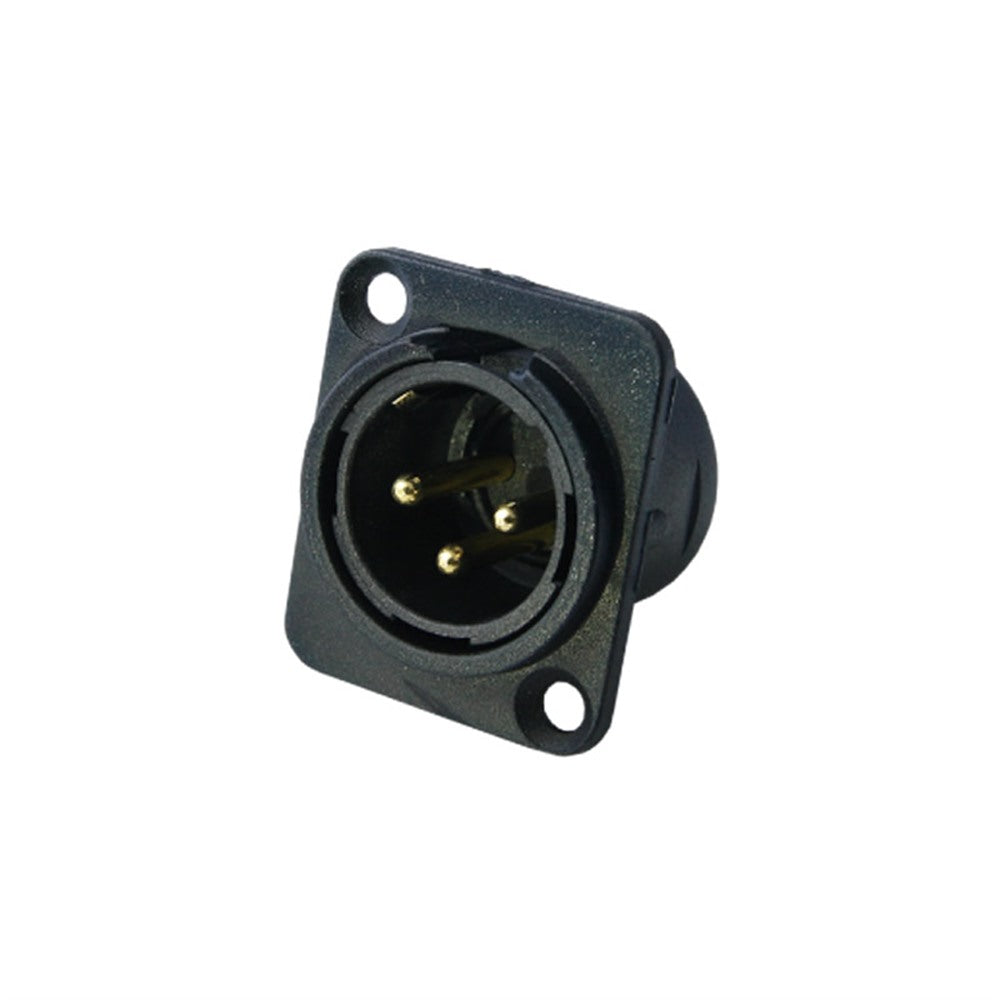

3-pin panel-mount male XLR connector
Gold-plated pins support conductivity, corrosion resistance, and long service life
Die-cast metal shell with fiberglass-reinforced insert

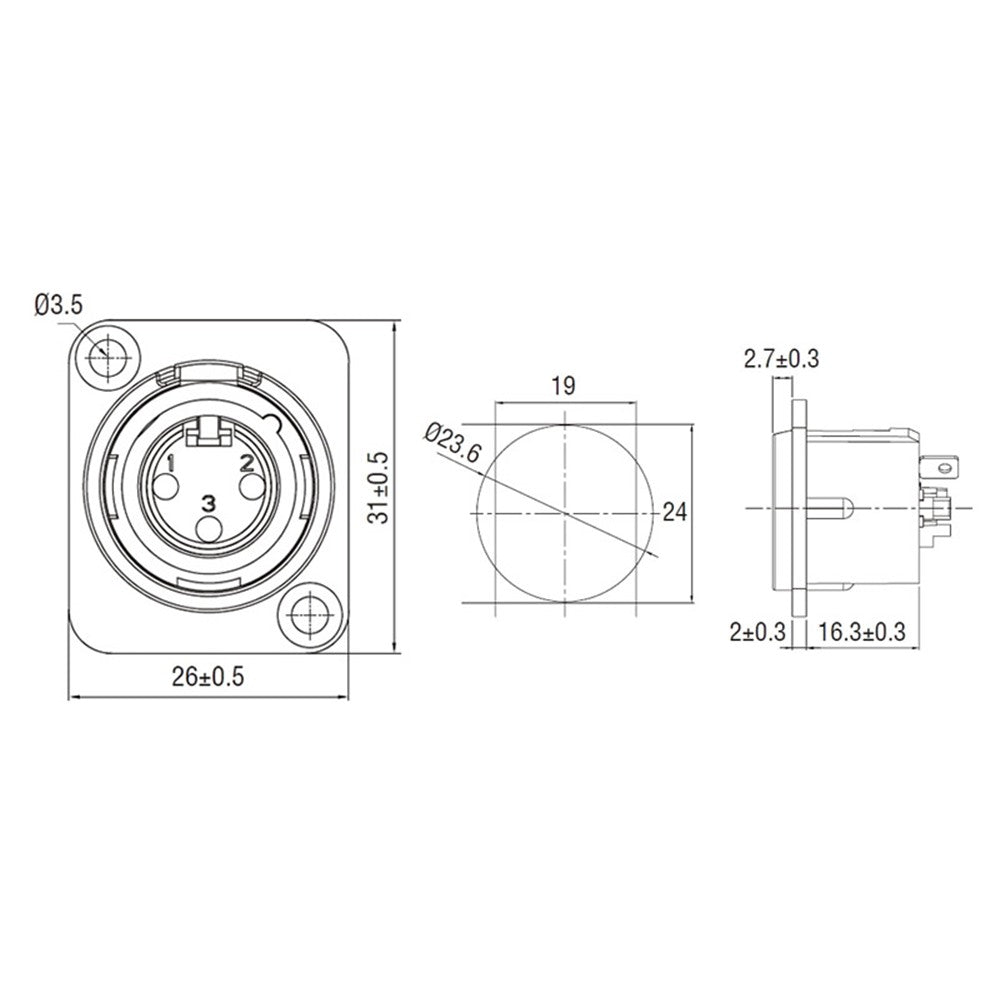

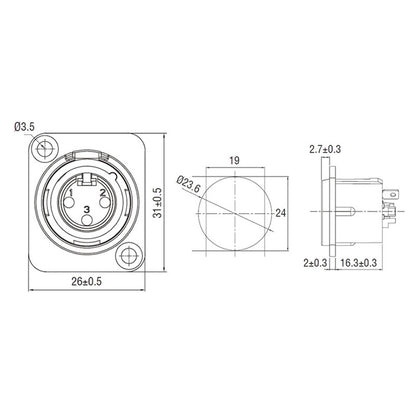

Mounting flange 26 x 31 mm with 3.5 mm fixing holes
Suitable for balanced audio, DMX512 lighting control, and low-voltage power applications
Applications
XLR3-SM-G is suited to balanced audio, intercom-style cabling, compact DMX512 adapters, low-voltage signal wiring, cable service, panel builds, and rental-house connector repairs.
Compatibility
Use XLR3-SM-G with matching 3-pin XLR connectors of the opposite polarity and the correct line or panel format for the build.
Frequently Asked Questions
Is XLR3-SM-G a 3-pin connector?
Yes. It is the 3-pin panel-mount male version.
Why use gold-plated pins?
Gold plating helps conductivity, corrosion resistance, and long service life in professional signal applications.
Can it be used for DMX512?
Yes. The specification lists DMX512 lighting control among the suitable applications.
