Overview

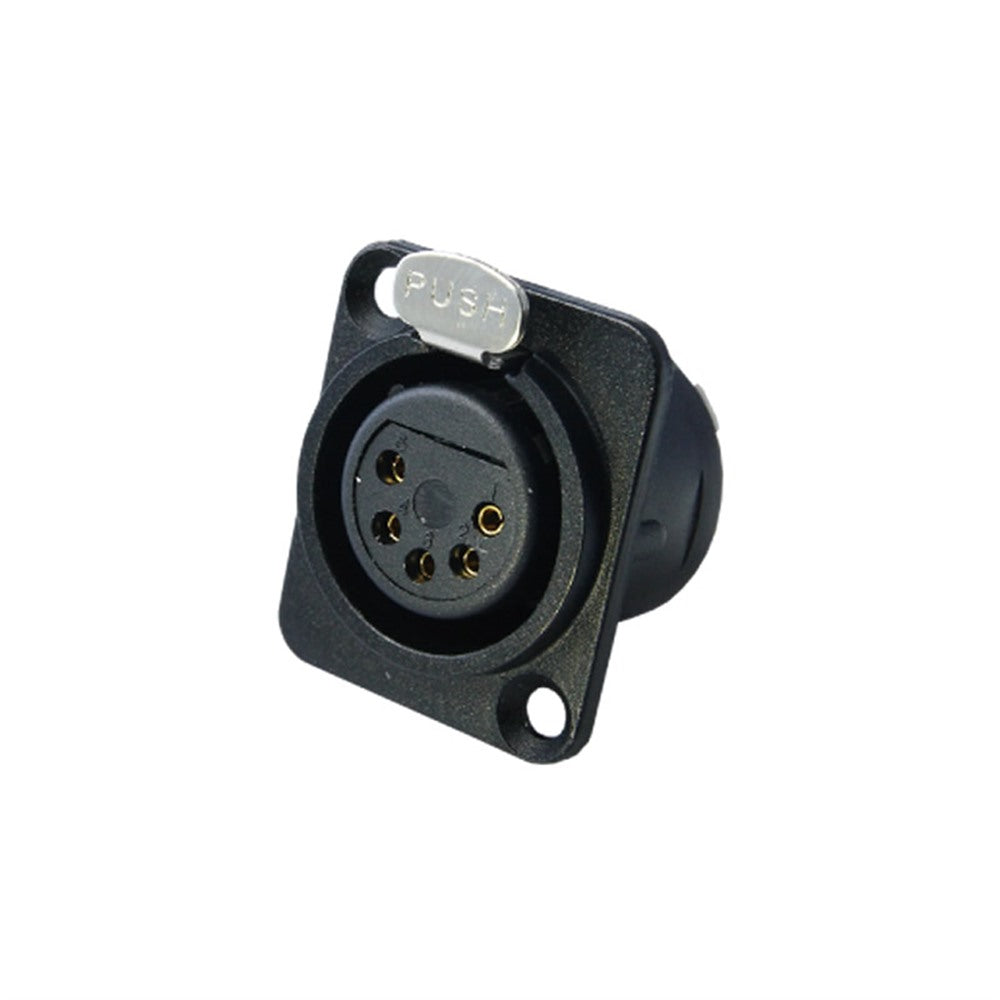

The KUPO XLR5-SF-G is a 5-pin panel-mount XLR connector for professional audio, video, and stage lighting applications. Its die-cast metal shell, fiberglass-reinforced insert, and gold-plated pins give rack panels, fixture panels, and distribution boxes a compact connector with dependable signal contact.
Why It Matters
This panel female version gives a 5-pin socket interface to DMX panels, fixture backs, and distribution plates. In DMX512 and other low-voltage signal workflows, panel connectors are often touched less than cable ends but expected to survive more years of patching, case vibration, and shop service.
Key Features
- 5-pin panel-mount female XLR connector
- Gold-plated pins support conductivity, corrosion resistance, and long service life
- Die-cast metal shell with fiberglass-reinforced insert

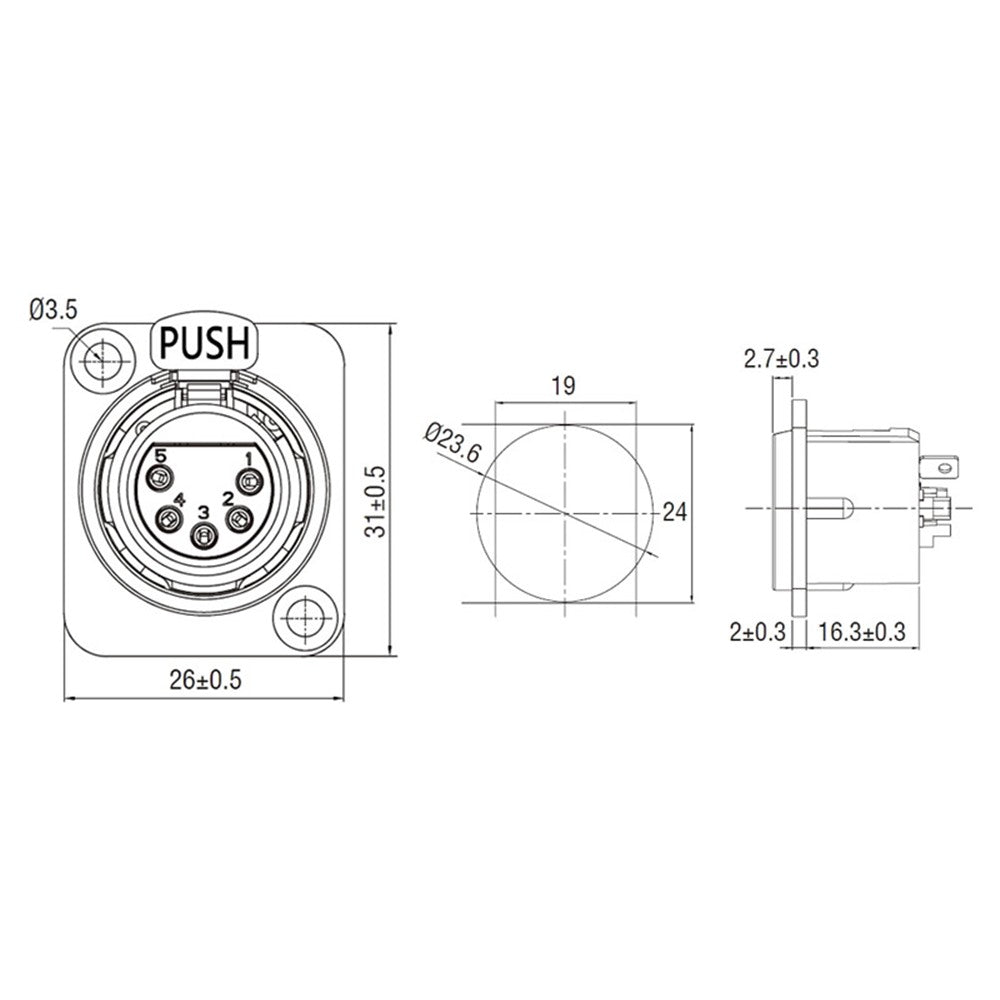

- Mounting flange 26 x 31 mm with 3.5 mm fixing holes
- Suitable for balanced audio, DMX512 lighting control, and low-voltage power applications
Applications
XLR5-SF-G is suited to DMX512 panels, lighting control boxes, rack plates, fixture interfaces, low-voltage signal panels, rental-house repairs, and stage or studio builds that need a 5-pin XLR panel connector.
Compatibility
Use XLR5-SF-G with matching 5-pin XLR connectors of the opposite polarity and panel hardware that matches the 26 x 31 mm mounting flange and 3.5 mm fixing holes.
