Overview

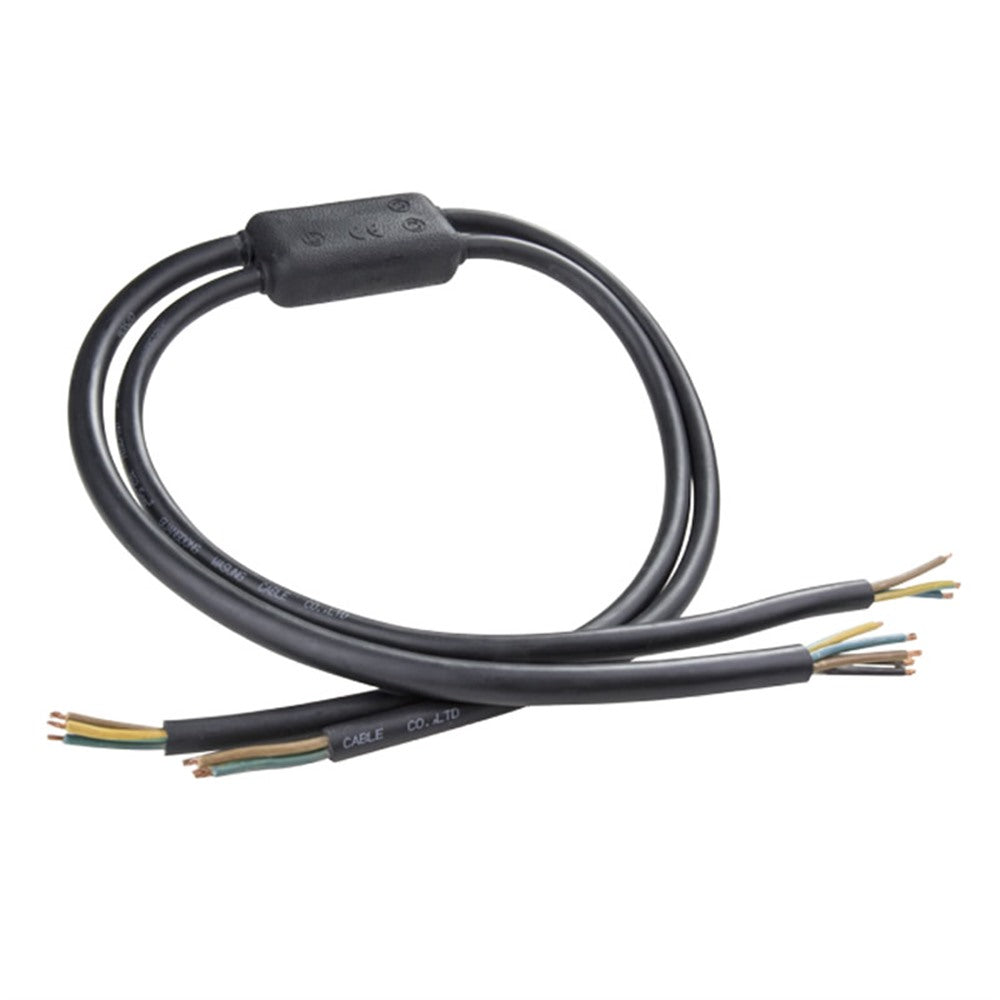

Kupo Y-Splitters are constructed by PVC injection-molding core offering great tensile force and rubber molding cover with excellent impactabsorbency. The mold-in extension is HO7RN-F rubber cables overall length 1 m with fire retardant and oil resistant specs; it is the standard extension cable in theatres. PVC is not suitable for extension leads as it melts easily and is not very flexible. Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly. This non-CEE version is supplied with unterminated wire leads and no connector.

Why It Matters

Splitter hardware must match the phase, wiring, and site power arrangement. YS-16331 gives crews a defined hard-wired Y-splitter option for distributing power without improvising the connection in the field.

Key Features

• 3-Phase Y Splitter, fan-out to three single phase, length 1 m
• Input cable: 5 x 2.5 mm² H07RN-F
• Output cable: 3 x 2.5 mm² H07RN-F
• End format: unterminated wire leads, no connector supplied

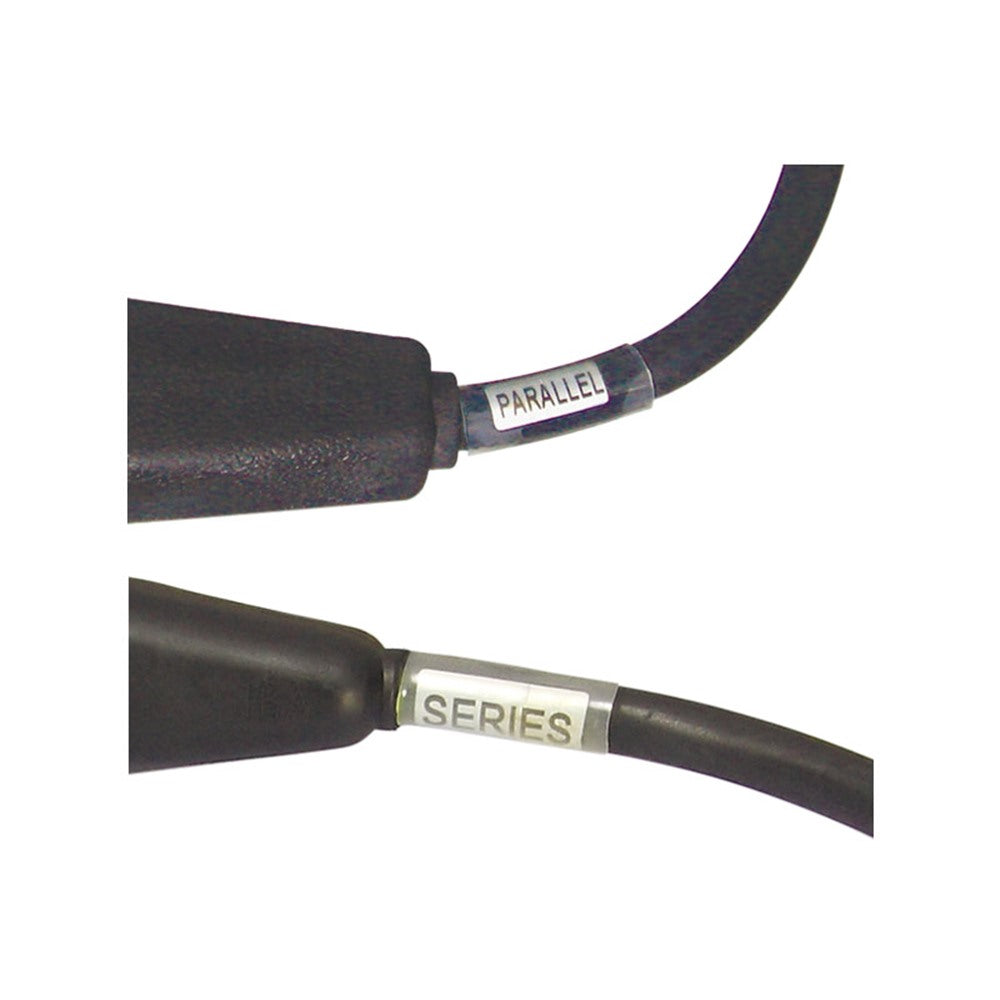

• Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.

Specifications

• 3-Phase Y Splitter, fan-out to three single phase, length 1 m
• Input cable: 5 x 2.5 mm² H07RN-F
• Output cable: 3 x 2.5 mm² H07RN-F
• End format: unterminated wire leads, no connector supplied
• Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.

Applications

Use it as part of a professional temporary power system where a hard-wired Y-splitter with clearly identified phase leads is required.

Compatibility

Use YS-16331 with three-phase feeds that need to fan out into three single-phase circuits using 5 x 2.5 mm² H07RN-F input cable and 3 x 2.5 mm² H07RN-F output cable. Check phase identification, wiring mode, upstream protection, and the current draw of each single-phase branch before connecting equipment.
