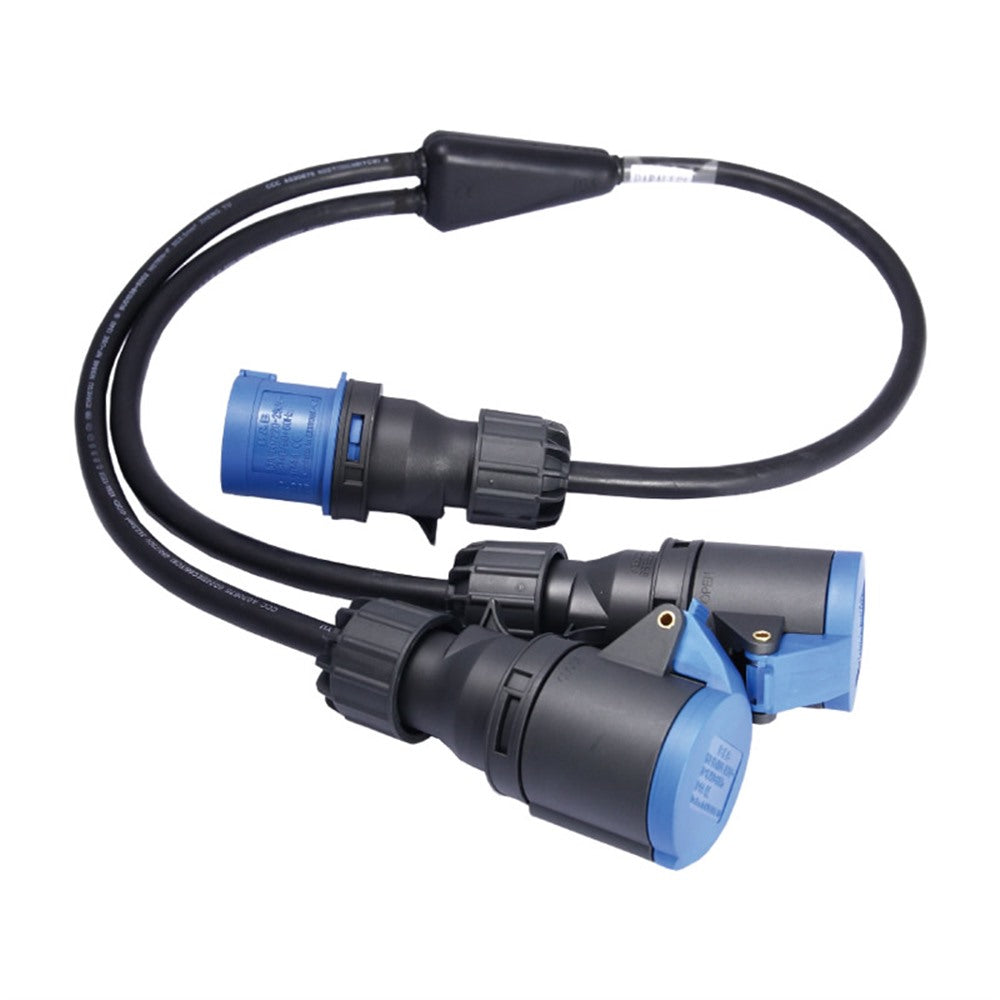

The KUPO YS-2.5-CEE Single Phase Y-Splitter is a theatrical stage lighting twofer built to connect two lighting instruments to one dimming channel without forcing multiple conductors into one connector. Its molded construction uses a PVC injection-molding inner core for tensile strength and a rubber outer cover for impact absorbency.
Why It Matters

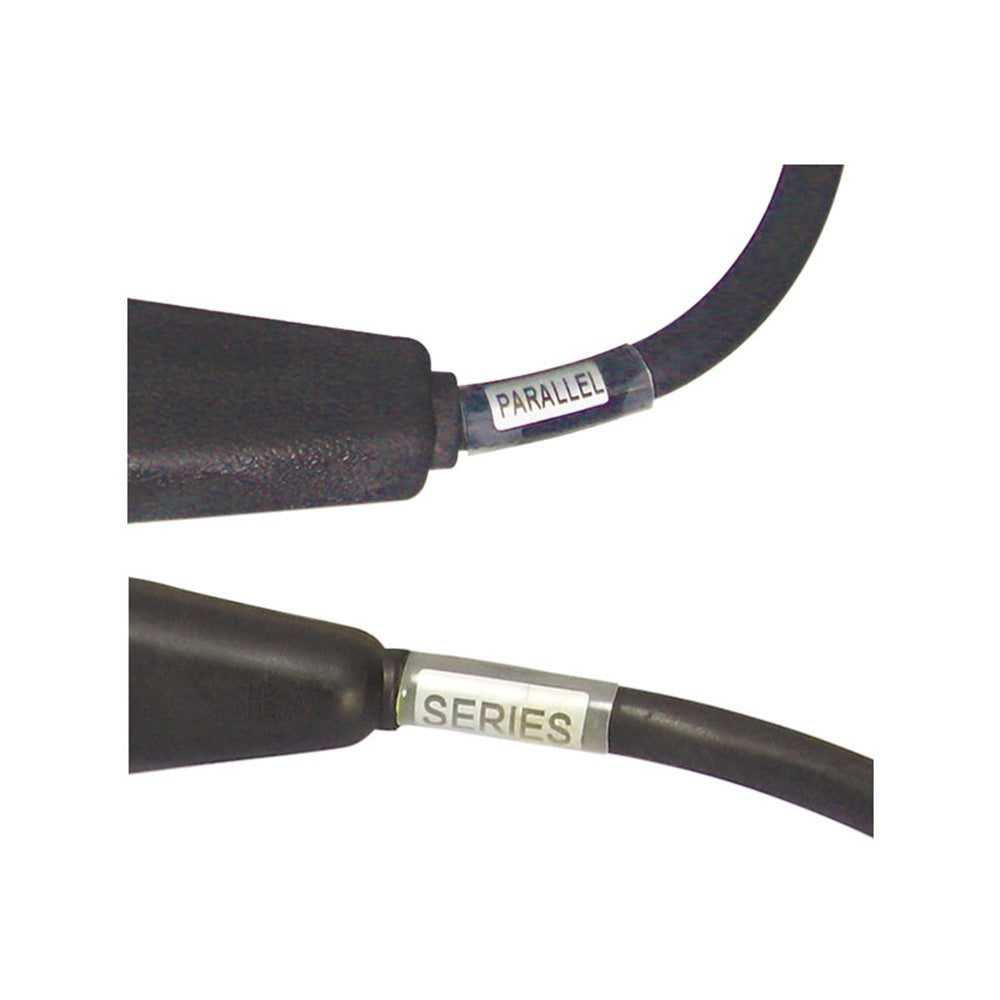

The parallel CEE version keeps voltage consistent across the two outputs, making it the more familiar twofer behavior for compatible CEE lighting loads. The transparent heat-shrink sleeve over the Parallel / Series sticker keeps the wiring identification visible, which matters because parallel and series twofers behave very differently on a dimmer circuit.
Key Features
3 x 2.5 mm² H07RN-F rubber cable, 1 mm length
Parallel wiring for theatrical twofer applications
16 A CEE form line female output connectors
PVC injection-molding inner core with rubber molded outer cover
Fire-retardant and oil-resistant cable with protected Parallel / Series wiring mark
Applications
YS-2.5-CEE is suited to theatrical lighting, stage dimmer circuits, fixture pairing, rental-house cable kits, and controlled twofer use where two instruments need to be connected from one channel with the correct wiring method.
Compatibility
Use YS-2.5-CEE only with lighting instruments, connectors, dimmer channels, and load plans appropriate for parallel wiring and 3 x 2.5 mm² cable. Check circuit behavior before use.
Frequently Asked Questions
Is YS-2.5-CEE parallel or series wired?
YS-2.5-CEE is parallel wired.
Why is the wiring label important?
Parallel and series twofers change circuit behavior, so the visible label helps crews avoid using the wrong splitter on a dimmer channel.
What connector style is on this version?
16 A CEE form line female output connectors
