Overview

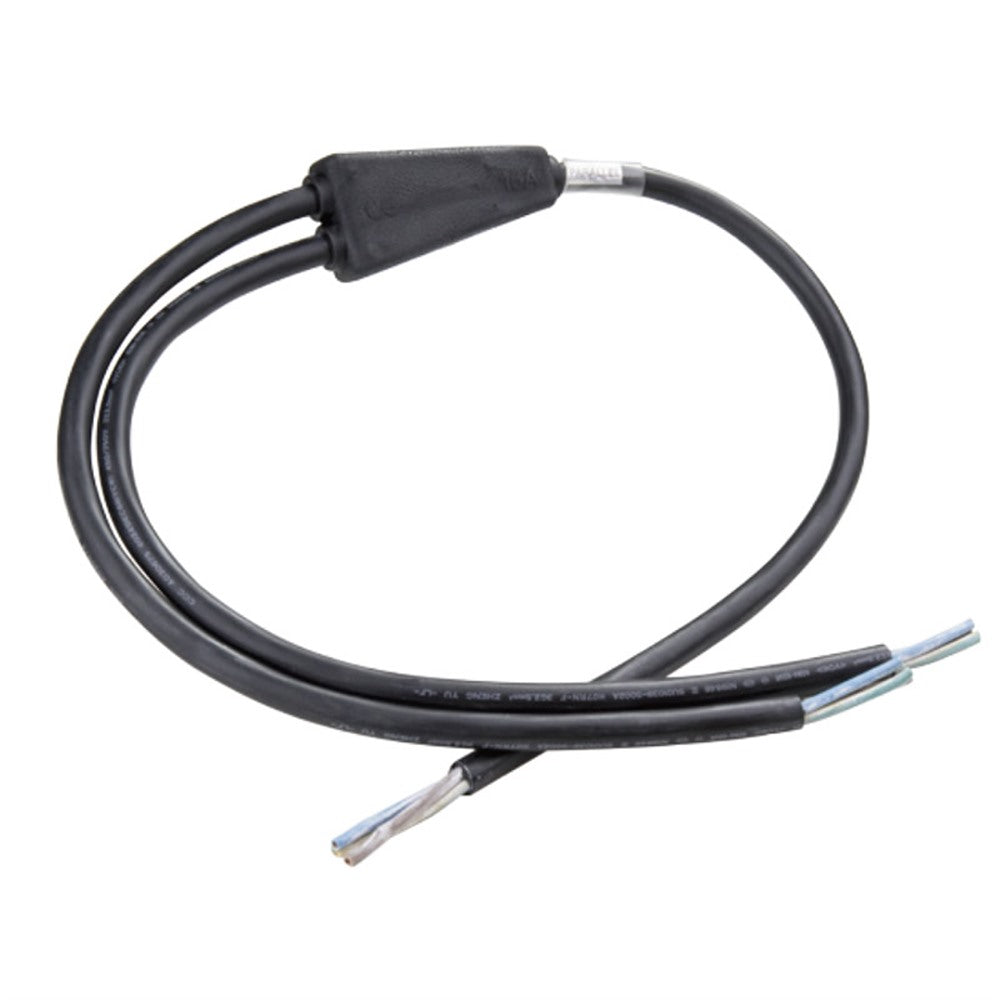

The KUPO YS-2.5/S Single Phase Y-Splitter is a theatrical stage lighting twofer built to connect two lighting instruments to one dimming channel without forcing multiple conductors into one connector. Its molded construction uses a PVC injection-molding inner core for tensile strength and a rubber outer cover for impact absorbency.
Why It Matters

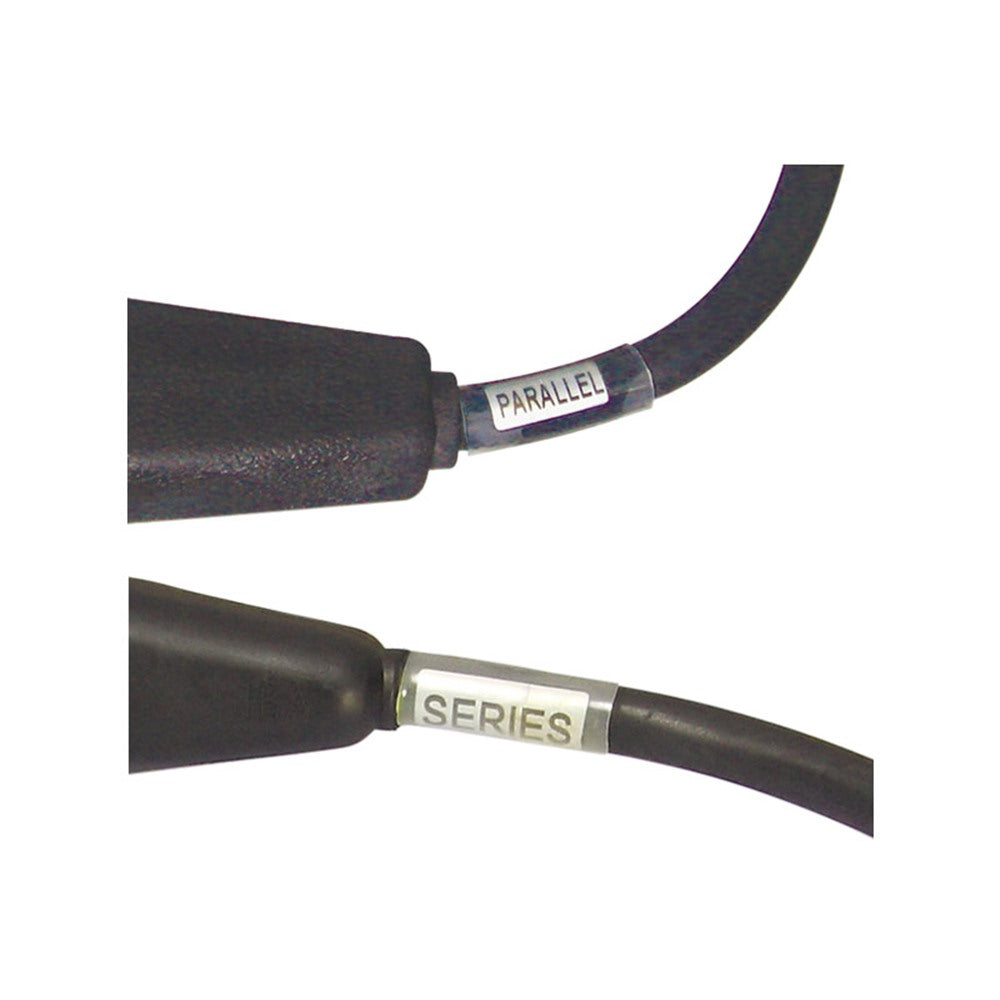

In series wiring, current is the same through each instrument while voltage divides across the instruments, so this version should be chosen deliberately. The transparent heat-shrink sleeve over the Parallel / Series sticker keeps the wiring identification visible, which matters because parallel and series twofers behave very differently on a dimmer circuit.
Key Features
- 3 x 2.5 mm² H07RN-F rubber cable, 1 mm length
- Series wiring for theatrical twofer applications
- Stage pin connectors
- PVC injection-molding inner core with rubber molded outer cover
- Fire-retardant and oil-resistant cable with protected Parallel / Series wiring mark
Applications
YS-2.5/S is suited to theatrical lighting, stage dimmer circuits, fixture pairing, rental-house cable kits, and controlled twofer use where two instruments need to be connected from one channel with the correct wiring method.
Compatibility
Use YS-2.5/S only with lighting instruments, connectors, dimmer channels, and load plans appropriate for series wiring and 3 x 2.5 mm² cable. Check circuit behavior before use.
