Overview

Kupo Y-Splitters are constructed by PVC injection-molding core offering great tensile force and rubber molding cover with excellent impactabsorbency. The mold-in extension is HO7RN-F rubber cables overall length 1 m with fire retardant and oil resistant specs; it is the standard extension cable in theatres. PVC is not suitable for extension leads as it melts easily and is not very flexible. Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly. This non-CEE version is supplied with unterminated wire leads and no connector.

Why It Matters

Splitter hardware must match the phase, wiring, and site power arrangement. YS-32323 gives crews a defined hard-wired Y-splitter option for distributing power without improvising the connection in the field.

Key Features

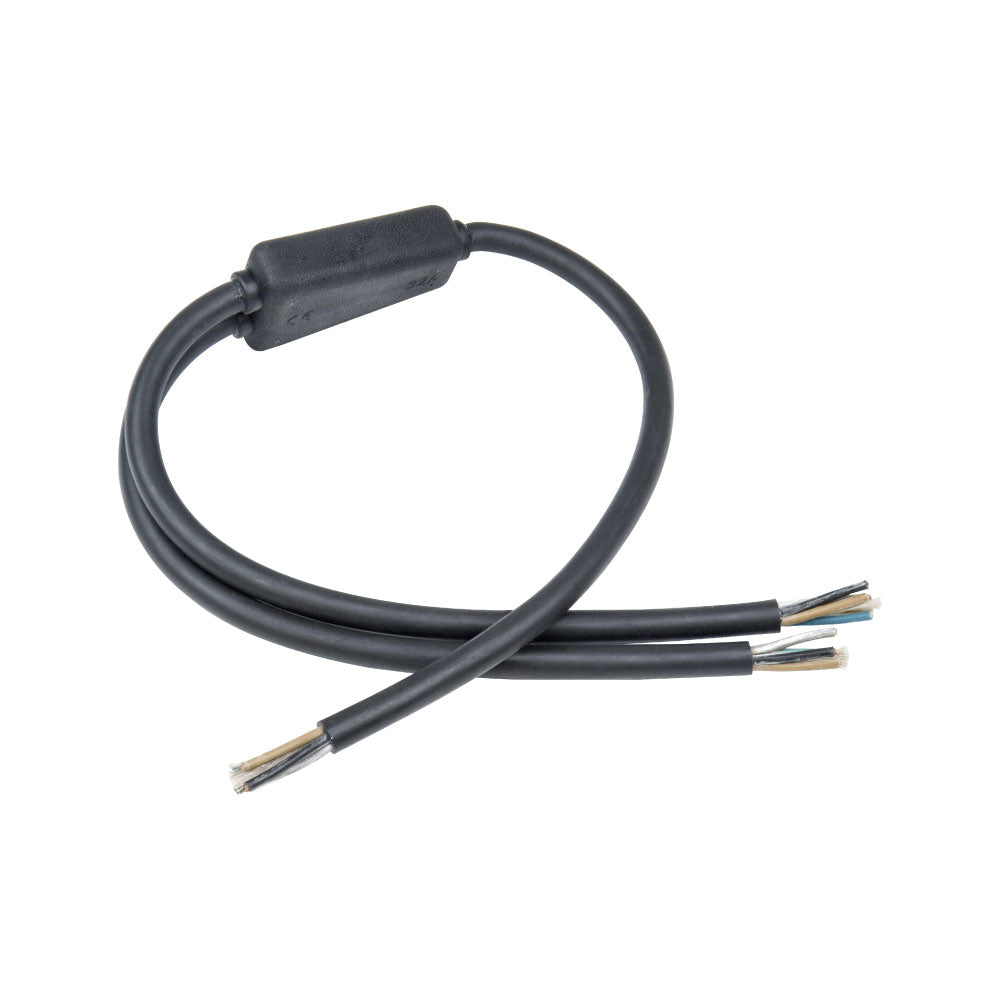

• 3-phase Y splitter, fan out to two three phase, length 1 m, parallel wired
• Max. 32 A (415 V) three phase Y splitter
• Input cable: 5 x 4.0 mm² H07RN-F
• Output cable: 5 x 4.0 mm² H07RN-F
• End format: unterminated wire leads, no connector supplied

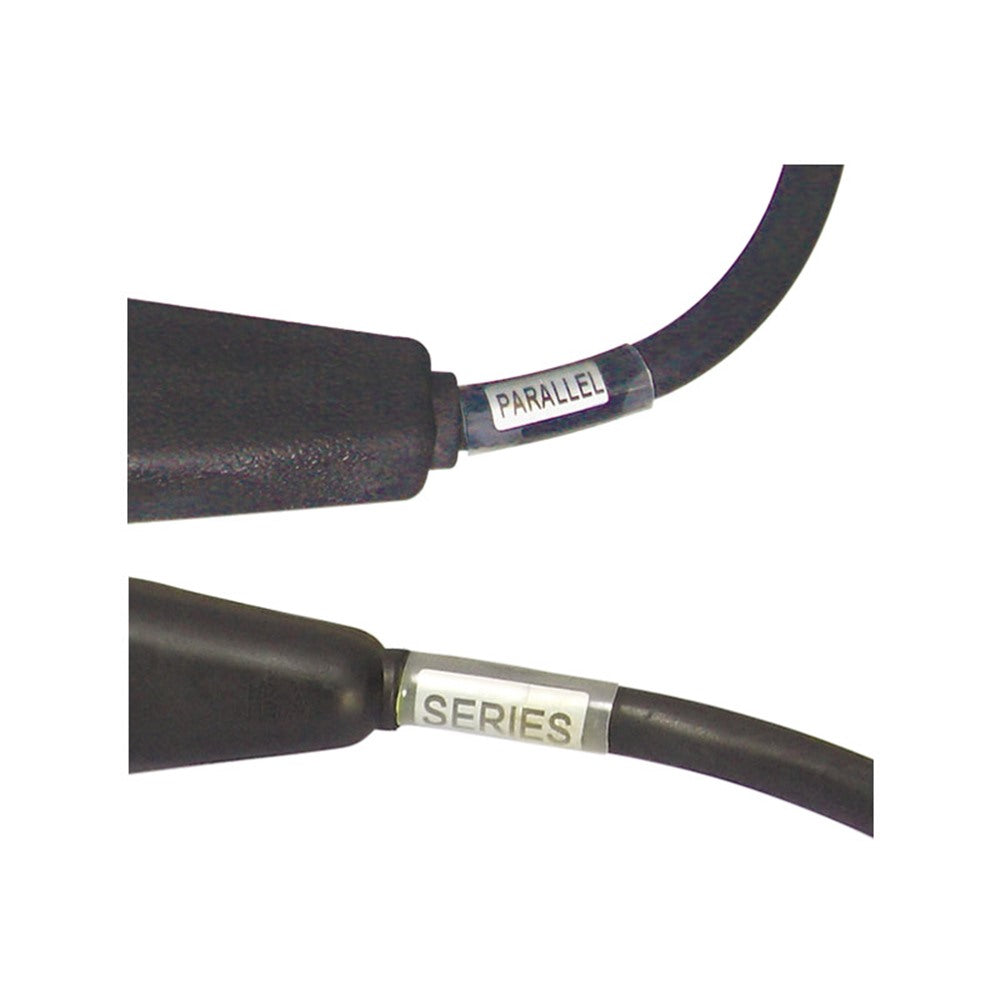

• Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.

Specifications

• 3-phase Y splitter, fan out to two three phase, length 1 m, parallel wired
• Max. 32 A (415 V) three phase Y splitter
• Input cable: 5 x 4.0 mm² H07RN-F
• Output cable: 5 x 4.0 mm² H07RN-F
• End format: unterminated wire leads, no connector supplied
• Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.

Applications

Use it as part of a professional temporary power system where a hard-wired Y-splitter with clearly identified phase leads is required.

Compatibility

Use YS-32323 with three-phase 32 A, 415 V distribution where one three-phase feed must split into two three-phase branches. Check both input and output cable sizing at 5 x 4.0 mm² H07RN-F, phase continuity, upstream breaker capacity, and load balance across both branch circuits before operation.
