Overview
Kupo Y-Splitters are constructed by PVC injection-molding core offering great tensile force and rubber molding cover with excellent impactabsorbency. The mold-in extension is HO7RN-F rubber cables overall length 1 m with fire retardant and oil resistant specs; it is the standard extension cable in theatres. PVC is not suitable for extension leads as it melts easily and is not very flexible. Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.
Why It Matters
Splitter hardware must match the phase, connector, and site power arrangement. YS-32323-CEE gives crews a defined Y-splitter option for distributing power without improvising the connection in the field.
Key Features

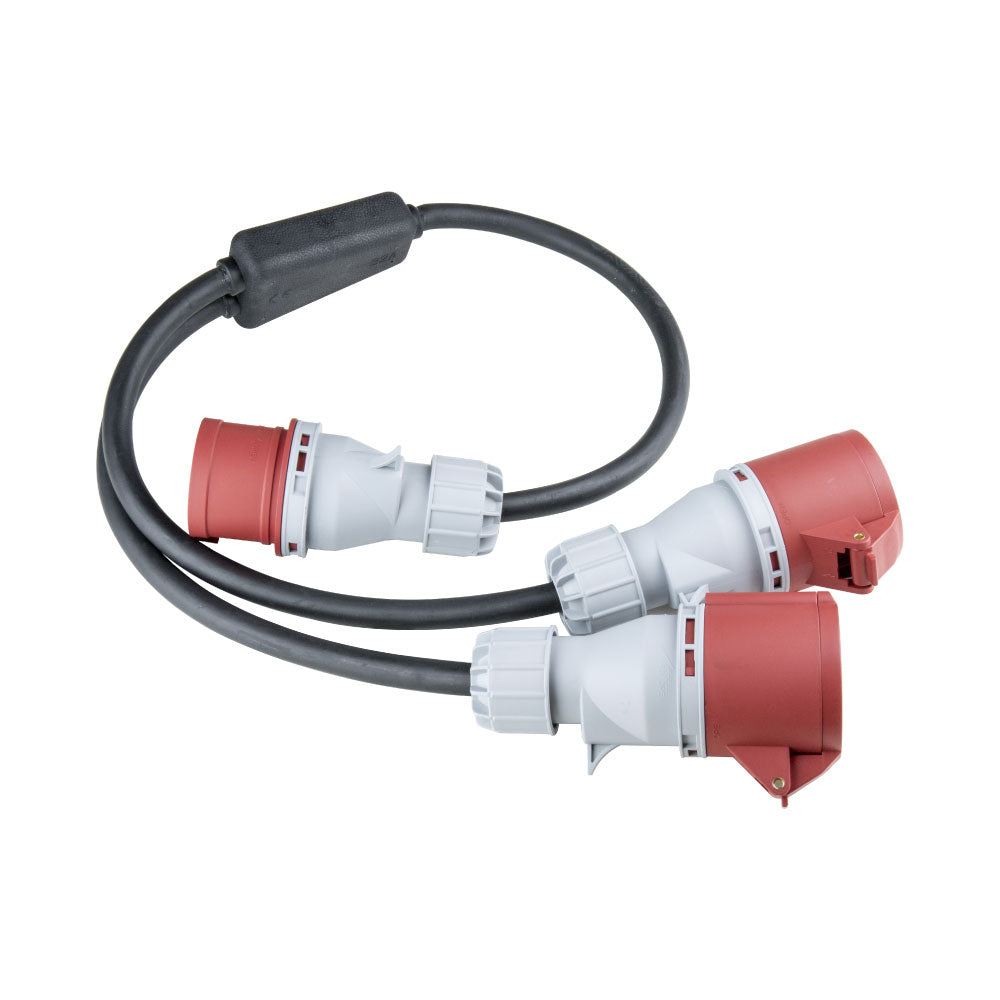

- 3-phase Y splitter, fan out to two three phase, length 1 m, parallel wired with 32 A CEE form connectors
- Input cable: 5 x 2.5 mm² H07RN-F
- Output cable: 3 x 2.5 mm² H07RN-F
- Clear phase identification for each outlet cable
- Overall length 100 cm (without connector)

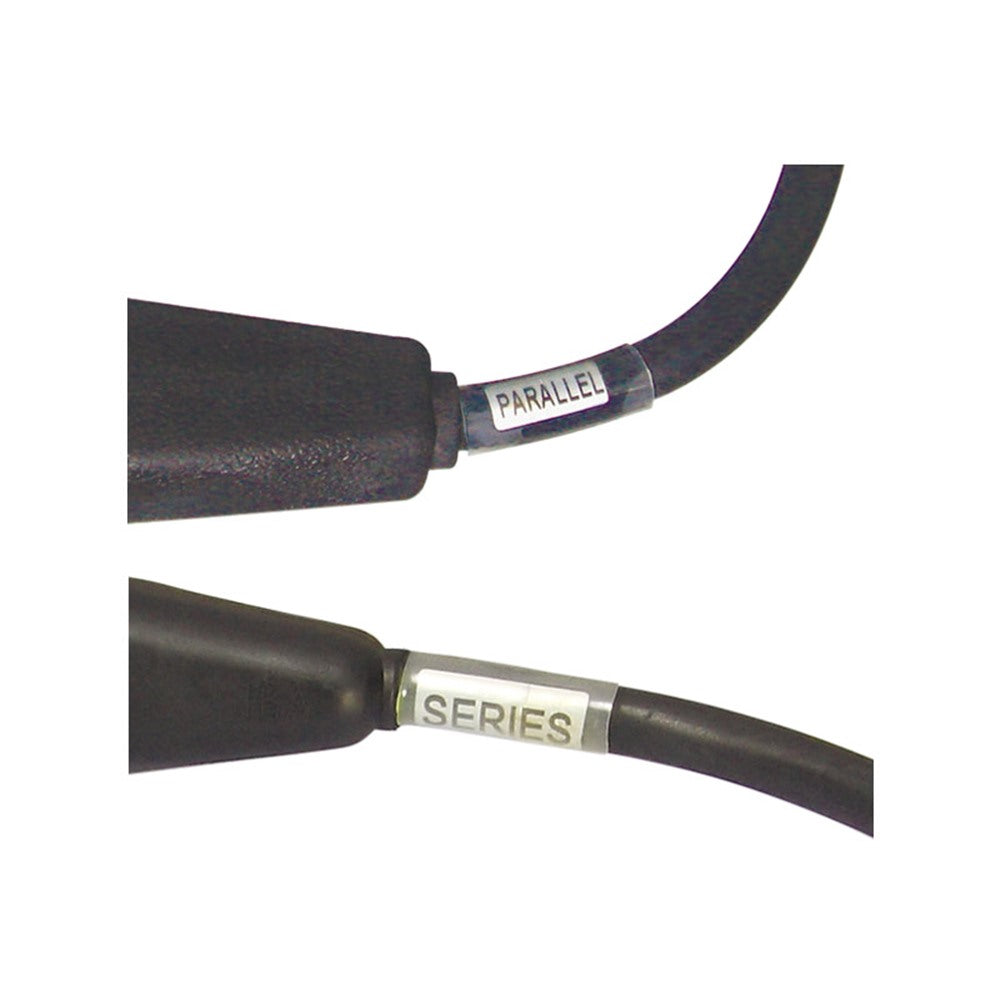

- Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.
Specifications
- 3-phase Y splitter, fan out to two three phase, length 1 m, parallel wired with 32 A CEE form connectors
- Input cable: 5 x 2.5 mm² H07RN-F
- Output cable: 3 x 2.5 mm² H07RN-F
- Clear phase identification for each outlet cable
- Overall length 100 cm (without connector)
- Parallel / Series sticker mark with transparent heat-shrink sleeve identify the wirings clearly.
Applications
Use it as part of a professional power, data, or set-support kit where the listed connector, accessory, or hardware function is required.
Compatibility
Use YS-32323-CEE with 32 A CEE form connector systems where a parallel-wired three-phase splitter is required. Check connector gender, phase labeling, H07RN-F cable size, 100 cm overall length, and the load on each three-phase branch before using it in temporary event or venue power distribution.
