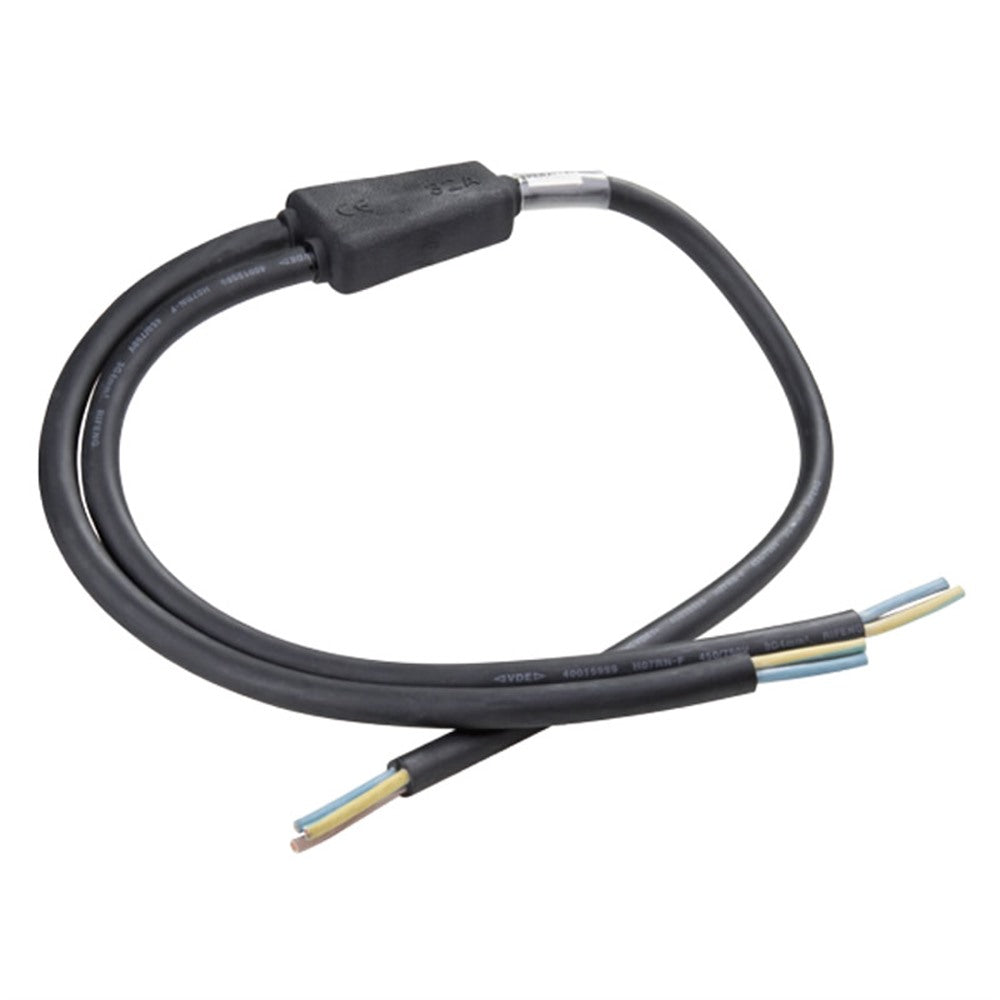

The KUPO YS-4.0 Single Phase Y-Splitter is a theatrical stage lighting twofer built to connect two lighting instruments to one dimming channel without forcing multiple conductors into one connector. Its molded construction uses a PVC injection-molding inner core for tensile strength and a rubber outer cover for impact absorbency.
Why It Matters

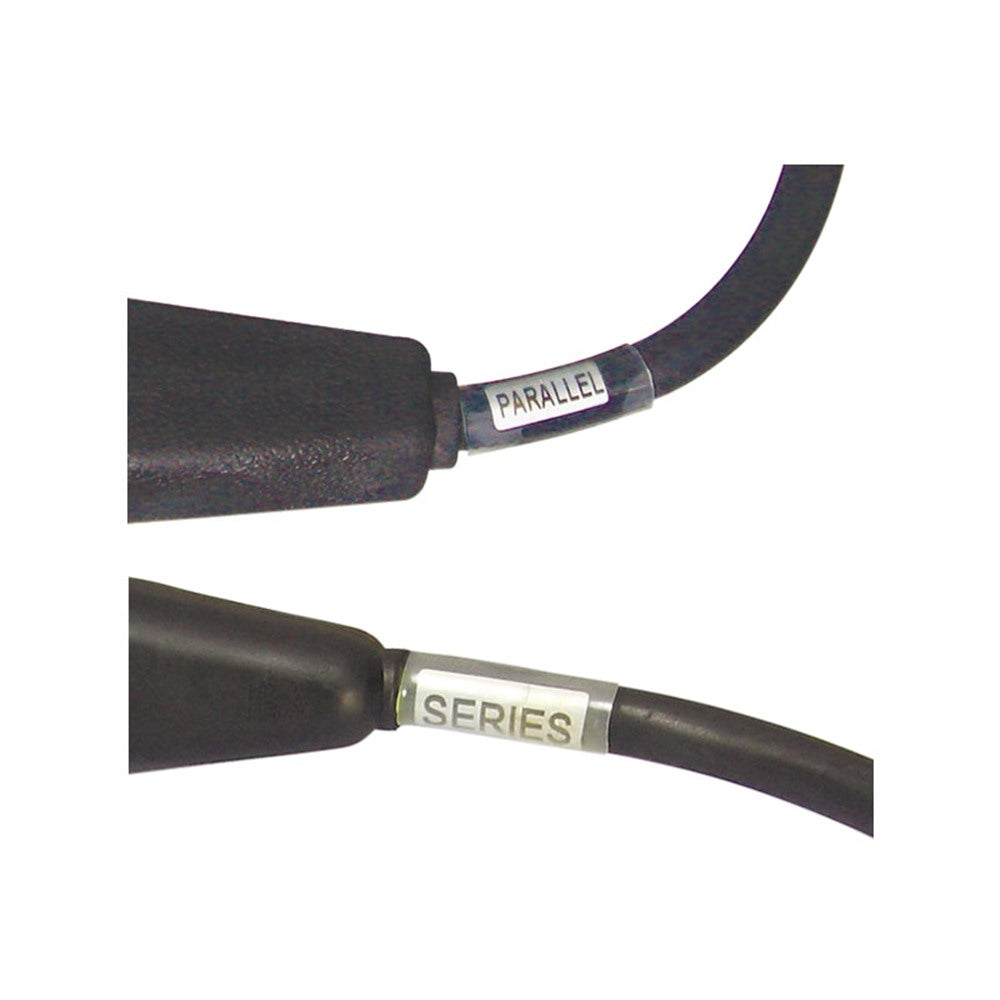

The 4.0 mm² stage-pin version gives the parallel twofer format a heavier cable cross-section for higher-current stage lighting applications. The transparent heat-shrink sleeve over the Parallel / Series sticker keeps the wiring identification visible, which matters because parallel and series twofers behave very differently on a dimmer circuit.
Key Features
3 x 4.0 mm² H07RN-F rubber cable, 1 mm length
Parallel wiring for theatrical twofer applications
Stage pin connectors
PVC injection-molding inner core with rubber molded outer cover
Fire-retardant and oil-resistant cable with protected Parallel / Series wiring mark
Applications
YS-4.0 is suited to theatrical lighting, stage dimmer circuits, fixture pairing, rental-house cable kits, and controlled twofer use where two instruments need to be connected from one channel with the correct wiring method.
Compatibility
Use YS-4.0 only with lighting instruments, connectors, dimmer channels, and load plans appropriate for parallel wiring and 3 x 4.0 mm² cable. Check circuit behavior before use.
Frequently Asked Questions
Is YS-4.0 parallel or series wired?
YS-4.0 is parallel wired.
Why is the wiring label important?
Parallel and series twofers change circuit behavior, so the visible label helps crews avoid using the wrong splitter on a dimmer channel.
What connector style is on this version?
Stage pin connectors
