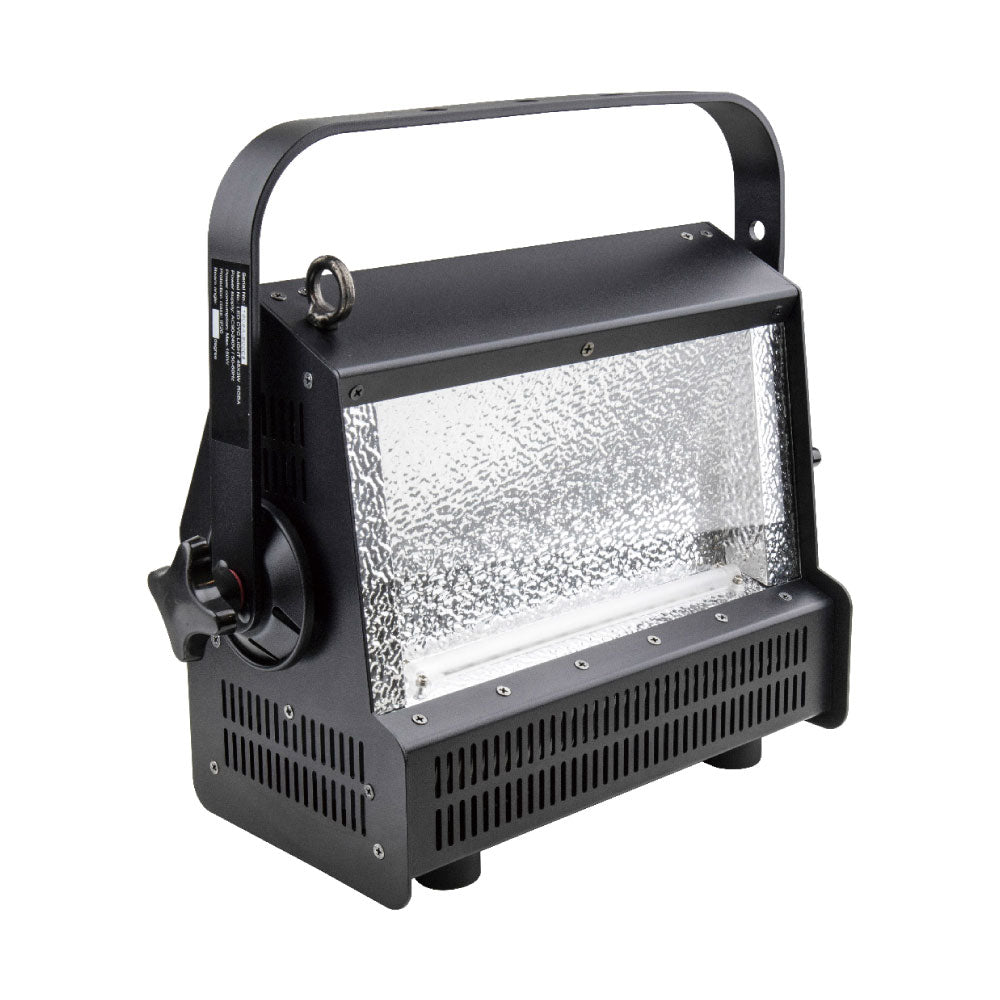

The ZLC-150TW is a 150 W KUPO LED Cyclorama fixture with asymmetric optics for lighting backdrops, skydrops, and large evenly illuminated surfaces. This tunable-white version uses 24 x 3 W warm + 24 x 3 W cool LEDs, delivering the wide V90° / H120° coverage needed for smooth cyc washes from a short throw distance.
Why It Matters
The tunable-white version is built for productions that need an even cyc wash but cannot commit to one white point. It lets the operator move between 3200 K and 6000 K without changing fixtures.
Key Features
Asymmetric optics create a wide V90° / H120° distribution for even vertical and horizontal backdrop coverage.
24 x 3 W warm + 24 x 3 W cool LEDs gives this model its tunable white output character.
DMX-512 control through 3pin or 5-pin XLR supports addressing through the on-board LCD and push-button navigation.
Power and signal feed-through support daisy-chain rigging across repeated cyclorama fixtures.
Aluminum alloy housing, eye ring, lock-washer bracket hardware, and rubber footpad support both rigged and floor-standing use.
Additional Technical Notes
Control Mode: DMX-512, stand-alone, strobe, 0-100 % dimming, master/slave
Applications
Used for studio backdrops, theatre cyc washes, museum environments, corporate stages, and architectural surfaces where white temperature needs to shift between warm and cool looks.
Compatibility
Part of the KUPO LED Cyclorama family covering 150 W and 200 W RGBA, warm white, tunable white, and UV variants. Protection classification is IP20.
Frequently Asked Questions
What color-temperature range does it cover?
ZLC-150TW adjusts from 3200 K to 6000 K.
Why choose tunable white for a cyc?
It lets the same backdrop fixture match tungsten-like scenes, cooler camera looks, or mixed lighting environments.
Is it the same physical size as the 150 W RGBA model?

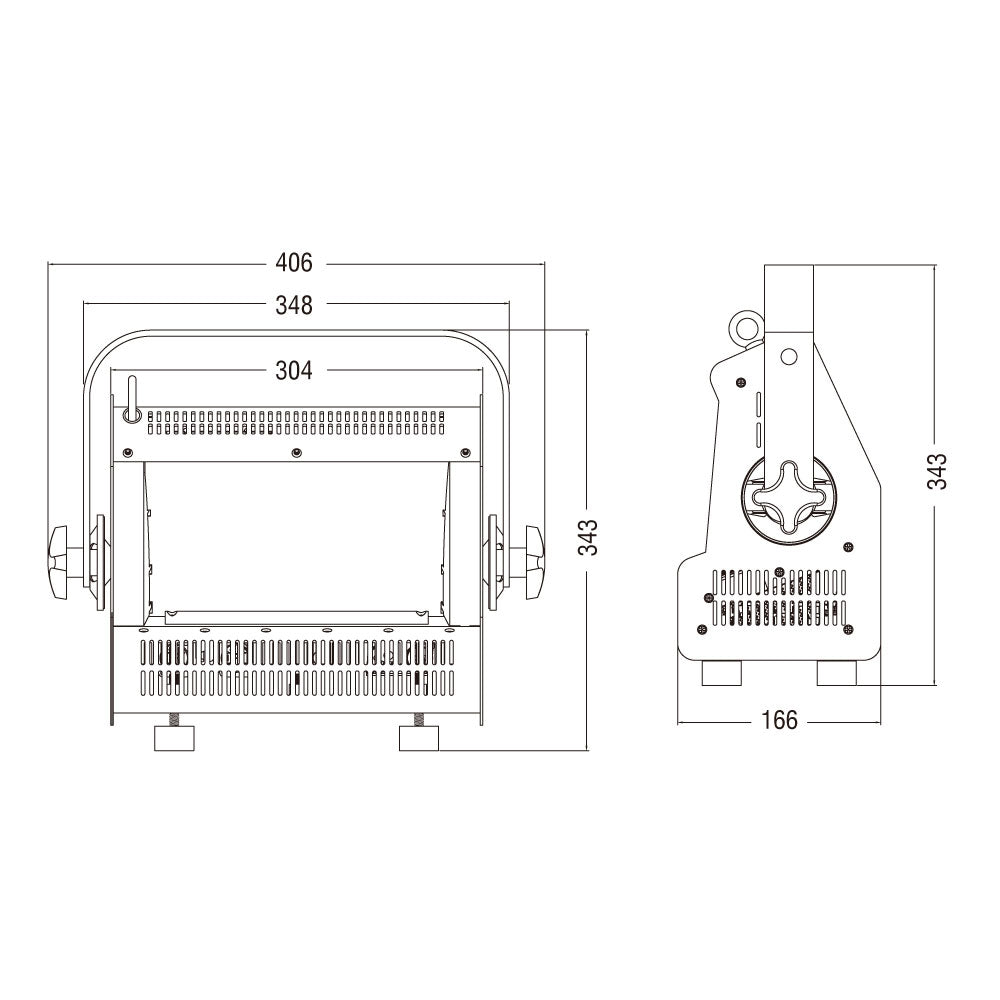

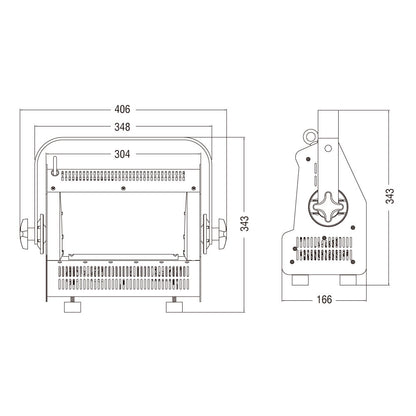

Yes. The listed dimensions are 406 x 166 x 343 mm with a 5.7 kg weight.
