Overview

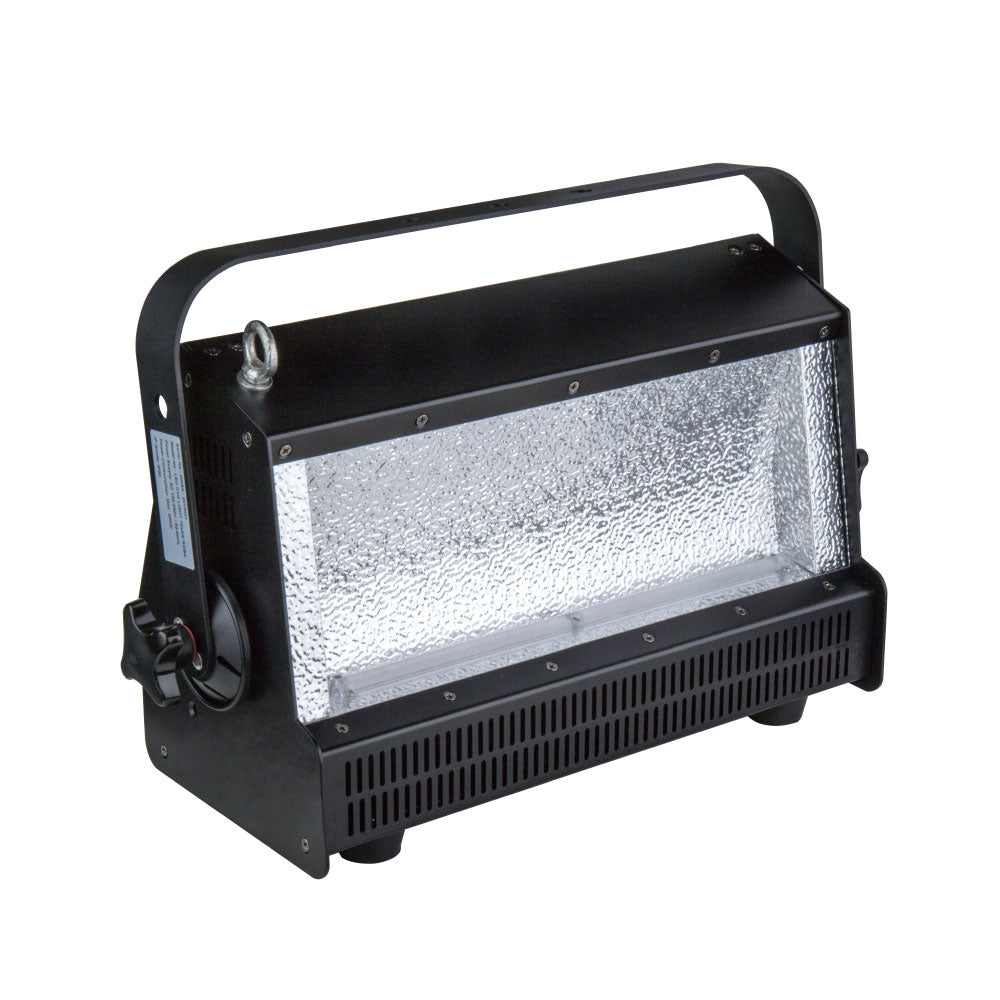

The ZLC-200WW is the 200 W warm-white member of KUPO's LED Cyclorama family, built for lighting backdrops, skydrops, and large evenly illuminated surfaces. Its 72 x 3 W Warm White LEDs deliver a 3200 K tungsten-matched wash through asymmetric optics, giving designers wide V90° / H120° coverage for clean cyc work from a shorter throw distance.
Why It Matters
Warm white is the practical choice when the backdrop should sit naturally beside tungsten stage light. The 200 W version gives more output than the 150 W size while keeping the same broad cyclorama distribution and familiar 3200 K color base.
Key Features
- 72 x 3 W Warm White LEDs deliver a 3200 K tungsten-matched cyclorama wash.
- Asymmetric optics produce wide V90° / H120° coverage for even vertical and horizontal backdrop lighting.
- DMX-512 control through 3-pin and 5-pin XLR supports addressing from the on-board LCD and push-button interface.
- Power and signal feed-through help simplify daisy-chain rigging across repeated cyc fixtures.
- Aluminum alloy housing, eye ring, lock-washer bracket hardware, and rubber footpad support both rigged and floor-standing use.
Additional Technical Notes
- Control Mode: DMX-512, stand-alone, strobe, 0-100 % dimming, master/slave
Applications
Used for theatre cycloramas, studio backdrops, warm architectural walls, event stages, retail display surfaces, and larger 3200 K backdrop washes where the 200 W output class is preferred.
Compatibility
Part of the KUPO LED Cyclorama family covering 150 W and 200 W RGBA, warm white, tunable white, and UV variants. Protection classification is IP20.
