Overview

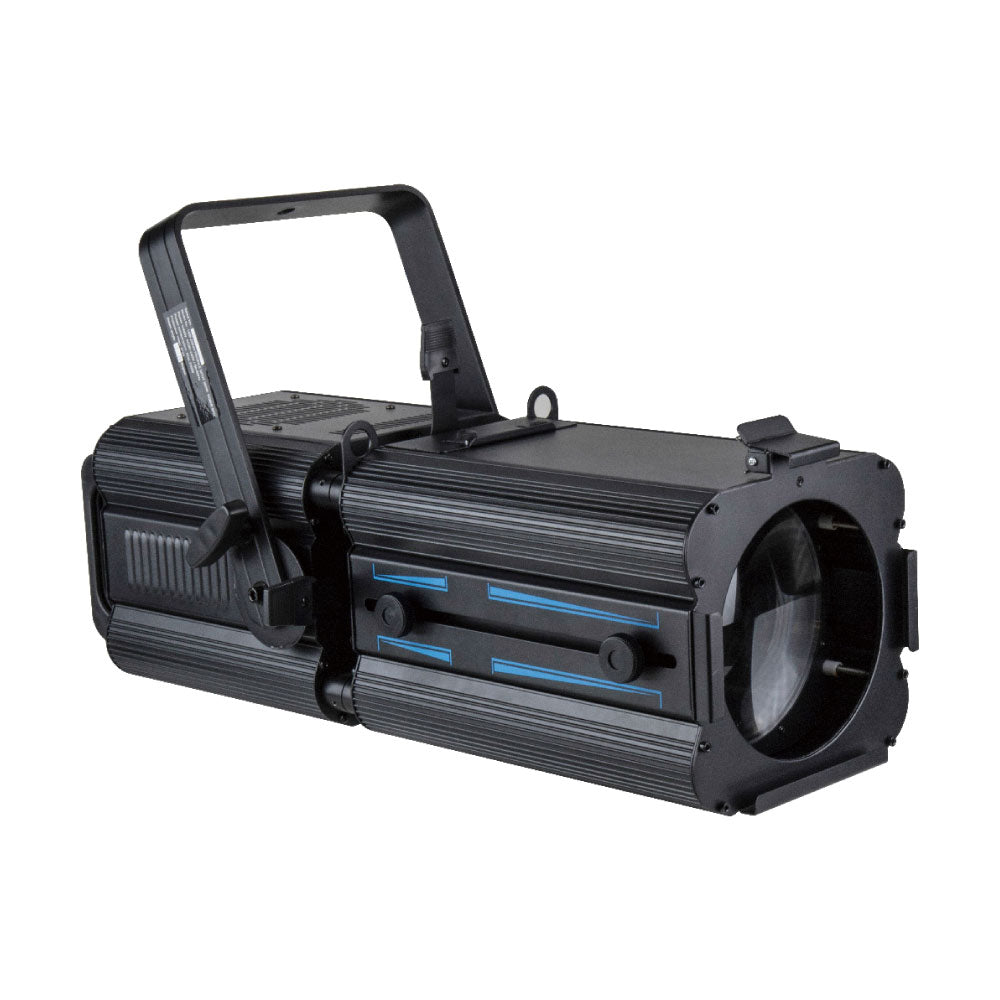

ZML-Z1755A brings color mixing and profile control into one 200 W fixture. Its RGBW 4-in-1 COB LED feeds a 17°-55° zoom optical system, giving designers a tightly framed special at the narrow end and broader stage coverage without changing the lens tube.

Why It Matters

A conventional profile can shape a beam precisely, but changing color usually depends on gels or external accessories. This RGBW version keeps shutters, iris and gobo capability while adding repeatable color from the console, which is useful when one fixture must cover several looks in the same production.

Key Features

• RGBW Color Mixing: The 4-in-1 COB LED combines red, green, blue and white output for console-controlled color and cleaner white references without gels.
• 17°-55° Optical Zoom: Two aspheric Fresnel lenses resize the beam without a fixed lens-tube change.
• Profile Accessory Support: Dedicated slots accept an iris and metal or glass pattern holders for controlled beam shaping.
• Touring-Ready Connections: 20 A Powerlead power linking plus 3-pin and 5-pin XLR input/output simplify mixed-system deployment.
• Onboard Operation: LCD setup, built-in programs, dimming, strobe, sound-active and master/slave modes support console and standalone use.

Applications

Designed for theatre, touring stages, event production and multipurpose venues that need colored profile beams, gobo projection and adjustable throw from a single fixture.

Compatibility

The accessory slot accepts an 18-leaf or 24-leaf iris plus metal or glass pattern holders. It connects to 20 A Powerlead power and either 3-pin or 5-pin XLR DMX lines.
