Product Description
Overview

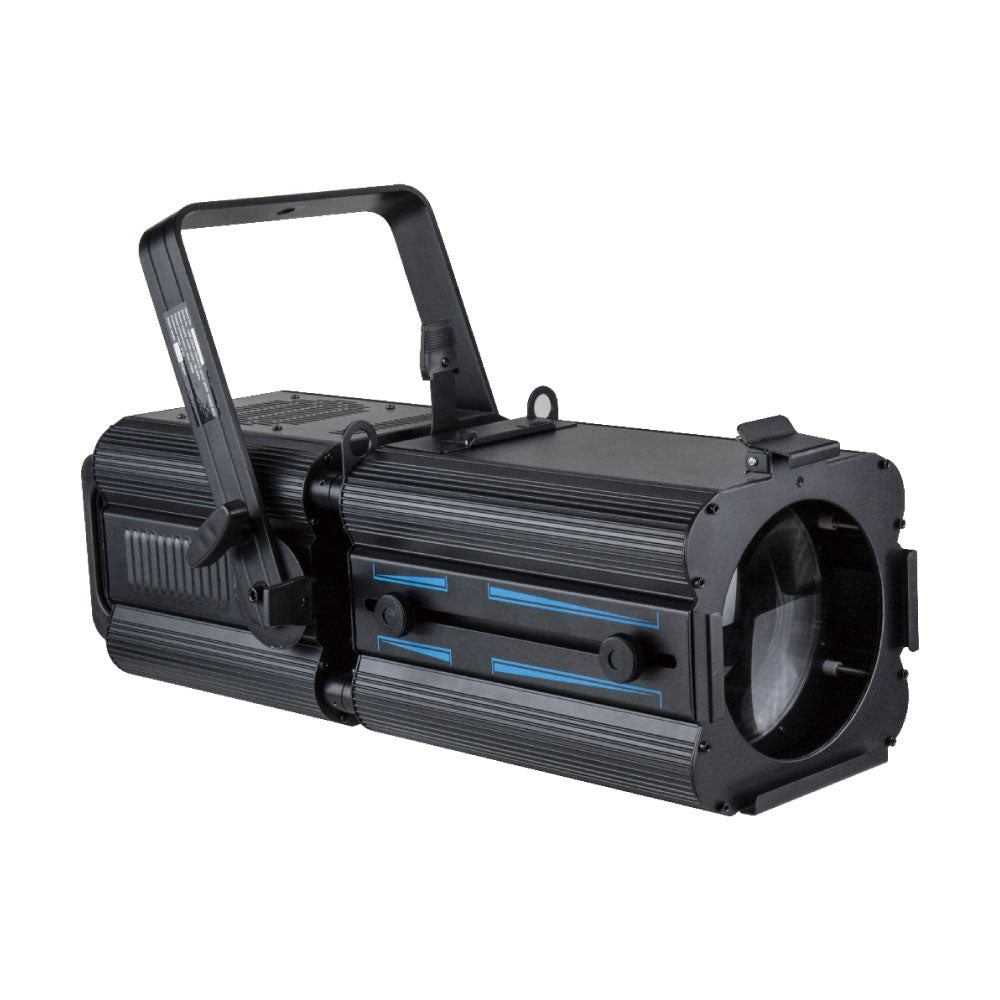

ZML-Z1755B is the warm-white member of KUPO's 200 W LED Zoom Profile family. A 3200 K COB LED with a color rendering index above 90 supplies a tungsten-matched beam, while the 17°-55° zoom allows the same fixture to handle a defined acting-area special or a wider short-throw composition.
Why It Matters
The 3200 K output sits naturally beside tungsten practicals and legacy theatrical fixtures without the heat, lamp changes or gel maintenance of a conventional source. High color fidelity helps skin tones, costumes and painted scenery hold their intended appearance under a shaped profile beam.
Key Features
- 3200 K High-CRI White: The warm-white COB LED provides a tungsten-matched 3200 K beam with a color rendering index above 90 for skin tones, costumes and scenery.
- 17°-55° Optical Zoom: Two aspheric Fresnel lenses resize the beam without a fixed lens-tube change.
- Profile Accessory Support: Dedicated slots accept an iris and metal or glass pattern holders for controlled beam shaping.
- Touring-Ready Connections: 20 A Powerlead power linking plus 3-pin and 5-pin XLR input/output simplify mixed-system deployment.
- Onboard Operation: LCD setup, built-in programs, dimming, strobe, sound-active and master/slave modes support console and standalone use.
Applications
A practical choice for drama, recital halls, houses of worship, broadcast sets and event stages where warm-white key light, accurate rendering and controlled edges matter.
Compatibility
The fixture accepts an 18-leaf or 24-leaf iris and metal or glass pattern holders. Power is connected through 20 A Powerlead input/output, with 3-pin and 5-pin XLR provided for DMX-512.
Frequently Asked Questions
Is the light output intended to match a tungsten stage palette?
Yes. The 3200 K warm-white COB source is selected for tungsten-style color balance and is specified with a color rendering index above 90.
How much optical flexibility does the zoom provide?
The beam adjusts continuously from 17° to 55°, covering narrower medium-throw specials and wider short-throw positions without swapping a fixed lens tube.
Can ZML-Z1755B project gobos?
Yes. Its accessory slot is suitable for metal or glass pattern holders, and it also accommodates an 18-leaf or 24-leaf iris.
Can several fixtures share power and data runs?
The rear panel provides 20 A Powerlead input and output plus 3-pin and 5-pin XLR input and output, allowing practical power and DMX daisy-chain layouts within system limits.
