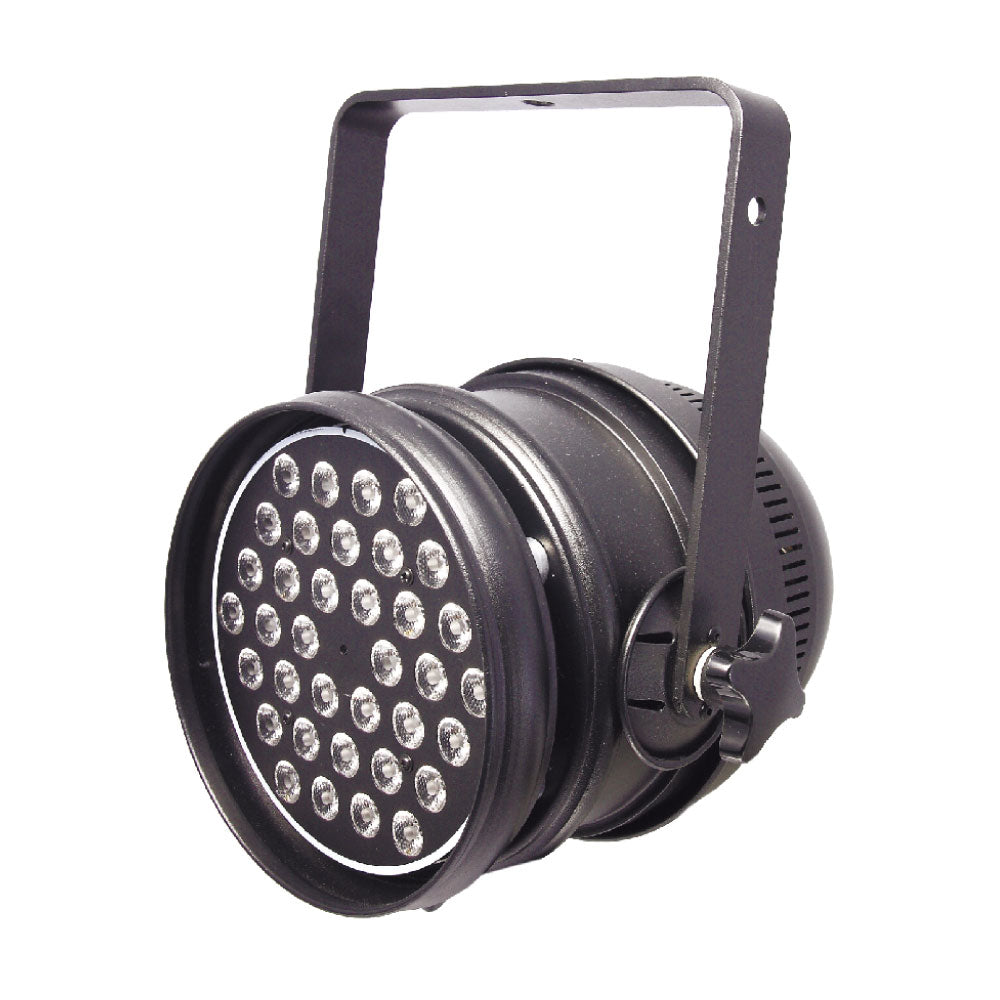

The ZPL-64/36-5 is the higher-output RGB version of KUPO's LED Par Can family, using 36 x 5 W LEDs for 180 W of color-mixing illumination. It keeps the classic PAR-64 barrel while giving stage and event rigs more punch than the 36 x 3 W version.
Why It Matters
Use this model when the show needs stronger RGB output but does not require RGBW white mixing. The 25° and 45° optic options make it useful for both tighter specials and wider stage washes.
Key Features
36 x 5 W LEDs provide 180 W of RGB color-mixing output.
25° and 45° optional optics suit narrow specials or broader washes.

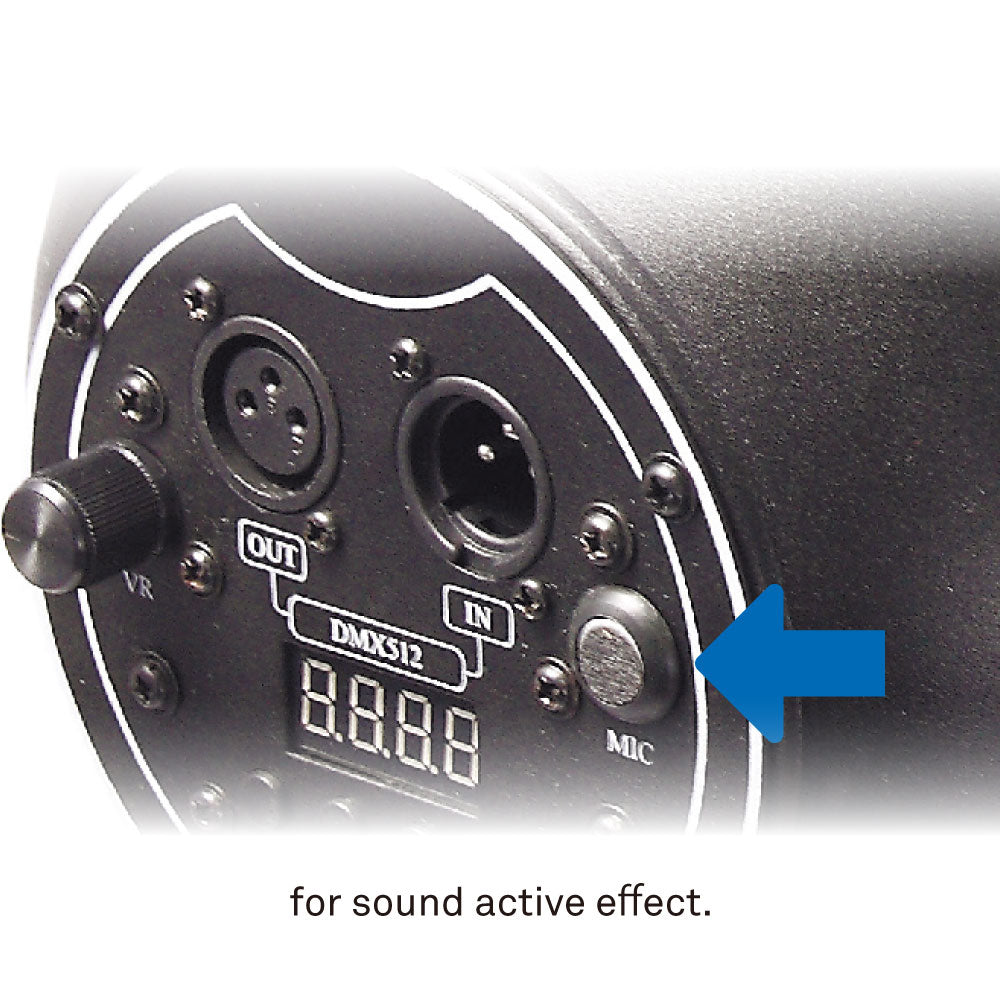

5 and 6 channel DMX modes support color mixing, dimming, flash, color changing, color fading, and sound-active effects.
Classic PAR-64 barrel preserves a familiar stage look with LED efficiency.

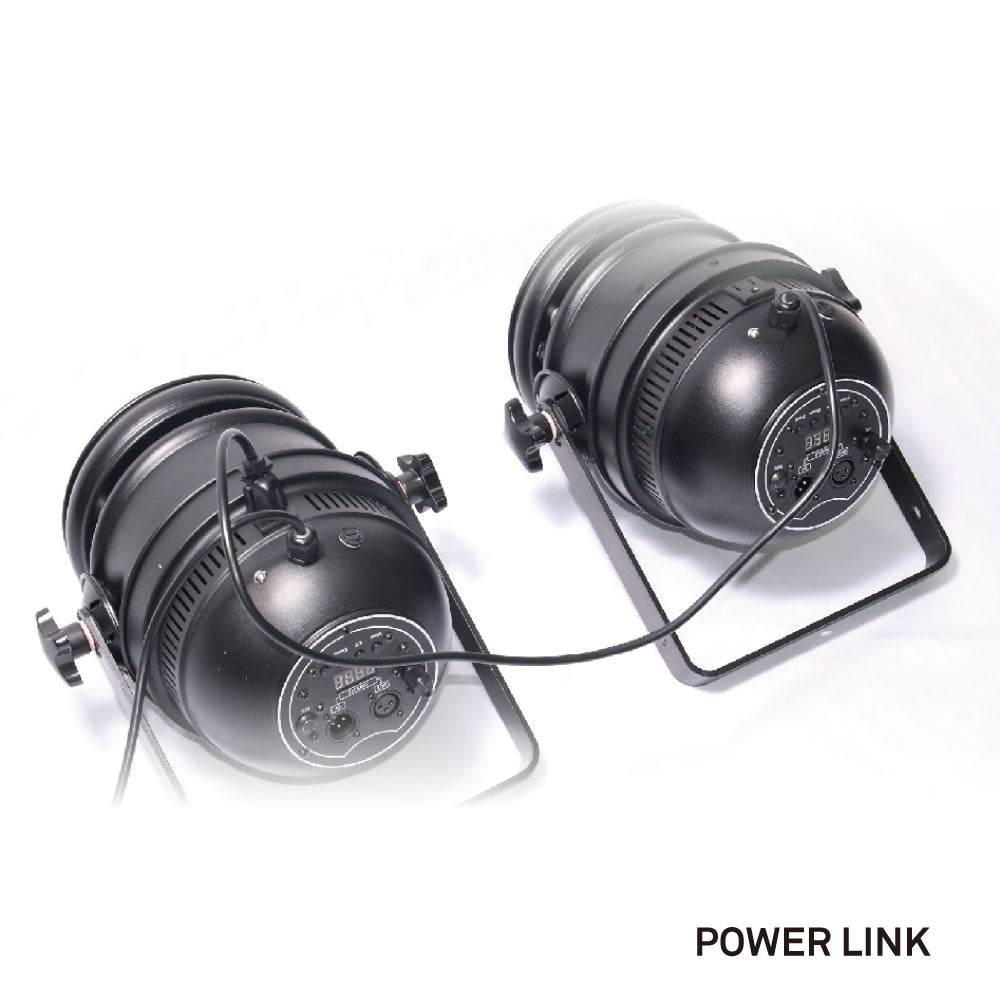

Up to 10 units can be daisy-chained on one power feed.
Applications
Used for stage color washes, club rigs, events, touring floor packages, venue installs, sound-active party looks, and repeated PAR-64 positions where LED color mixing and daisy-chain cabling are useful.
Compatibility
LED Par Can family includes ZPL-64/36-3, ZPL-64/36-5, and ZPL-64/18-10. Standard finish is black, with white or custom finishes available by request.
Frequently Asked Questions
How many units can be daisy-chained?
The specification states that up to 10 units can share one power feed.
Is this an indoor fixture?
Yes. The listed working environment is indoor operation from -20 °C to 50 °C.
What finish is standard?
Black is standard, with white or other custom finishes available by request.
