Product Description

Overview

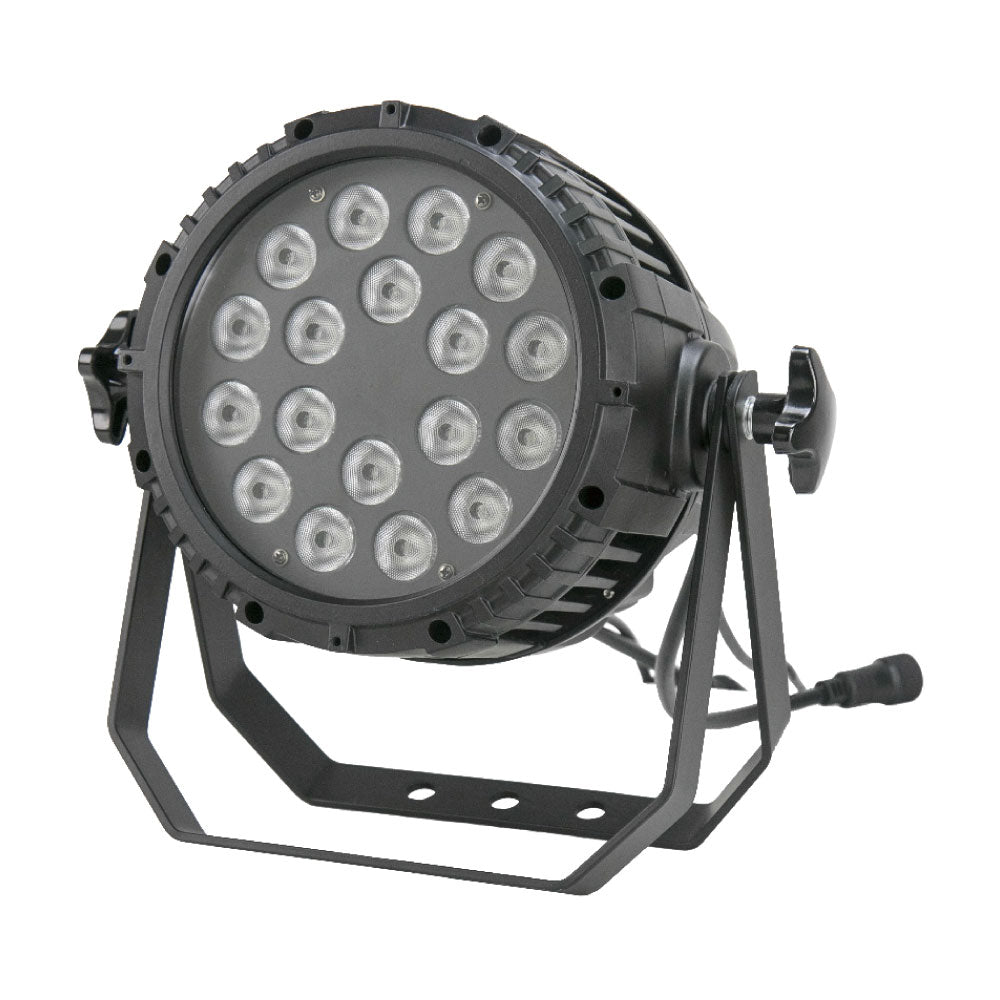

The KUPO ZPW-64/18-10 is an outdoor LED PAR can built around 18 x 10 W RGBW (red, green, blue, white) LEDs. It combines DMX-512 control, built-in operating modes, watertight power and signal connections, and IP65 protection for outdoor event and architectural accent work.

Why It Matters

Outdoor color wash needs more than an LED engine. ZPW-64/18-10 adds IP65 protection, over-molded connectors, watertight metal cable glands, 0-100 % dimming, and DMX control so the fixture can handle temporary outdoor setups with fewer moisture concerns.

Key Features

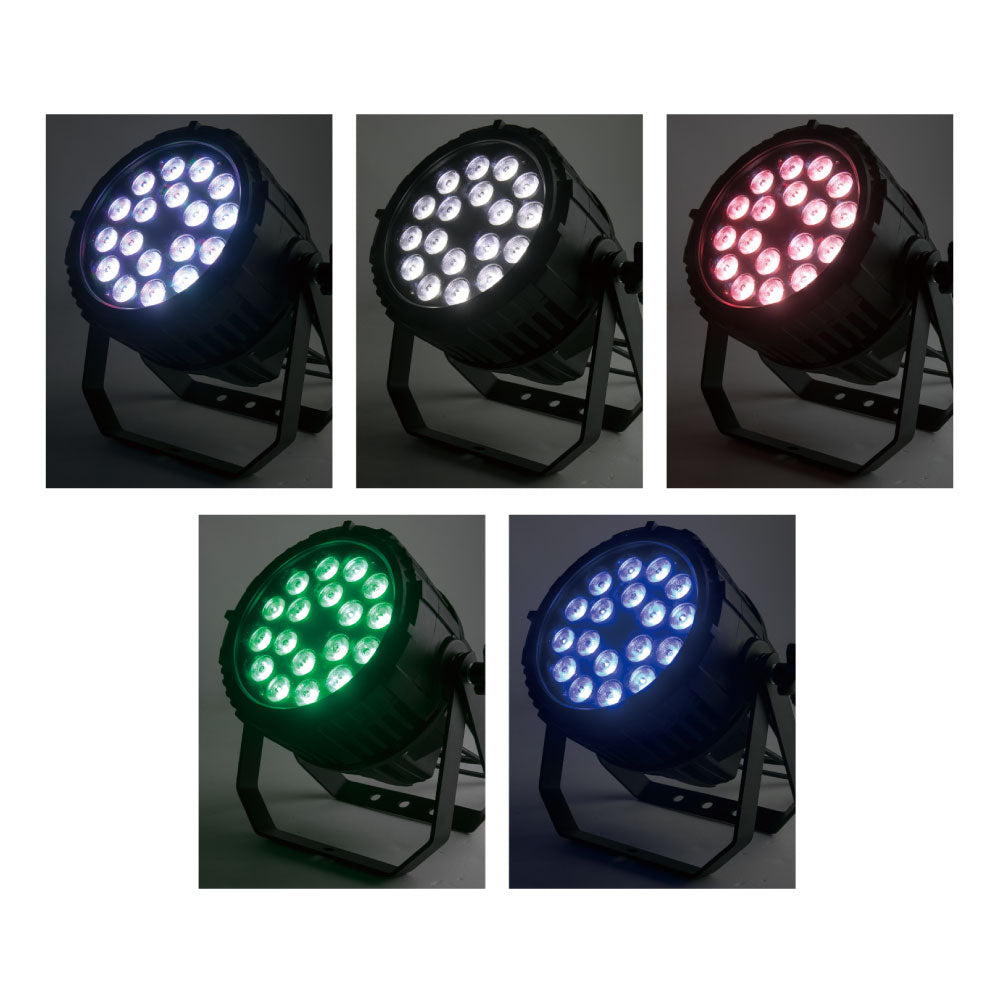

  • 18 x 10 W RGBW LEDs provide up to 180 W color-mixing output for outdoor wash work

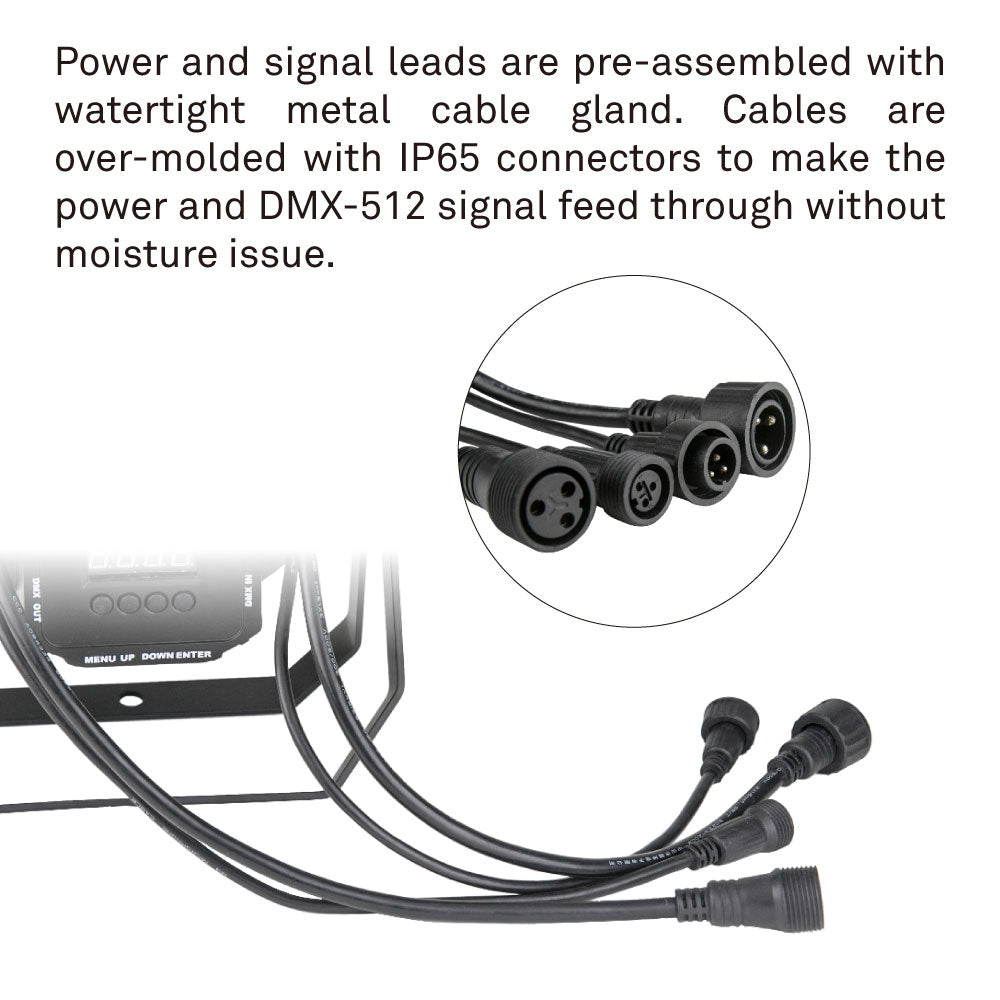

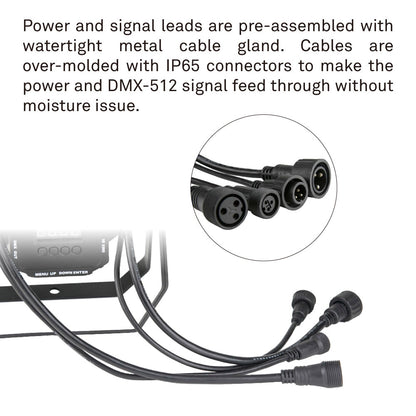

  • IP65 protection with watertight metal cable glands and over-molded connectors supports outdoor use

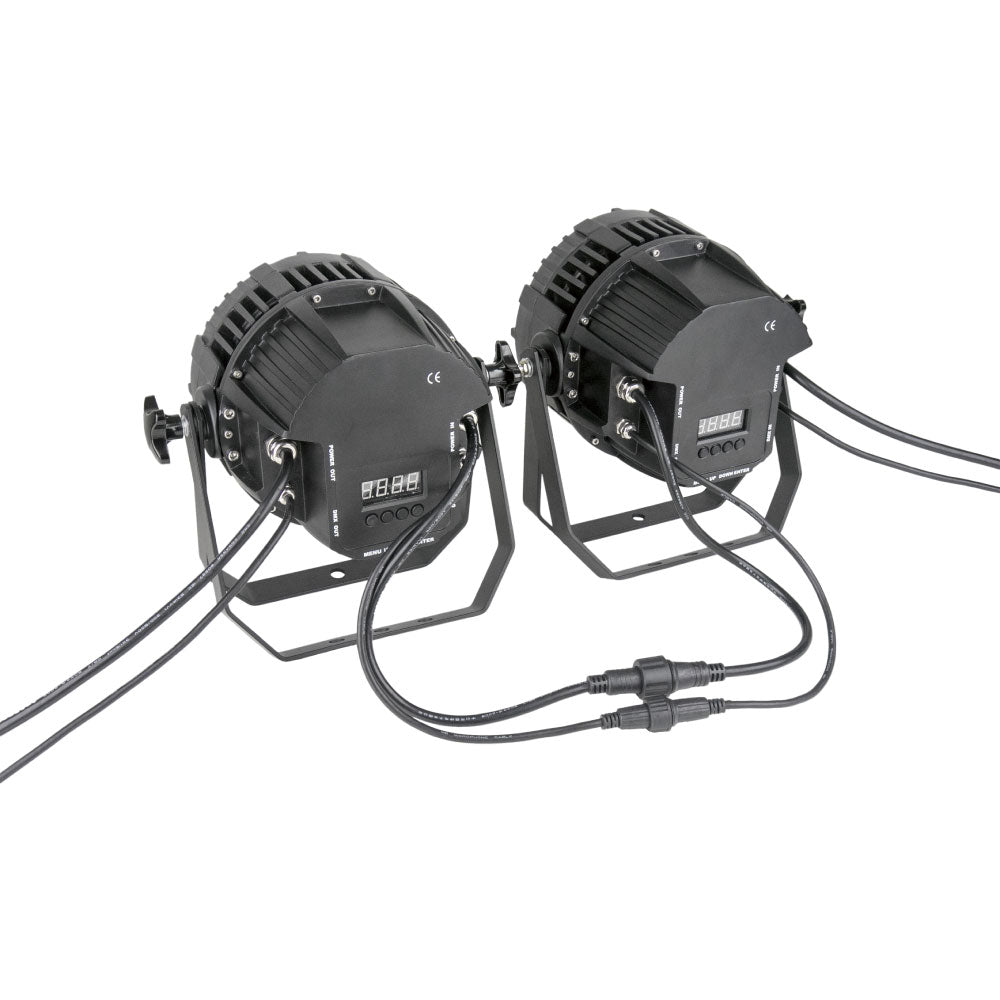

  • DMX / stand-alone / master-slave give flexible control options
  • 0-100 % dimming, strobe, fade support event and stage looks

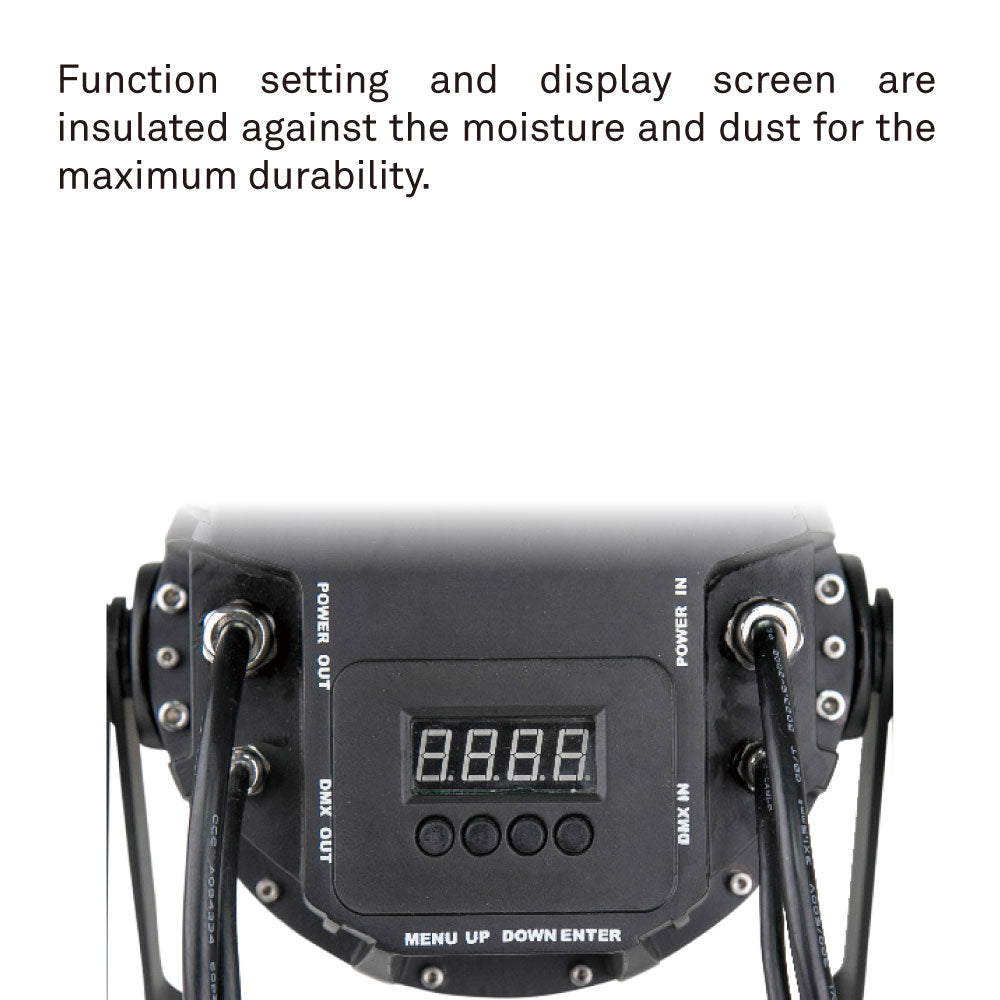

  • 4-digit LED menu with function buttons makes addressing and setup easier on site

Additional Technical Notes

  • Control: DMX-512, stand-alone built-in program, and master/slave modes
  • Protection: IP65 with watertight metal cable glands and over-molded connectors

Applications

Use it for outdoor stages, event entrances, architectural accents, temporary installations, festival color wash, and exterior-facing entertainment lighting that needs an IP65 RGBW PAR.

Compatibility

Designed for AC 100-240 V, 50/60 Hz operation with DMX-512 control through 3-pin waterproof XLR connection and maximum 7 channels.

Frequently Asked Questions

Is this the outdoor version of the LED PAR family?

Yes. ZPW-64/18-10 is the outdoor RGBW LED PAR model with IP65 protection.

How is signal connected outdoors?

The specification lists a 3-pin waterproof XLR signal connector, with over-molded IP65 connector construction.

Can it run without a DMX console?

Yes. It includes stand-alone built-in program and master/slave modes in addition to DMX-512.
