Product Description
Overview
The KUPO K-LOK 400 A Male Line Connector is engineered for heavy-duty reliability and safety in high-current temporary power distribution. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C, brass contacts for superior conductivity, and a non-conductive POM (Polyoxymethylene) retaining screw that eliminates accidental current paths, this connector delivers the mechanical strength and electrical performance demanded by large-scale entertainment productions and industrial applications handling up to 400 amperes. The modular, tool-free design enables rapid field assembly and disassembly, while full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution systems.
Key Features

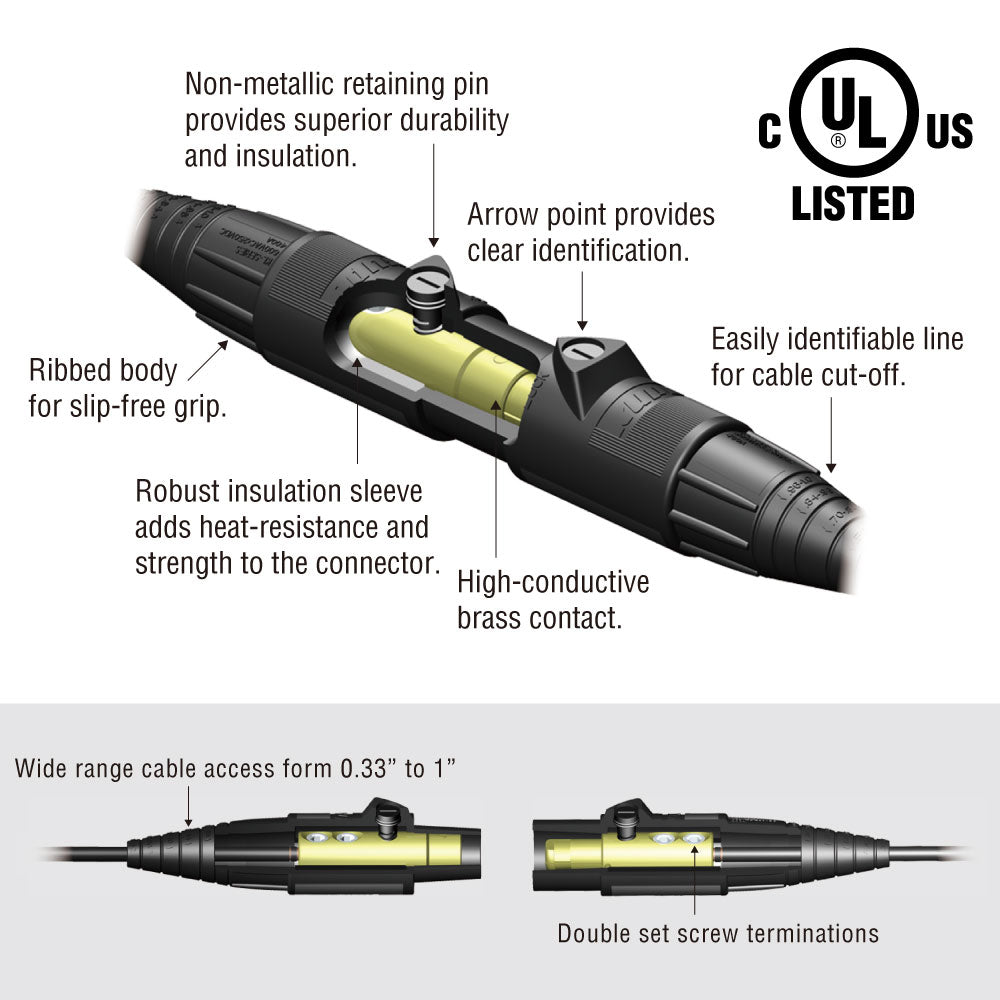

- Non-conductive POM (Polyoxymethylene) retaining screw locks the brass contact firmly in position, eliminating accidental current paths for safer operation
- POM insulation sleeve adds heat resistance and structural strength to the contact assembly
- Ribbed Santoprene TPV housing provides a secure, slip-free grip even when wearing work gloves
- Alignment arrow ensures correct orientation for fast, error-free mating every time
- Santoprene TPV housing rated to 105 °C withstands demanding site conditions and extreme temperatures
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400 A

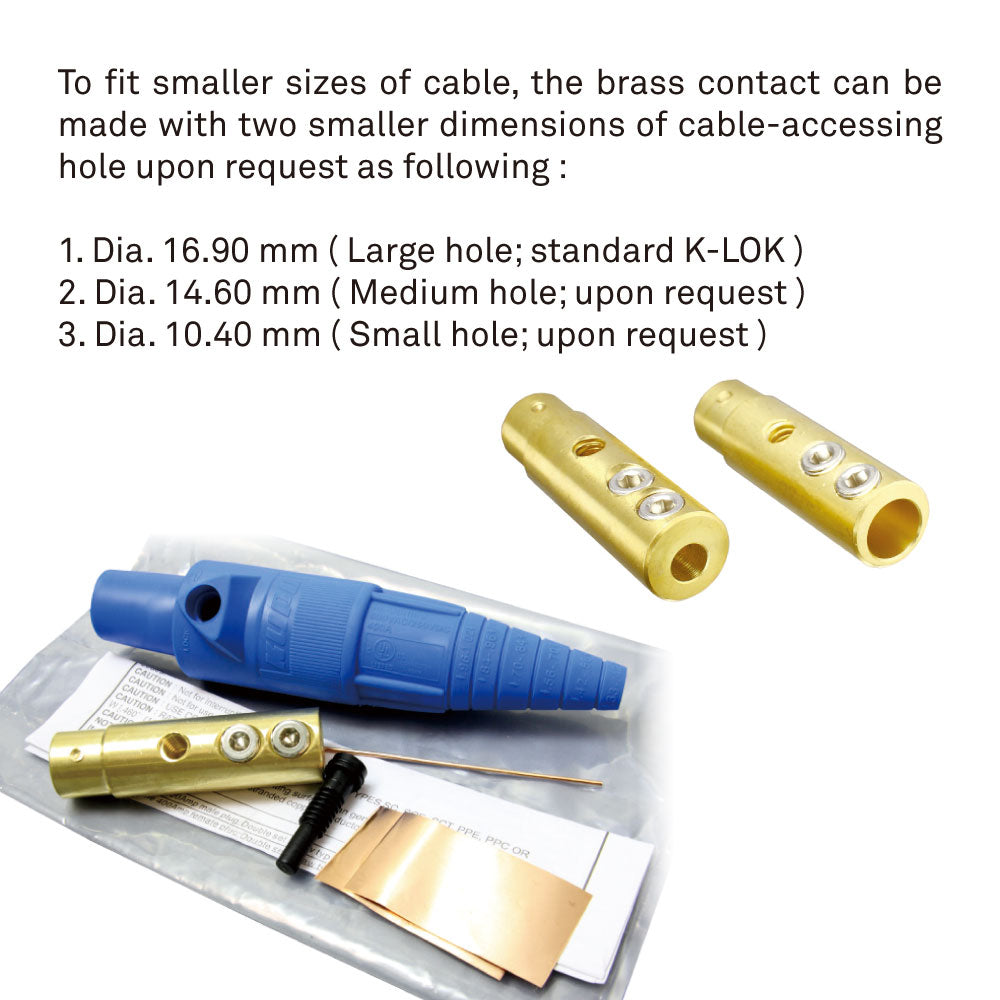

- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors with redundant cable retention
- Universal CAM-type compatibility integrates seamlessly with existing power infrastructure from multiple manufacturers
- UL / UL / cUL Listed ensures compliance with North American safety standards
Standards
UL / UL / cUL Listed -File Number E332947; UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors; Environment Rating: UL Enclosure Types 3R; Flame Class: HB / UL94; RoHS (Restriction of Hazardous Substances) Compliant. Match standards and compliance requirements to the local electrical code before installation.
Applications
Suitable for concert touring and live event production, film, television, and studio power distribution, temporary construction site power, theme park and entertainment venue installations, trade shows and exhibition power systems, industrial temporary power connections, and broadcast and outside broadcast (OB) van power.
Compatibility
The K-LOK 400 A Male In-Line Connector intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What is KL-400LMW and what is it designed for?

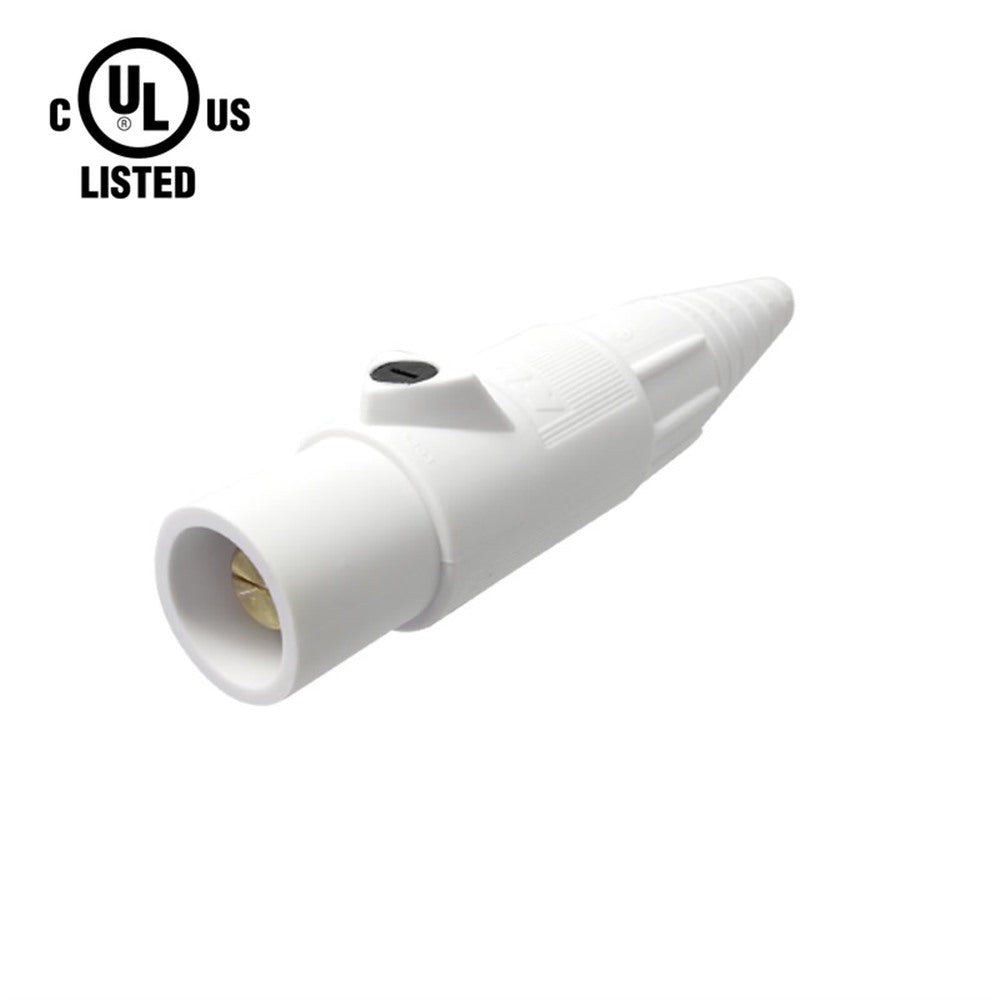

KL-400LMW is a KUPO K-LOK 400 A single-pole male inline cable connector with a white housing, rated for 600 V AC/DC maximum. It is engineered for heavy-duty temporary power distribution in entertainment, industrial, and event production settings. The white color coding aids rapid phase identification on the job site.
What wire sizes does KL-400LMW accept?
KL-400LMW accommodates conductors ranging from #6 to 4/0 AWG. The brass contact assembly ensures reliable electrical performance across this full conductor range, supporting up to 400 A at 600 V AC/DC.
Which electrical phase does the white color represent on KL-400LMW?
White is universally recognized in North America as the Neutral conductor per NEC conventions. Using a dedicated white connector for neutral runs eliminates guesswork during setup and teardown, reducing the risk of miswired circuits. Having a dedicated white connector in your inventory means phase assignments are physically enforced, minimizing the chance of cross-phase connection errors.
How does KL-400LMW protect against electrical hazards?
KL-400LMW incorporates multiple safety features: the non-conductive POM retaining screw prevents accidental current paths through the housing, the Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C resists heat and impact, brass contacts minimize resistive heating, and the design meets UL 1691 safety requirements under UL / UL / cUL Listed E332947. The UL Enclosure Types 3R rating also provides protection in wet or outdoor conditions.
Is KL-400LMW compatible with other CAM-type connectors?
Yes. KL-400LMW follows the universal CAM-type single-pole connector standard and intermates with CAM-type connectors from all major manufacturers. This cross-brand compatibility means you can integrate K-LOK connectors into existing power distribution systems without replacing your entire inventory.
