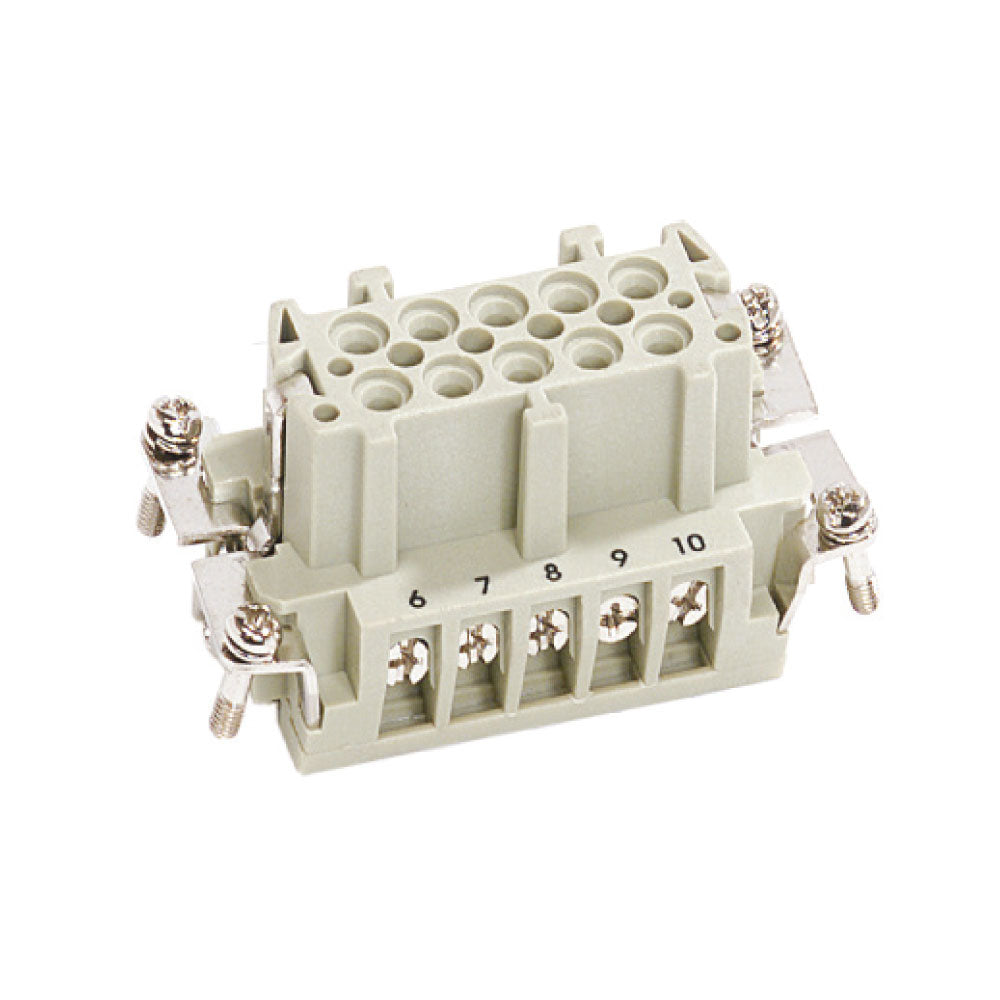

The KUPO KM10 F is the socket / female insert for the KM10 Multi-Pin connector system. It provides the defined 10-contact electrical insert used inside the matching housing and hood assembly for rugged multi-circuit power and signal-style interconnect work.
Why It Matters
The insert is where the connector stops being just hardware and becomes a wired assembly. KM10 F gives technicians a matched female socket side with hard-silver-plated copper alloy contact surfaces, M3 nickel-plated terminal screws, and 0.5 to 2.5 mm² conductor accommodation.
Key Features
10-pin socket / female insert for KUPO KM10 connector assemblies
Glass-fiber reinforced polycarbonate V-0 insert material supports durability and flame performance
Copper alloy contacts with hard-silver-plated contact surfaces support reliable low-resistance connections
Steel M3 nickel-plated terminal screws provide secure conductor termination
0.5 to 2.5 mm² cross section range supports common multi-pin cable assembly work
Applications
Use it for touring and entertainment multi-pin cable builds, industrial connector assemblies, venue interconnects, rental-house repair work, and equipment cabling that needs a rugged multi-contact plug-and-socket system.
Compatibility
Use with matching KM10 housings and hood components, and mate with the corresponding 10-pin plug insert. Do not mix KM10 and KM16 parts.
Frequently Asked Questions
Is this the female insert?
Yes. KM10 F is the socket / female insert for the KM10 10-pin connector family.
Does the insert include the housing and hood?

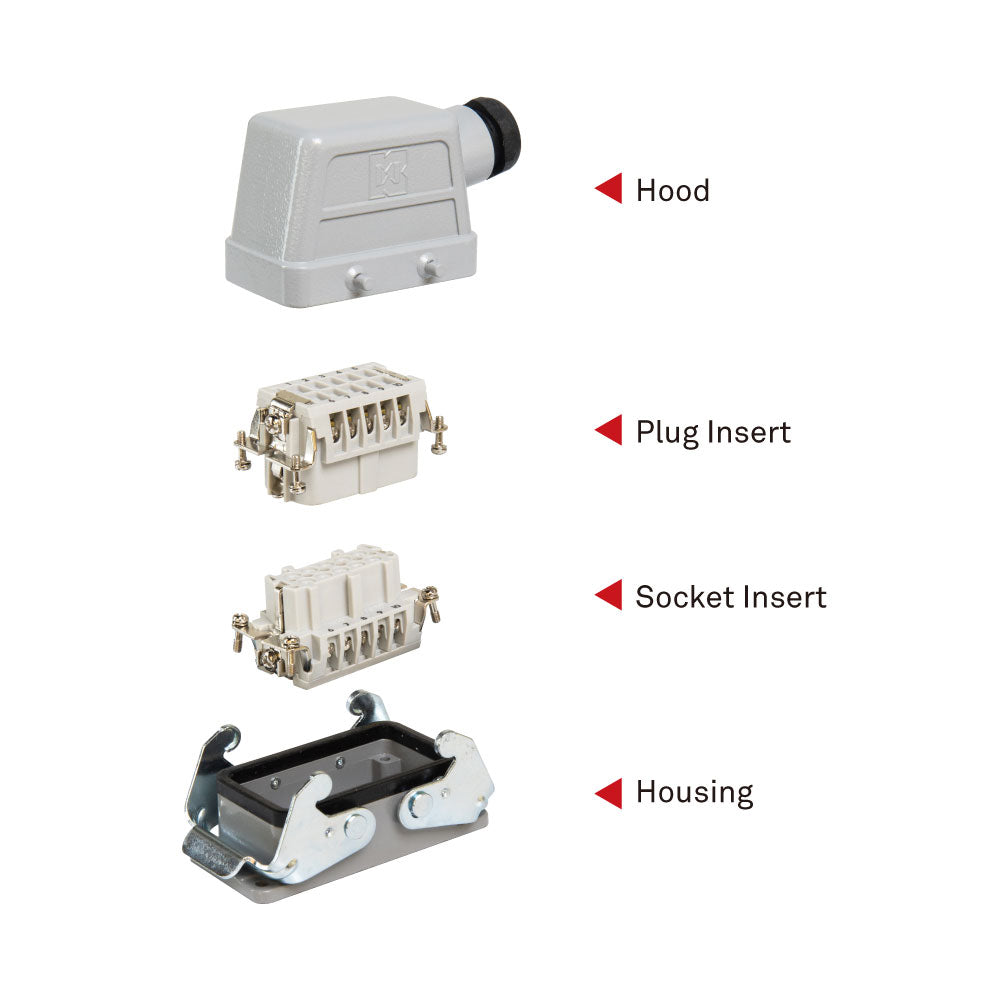

No. The insert is one part of the complete connector. It should be assembled with the matching housing and the hood style required by the cable exit.
What conductor size does it support?
The catalog specification lists a 0.5 to 2.5 mm² cross section range for the insert terminals.
