Overview

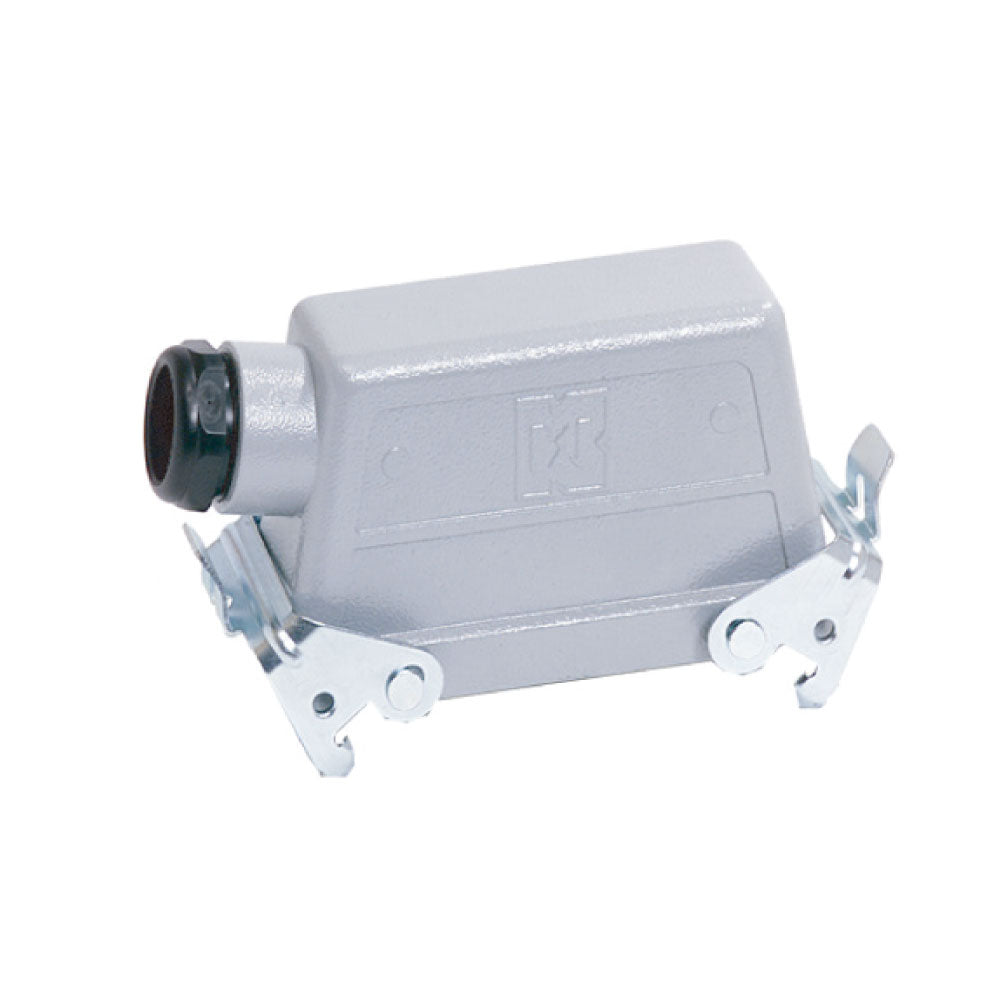

The KUPO KM10H5 is the closed side-outlet hood for the KM10 Multi-Pin connector system. It routes the cable out the side of a completed connector assembly while protecting the insert, housing, and cable entry hardware in touring, rental, event, and industrial use.
Why It Matters
Cable exit direction is not a cosmetic choice. A side-outlet hood helps the assembled connector sit cleanly against racks, panels, cases, or equipment, reducing cable strain and making the finished assembly easier to dress and service.
Key Features
- Closed side-outlet hood for KUPO KM10 Multi-Pin connector assemblies
- PG16 cable gland / hood reference for the 10-pin family
- Aluminum die-casting alloy construction protects the connector body during repeated handling
- Neoprene gasket resists oil and aging around the assembled connector interface
- Nylon 66 V-0 pressing lock-nut and zinc-plated steel locking levers support secure assembly
Applications
Use it for building or repairing multi-pin cable assemblies where cable exit direction, strain relief, and connector protection matter in touring, venue, rental, and industrial workflows.
Compatibility

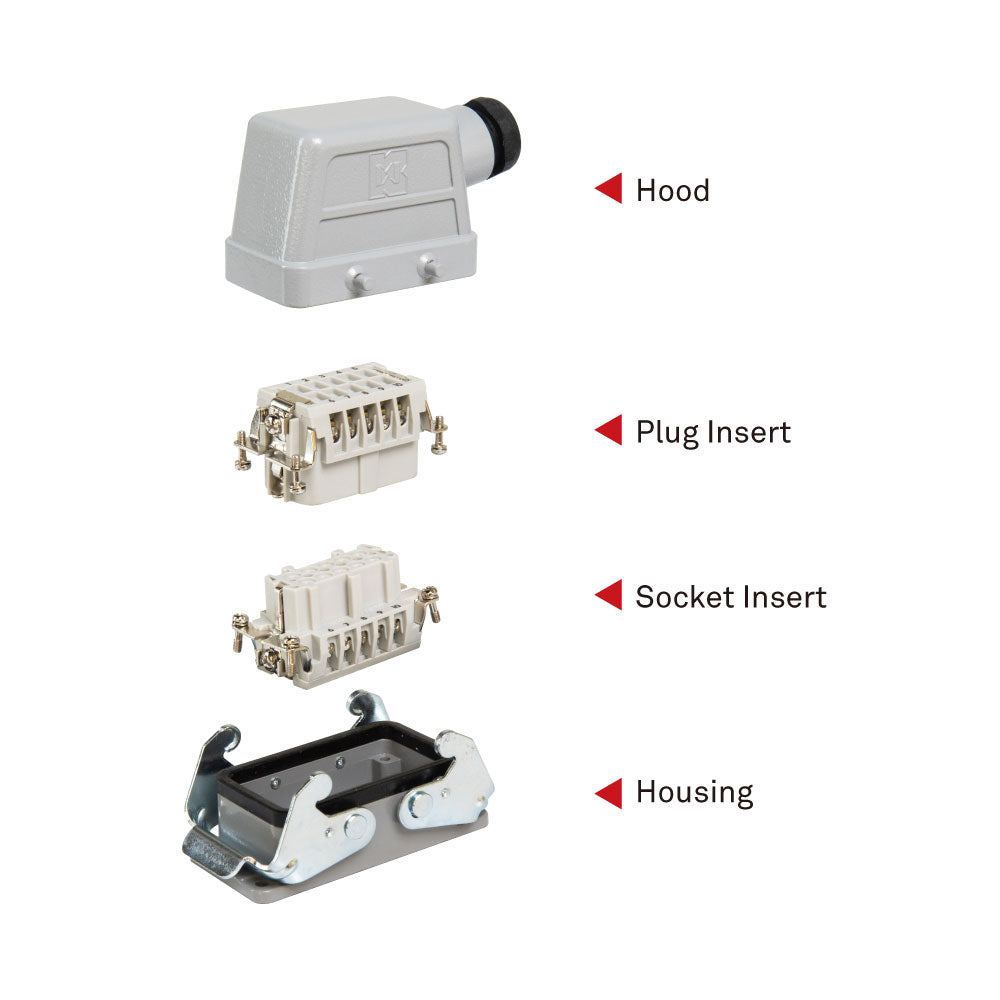

Use with matching KM10 housings and 10-pin plug or socket inserts. Select side-outlet, closed style, and PG16 cable gland reference according to cable direction, available space, and the complete connector assembly plan.
