The KUPO PL-3MPX Powerlead T1 connector is built for single-phase entertainment power systems that need a compact locking interface. Its twist-and-lock design gives positive mating engagement, while IEC 60320-1 certification with breaking capacity supports professional fixture and power-supply workflows.
Why It Matters

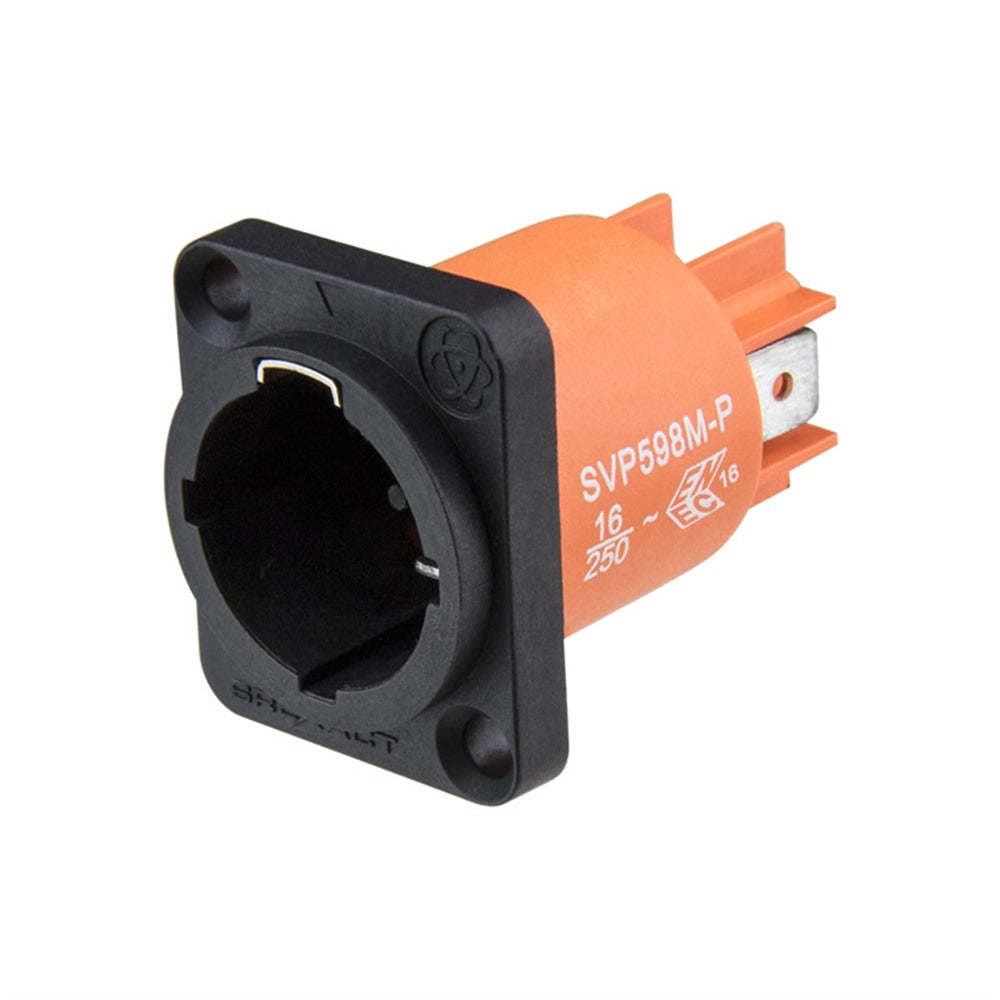

This panel male version is designed for chassis or fixture-side installation as a power outlet. The PE pin priority structure makes earth first and breaks earth last, which is a small but important safety detail when connectors are used repeatedly on LED fixtures and touring power hardware.
Key Features
Panel-Mount Male connector rated 16 A per contact at AC 250 V
IP65 dust and water protection when mated
IEC 60320-1 with breaking capacity and ENEC 16 certification
Screw push-pull copper-block stamping contact body for positive engagement

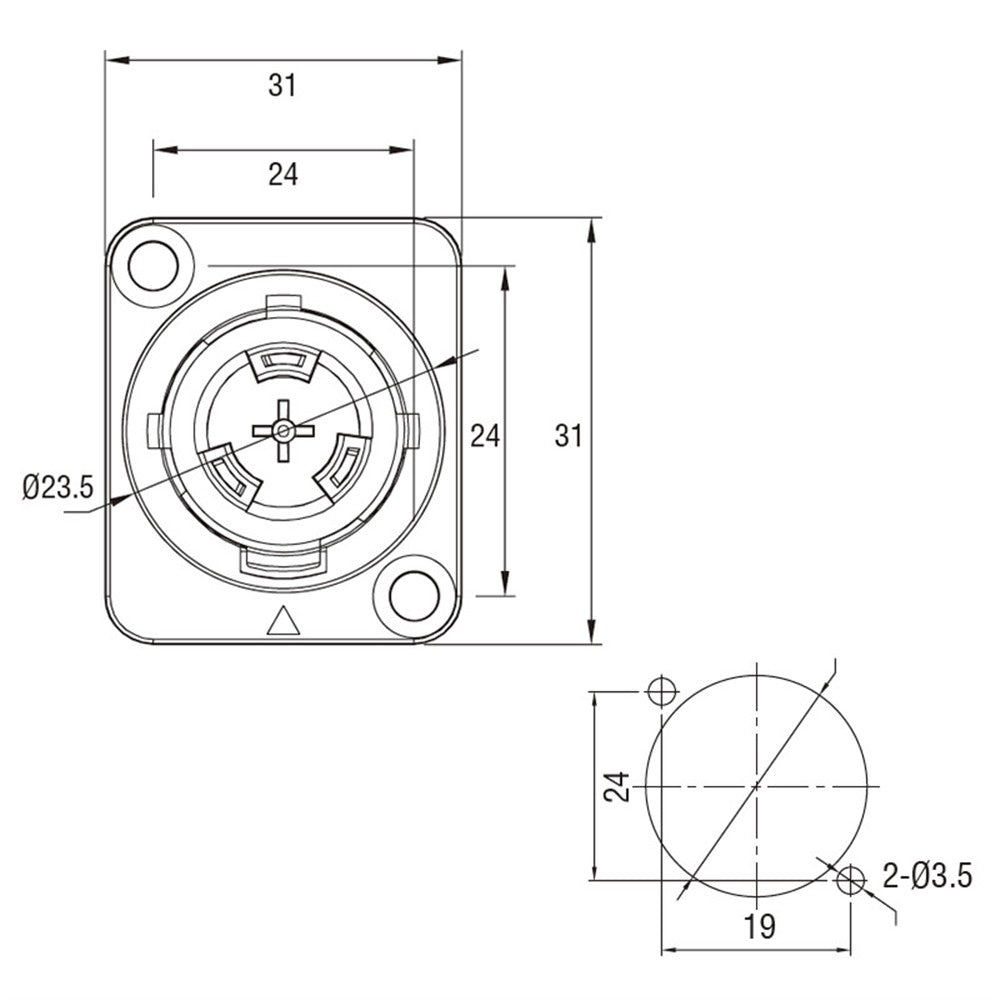

Fixing hole 19 x 24 mm, outer size 26 x 31 mm, 2 x M3.5 mounting holes with -30 to +80 °C temperature range
Applications

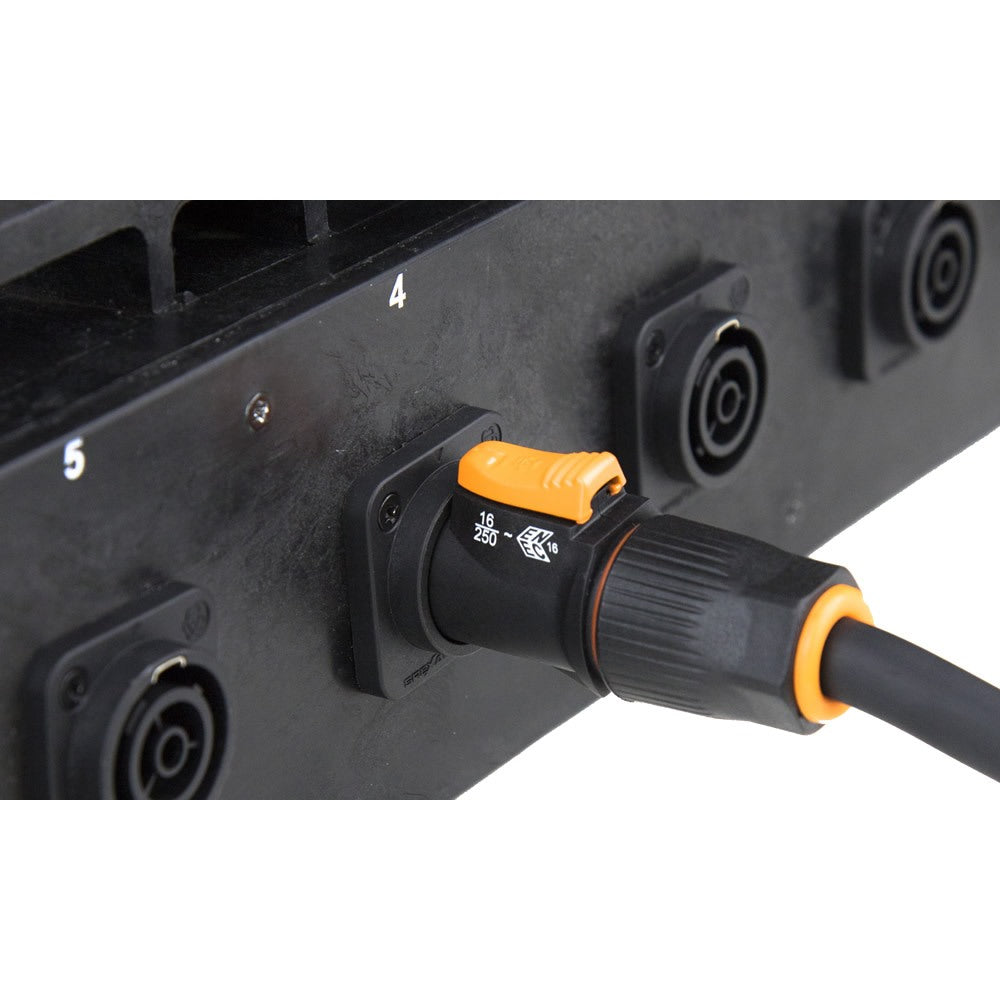

PL-3MPX is suited to LED fixtures, fixture-side power inlets or outlets, inline cable couplers, entertainment power supplies, and touring systems that use Powerlead T1 locking connectors.
Compatibility
Use PL-3MPX with compatible Powerlead T1 connectors. This version mates with line female PL-3 FXW; verify panel cutout, cable bushing, polarity, and full system rating before installation.
Frequently Asked Questions
What does PL-3MPX mate with?
PL-3MPX mates with line female PL-3 FXW in the Powerlead T1 family.
Can Powerlead T1 be disconnected under load?
The specification describes Powerlead T1 as certified to IEC 60320-1 with breaking capacity, meaning it is designed for safe live or loaded connection and disconnection when used correctly.
Is PL-3MPX a panel or cable-end connector?
PL-3MPX is a panel-mount male connector.
