Overview

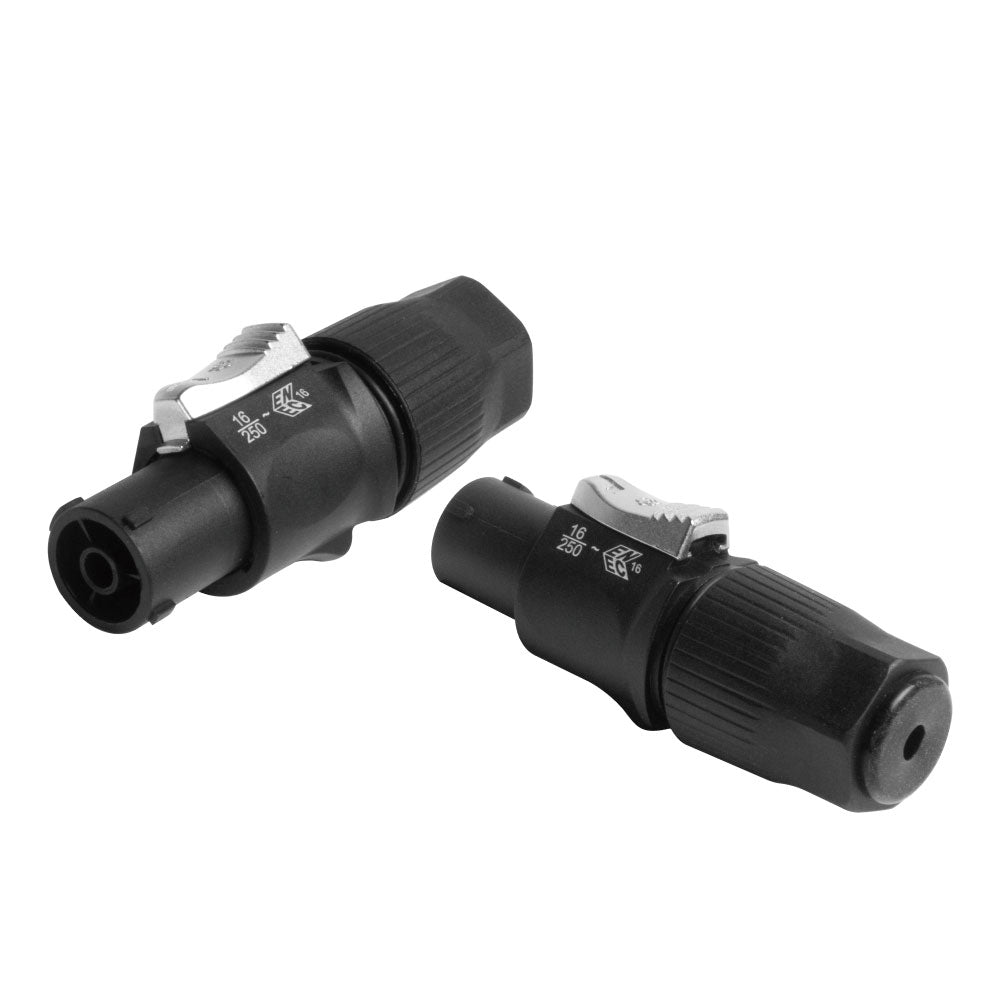

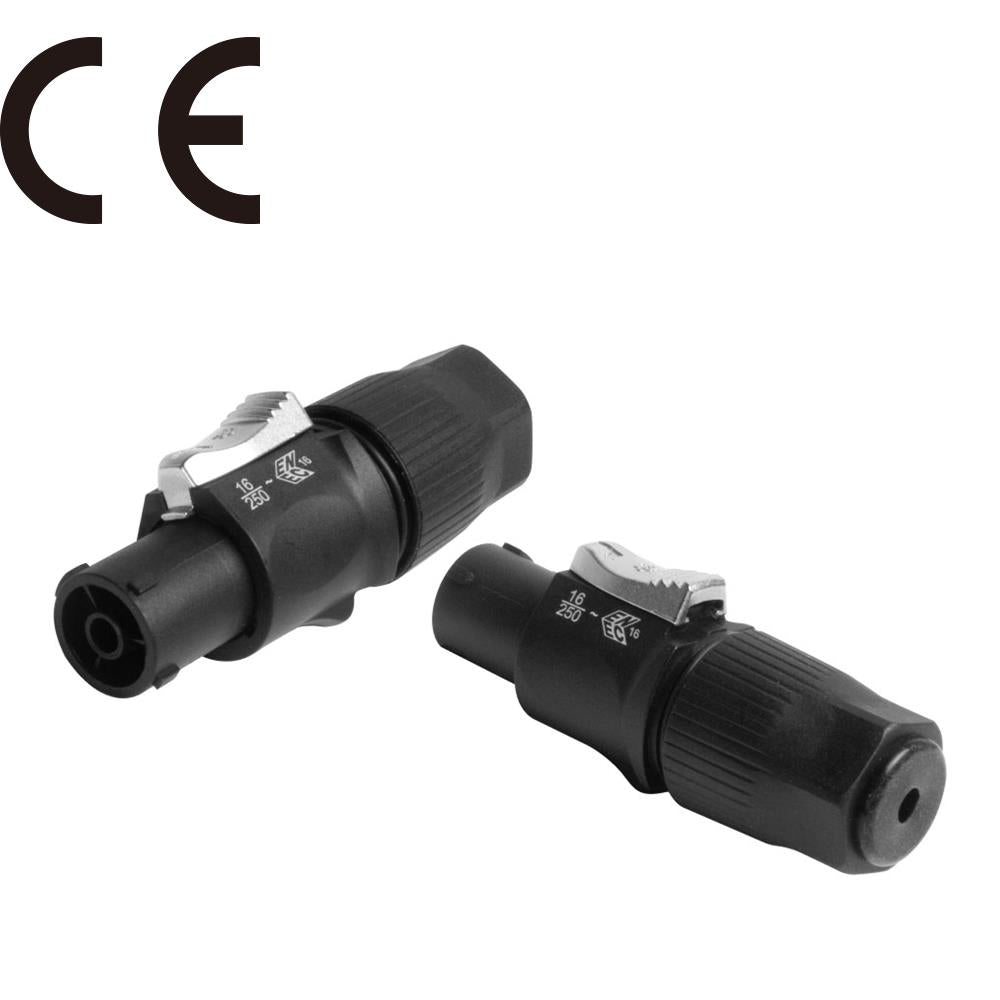

The KUPO PL-3 FXW Powerlead connector is built for entertainment power systems that need a positive twist-and-lock connection. Its single-phase design gives fixtures, dimmers, and distribution boxes a secure mating interface, with construction details chosen for repeated production handling.

Why It Matters

This Powerlead T1 version is certified to IEC 60320-1 with breaking capacity ( CBC), meaning it is designed for safe connection or disconnection under load or live when used correctly. IP65 protection applies when mated, making it useful around LED fixtures and entertainment power supplies that need a compact locking connector.

Key Features

• T1 Line Female connector rated 16 A per contact at AC 250 V
• Twist-and-lock design with IP65 dust and water protection when mated
• IEC 60320-1 with breaking capacity ( CBC) and ENEC certification
• PE pin priority structure makes earth first and breaks earth last
• Cable diameter 8.5 - 11 mm or 12 - 15 mm with sized bushing, with -30 to +80 °C temperature range

Applications

PL-3 FXW is suited to LED fixtures, entertainment power distribution, touring racks, dimmer or fixture panels, feed-through units, and cable assemblies that require a locking Powerlead connection.

Compatibility

Use PL-3 FXW with compatible Powerlead connectors in the same family. It mates with PL-3MXW line male or PL-3MPX panel male connectors; verify color coding, polarity, cable size, mounting cutout, and electrical rating before installation.
