Overview

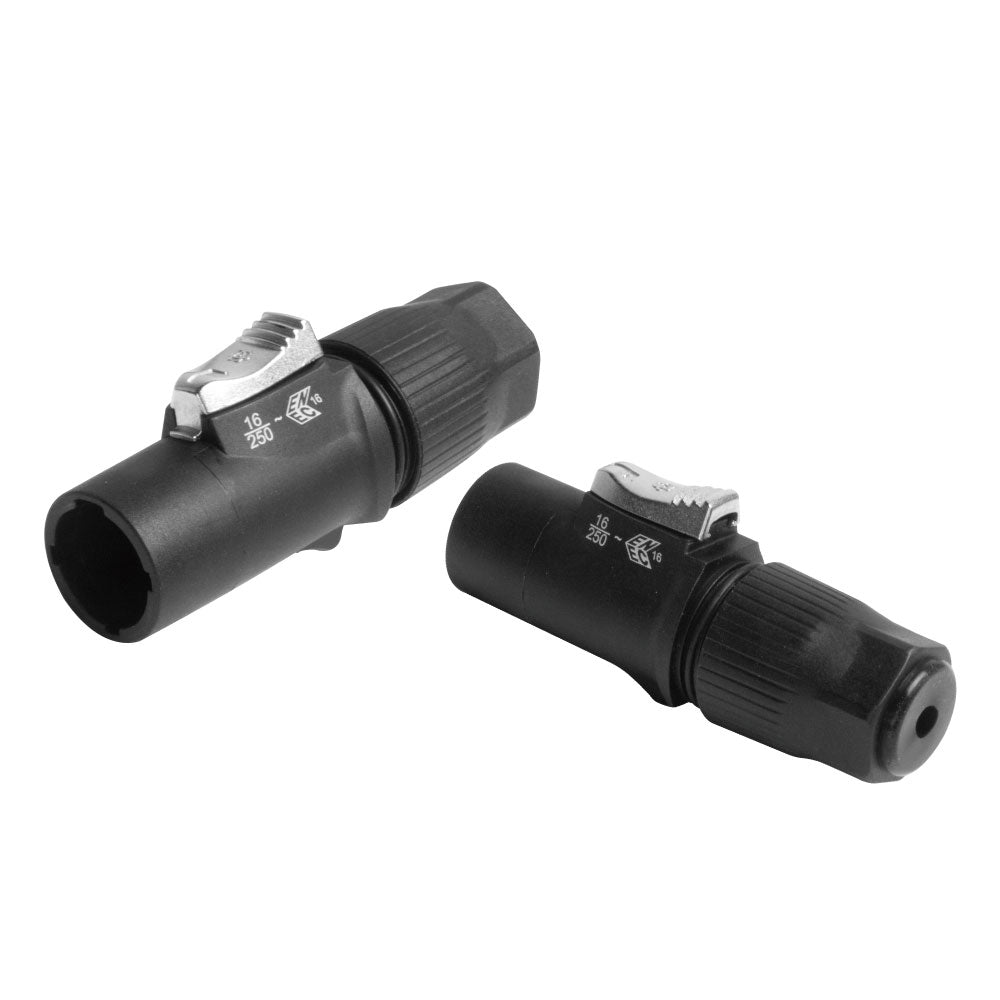

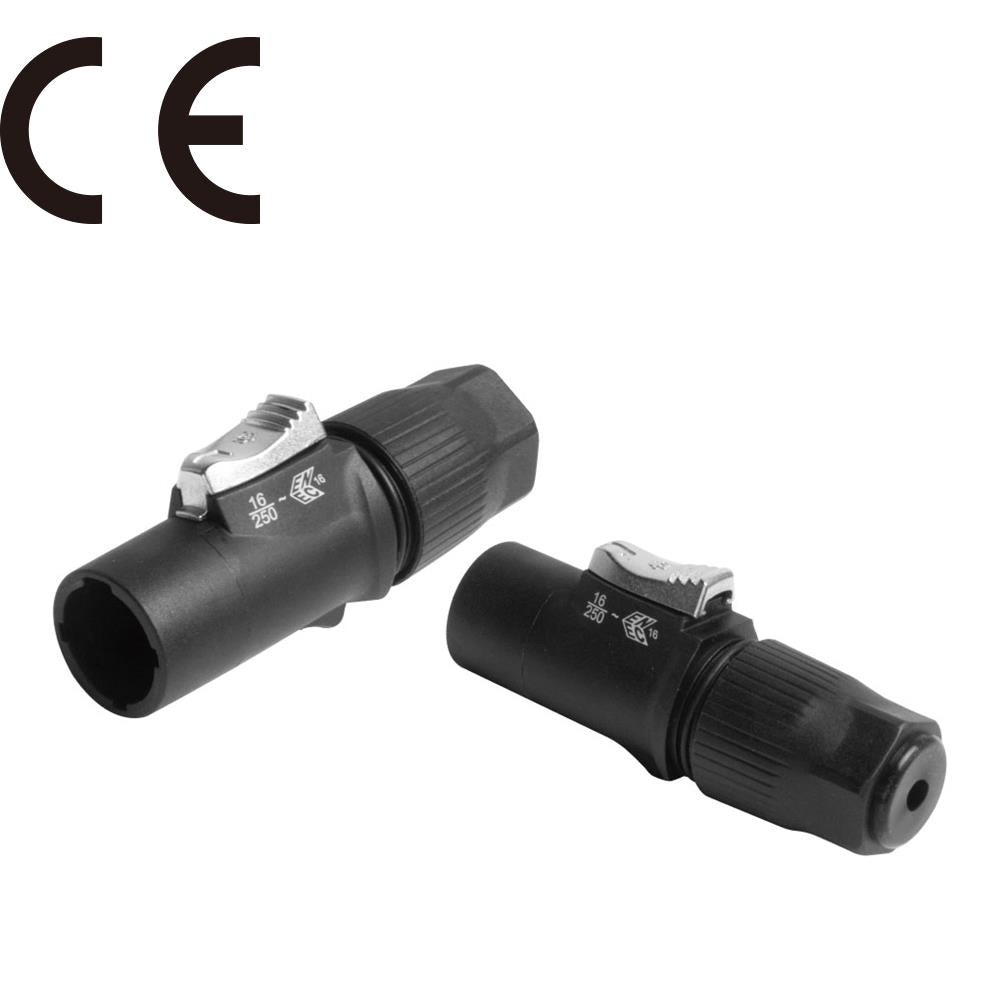

The KUPO PL-3MXW Powerlead T1 connector is built for single-phase entertainment power systems that need a compact locking interface. Its twist-and-lock design gives positive mating engagement, while IEC 60320-1 certification with breaking capacity supports professional fixture and power-supply workflows.

Why It Matters

This line male version is the cable-end connector for inline coupling or mating to a panel female connector. The PE pin priority structure makes earth first and breaks earth last, which is a small but important safety detail when connectors are used repeatedly on LED fixtures and touring power hardware.

Key Features

• Line Male connector rated 16 A per contact at AC 250 V
• IP65 dust and water protection when mated
• IEC 60320-1 with breaking capacity and ENEC 16 certification
• Screw push-pull copper-block stamping contact body for positive engagement
• Cable diameter 8.5 - 11 mm or 12 - 15 mm with sized bushing with -30 to +80 °C temperature range

Applications

PL-3MXW is suited to LED fixtures, fixture-side power inlets or outlets, inline cable couplers, entertainment power supplies, and touring systems that use Powerlead T1 locking connectors.

Compatibility

Use PL-3MXW with compatible Powerlead T1 connectors. This version mates with PL-3 FXW line female or PL-3 FPX panel female; verify panel cutout, cable bushing, polarity, and full system rating before installation.
