Overview

The KUPO PL-3PX Powerlead T1 connector is built for single-phase entertainment power systems that need a compact locking interface. Its twist-and-lock design gives positive mating engagement, while IEC 60320-1 certification with breaking capacity supports professional fixture and power-supply workflows.

Why It Matters

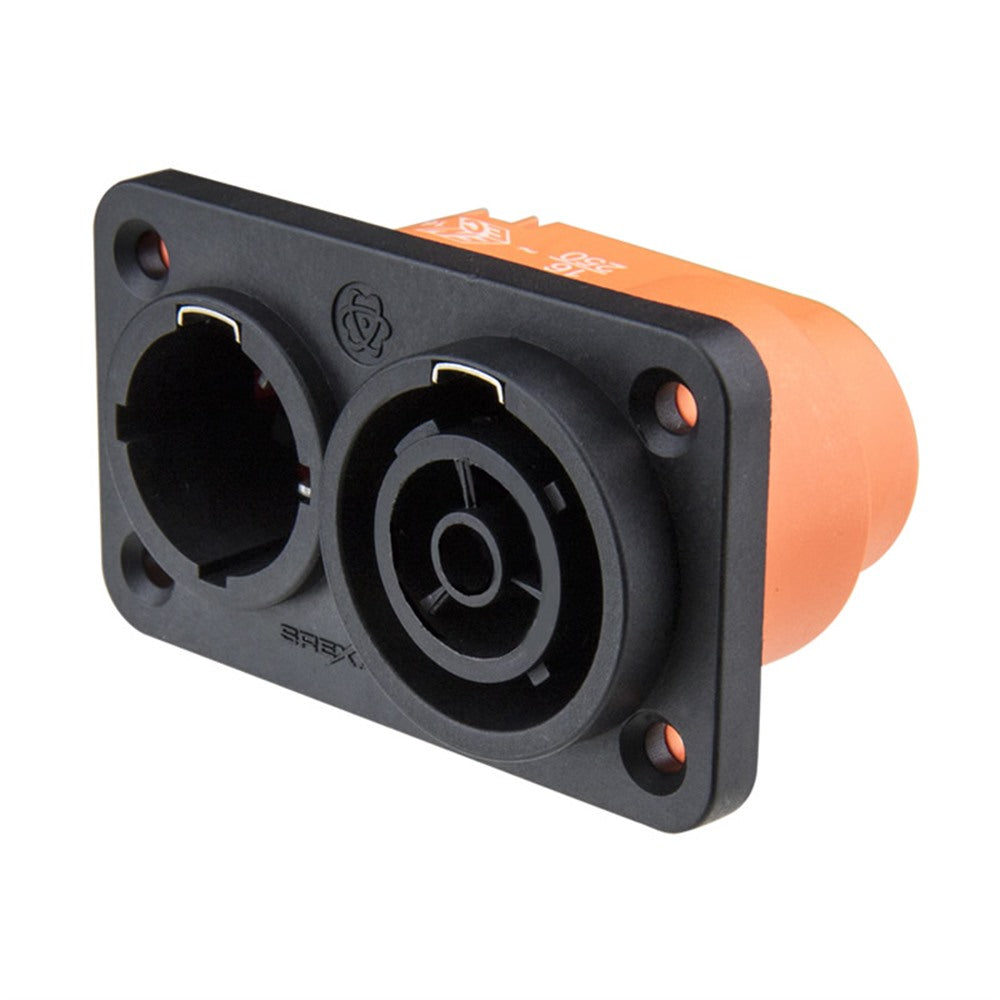

This combination panel unit carries both male and female connectors in one body for through-panel inlet and outlet arrangements. The PE pin priority structure makes earth first and breaks earth last, which is a small but important safety detail when connectors are used repeatedly on LED fixtures and touring power hardware.

Key Features

• Panel-Mount Combination Male and Female connector rated 16 A per contact at AC 250 V
• IP65 dust and water protection when mated
• IEC 60320-1 with breaking capacity and ENEC 16 certification
• Screw push-pull copper-block stamping contact body for positive engagement

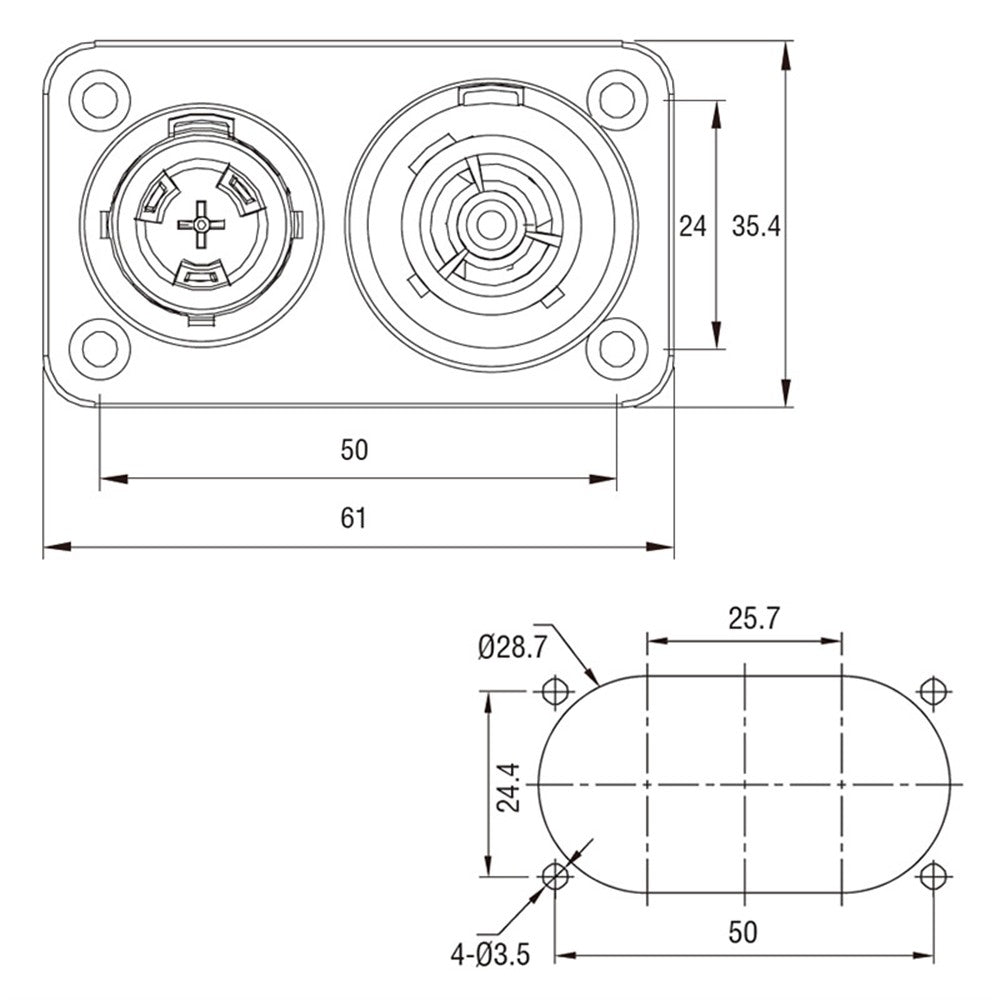

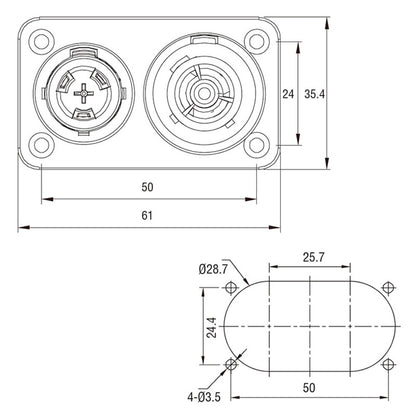

• Fixing hole 50 x 24.4 mm, outer size 61 x 35.4 mm, 4 x M3.5 mounting holes with -30 to +80 °C temperature range

Applications

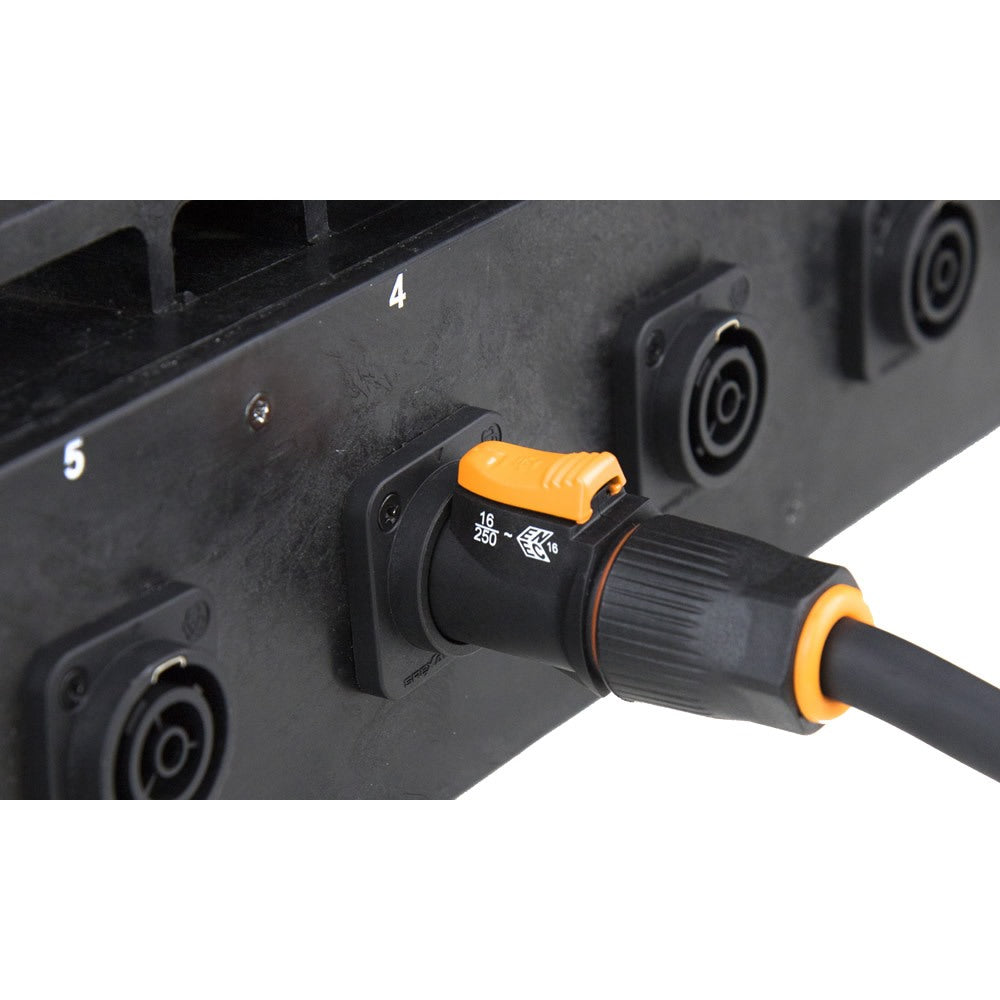

PL-3PX is suited to LED fixtures, fixture-side power inlets or outlets, inline cable couplers, entertainment power supplies, and touring systems that use Powerlead T1 locking connectors.

Compatibility

Use PL-3PX with compatible Powerlead T1 connectors. This version mates with compatible Powerlead T1 male and female line connectors; verify panel cutout, cable bushing, polarity, and full system rating before installation.
