Overview

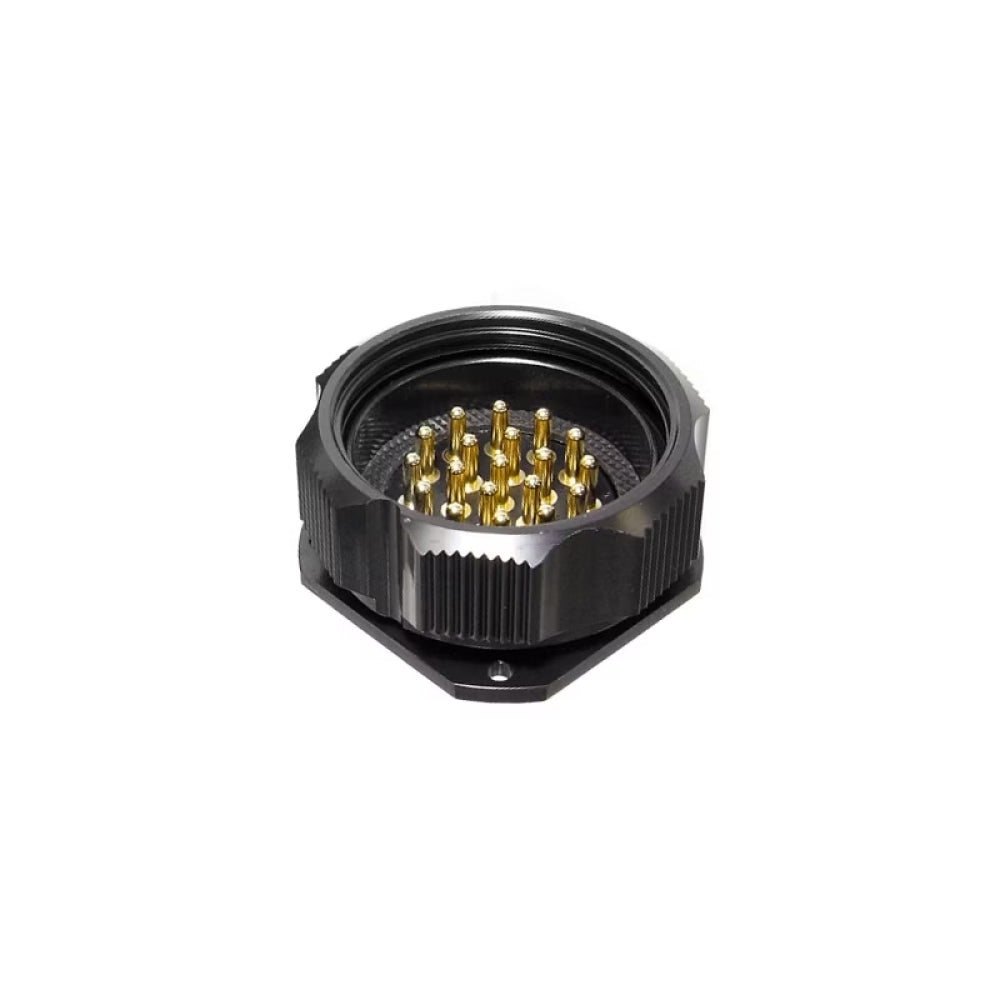

The KUPO PLS-5219SM is the solder type surface male connector in the PLS 19-pin family. It puts pin contacts into a panel-mount format for distribution boxes, power panels, and fixed equipment where a rugged 19-pin interface needs to live on the chassis rather than the cable.
Why It Matters
Surface-mount connectors take a different kind of abuse than cable-end connectors: they live on boxes, racks, and panels that get handled, loaded, and patched repeatedly. The die-cast aluminum alloy shell, black non-conductive finish, Bakelite insulation, and hard gold-plated copper alloy contacts give this panel side the same professional connector build as the line versions.
Key Features
- Solder termination, surface / panel-mount male format
- 19-pin connector rated AC 20 A 250 V with AC 1500 V rated voltage
- Hard gold-plated copper alloy contacts with contact resistance below 3 mOhms
- Black non-conductive die-cast aluminum shell with Bakelite insulation
- Socapex SL419 and Veam VSC compatible, UL / cUL listed, PG29 cable gland support
Applications
PLS-5219SM is suited to 19-pin distribution boxes, equipment panels, Socapex-style power panels, touring racks, and shop-built systems that need a solder-terminated male panel connector.
Compatibility

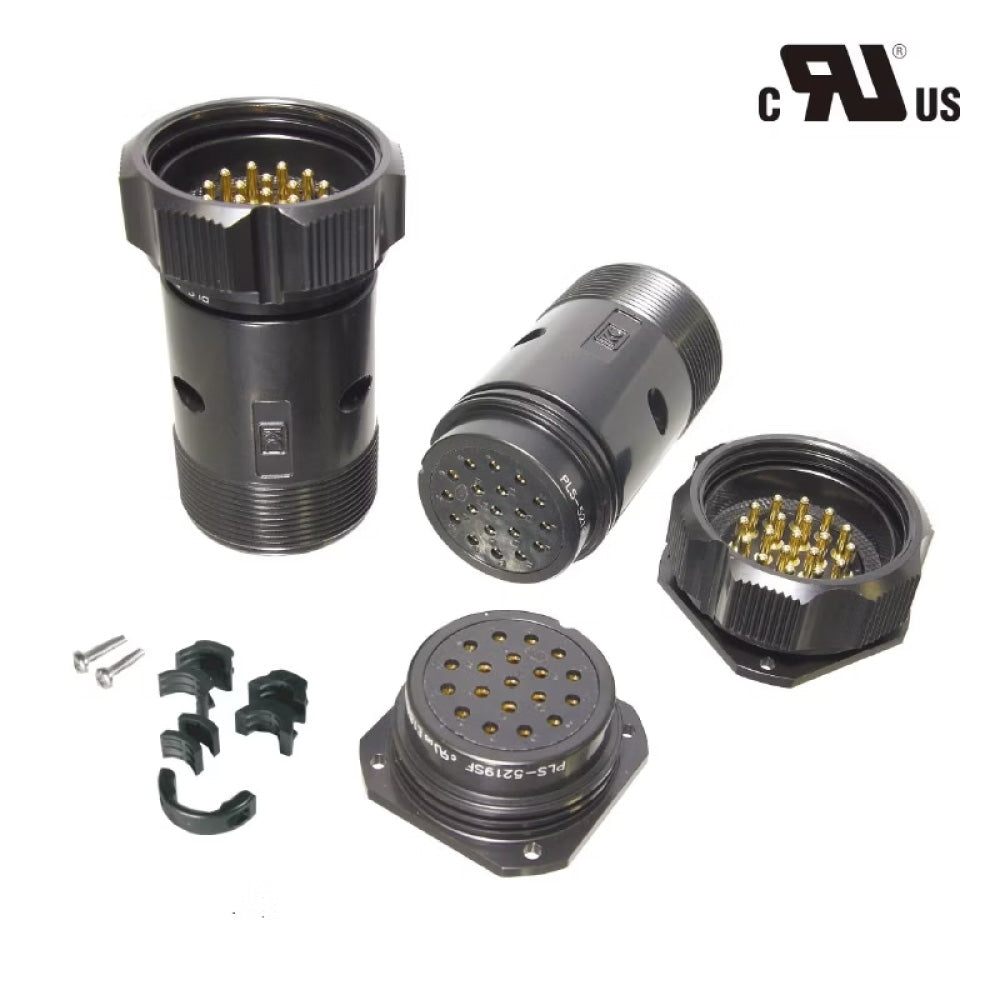

Use PLS-5219SM with corresponding female PLS 19-pin connectors and compatible Socapex SL419 or Veam VSC systems. Match solder assembly practice, panel layout, and electrical rating before installation.
