Overview

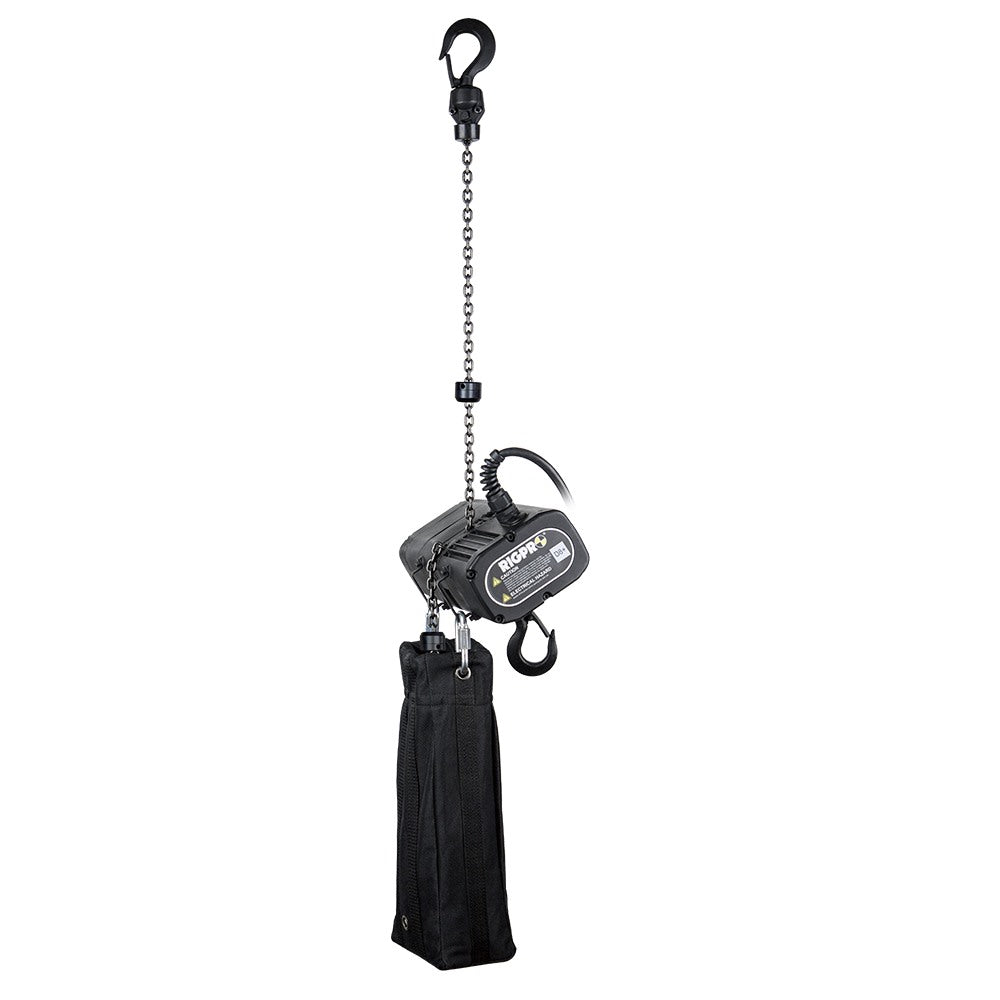

The KUPO RC-250LV is a compact 250 kg D8 Plus chain hoist with 24 V low-voltage control for entertainment rigging systems. It uses a 0.20 kW 4-pole motor, 4.0 x 12 mm Grade 80 EN 818-7 load chain, and separate red power plus yellow control connections for controlled multi-hoist workflows.
Why It Matters

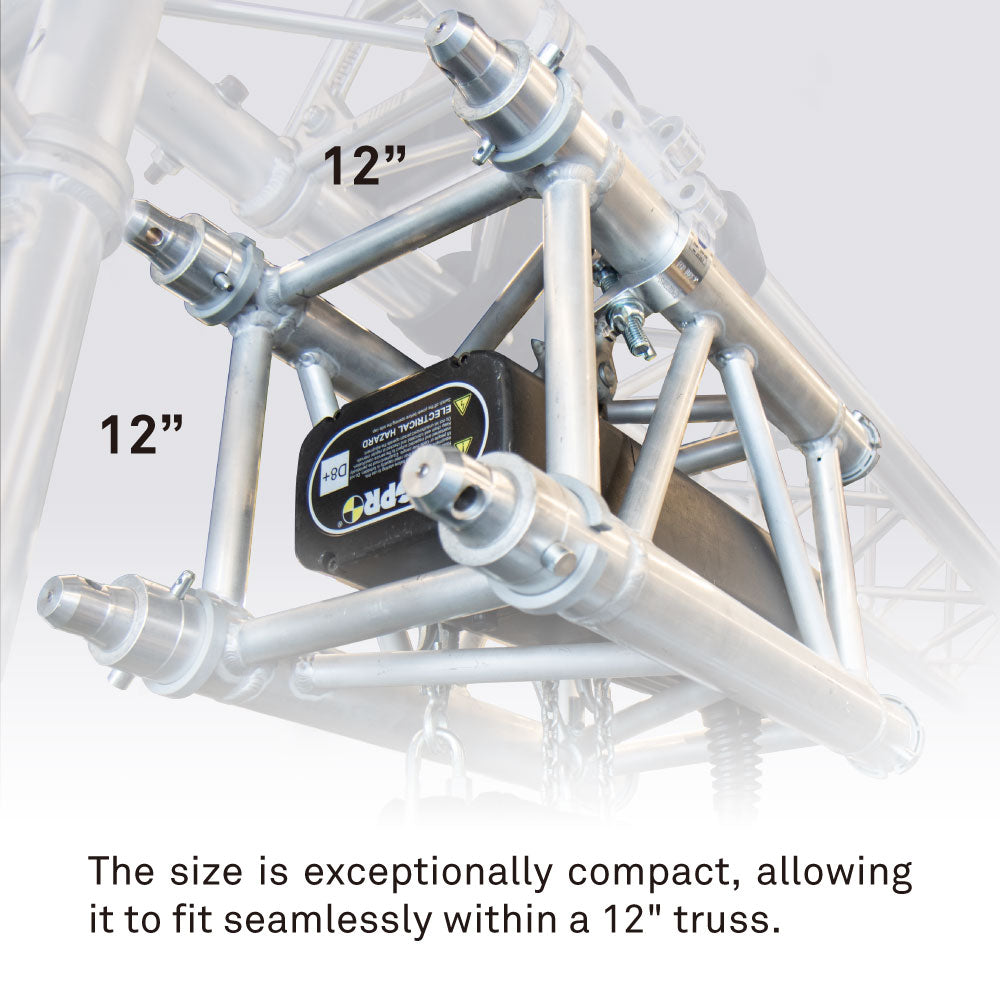

This model is for crews who need a small hoist but still want low-voltage control discipline. At 11.5 kg, it is easier to handle than larger motors, while D8 Plus compliance and a friction clutch outside the load path keep it aligned with professional rigging expectations.
Key Features
- 250 kg capacity and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed suit the intended RIGPRO hoist class.

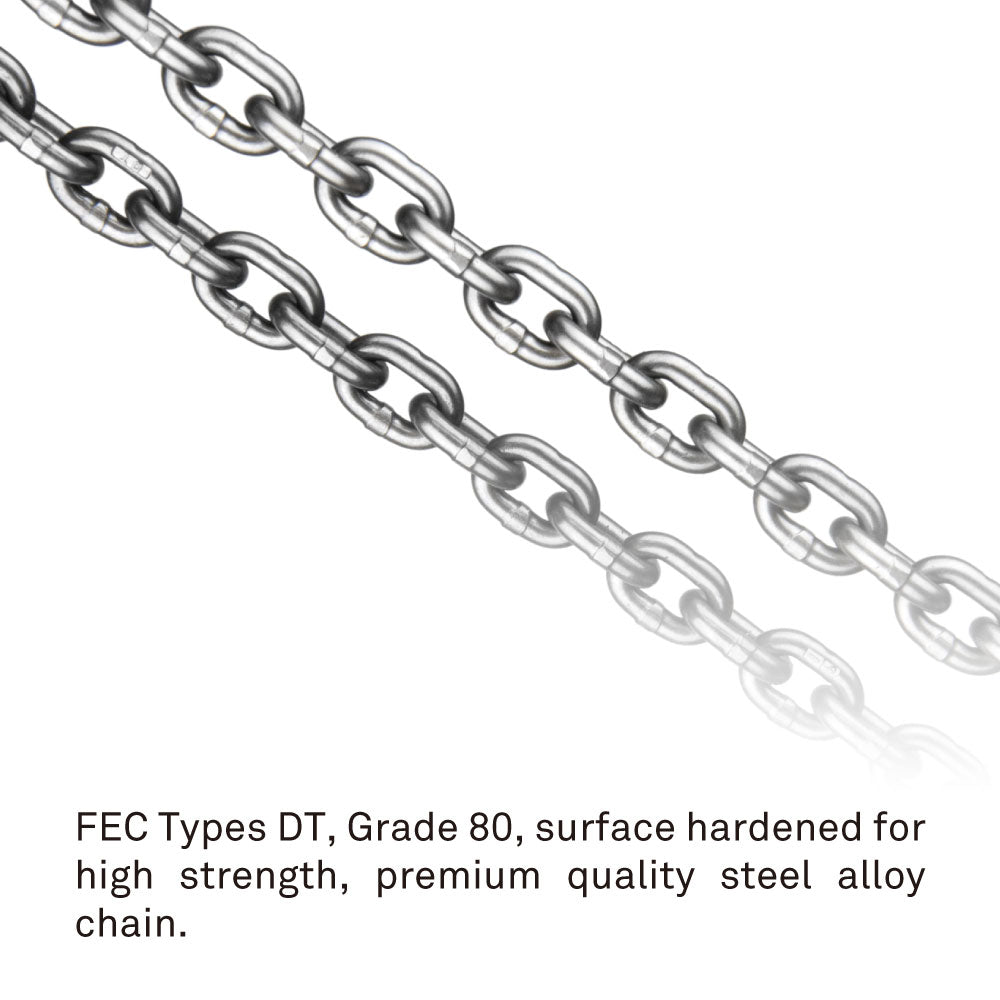

- Grade 80, 4.0 x 12 mm, EN 818-7 compliant load chain gives the hoist the correct chain size for its drive system.

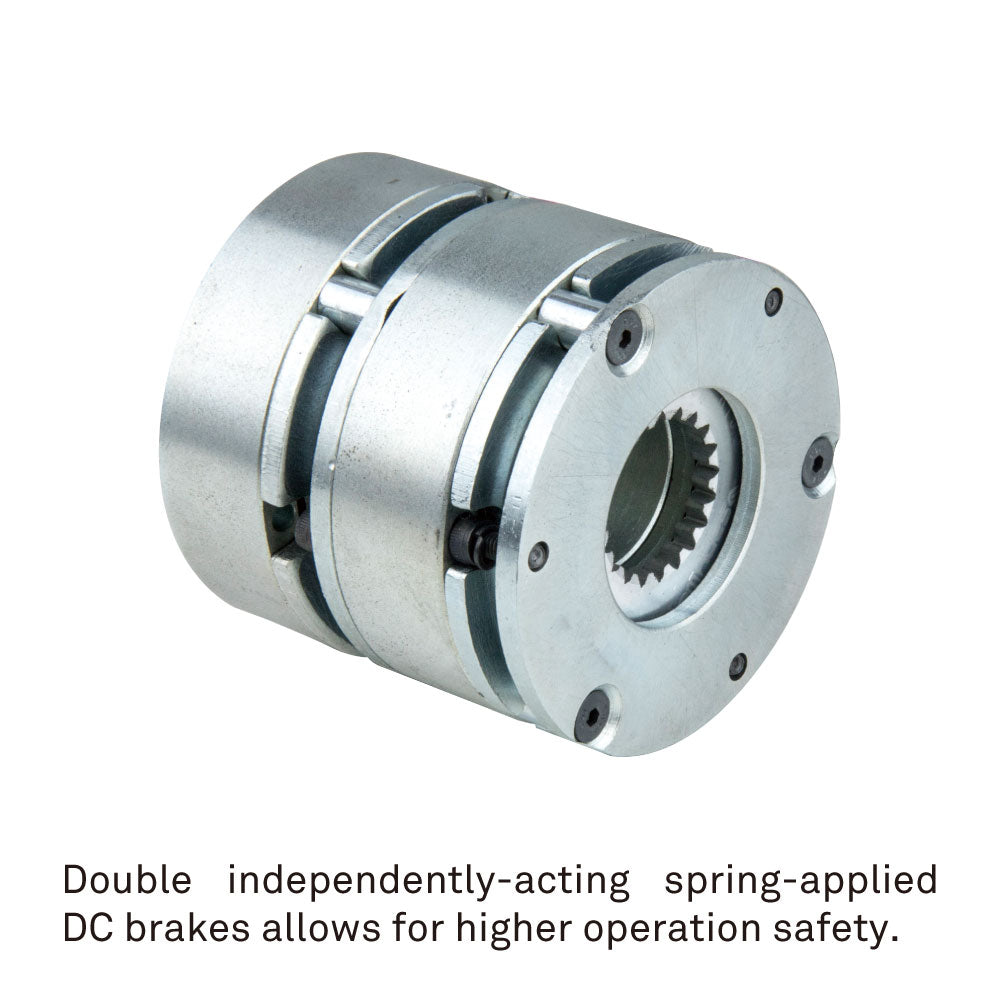

- Chain hoist brake system with friction clutch outside the load path holds the load safely when power is removed or a fault occurs.

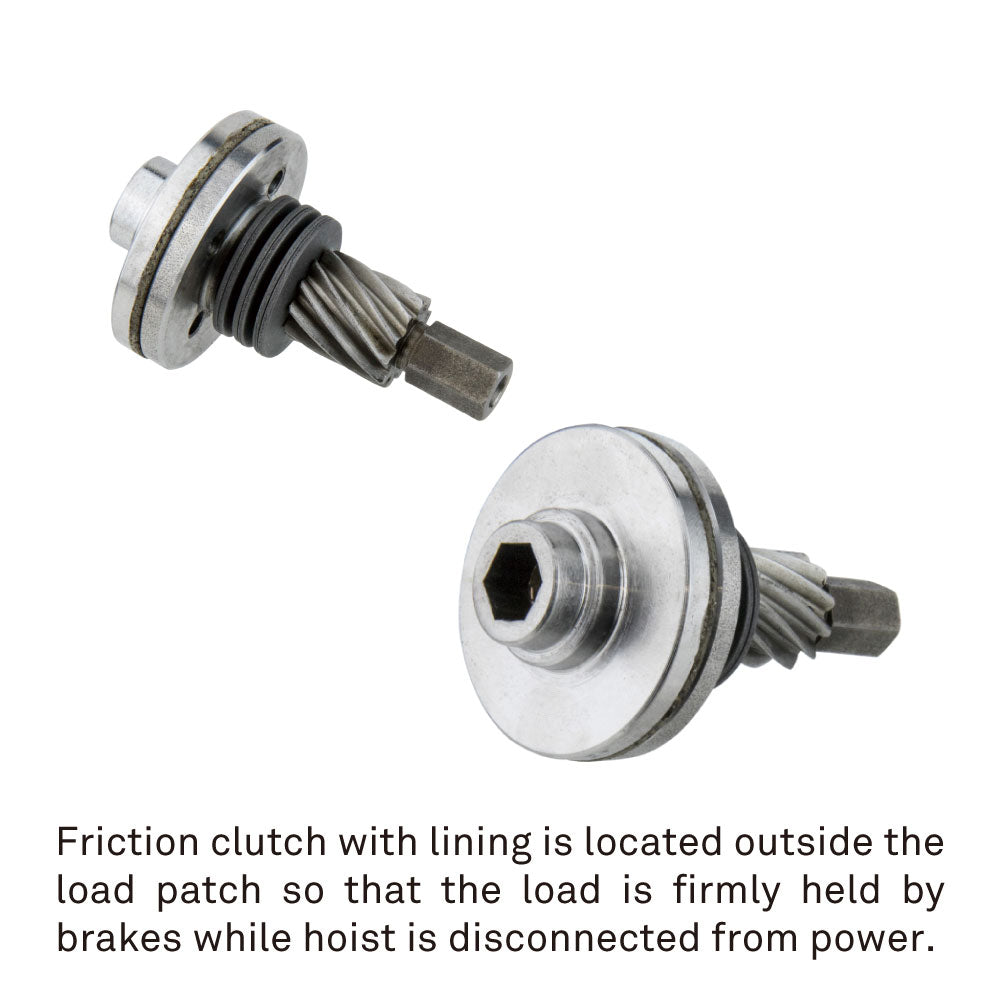

- Friction clutch outside the load path protects the drive and operator workflow during entertainment rigging use.
Performance & Safety
RC-250LV is the low-voltage-control version of the compact 250 kg D8 Plus hoist, built for desk or controller operation rather than direct pendant control.
- Safe working load: 250 kg.
- Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.

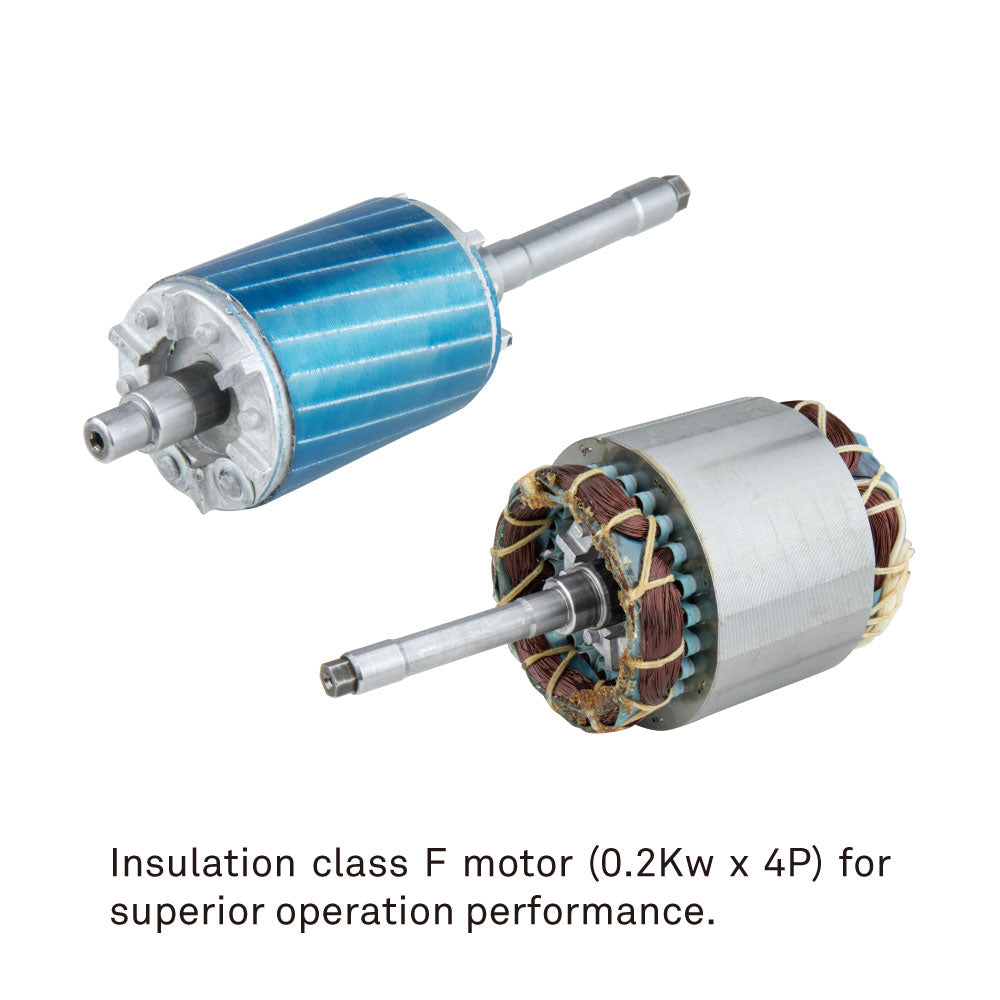

- Motor: 0.20 kW x 4P.
- Duty cycle: FEM 1Bm class, ED 25 percent or 150 starts per hour.
- Compliance: D8+ / IGVW SQP2 2018.
- Degree of protection: IP 20.
- Control voltage: 24 V low voltage control.
Applications
Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and control type match the rig plan.
Compatibility
Use with compatible low-voltage control systems using the listed red CEE power and yellow CEE control cabling.
Additional Technical Notes
- Control Voltage: 24 V low voltage control
- Chain Fall: 1
- Brake: Chain hoist brake system with friction clutch outside the load path
- Friction Clutch: Yes, located outside the load path
Frequently Asked Questions
Is this the right hoist if I need central motor-desk control
Yes. This is the low-voltage-control version intended for central control workflows.
What is the main difference from its sister model
Compared with RC-250P, this version uses low-voltage control instead of direct control.
Can I use any load chain with this hoist
No. Use the specified Grade 80 EN 818-7 load chain size for the hoist. Chain size, pitch, and hoist wheel geometry must match.
