Overview

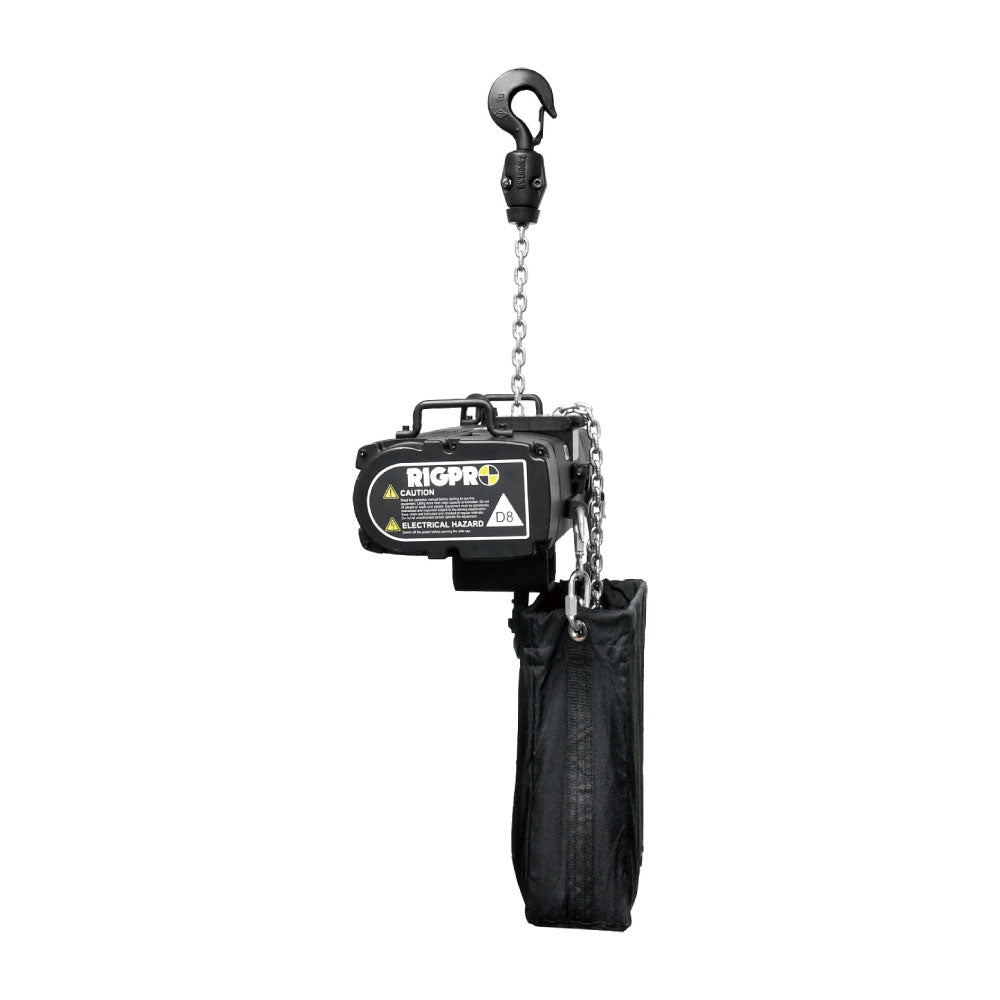

The KUPO RD-1000LV is a 1000 kg D8 Plus chain hoist with 24 V low-voltage control and no Micro Switch Positioning (MSP). It is built for central motor-control workflows where the hoist needs IP 54 protection, clear controller integration, and a compact one-fall lifting package.
Why It Matters
Choose this version when multiple hoists need to run from a central controller instead of individual direct pendants. The non-MSP configuration keeps the enclosure at IP 54, and 24 V low-voltage control is the standard control voltage. Other control-voltage models depend on request.
Key Features
- 1000 kg WLL and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed suit the intended RIGPRO D8 Plus hoist class.

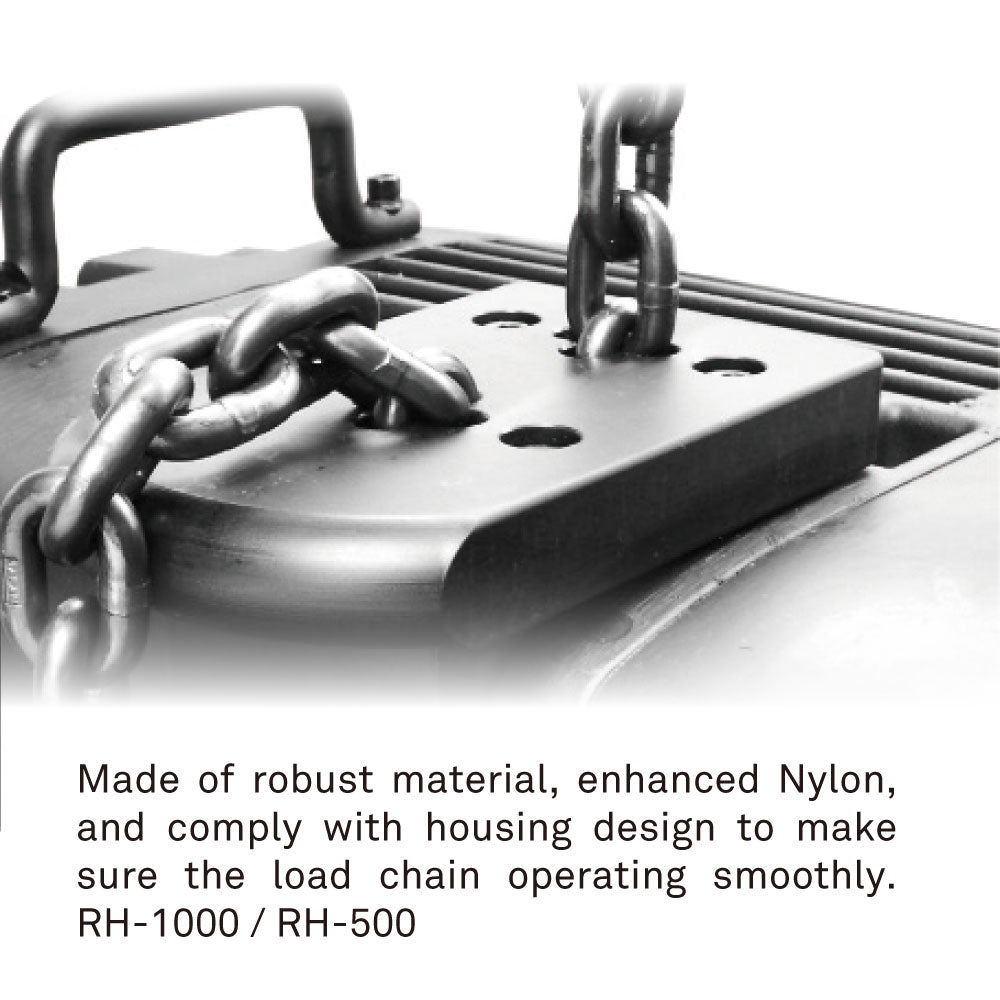

- Grade VH/100, 7.1 x 20.2 mm, EN 818-7. This gives the 1000 kg model the stronger chain specification required for the RD-1000 update.

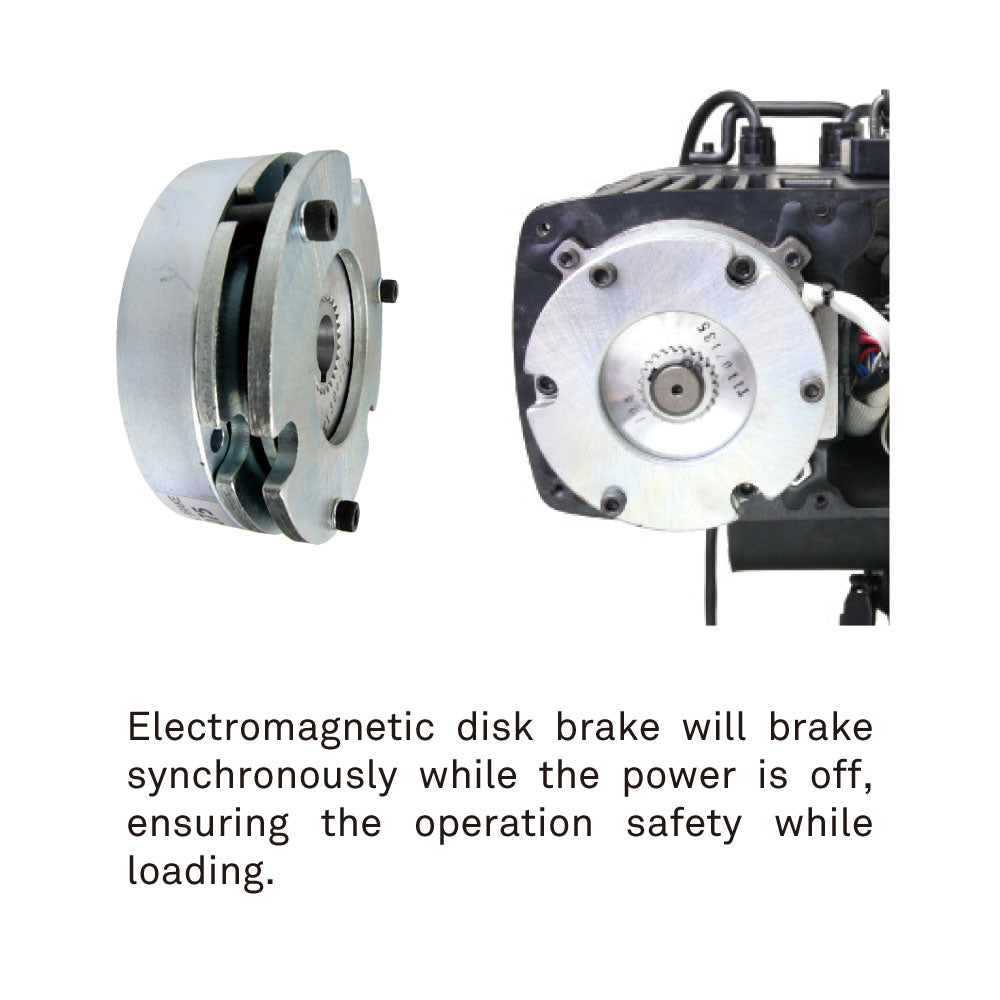

- Spring-loaded heavy-duty DC brake holds the load safely when power is removed or a fault occurs.

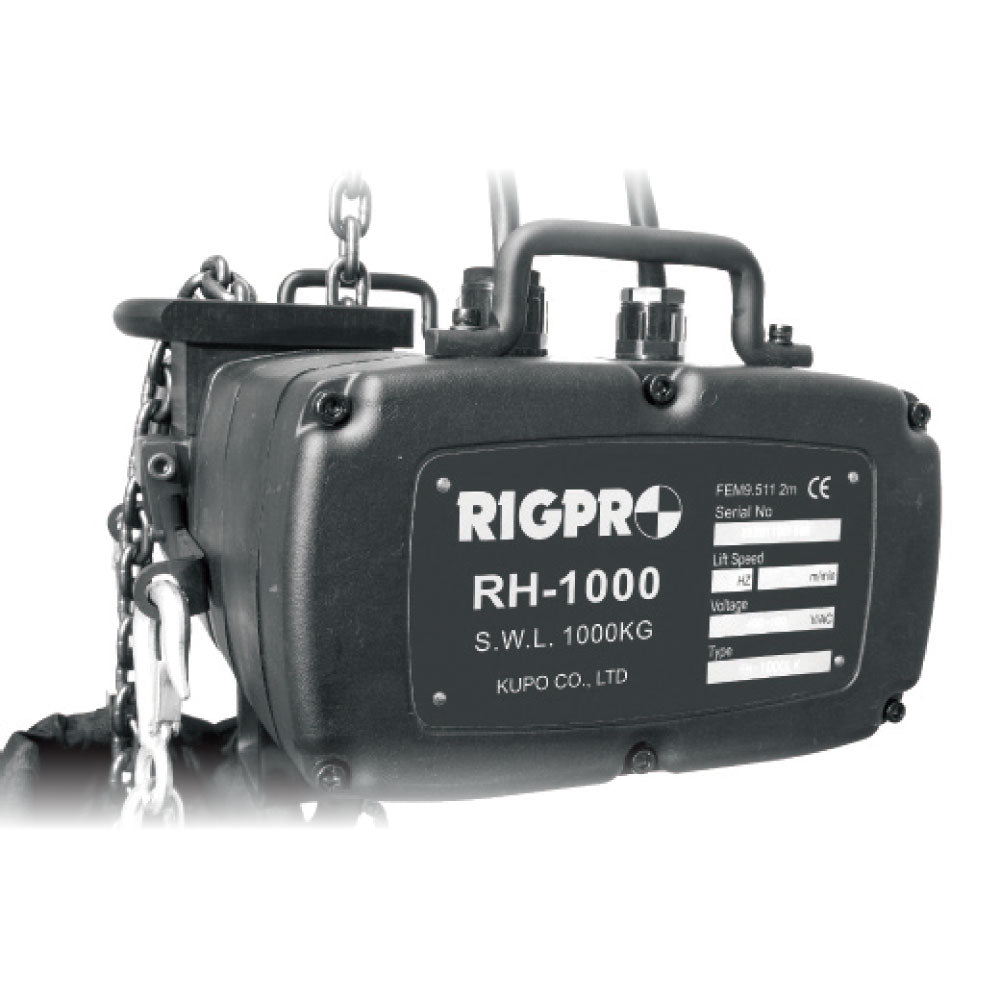

- Non-MSP configuration supports IP 54 protection and a cleaner low-voltage-control hoist body.
Performance & Safety
RD-1000LV is the 1000 kg D8 Plus low-voltage-control hoist without MSP, with IP 54 protection and standard 24 V low-voltage control.
- WLL: 1000 kg.
- Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.
- Motor: 0.75 kW x 4P.
- Duty cycle: FEM 2m class, ED 40 % or 240 starts per hour.
- Compliance: BGV D8+ / IGVW SQP2 2018.
- Degree of protection: IP 54.
- Control voltage: 24 V low voltage control is standard; other control-voltage models depend on request.
- Positioning: No Micro Switch Positioning (MSP).
Applications
Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and control type match the rig plan.
Compatibility
Use with compatible RIGPRO low-voltage control cabling and controllers for 1000 kg D8 Plus hoists.
Additional Technical Notes
- Control Voltage: 24 V low voltage control is standard; other control-voltage models depend on request
- Chain Fall: 1
- Brake: Spring-loaded heavy-duty DC brake

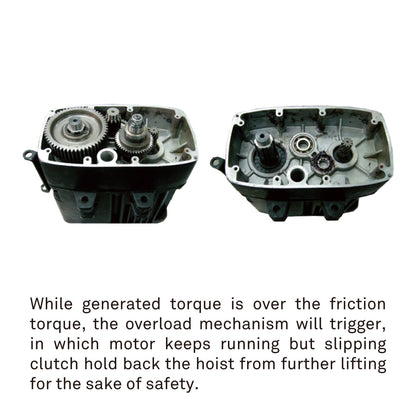

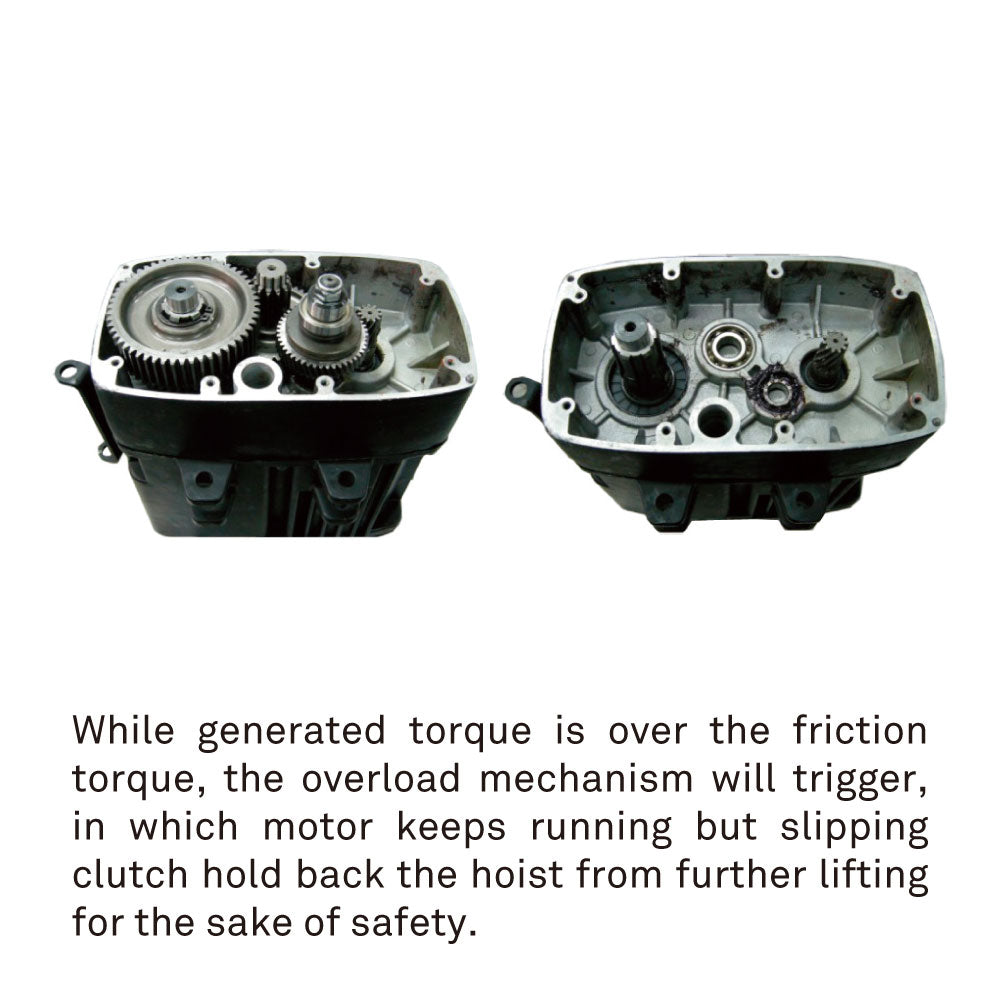

- Friction Clutch: Yes, located outside the load path
- Positioning: No Micro Switch Positioning (MSP)
Frequently Asked Questions
Is this the right hoist if I need central motor-desk control
Yes. RD-1000LV is the low-voltage-control version for central motor-control workflows.
What is the main difference from its sister model
Compared with RD-1000P, RD-1000LV uses 24 V low-voltage control, does not include MSP, and is listed with IP 54 protection.
Can I use any load chain with this hoist
Use the specified Grade VH (Grade 100) chain for this hoist. Its dimensions and construction fully conform to EN 818-7 calibrated hoist chain requirements, while the material strength conforms to Grade VH (Grade 100).
