Overview

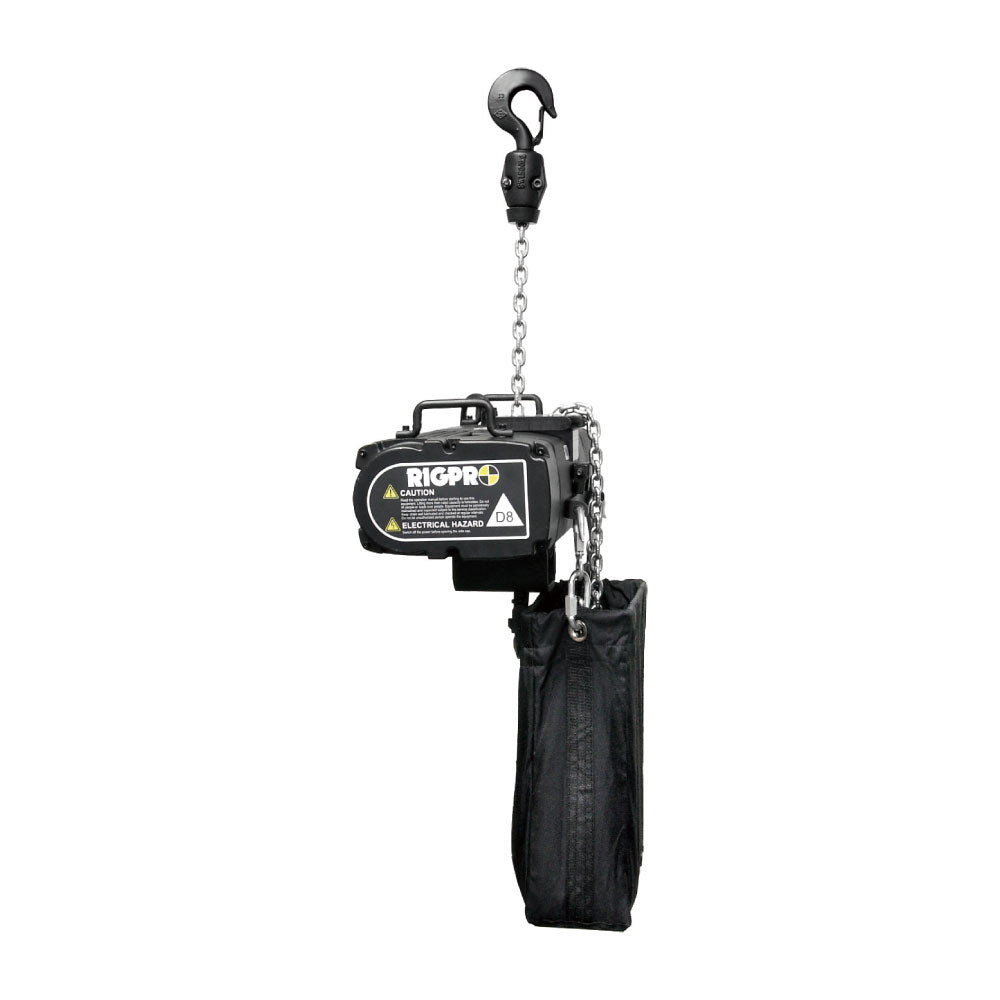

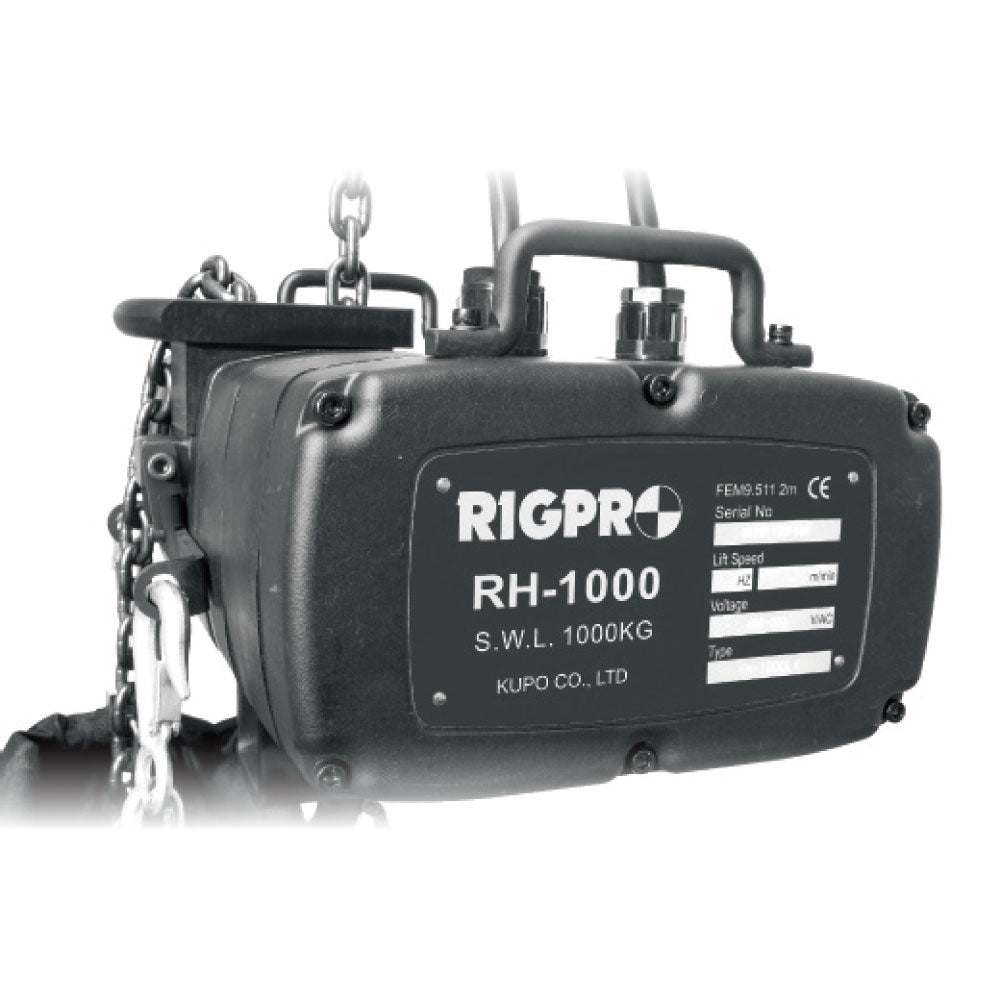

The KUPO RH-1000LVP is the fully featured 1000 kg low-voltage-control hoist in the RH-1000 family, adding Micro Switch Positioning (MSP) to the desk-controlled platform. It combines 24 V / 48 V / 110 V control, geared upper and lower limits, phase protection, and chain-mounted MSP rubber blocks for fast travel-limit setup.

Why It Matters

This is the model for crews who want central controller operation and quick local limit setting. The MSP blocks clamp directly to the chain, while the low-voltage system keeps the motor ready for multi-hoist desk control on larger shows.

Key Features

• 1000 kg capacity and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed suit the intended RIGPRO hoist class.
• Grade 80, 7.1 x 20.2 mm, EN 818-7 compliant load chain gives the hoist the correct chain size for its drive system.

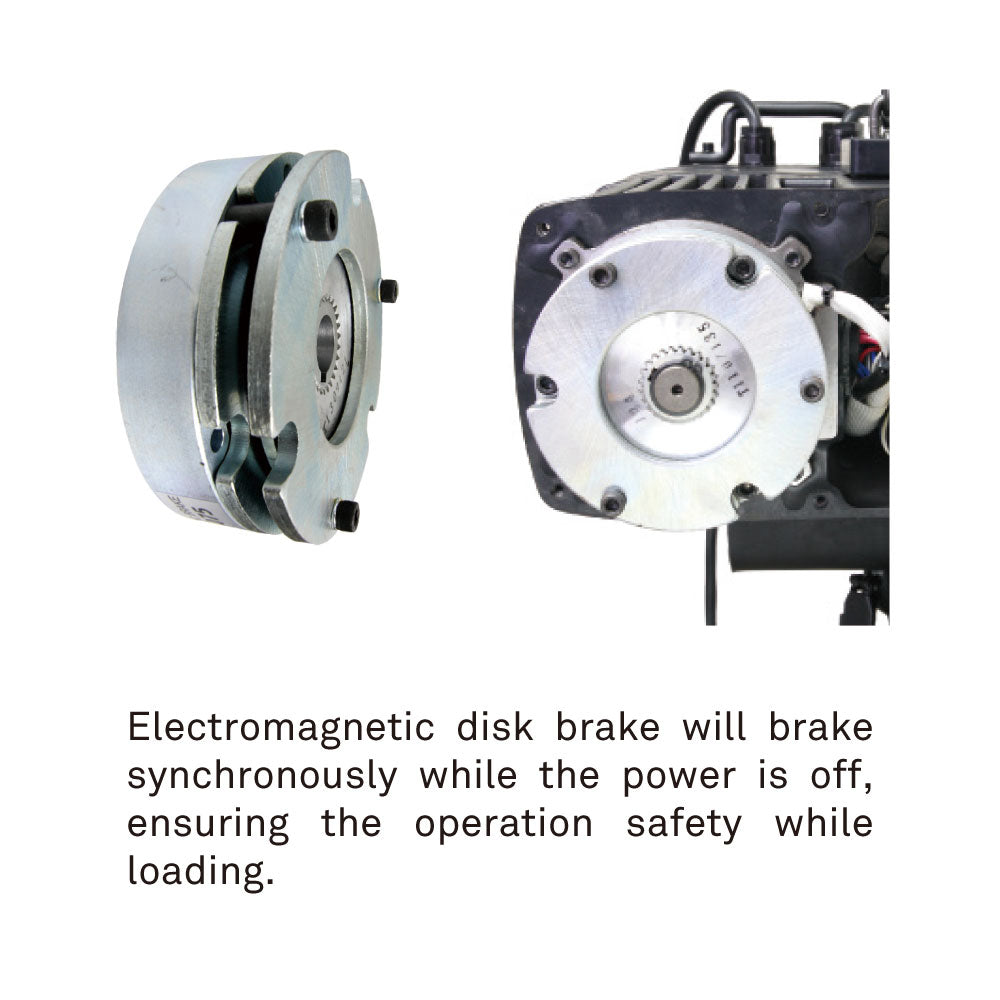

• Spring-loaded heavy-duty DC brake holds the load safely when power is removed or a fault occurs.
• MSP, geared upper and lower limits, phase protection relay, and friction clutch protects the drive and operator workflow during entertainment rigging use.

Performance & Safety

RH-1000LVP combines low-voltage control with MSP for crews that want central control and tool-free travel-limit setup on the chain.

• Safe working load: 1000 kg.
• Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.
• Motor: 0.75 kW x 4P.
• Duty cycle: FEM 2m / ISO M5, ED 40 %, 240 starts/hr.
• Compliance: BGV D8 / IGVW SQP2 2018.
• Control voltage: 24 V / 48 V / 110 V.
• Positioning: Micro Switch Positioning (MSP) with up/down rubber blocks.

Applications

Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and control type match the rig plan.

Compatibility

Compatible with RIGPRO LV-control cable sets and controllers for 1-ton hoists, plus RH-1000-1 W flight case and CH-52BP MSP-compatible jacket.

Additional Technical Notes

• Control Voltage: 24 V / 48 V / 110 V
• Chain Fall: 1
• Brake: Spring-loaded heavy-duty DC brake

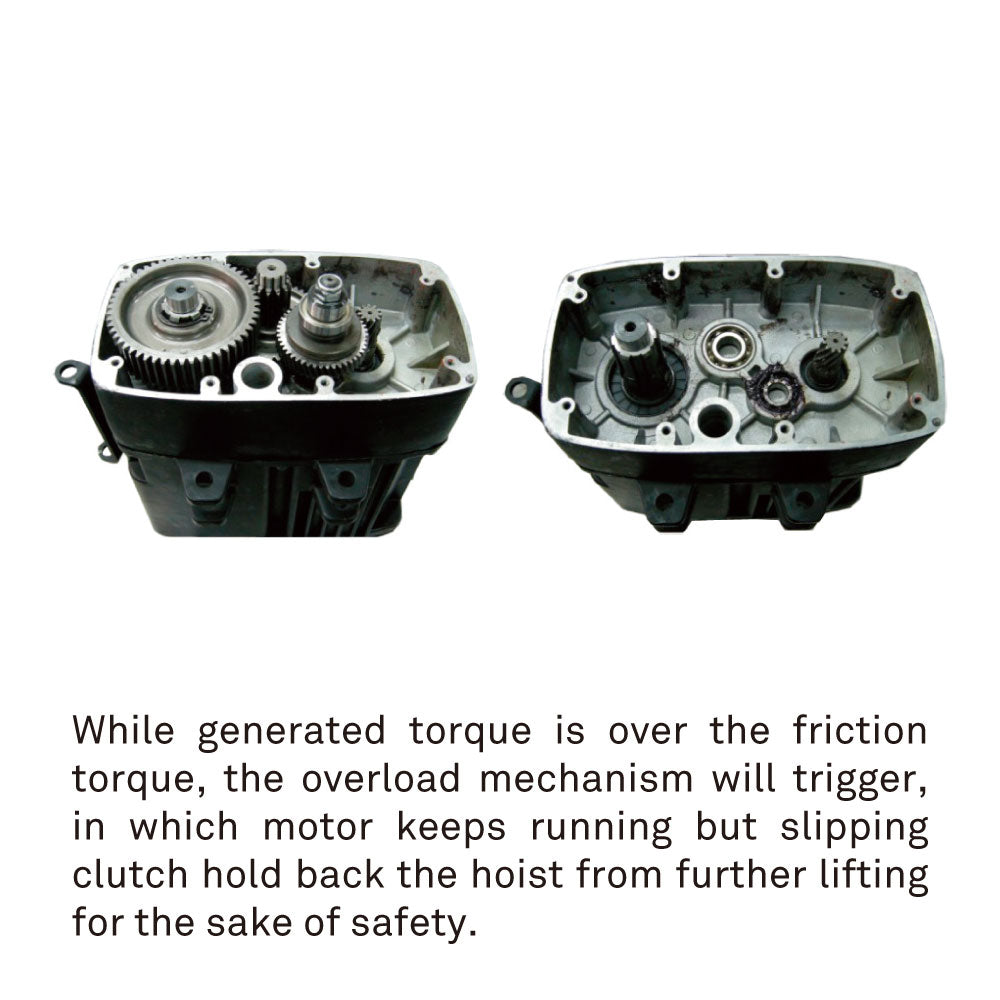

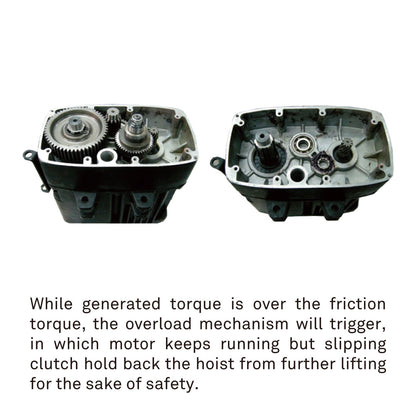

• Friction Clutch: Yes, for overload protection

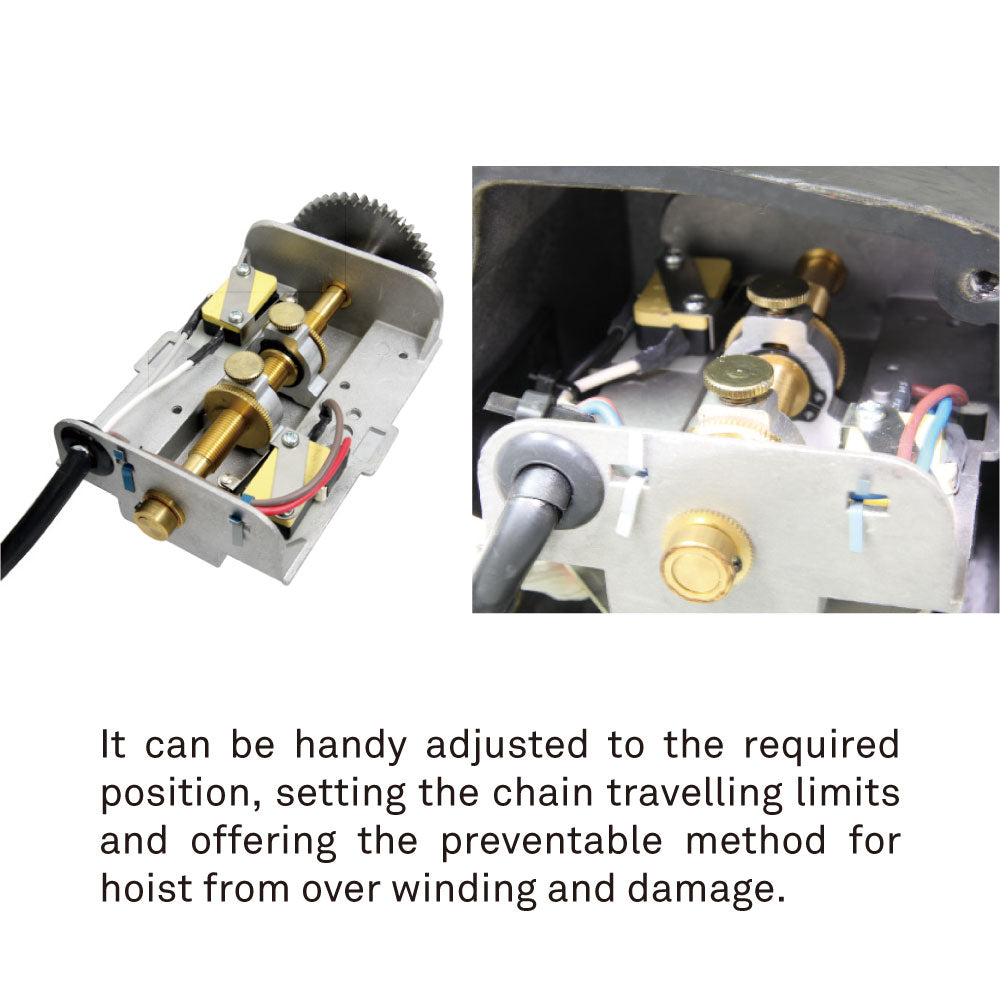

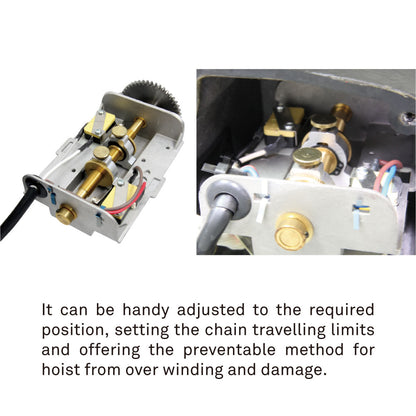

• Limit Switch: Geared upper and lower limit switches
• Positioning: Micro Switch Positioning (MSP) with up/down rubber blocks
• Working Noise: 75 dB(A) at 1 m
