Overview

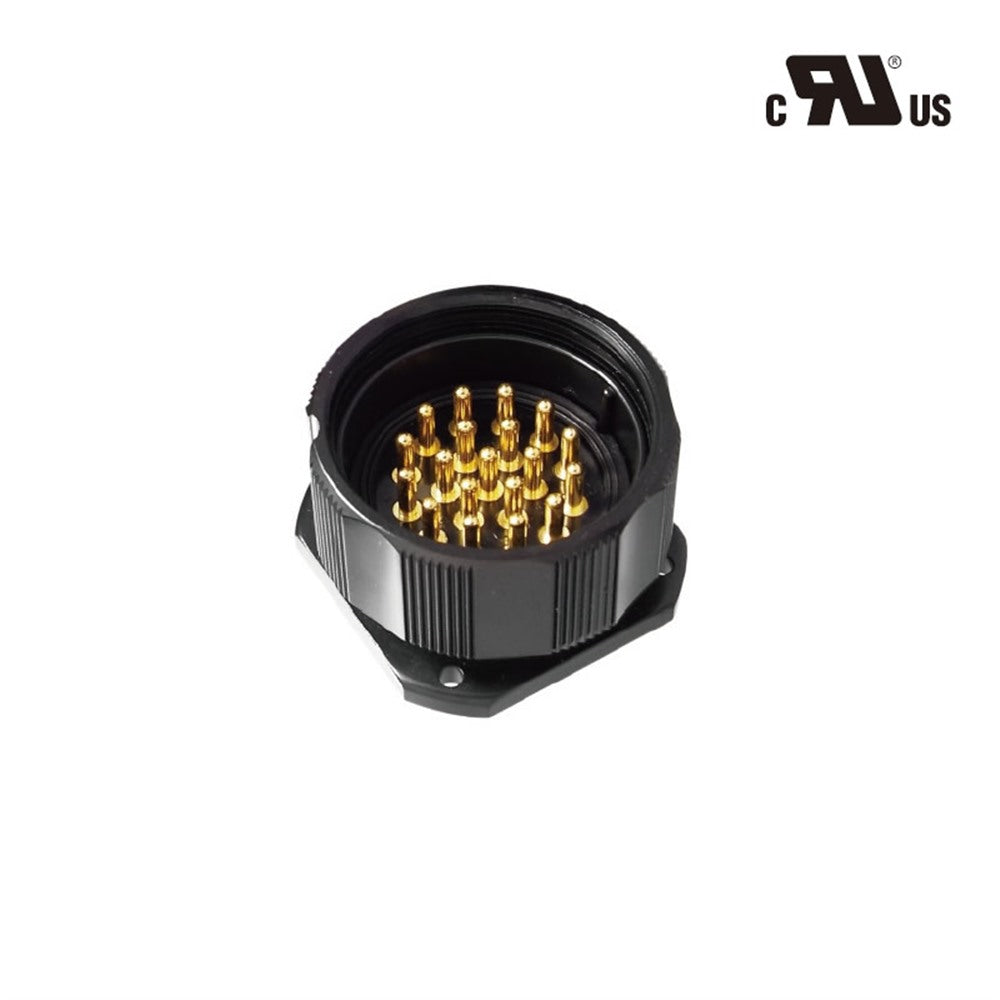

The KUPO WPC-5219SM WPC 19-Pin Watertight Connector is precision-machined from aluminum alloy for outdoor stage and festival power systems. Its mono-piece body, ribbed locking ring, hard-anodized back shell, and Teflon-coated threads give crews a connector that can be coupled smoothly while resisting rain, splash, dust, and handling wear.
Why It Matters
This surface male version brings a watertight 19-pin pin interface to panels and distribution boxes. When assembled with the FPG-42 cable gland, the connector reaches IP67 watertight protection, which matters for 19-pin runs that leave the clean indoor world and move into outdoor stages, temporary venues, and festival infrastructure.
Key Features

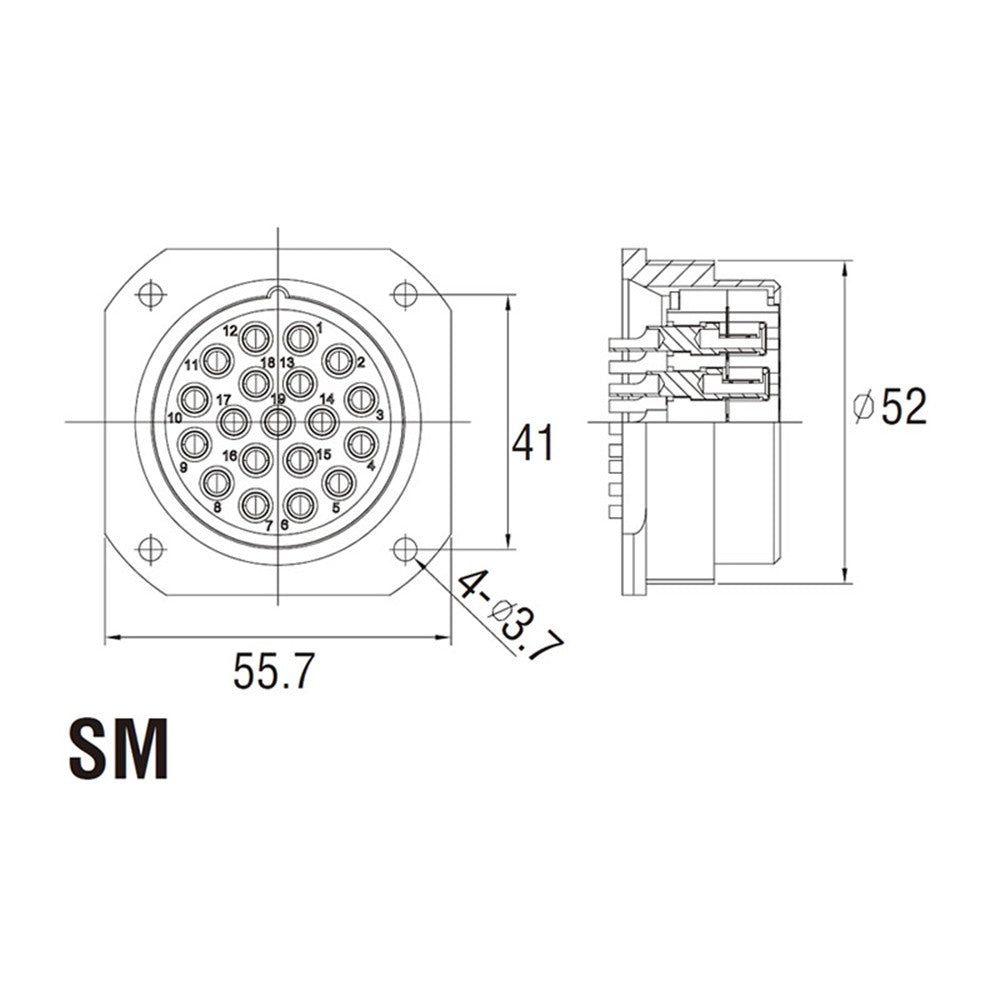

- Solder type panel male WPC 19-pin connector
- IP67 watertight protection when mated
- Mono-piece machined aluminum alloy body with hard-anodized back shell
- Ribbed locking ring and Teflon-coated threads for smooth manual coupling
- KUPO PLS, Socapex SL419, and Veam VSC compatible, UL / cUL listed
Applications
WPC-5219SM is suited to outdoor stage events, festival rigs, wet-location 19-pin cable systems, temporary venue power distribution, and any Socapex-style connection that must resist rain, splash, and dust ingress.
Compatibility
Use WPC-5219SM with corresponding opposite-polarity WPC connectors, KUPO PLS series connectors, and compatible Socapex SL419 / Veam VSC systems. IP67 performance requires proper assembly with the FPG-42 cable gland.
