Product Description
Overview

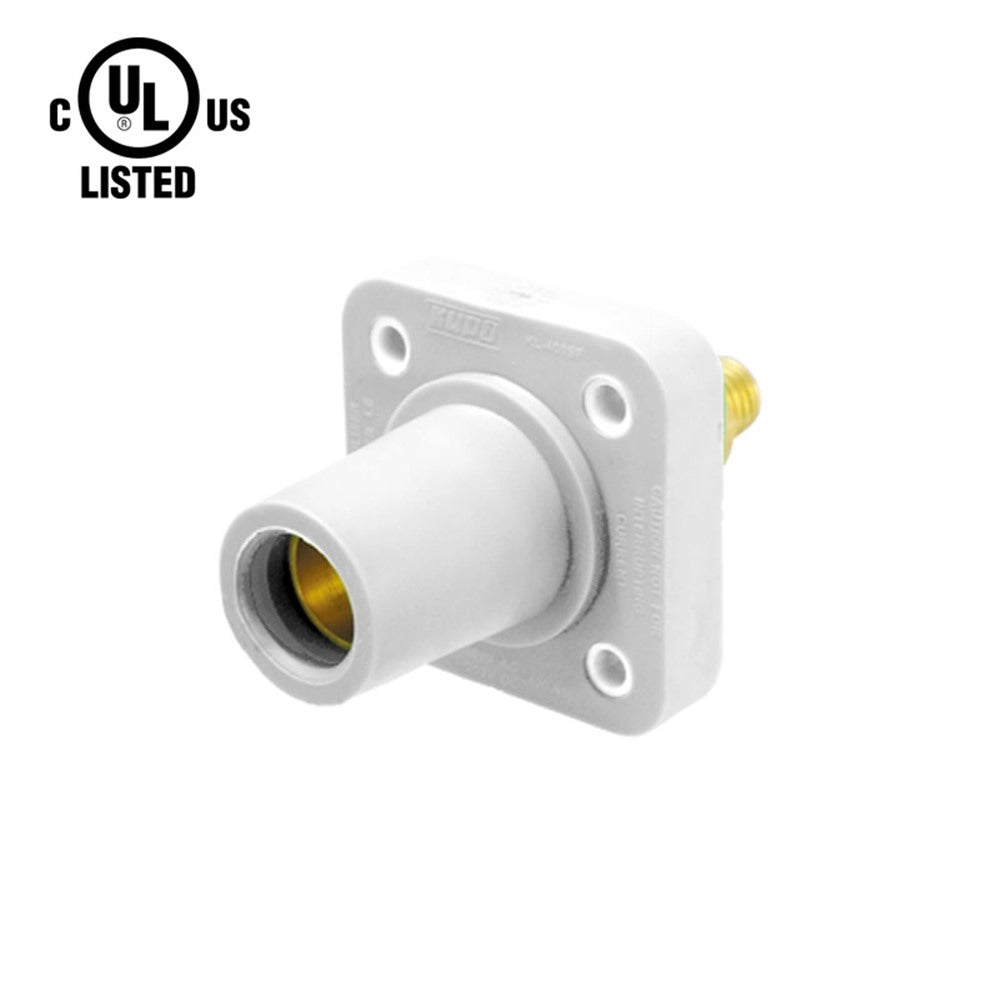

The KUPO K-LOK 400 A Female Panel Mount Receptacle (Thread-Stud Type) is engineered for secure, permanent installation in high-current power distribution enclosures, distro boxes, and panel assemblies. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C, brass contacts for superior conductivity, and a robust threaded stud connection with mounting holes for rigid enclosure attachment, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Panel-mount design with threaded stud and mounting holes for secure, vibration-resistant enclosure installation
- Santoprene TPV housing rated to 105 °C withstands demanding conditions in permanent installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400 A
- Threaded stud connection provides strong, vibration-resistant termination for panel-through wiring accommodating #6 AWG to 4/0 AWG conductors
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL / UL / cUL Listed ensures compliance with North American safety standards
Standards
UL / UL / cUL Listed -File Number E332947; UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors; Environment Rating: UL Enclosure Types 3R; Flame Class: HB / UL94; RoHS (Restriction of Hazardous Substances) Compliant. Match standards and compliance requirements to the local electrical code before installation.
Applications
Suitable for concert touring and live event production, film, television, and studio power distribution, temporary construction site power, theme park and entertainment venue installations, trade shows and exhibition power systems, industrial temporary power connections, and broadcast and outside broadcast (OB) van power.
Compatibility
The K-LOK 400 A Female Panel Mount Receptacle intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What kind of connector is KL-400SFW?
KL-400SFW is a 400-ampere, 600 V AC/DC single-pole female panel mount receptacle (Thread-Stud Type) from the KUPO K-LOK series. Finished in white, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-400SFW safely carry?
KL-400SFW is designed for a maximum continuous load of 400 amperes at up to 600 V AC/DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the white color coding on KL-400SFW help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. White is universally recognized in North America as the Neutral conductor per NEC conventions. Using a dedicated white connector for neutral runs eliminates guesswork during setup and teardown, reducing the risk of miswired circuits. The white KL-400SFW connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-400SFW hold?
KL-400SFW is UL / UL / cUL Listed under File Number E332947, certified to UL 1691 - the Standard for Safety for Cam-Type, Locking-Type Separable Connectors. It carries a UL Enclosure Types 3R environment rating, HB / UL94 flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-400SFW work with connectors from other brands?
Absolutely. The K-LOK 400 A series uses the industry-standard CAM-type interface, so KL-400SFW mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
What makes KL-400SFW suitable for permanent installations?

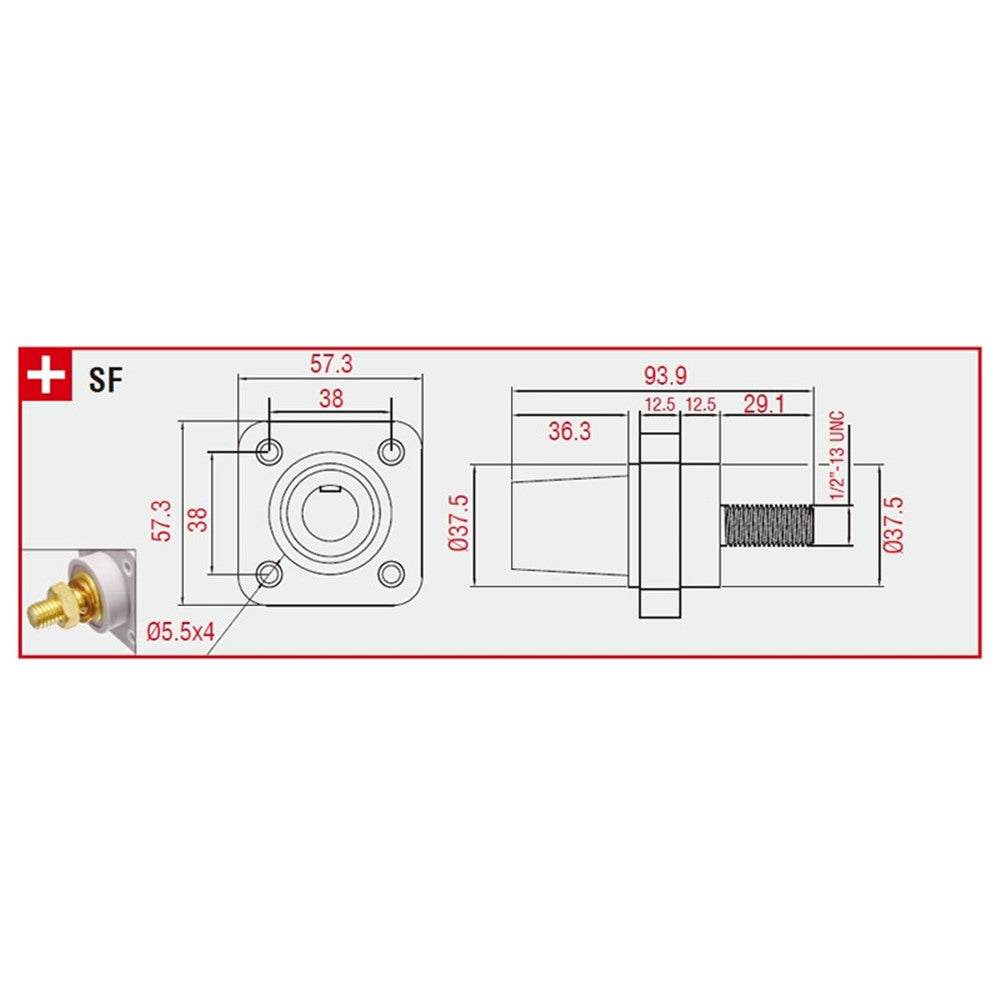

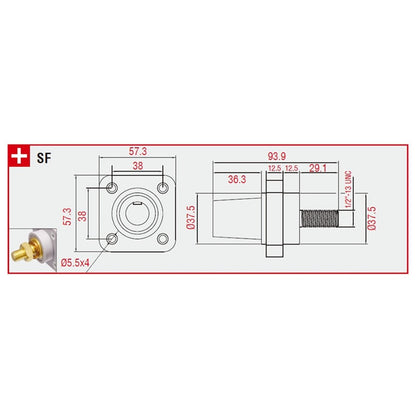

Unlike inline connectors designed for repeated connection and disconnection, KL-400SFW is engineered for fixed mounting. Its threaded stud and mounting-hole pattern lock the connector firmly to the enclosure, preventing loosening under vibration - critical for touring racks and permanently installed distro systems alike.
