Product Description
Overview

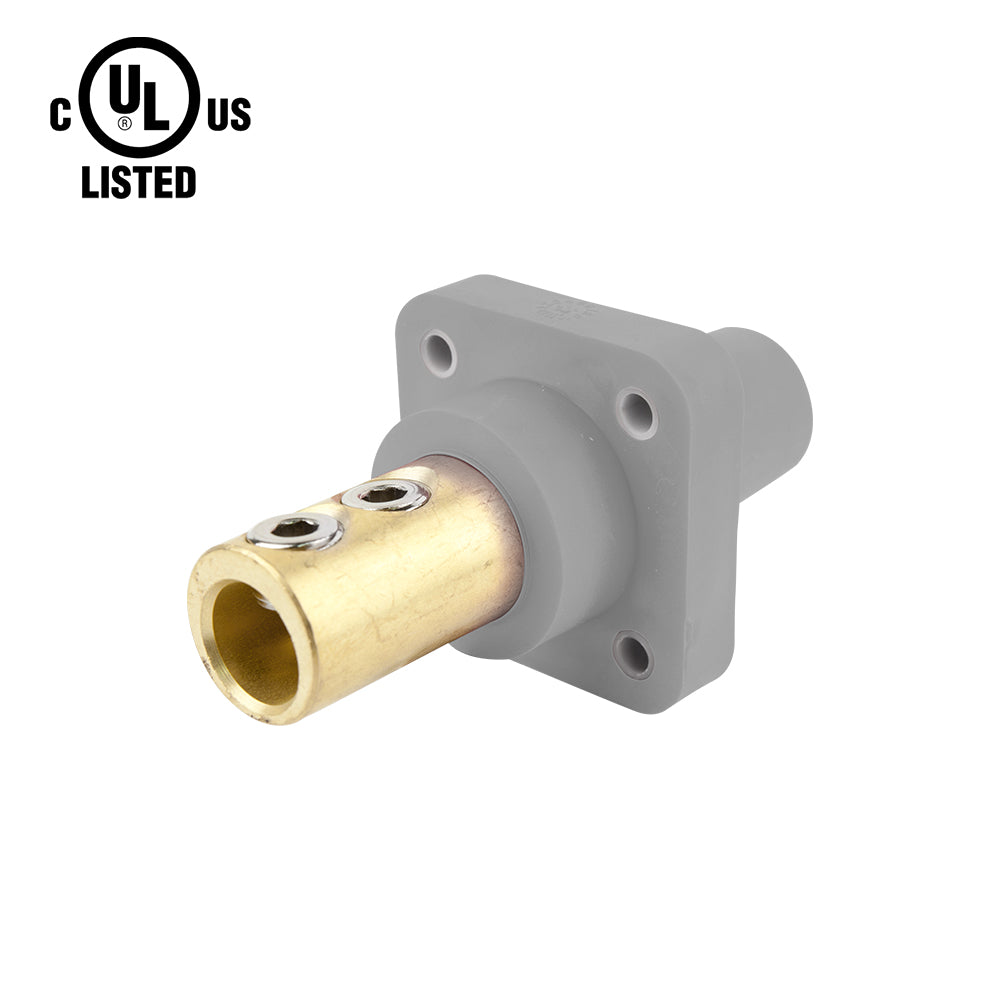

The KUPO K-LOK 400 A Female Panel Mount Receptacle (Double Set Screw Type) is engineered for secure, permanent installation in high-current power distribution enclosures and panel assemblies where double set screw termination is preferred. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C, brass contacts for superior conductivity, and a double set screw connection for robust cable retention, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features

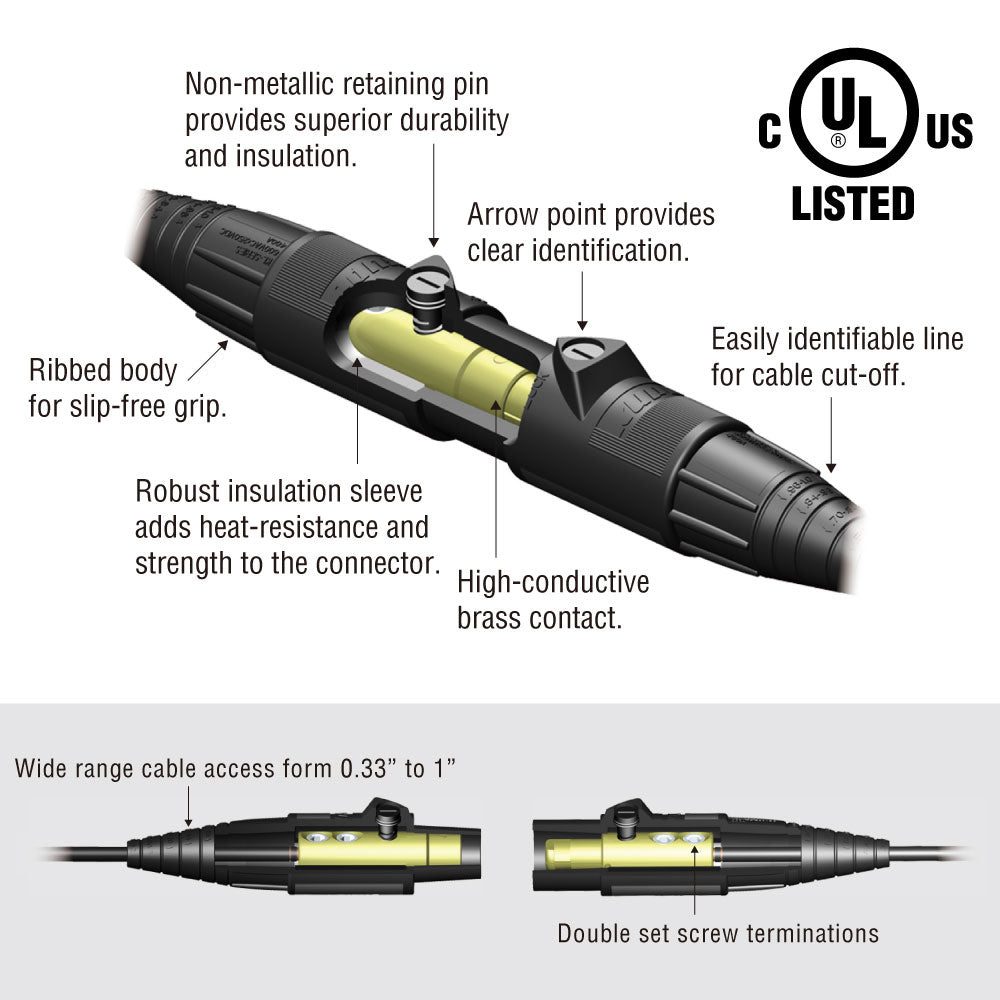

- Double set screw panel-mount design provides redundant cable retention for maximum security in permanent installations
- Santoprene TPV housing rated to 105 °C withstands demanding conditions in fixed enclosure installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400 A

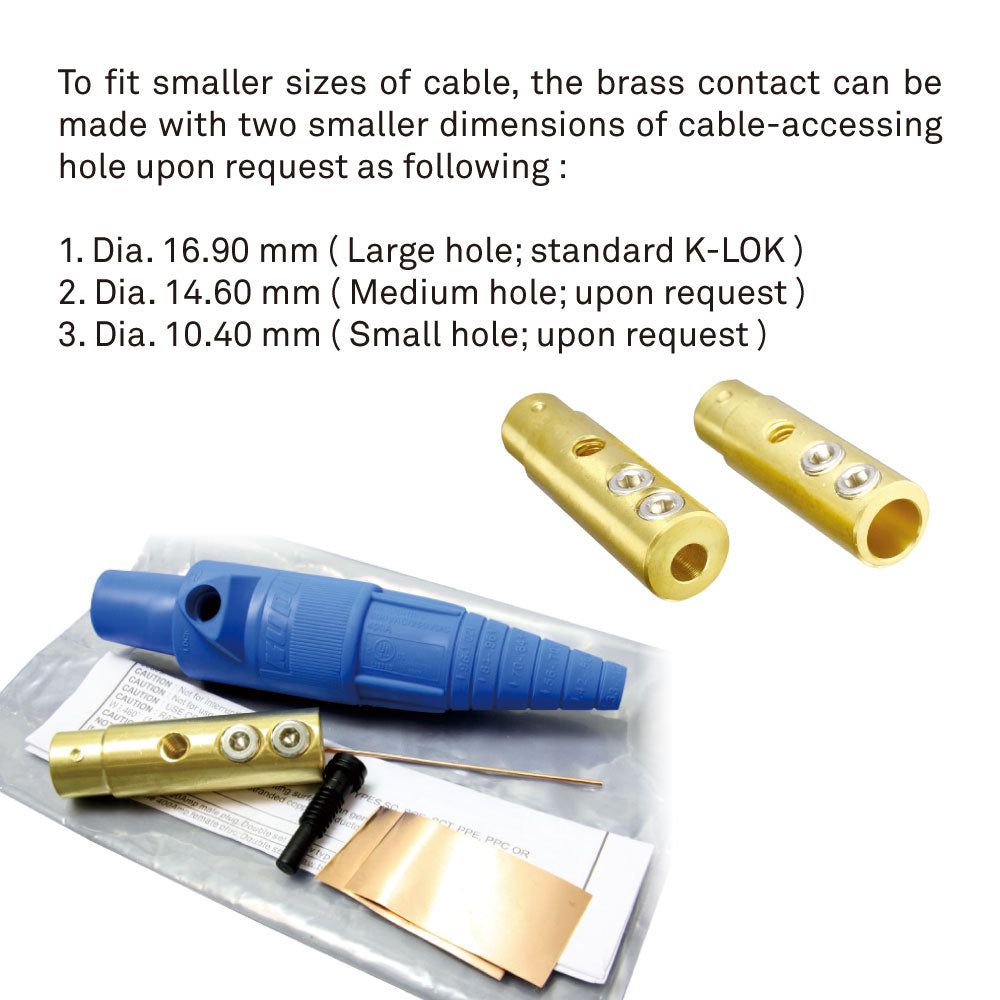

- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors

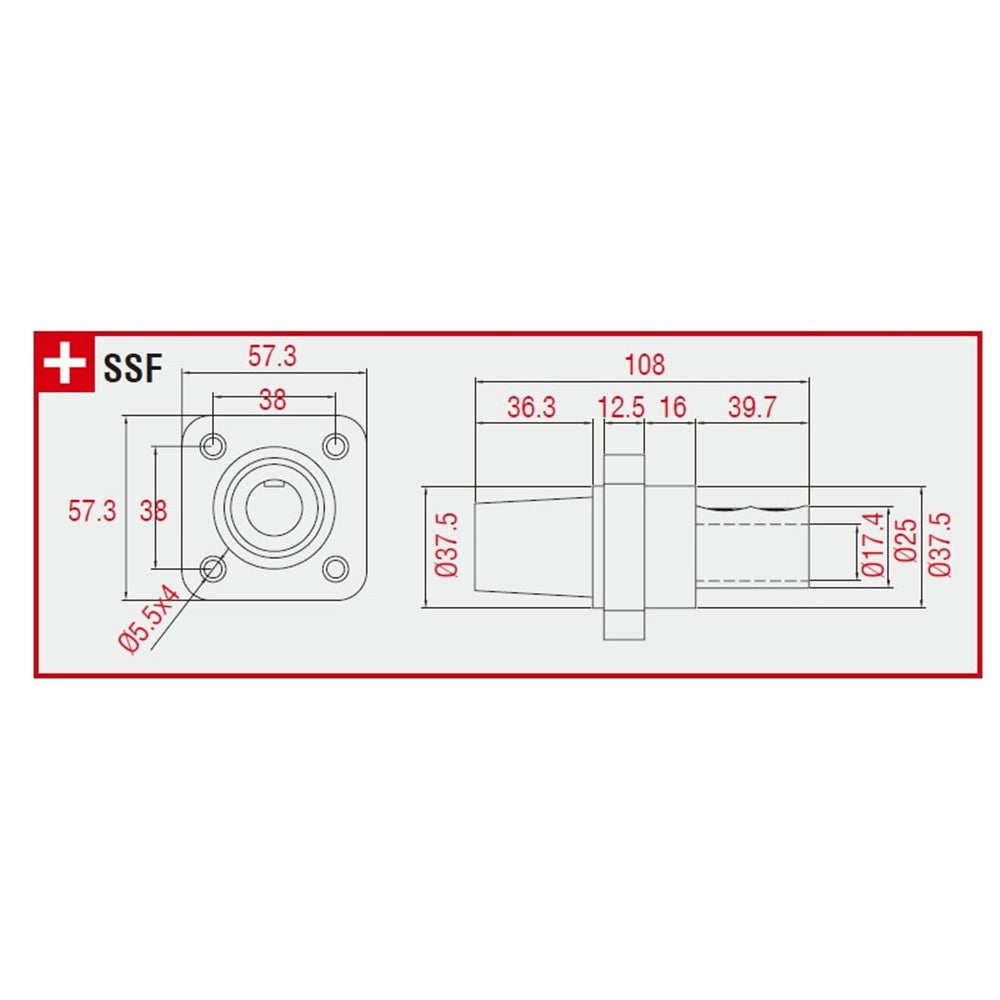

- Mounting holes enable secure attachment to enclosures, distro boxes, and panel assemblies
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL / UL / cUL Listed ensures compliance with North American safety standards
Standards
UL / UL / cUL Listed -File Number E332947; UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors; Environment Rating: UL Enclosure Types 3R; Flame Class: HB / UL94; RoHS (Restriction of Hazardous Substances) Compliant. Match standards and compliance requirements to the local electrical code before installation.
Applications
Suitable for concert touring and live event production, film, television, and studio power distribution, temporary construction site power, theme park and entertainment venue installations, trade shows and exhibition power systems, industrial temporary power connections, and broadcast and outside broadcast (OB) van power.
Compatibility
The K-LOK 400 A Female Panel Mount Receptacle intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
Who should use KL-400SSFGY and why?
Lighting technicians, electricians, and power distribution professionals working with 400 A temporary power systems will benefit from KL-400SSFGY. Its grey housing provides instant visual phase identification, while the Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C ensures durability in demanding field conditions.
What voltage and amperage is KL-400SSFGY rated for?
KL-400SSFGY carries a maximum rating of 400 A and 600 V AC/DC. It accepts wire gauges from #6 to 4/0 AWG, making it suitable for the conductor sizes typically used in 400-amp power distribution circuits.
Why choose the grey version of the K-LOK 400 A female panel mount receptacle?
Grey represents Phase C (L3) - and in some IEC applications, Neutral - under the international color code. Adding grey to the connector inventory ensures full IEC three-phase coverage alongside brown and black. Choosing KL-400SSFGY in grey ensures your power distribution system follows established color conventions, speeding up setup and reducing wiring errors.
Is KL-400SSFGY UL / UL / UL / cUL Listed and what does that mean?
Yes. KL-400SSFGY is UL / UL / cUL Listed under File Number E332947, meaning it has been independently tested and certified to UL 1691 safety standards by a Nationally Recognized Testing Laboratory. This certification is required for professional power distribution in most North American jurisdictions.
What industries commonly use KL-400SSFGY?
KL-400SSFGY is widely used in rental house and staging company inventories serving diverse entertainment clients. Its 400 A / 600 V AC/DC rating, combined with CAM-type universal compatibility and grey phase coding, makes it a versatile choice across the entertainment, construction, and industrial sectors.
