Product Description
Overview

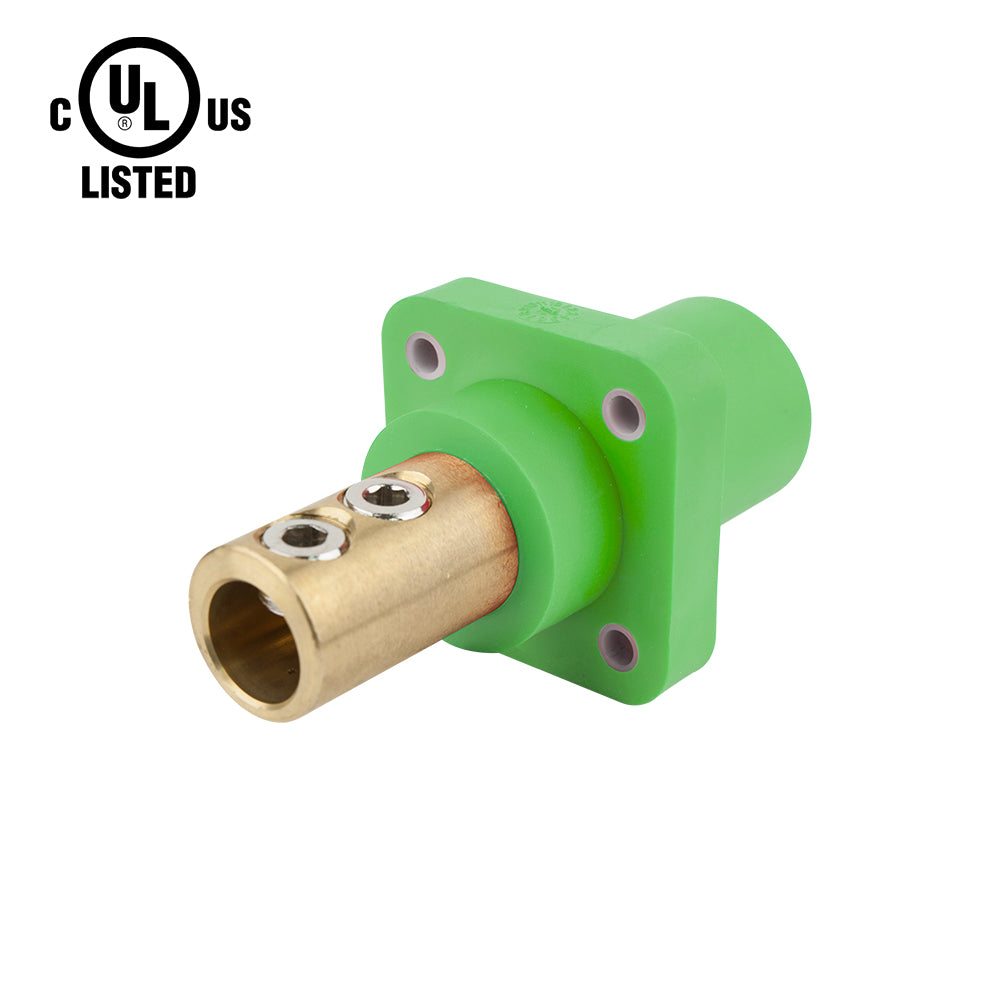

The KUPO K-LOK 400 A Male Panel Mount Receptacle (Double Set Screw Type) is engineered for secure, permanent installation in high-current power distribution enclosures and panel assemblies where double set screw termination is preferred. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C, brass contacts for superior conductivity, and a double set screw connection for robust cable retention, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Double set screw panel-mount design provides redundant cable retention for maximum security in permanent installations
- Santoprene TPV housing rated to 105 °C withstands demanding conditions in fixed enclosure installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400 A
- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors

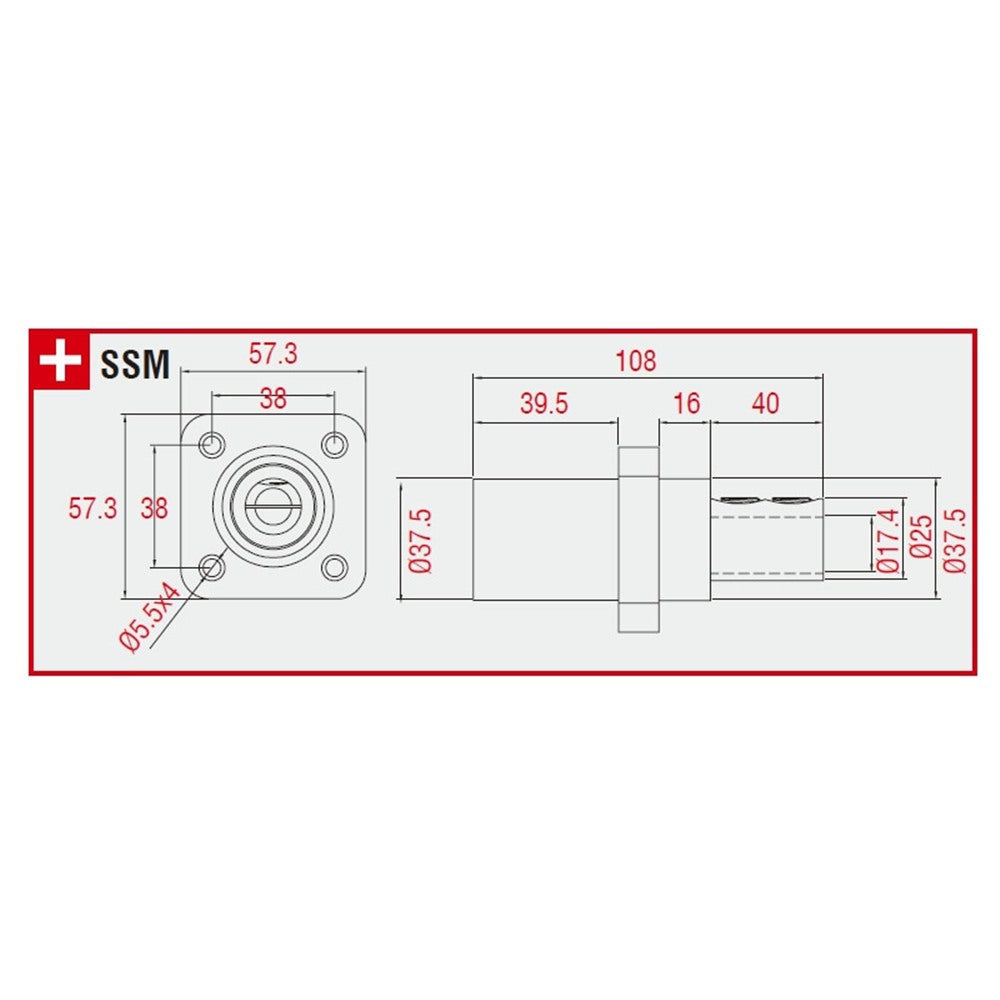

- Mounting holes enable secure attachment to enclosures, distro boxes, and panel assemblies
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL / UL / cUL Listed ensures compliance with North American safety standards
Standards
UL / UL / cUL Listed -File Number E332947; UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors; Environment Rating: UL Enclosure Types 3R; Flame Class: HB / UL94; RoHS (Restriction of Hazardous Substances) Compliant. Match standards and compliance requirements to the local electrical code before installation.
Applications
Suitable for concert touring and live event production, film, television, and studio power distribution, temporary construction site power, theme park and entertainment venue installations, trade shows and exhibition power systems, industrial temporary power connections, and broadcast and outside broadcast (OB) van power.
Compatibility
The K-LOK 400 A Male Panel Mount Receptacle intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What kind of connector is KL-400SSMG?
KL-400SSMG is a 400-ampere, 600 V AC/DC single-pole male panel mount receptacle (Double Set Screw Type) from the KUPO K-LOK series. Finished in green, it belongs to the CAM-type connector family widely used across live events, film production, and temporary industrial power systems.
How much current can KL-400SSMG safely carry?
KL-400SSMG is designed for a maximum continuous load of 400 amperes at up to 600 V AC/DC. The brass contacts and Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C work together to maintain safe operating temperatures even under sustained full-load conditions.
How does the green color coding on KL-400SSMG help on a busy job site?
On a crowded set or event site, identifying conductors quickly is a safety essential. Green identifies the Ground (Earth / PE) conductor across North American and many international standards. Ground integrity is critical for personnel safety, and a distinct green connector ensures the safety earth is never confused with a current-carrying phase. The green KL-400SSMG connector lets technicians trace circuits visually without needing to check labels or test equipment.
What safety certifications does KL-400SSMG hold?
KL-400SSMG is UL / UL / cUL Listed under File Number E332947, certified to UL 1691 - the Standard for Safety for Cam-Type, Locking-Type Separable Connectors. It carries a UL Enclosure Types 3R environment rating, HB / UL94 flame classification, and full RoHS (Restriction of Hazardous Substances) compliance.
Can KL-400SSMG work with connectors from other brands?
Absolutely. The K-LOK 400 A series uses the industry-standard CAM-type interface, so KL-400SSMG mates directly with compatible single-pole connectors regardless of manufacturer. This makes it easy to expand or upgrade your connector stock incrementally.
What housing material is used in KL-400SSMG and why does it matter?
KL-400SSMG uses a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C. Santoprene TPV is chosen for its combination of rubber-like flexibility, heat resistance up to 105 °C, and resistance to oils, chemicals, and weathering - ideal for panel mount receptacles that remain permanently installed in demanding environments.
