Product Description
Overview

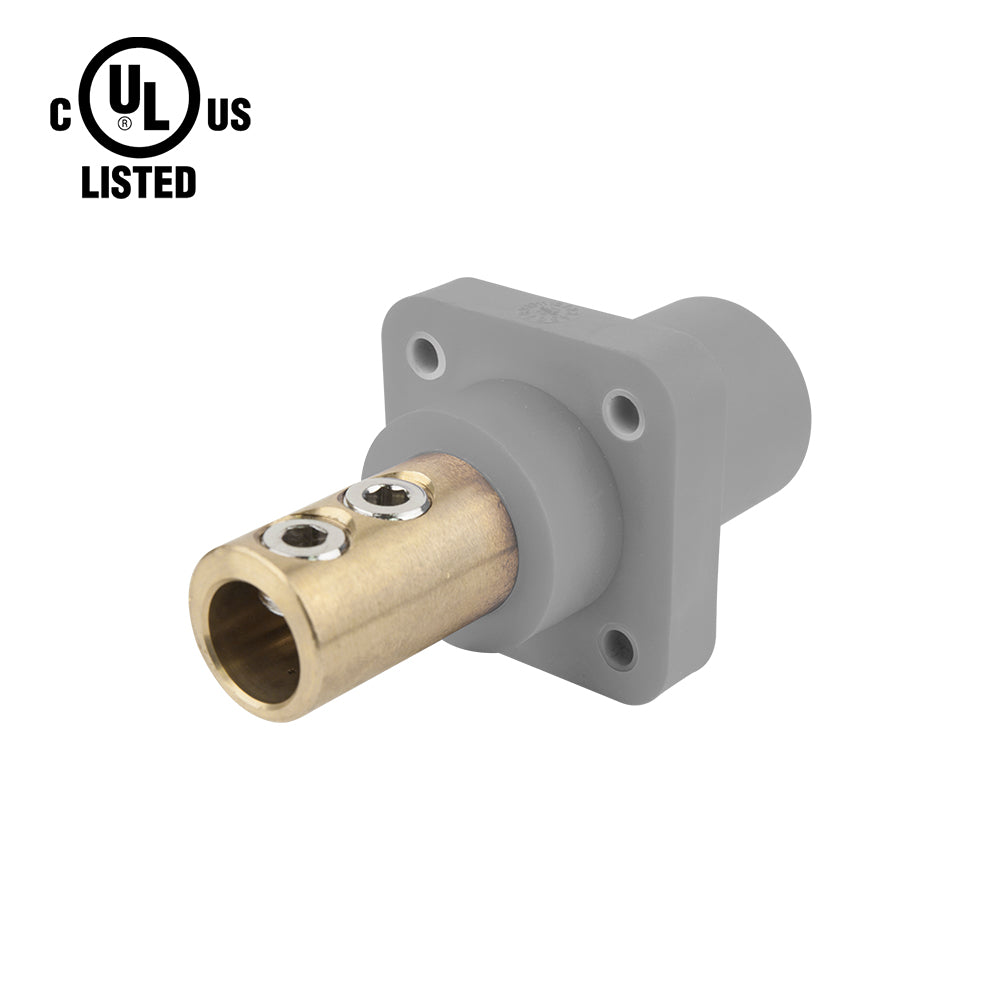

The KUPO K-LOK 400 A Male Panel Mount Receptacle (Double Set Screw Type) is engineered for secure, permanent installation in high-current power distribution enclosures and panel assemblies where double set screw termination is preferred. Featuring a Santoprene TPV (Thermoplastic Vulcanizate) housing rated to 105 °C, brass contacts for superior conductivity, and a double set screw connection for robust cable retention, this connector delivers the structural integrity and electrical performance required by large-scale entertainment productions and industrial power systems handling up to 400 amperes. Full interoperability with standard CAM-type connectors ensures seamless integration into existing power distribution infrastructure.
Key Features
- Double set screw panel-mount design provides redundant cable retention for maximum security in permanent installations
- Santoprene TPV housing rated to 105 °C withstands demanding conditions in fixed enclosure installations
- Brass contacts deliver reliable, low-resistance electrical connections for sustained high-current loads up to 400 A
- Double set screw termination accommodates #6 AWG (American Wire Gauge) to 4/0 AWG conductors

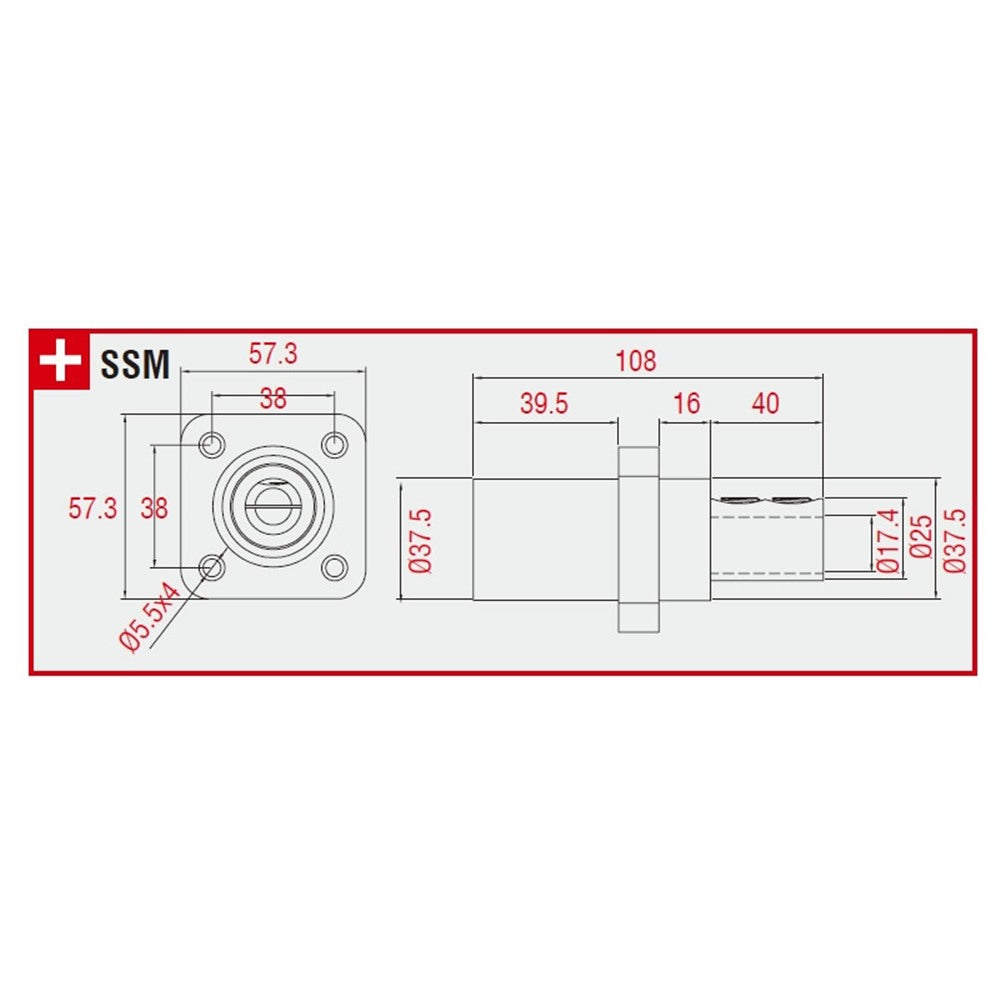

- Mounting holes enable secure attachment to enclosures, distro boxes, and panel assemblies
- Universal CAM-type compatibility integrates seamlessly with existing inline connectors from multiple manufacturers
- UL / UL / cUL Listed ensures compliance with North American safety standards
Standards
UL / UL / cUL Listed -File Number E332947; UL 1691 - Standard for Safety for Cam-Type, Locking-Type Separable Connectors; Environment Rating: UL Enclosure Types 3R; Flame Class: HB / UL94; RoHS (Restriction of Hazardous Substances) Compliant. Match standards and compliance requirements to the local electrical code before installation.
Applications
Suitable for concert touring and live event production, film, television, and studio power distribution, temporary construction site power, theme park and entertainment venue installations, trade shows and exhibition power systems, industrial temporary power connections, and broadcast and outside broadcast (OB) van power.
Compatibility
The K-LOK 400 A Male Panel Mount Receptacle intermates with standard CAM-type single-pole connectors from all major manufacturers, enabling seamless integration into existing power distribution systems without requiring a full infrastructure change.
Phase / Wire Color Convention
| Region | L1 | L2 | L3 | N | Ground |
|---|---|---|---|---|---|
| NA 120/208 V 1 | Green / G-Y | ||||
| NA 277/480 V 2 | Green / G-Y | ||||
| IEC 60446 3 | Green-Yellow | ||||
| AU/NZ Legacy 4 | Green-Yellow | ||||
| China 5 | Green-Yellow |
1 North America 120/208 V (NEMA / NEC) 2 North America 277/480 V (NEMA / NEC) 3 Europe, UK, Australia (current IEC 60446)
4 Australia / New Zealand legacy (pre-IEC) 5 China (GB 50303) G-Y = Green-Yellow (earth/ground)
Frequently Asked Questions
What does KL-400SSMGY do and where is it typically used?
KL-400SSMGY provides a safe, reliable single-pole male connection point for 400 A circuits at up to 600 V AC/DC. As a panel mount receptacle with grey color coding, it is commonly used in entertainment power distribution, temporary construction feeds, and industrial installations.
What are the electrical ratings of KL-400SSMGY?
KL-400SSMGY is rated for 400 amperes maximum continuous current at 600 V AC/DC maximum. It accepts conductors from #6 to 4/0 AWG (American Wire Gauge), with brass contacts delivering low-resistance connections for sustained high-current loads.
What does the grey housing on KL-400SSMGY signify?
Grey represents Phase C (L3) - and in some IEC applications, Neutral - under the international color code. Adding grey to the connector inventory ensures full IEC three-phase coverage alongside brown and black. Color-coded connectors like KL-400SSMGY allow crews to visually verify correct phase wiring at a glance, which is especially valuable during fast-paced load-ins and load-outs.
What safety standards apply to KL-400SSMGY?
KL-400SSMGY meets UL 1691 ( Cam-Type, Locking-Type Separable Connectors), is UL / UL / cUL Listed under E332947, rated UL Enclosure Types 3R for weather resistance, carries a HB / UL94 flame class, and complies with RoHS hazardous substance restrictions. These certifications collectively ensure the connector is safe for professional use in entertainment and industrial environments.
Where is KL-400SSMGY commonly deployed?
You will find KL-400SSMGY at work in studio power distribution in recording, post-production, and live broadcast environments. The grey color coding and 400-amp capacity make it particularly well suited for multi-phase power distribution in professional settings.
What is the advantage of the double set screw design on KL-400SSMGY?
The double set screw termination on KL-400SSMGY provides redundant cable clamping - each screw independently secures the conductor, adding a layer of safety against vibration-induced loosening. This is particularly valuable in touring rigs and mobile power systems where connectors experience constant mechanical stress.
