Overview

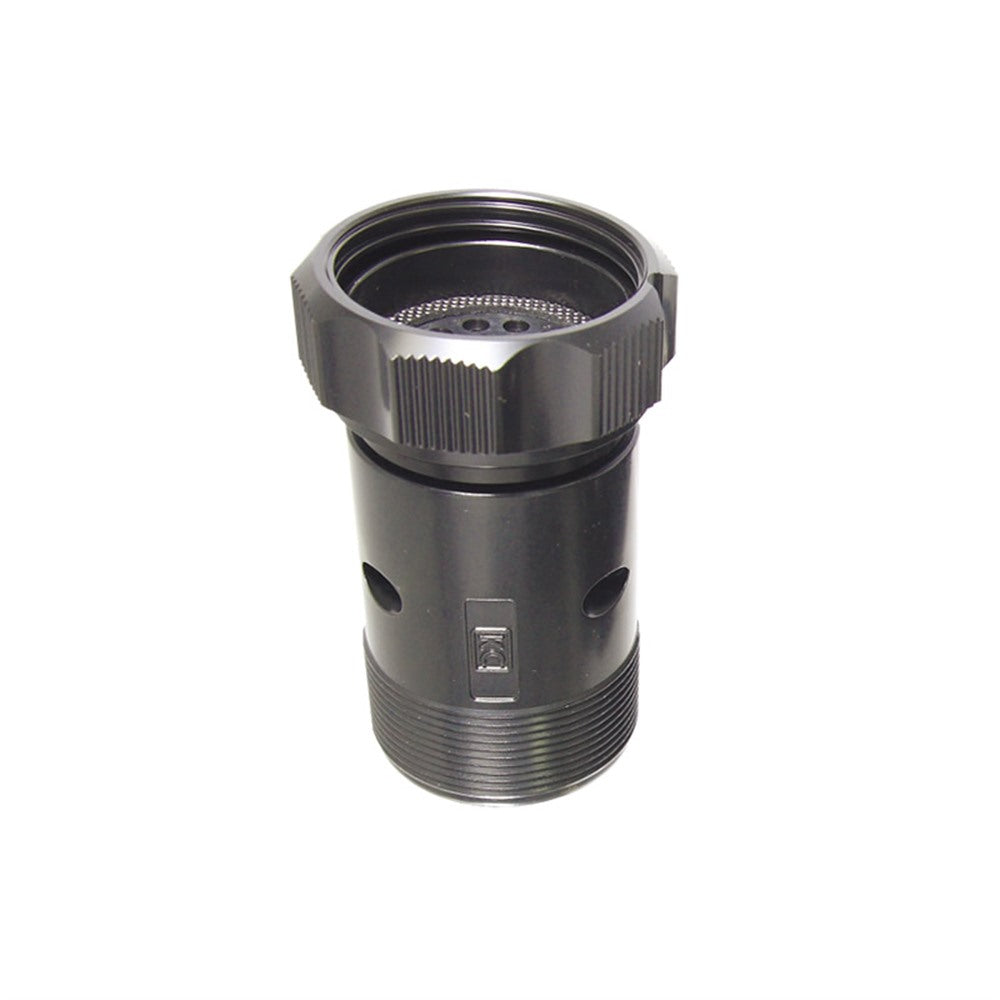

The KUPO PLS-5219 CLM PLS 19-Pin Connector is made for professional stage and event power distribution where connector durability, contact quality, and assembly serviceability matter. Its die-cast aluminum alloy shell uses a black non-conductive finish, while hard gold-plated copper alloy contacts and Bakelite insulation support reliable electrical performance.

Why It Matters

This crimp line male version is the cable-end pin connector for crimp-terminated 19-pin cable builds. The PLS 19-pin family is fully compatible with Socapex SL419 and Veam VSC connector systems, so it fits the connector ecosystem used in many touring and rental cable packages.

Key Features

• 19-pin crimp termination, line male format
• Rated AC 20 A 250 V with AC 1500 V rated voltage and AC 400 V operating limit voltage
• Hard gold-plated copper alloy contacts with contact resistance below 3 mOhms
• Black non-conductive die-cast aluminum shell with Bakelite insulation
• Socapex SL419 and Veam VSC compatible, UL / cUL listed, PG29 cable gland support

Applications

PLS-5219 CLM is suited to 19-pin multicore cable assemblies, panel builds, Socapex-style power distribution, touring looms, rental-house cable service, and stage environments where robust multi-circuit connectors are required.

Compatibility

Use PLS-5219 CLM with corresponding opposite-polarity PLS 19-pin connectors and compatible Socapex SL419 or Veam VSC systems. Match line versus surface style and crimp tooling before assembly.
