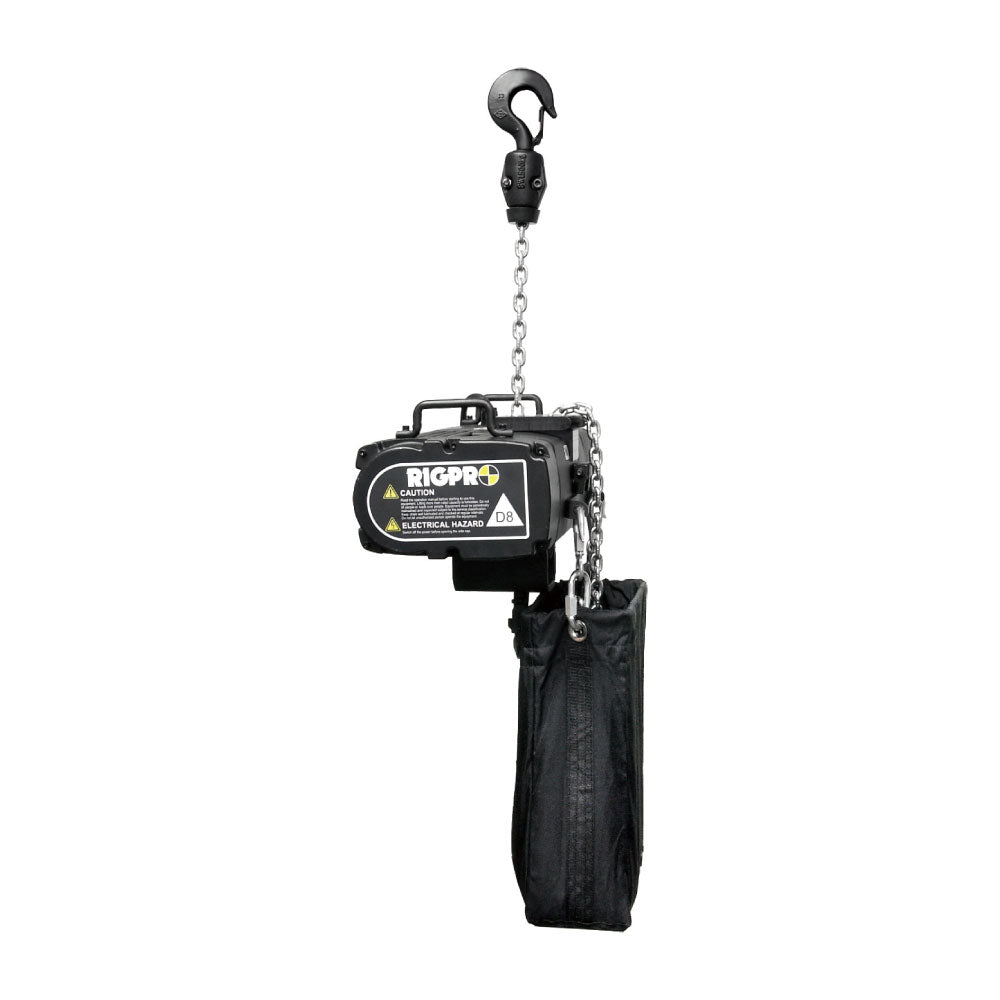

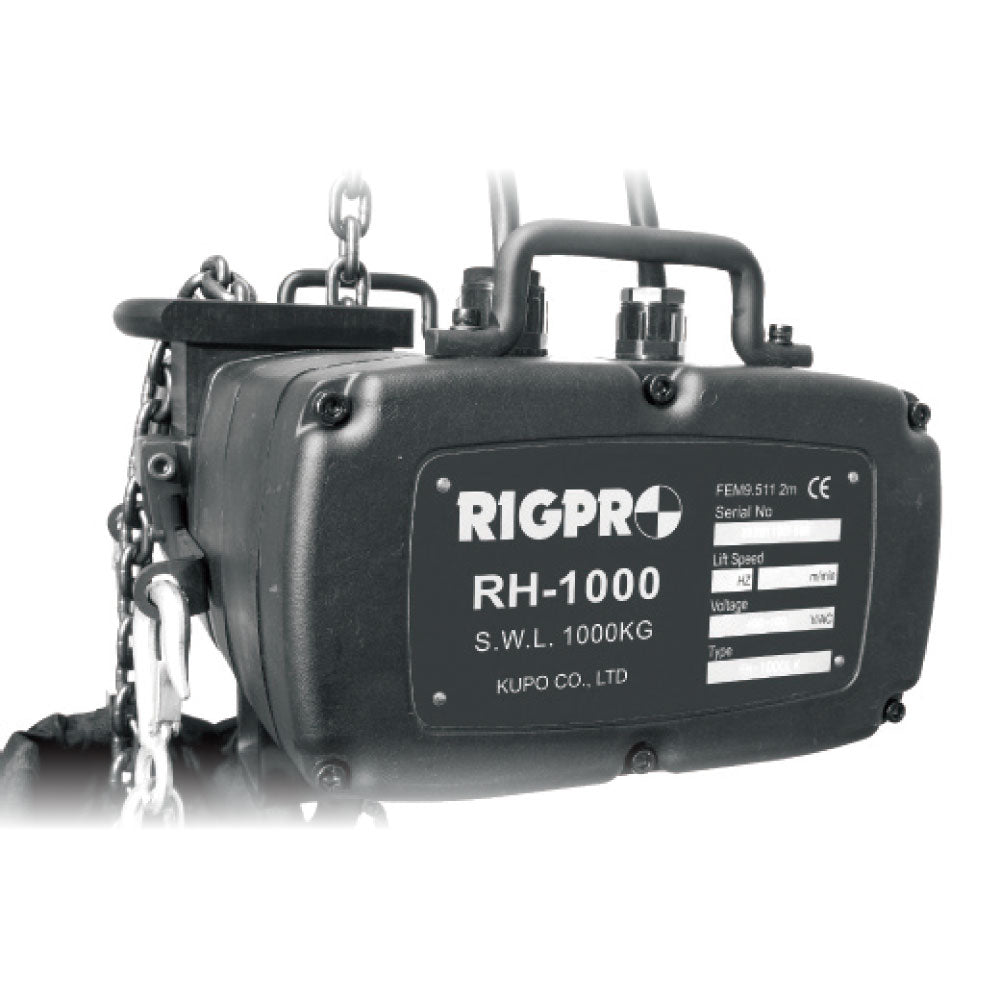

RD-1000 - D8 Plus 1000 kg Chain Hoist Direct Control

Name: RD-1000 - D8 Plus 1000 kg Chain Hoist Direct Control
Brand: KUPO Stage

1 10

Product Description

Overview

The KUPO RD-1000 is a 1000 kg D8 Plus chain hoist with Direct Control and no Micro Switch Positioning (MSP). It follows the RD-1000LV lifting platform while changing the control setup from Low Voltage control to a simpler direct-control workflow.

Why It Matters

This version is for rigs that need the same core hoist capacity and lifting behavior as RD-1000LV, but do not need a low-voltage control circuit or MSP travel-limit blocks. The result is a clean Direct Control model with IP 54 protection.

Key Features

1000 kg WLL and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed match the intended RIGPRO D8 Plus hoist class.

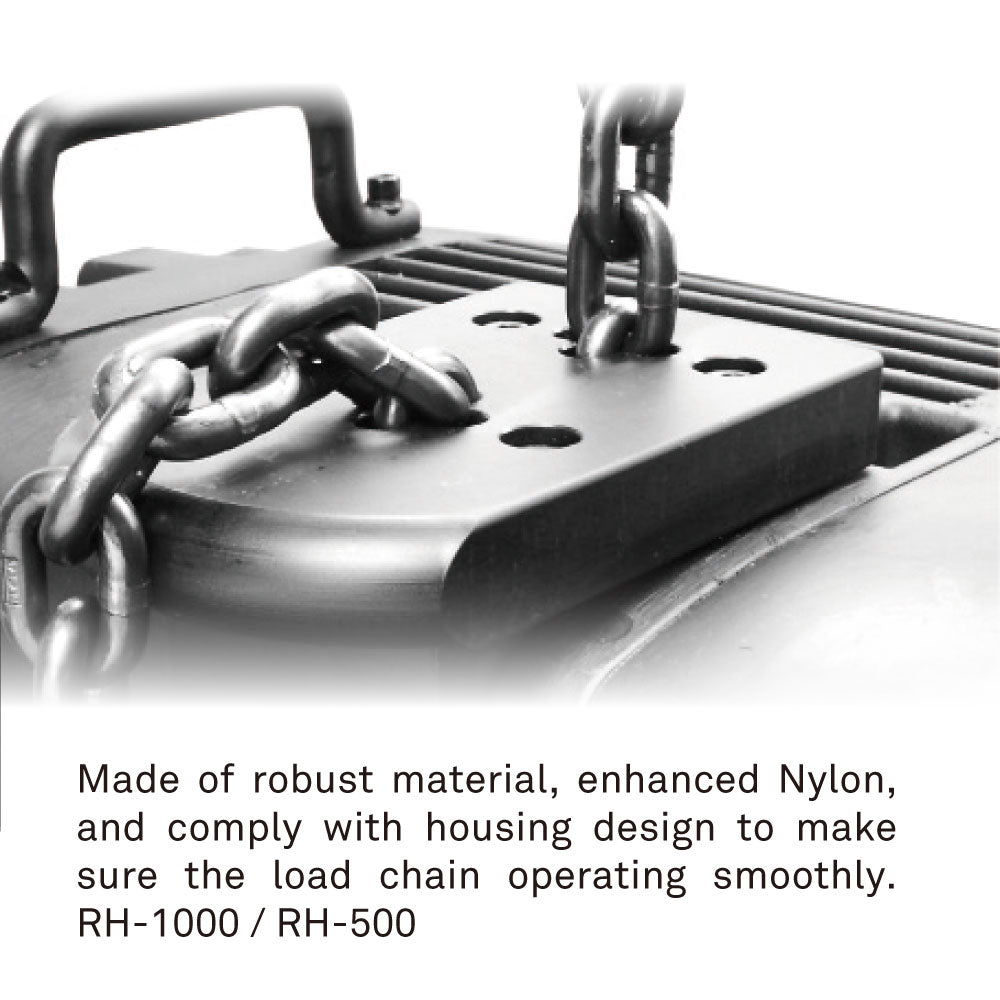

Grade VH (Grade 100), 7.1 x 20.2 mm load chain gives the hoist the correct size and strength specification. Its dimensions and construction fully conform to the EN 818-7 calibrated hoist chain standard; material strength conforms to Grade VH (Grade 100) standard.
Direct Control keeps the control setup straightforward for crews that do not need a low-voltage control circuit.
No Micro Switch Positioning (MSP), with protection rating listed as IP 54.

Performance & Safety

RD-1000 keeps the core lifting package from RD-1000LV, but changes the control type to Direct Control and removes MSP from the product specification.

WLL: 1000 kg.
Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.
Motor: 0.75 kW x 4P.
Duty cycle: FEM 2m class, ED 40 % or 240 starts per hour.
Compliance: BGV D8+ / IGVW SQP2 2018.
Degree of protection: IP 54.
Control type: Direct Control.
Positioning: No Micro Switch Positioning (MSP).

Applications

Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and direct-control type match the rig plan.

Compatibility

Use with compatible direct-control hoist power cabling for 1000 kg D8 Plus hoists.

Additional Technical Notes

Chain Fall: 1

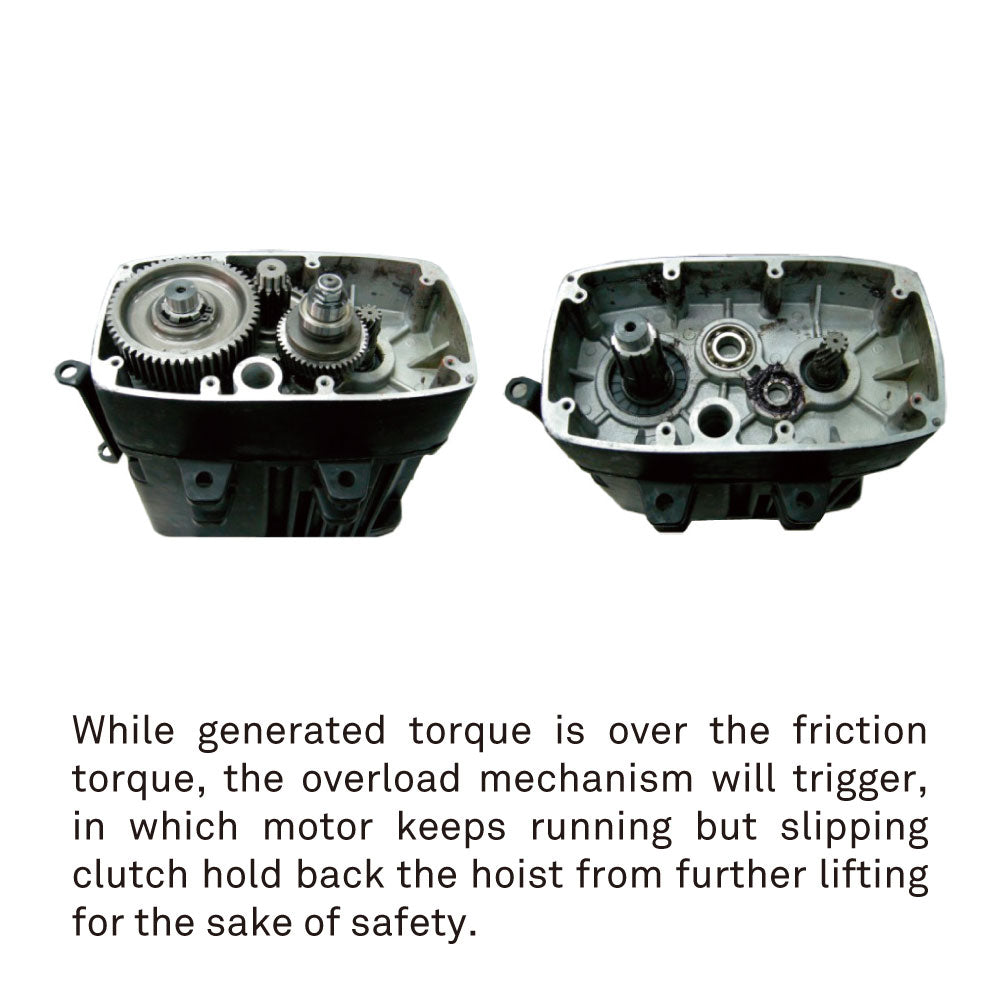

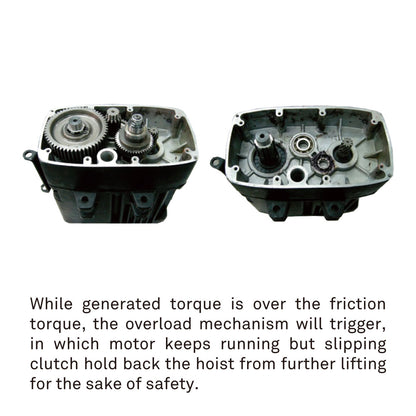

Friction Clutch: Yes, located outside the load path
Positioning: No Micro Switch Positioning (MSP)

Frequently Asked Questions

Is this the low-voltage-control version

No. RD-1000 is the Direct Control version. Use RD-1000LV when Low Voltage control is required.

Does this model include Micro Switch Positioning (MSP)

No. RD-1000 does not include Micro Switch Positioning (MSP).

What is the protection rating

RD-1000 is listed with IP 54° of protection.
