Overview

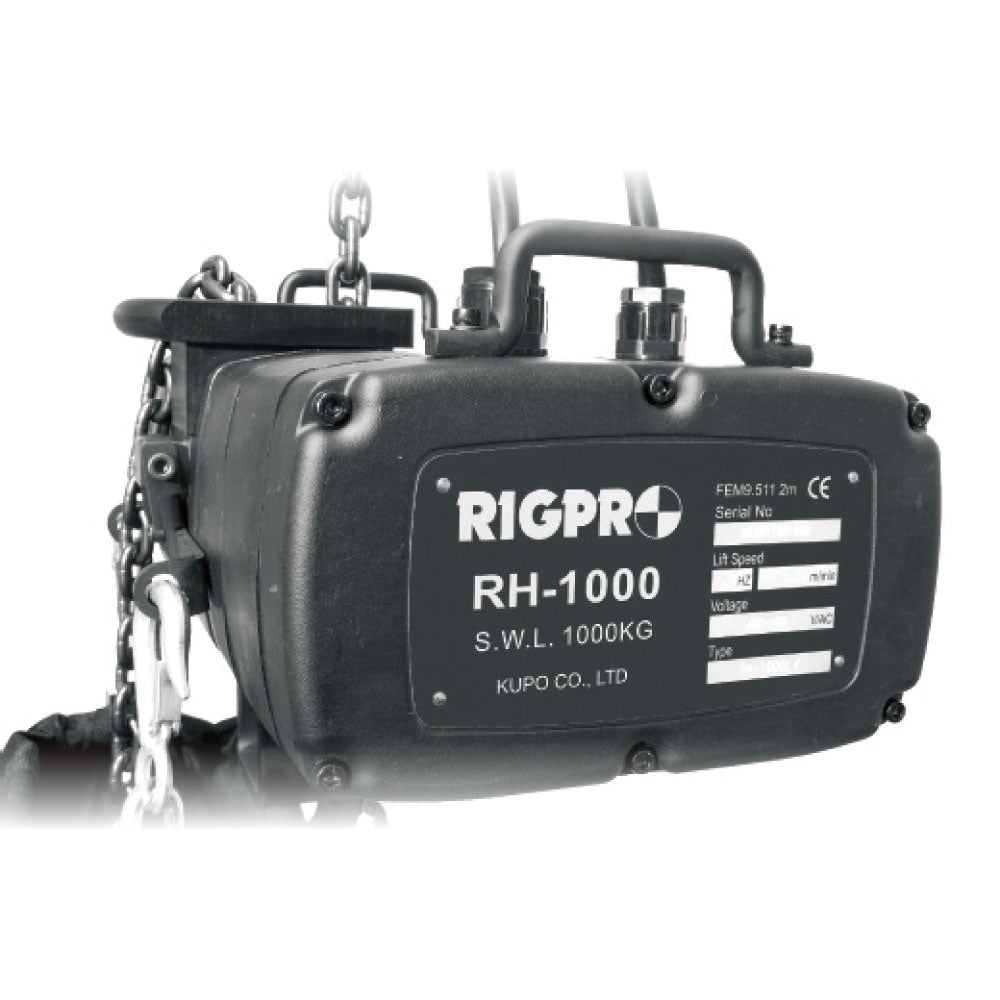

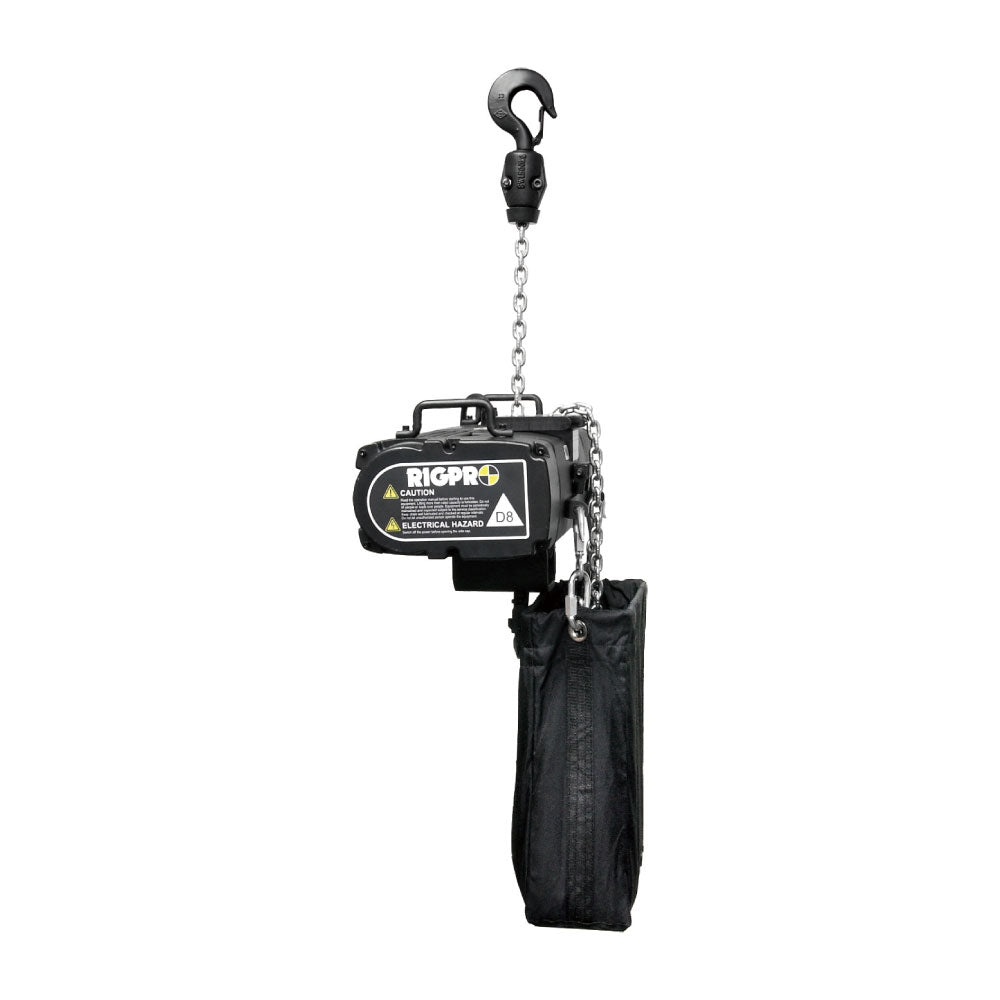

The KUPO RD-1000P is a 1000 kg D8 Plus chain hoist with direct control and Micro Switch Positioning (MSP). It gives rigging crews a straightforward pendant-style workflow, chain-mounted limit setup, and the RD series lifting package for professional entertainment applications.

Why It Matters

Choose this version when the rig needs direct control plus fast local travel-limit setup. MSP uses rubber blocks on the load chain to define upper and lower travel points, while the datasheet protection rating remains IP 20.

Key Features

• 1000 kg WLL and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed suit the intended RIGPRO D8 Plus hoist class.

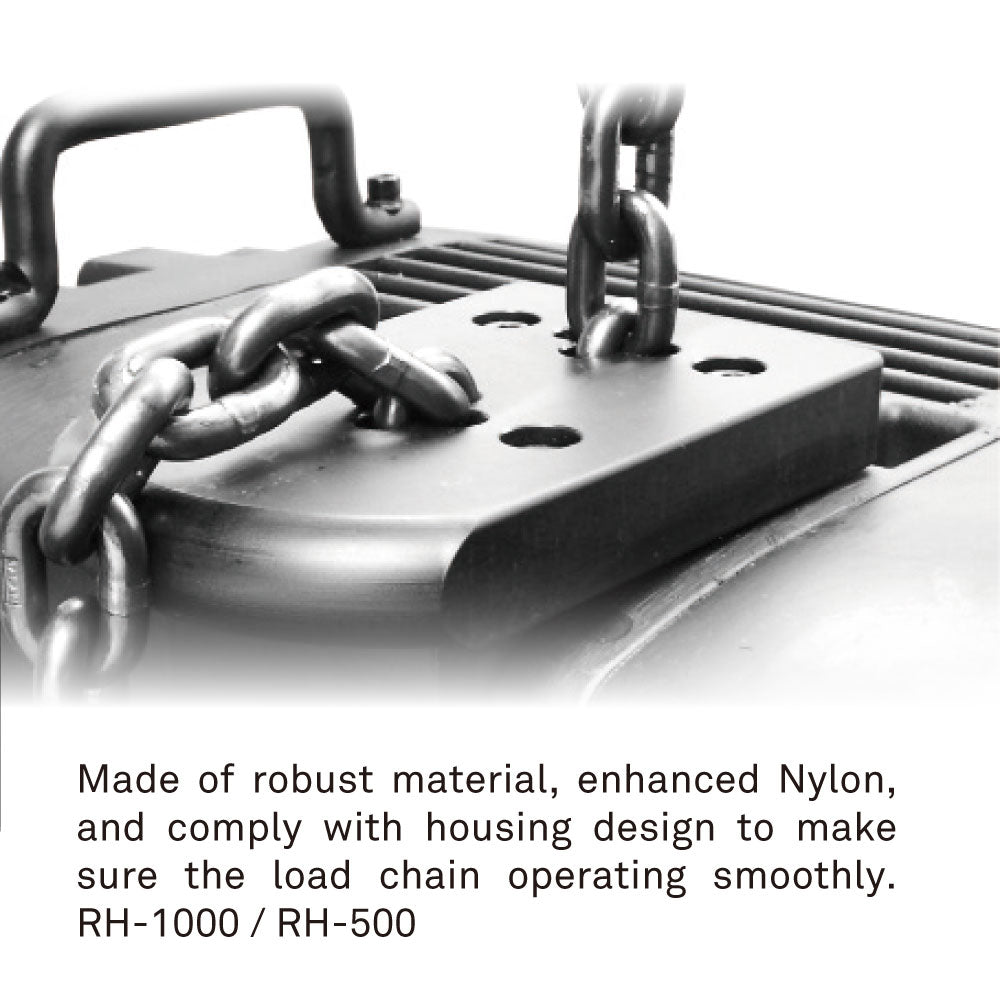

• Grade VH/100, 7.1 x 20.2 mm, EN 818-7. This gives the 1000 kg model the stronger chain specification required for the RD-1000 update.

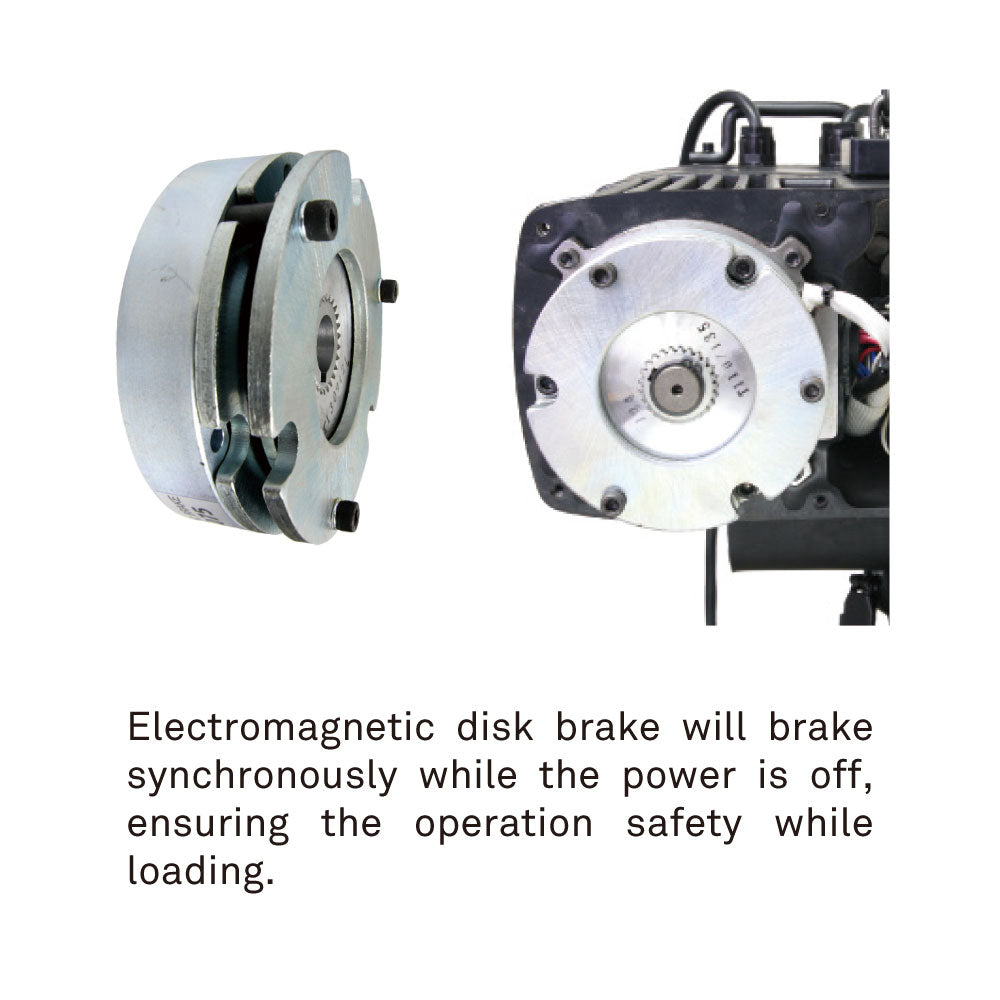

• Spring-loaded heavy-duty DC brake holds the load safely when power is removed or a fault occurs.

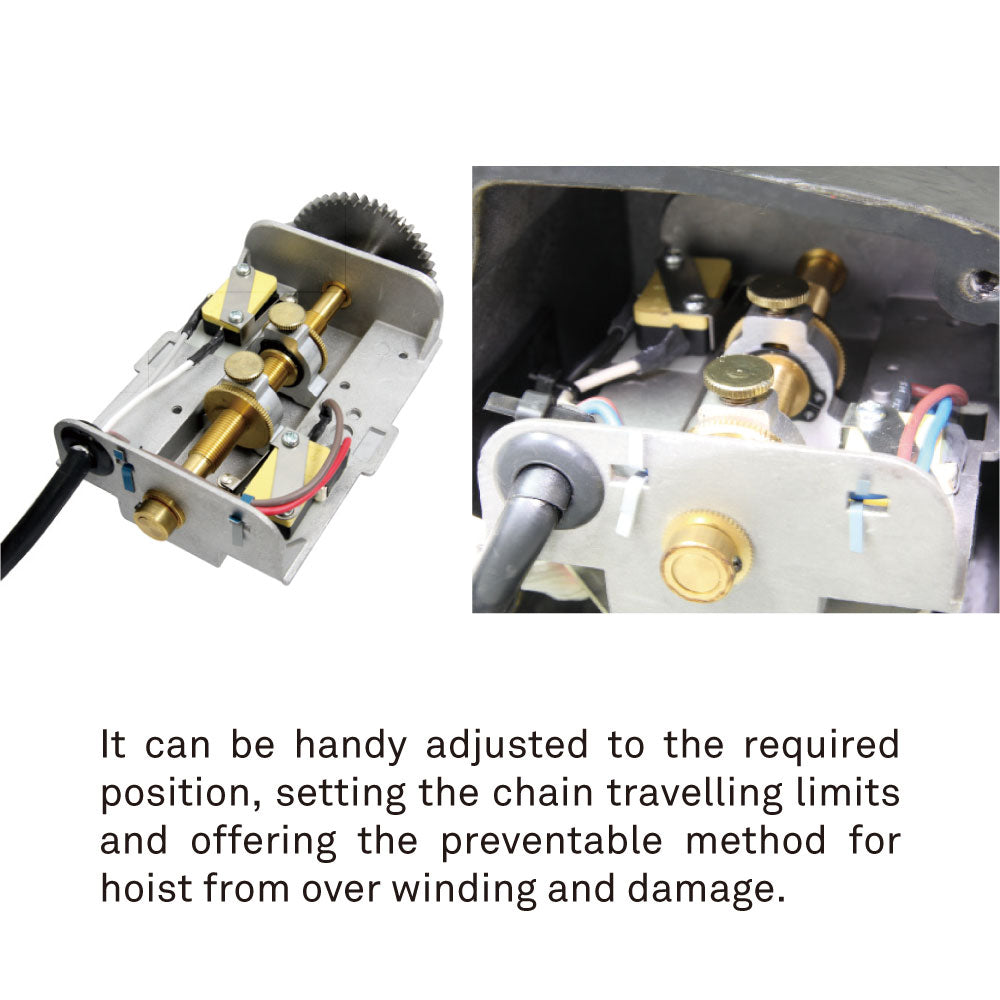

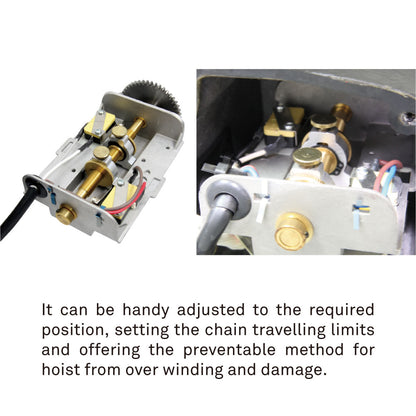

• Micro Switch Positioning (MSP) supports quick up/down travel-limit setup with chain-mounted rubber blocks.

Performance & Safety

RD-1000P is the 1000 kg D8 Plus direct-control hoist with MSP travel-limit setup and IP 20 protection.

• WLL: 1000 kg.
• Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.
• Motor: 0.75 kW x 4P.
• Duty cycle: FEM 2m class, ED 40 % or 240 starts per hour.
• Compliance: BGV D8+ / IGVW SQP2 2018.
• Degree of protection: IP 20.
• Positioning: Micro Switch Positioning (MSP).

Applications

Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and control type match the rig plan.

Compatibility

Use with compatible direct-control hoist controllers and cabling for 1000 kg D8 Plus hoists.

Additional Technical Notes

• Chain Fall: 1
• Brake: Spring-loaded heavy-duty DC brake

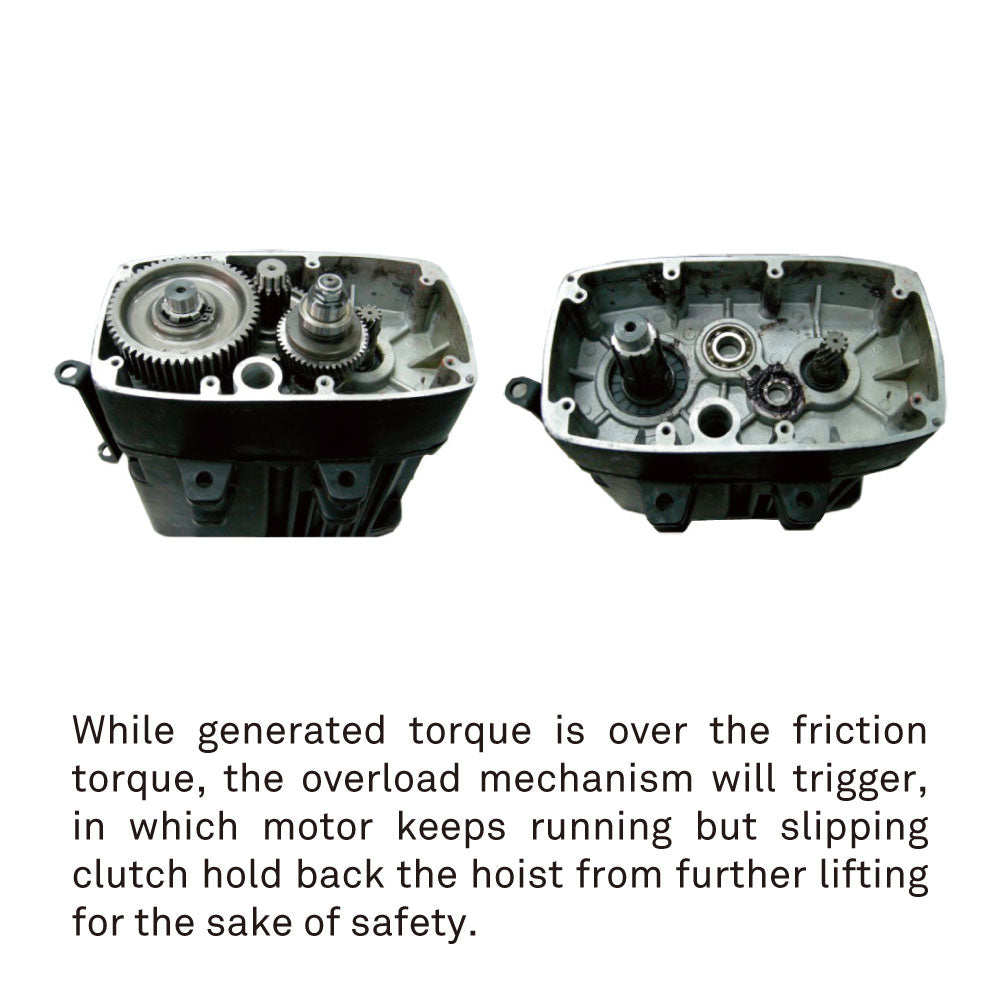

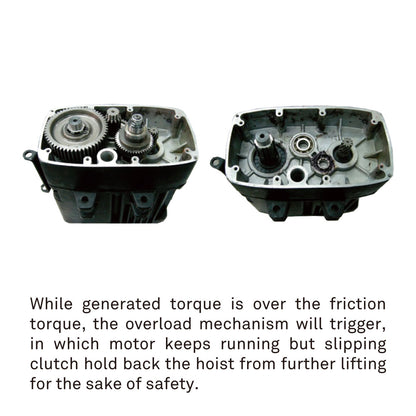

• Friction Clutch: Yes, located outside the load path
• Positioning: Micro Switch Positioning (MSP)
