Overview

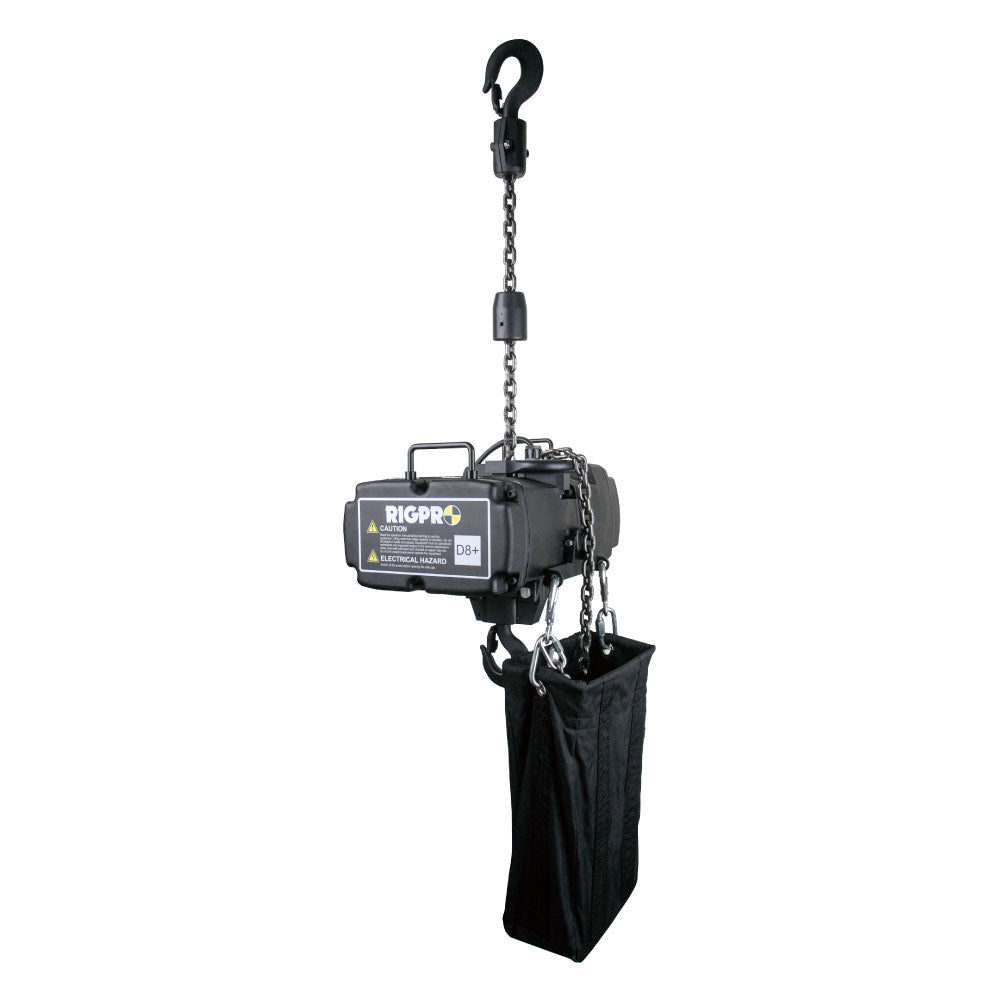

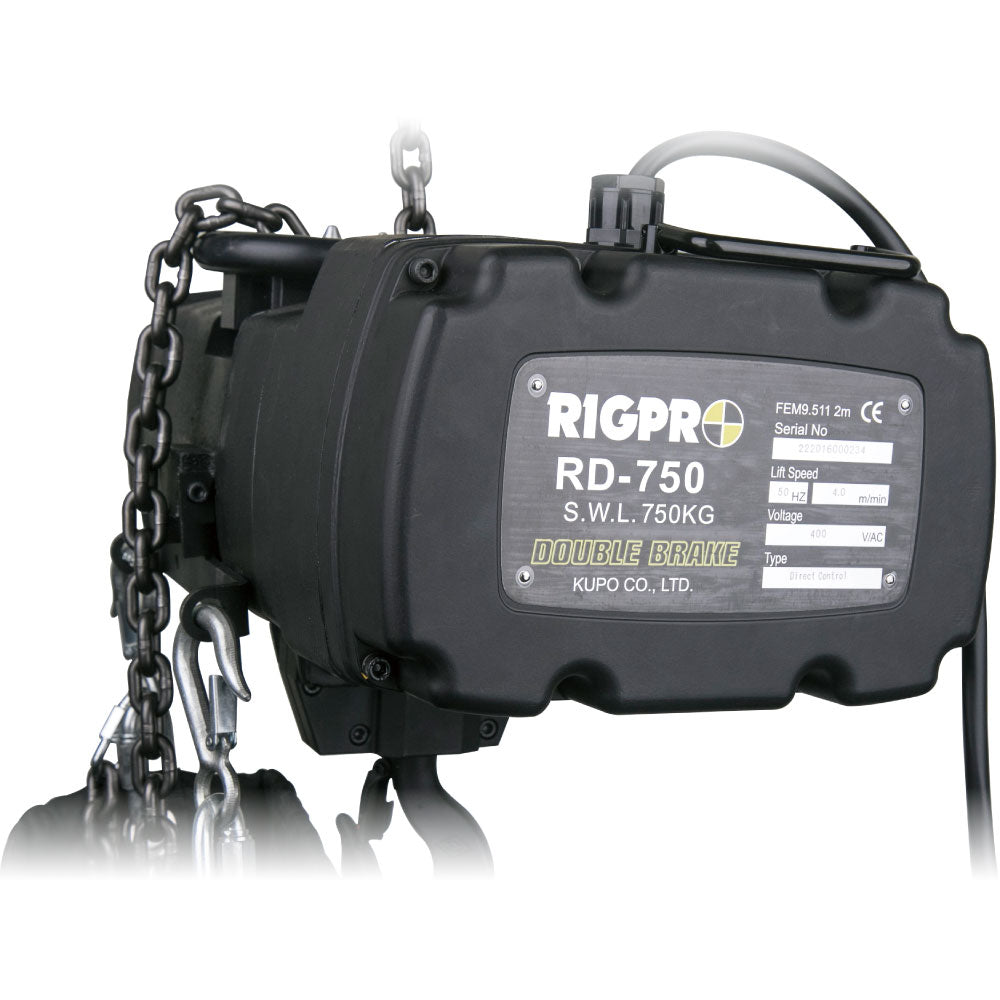

The KUPO RD-750 is a 750 kg D8 Plus chain hoist with Direct Control and no Micro Switch Positioning (MSP). It follows the RD-750LV lifting platform while changing the control setup from Low Voltage control to a simpler direct-control workflow.
Why It Matters
This version is for rigs that need the same core hoist capacity and lifting behavior as RD-750LV, but do not need a low-voltage control circuit or MSP travel-limit blocks. The result is a clean Direct Control model with IP 54 protection.
Key Features
- 750 kg WLL and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed match the intended RIGPRO D8 Plus hoist class.

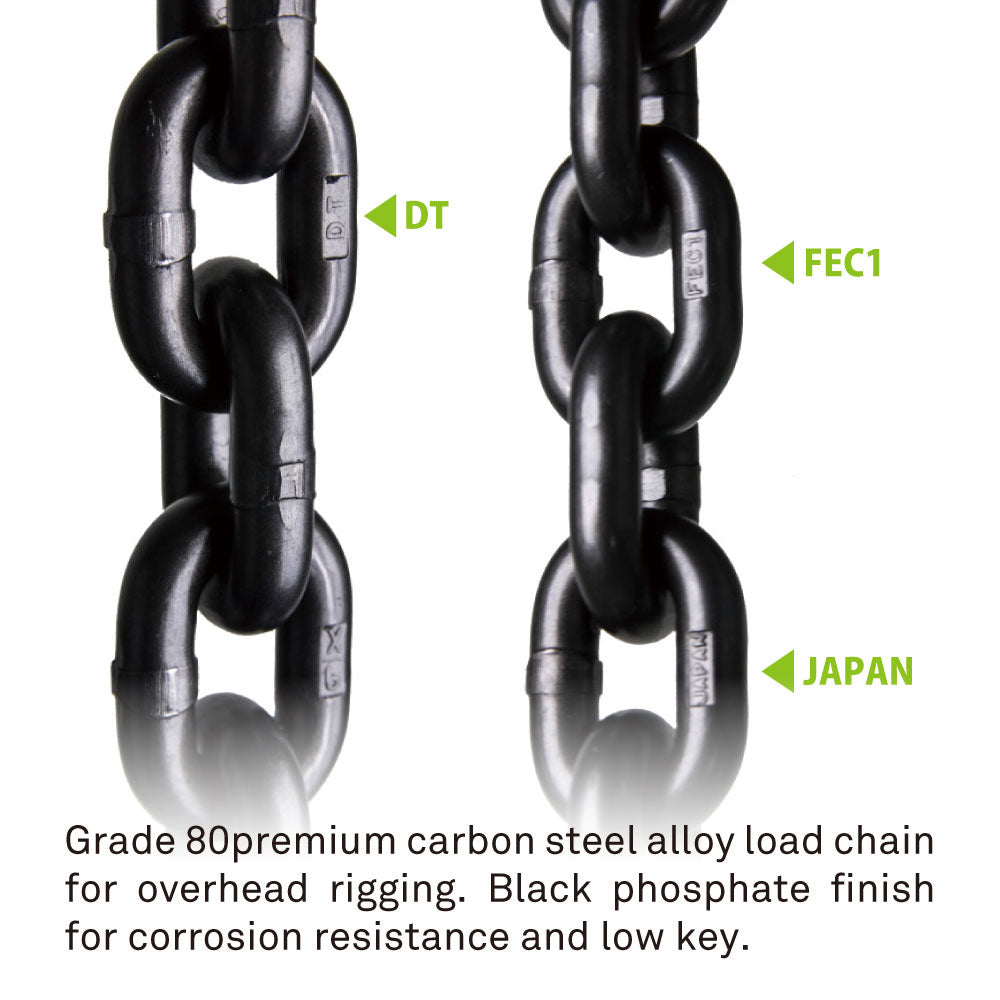

- Grade 80, 7.1 x 20.2 mm, EN 818-7 compliant load chain gives the hoist the correct chain size and strength specification for its drive system.
- Direct Control keeps the control setup straightforward for crews that do not need a low-voltage control circuit.

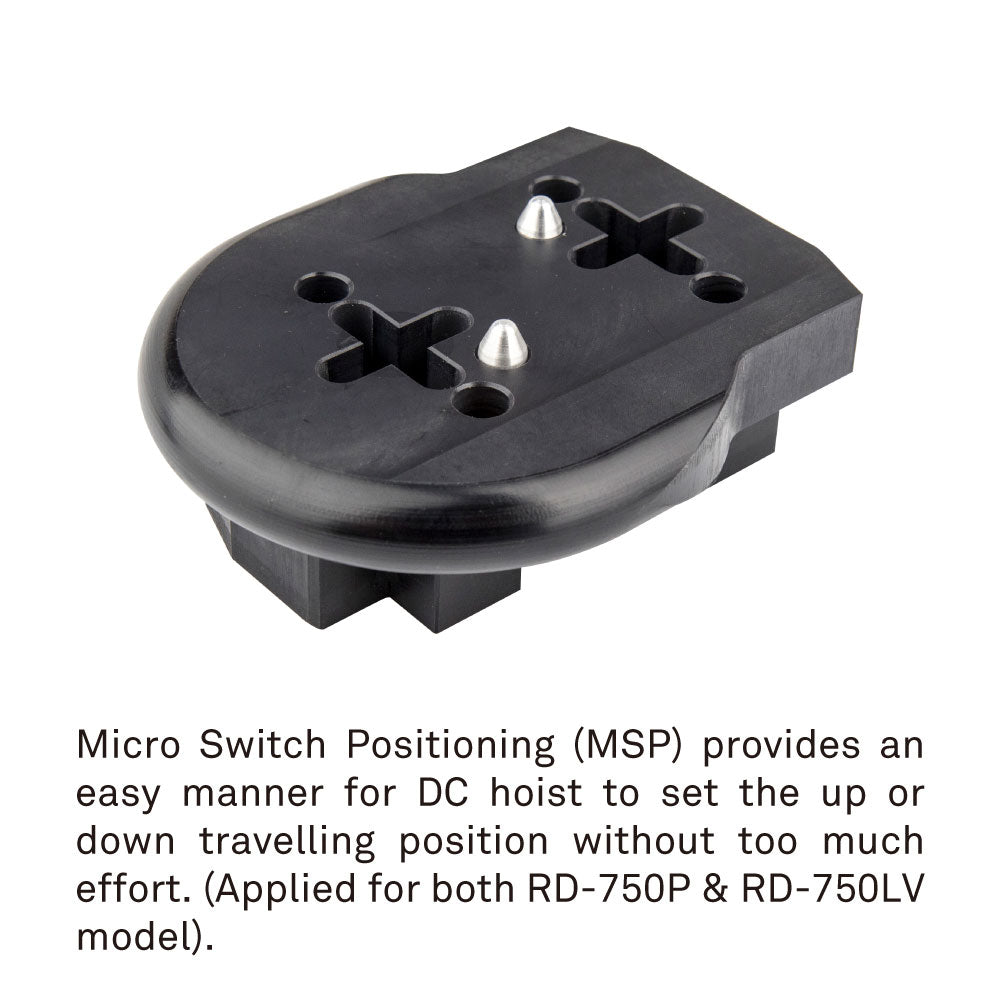

- No Micro Switch Positioning (MSP), with protection rating listed as IP 54.
Performance & Safety
RD-750 keeps the core lifting package from RD-750LV, but changes the control type to Direct Control and removes MSP from the product specification.
- WLL: 750 kg.
- Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.

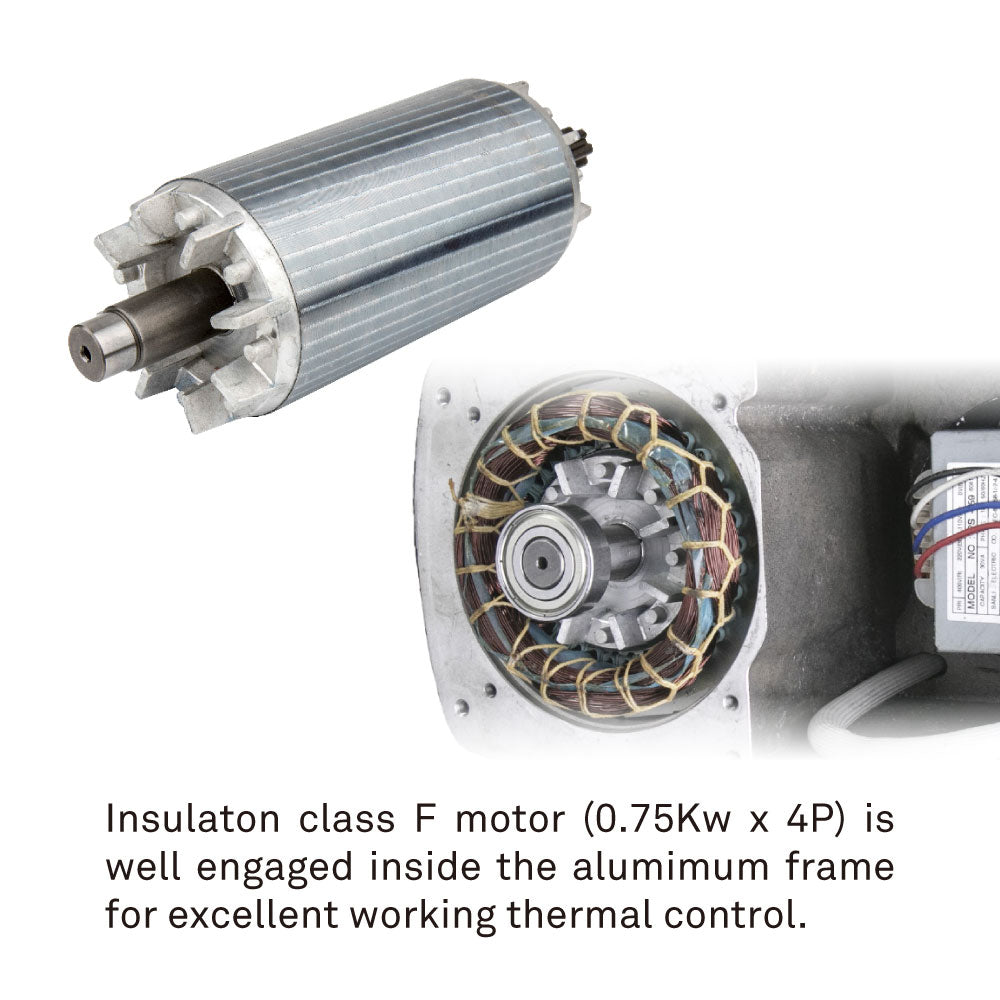

- Motor: 0.75 kW x 4P.
- Duty cycle: FEM 2m class, ED 40 % or 240 starts per hour.
- Compliance: BGV D8+ / IGVW SQP2 2018.
- Degree of protection: IP 54.
- Control type: Direct Control.
- Positioning: No Micro Switch Positioning (MSP).
Applications
Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and direct-control type match the rig plan.
Compatibility
Use with compatible direct-control hoist power cabling for 750 kg D8 Plus hoists.
Additional Technical Notes
- Chain Fall: 1

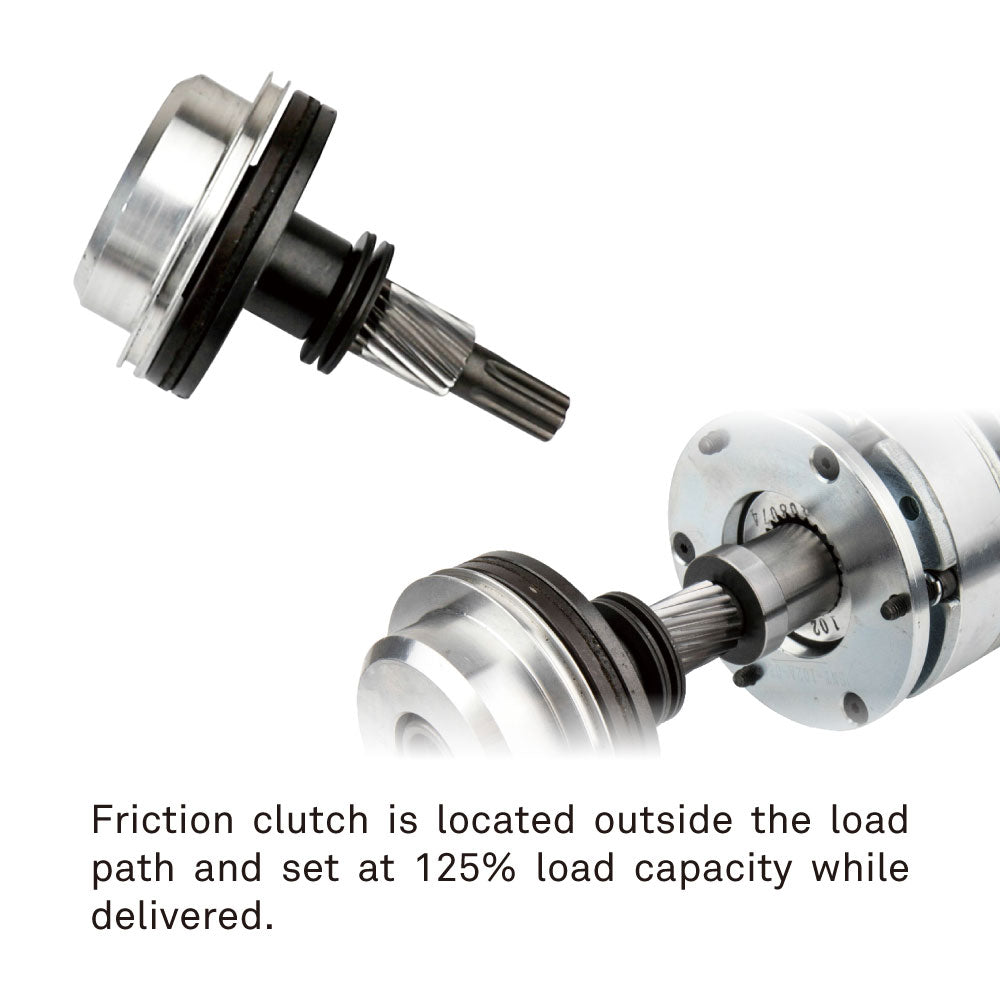

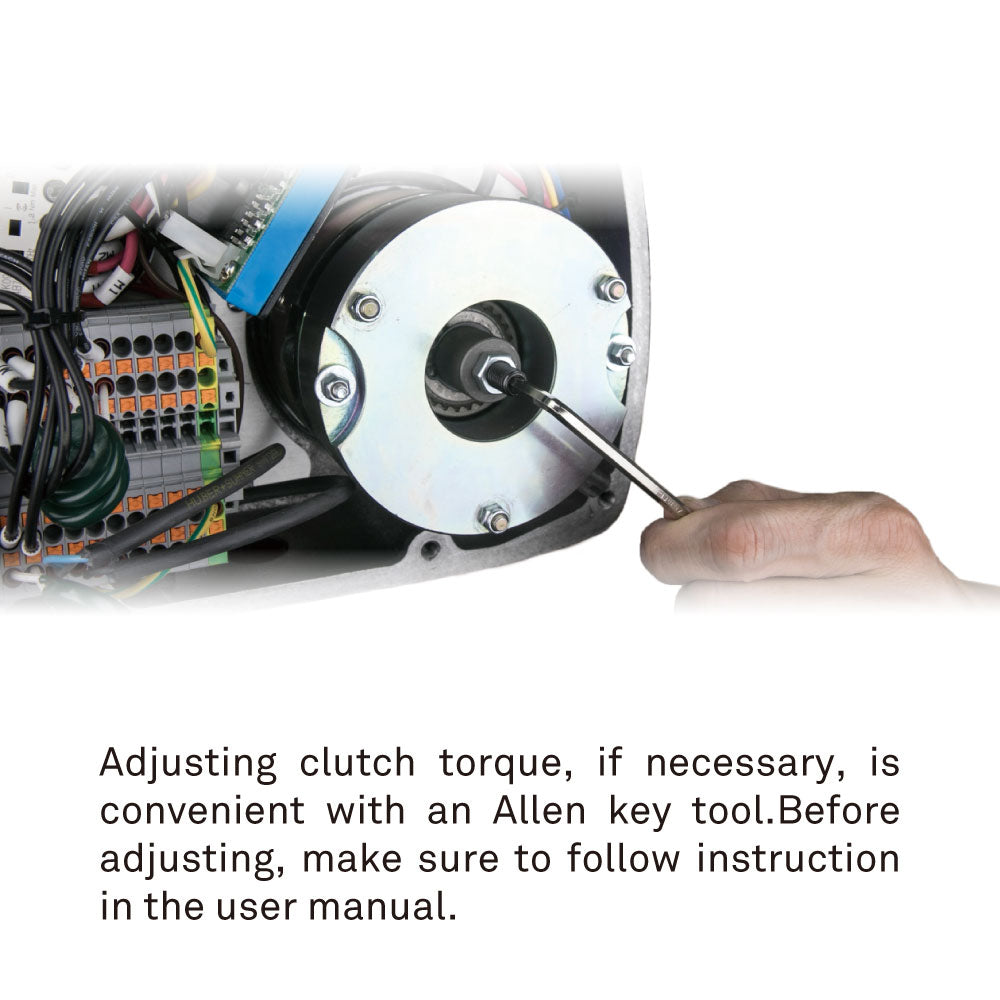

- Friction Clutch: Yes, located outside the load path
- Positioning: No Micro Switch Positioning (MSP)
