Overview

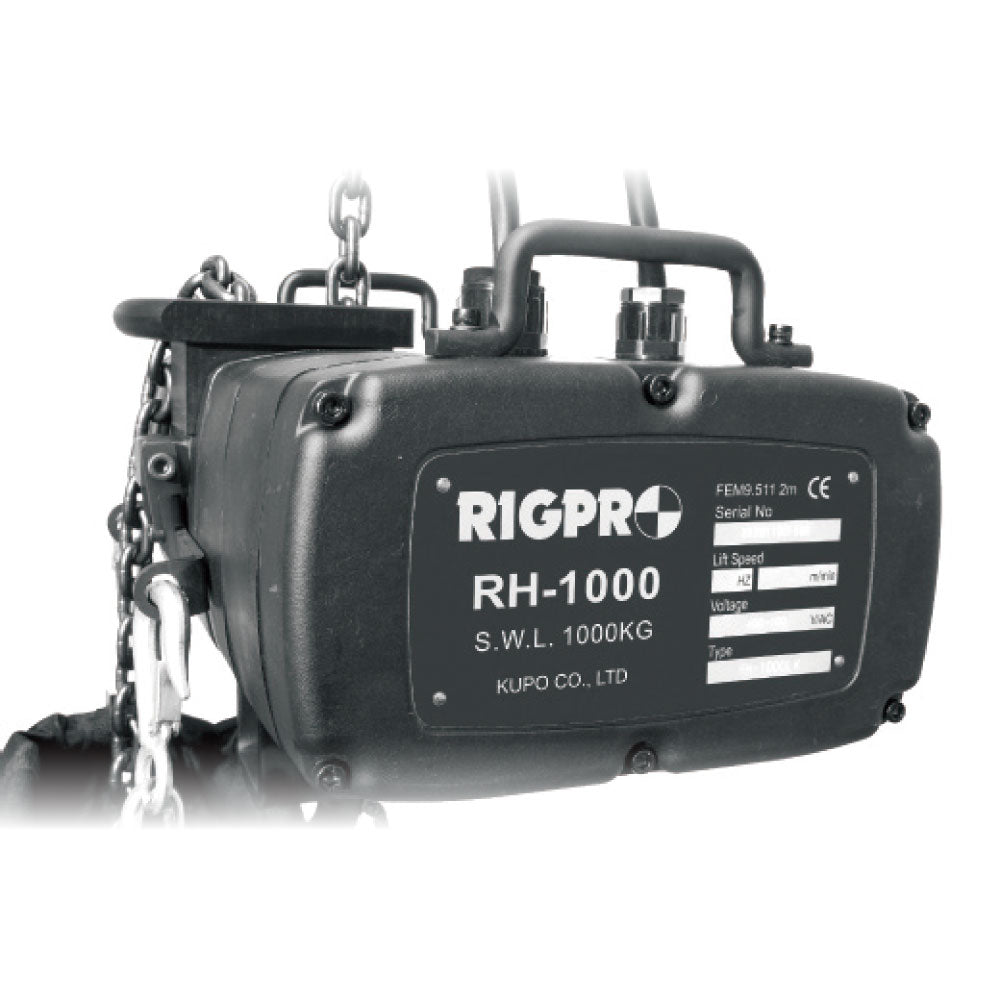

The KUPO RH-1000S4 is the baseline 1000 kg direct-control D8 chain hoist in the RH-1000 family. It runs at 4 m/min on 50 Hz, uses a 0.75 kW 4-pole motor, 7.1 x 20.2 mm Grade 80 EN 818-7 load chain, IP 54 protection, and a 3 m cable with 4-pin CEE red connector.

Why It Matters

This is the clean no-frills 1-ton choice when the crew does not need MSP or low-voltage motor-desk control. It keeps the stronger IP 54 non-MSP body and the slower, controlled 4 m/min lift speed for everyday direct-control work.

Key Features

• 1000 kg capacity and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed suit the intended RIGPRO hoist class.

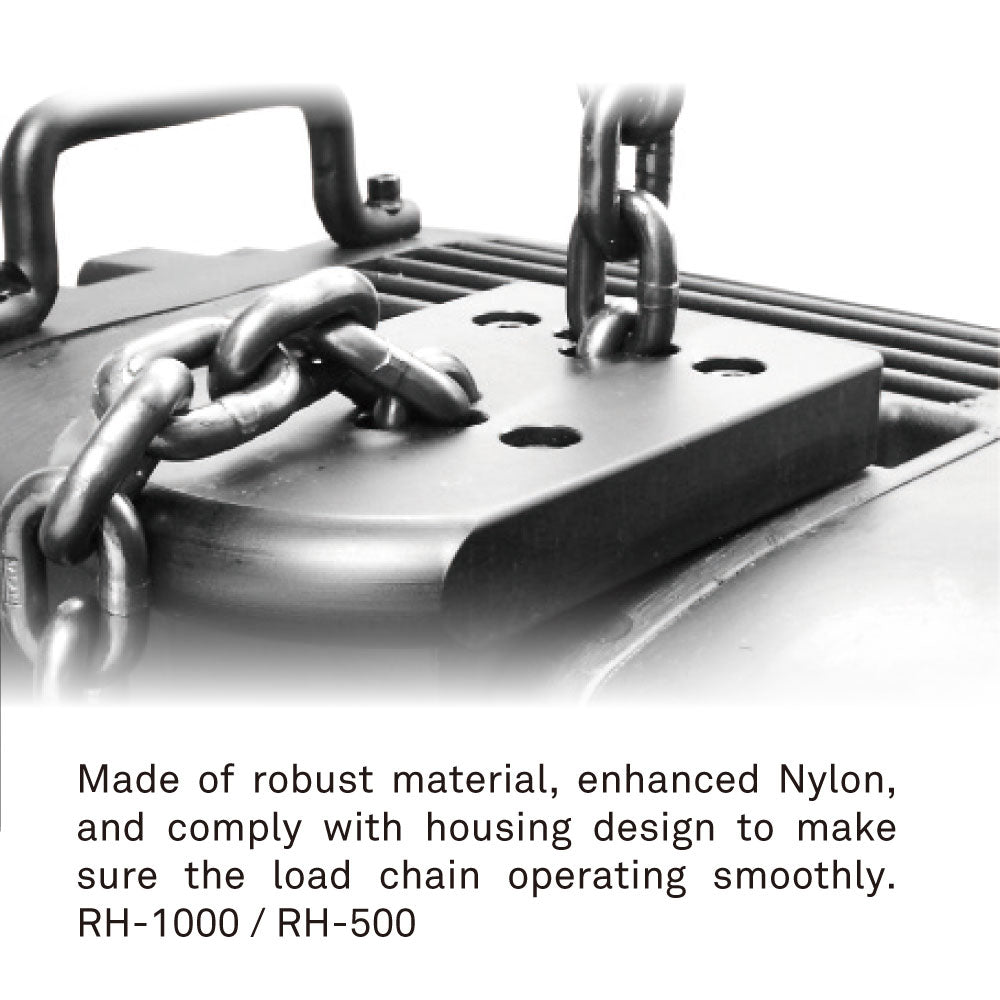

• Grade 80, 7.1 x 20.2 mm, EN 818-7 compliant load chain gives the hoist the correct chain size for its drive system.
• Spring-loaded heavy-duty DC brake holds the load safely when power is removed or a fault occurs.
• Spring-loaded DC brake, overload friction clutch, and IP 54 chassis protection protects the drive and operator workflow during entertainment rigging use.

Performance & Safety

RH-1000S4 is the standard-speed direct-control 1-ton workhorse without MSP or low-voltage desk control.

• Safe working load: 1000 kg.
• Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.
• Motor: 0.75 kW x 4P.
• Duty cycle: FEM 2m / ISO M5, ED 40 %, 240 starts/hr.
• Compliance: BGV D8 / IGVW SQP2 2018.
• Degree of protection: IP 54.

Applications

Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and control type match the rig plan.

Compatibility

Compatible with direct-control chain hoist cabling and controllers using 4-pin CEE red connector, plus RH-1000-1 W flight case and CH-52B jacket.

Additional Technical Notes

• Chain Fall: 1

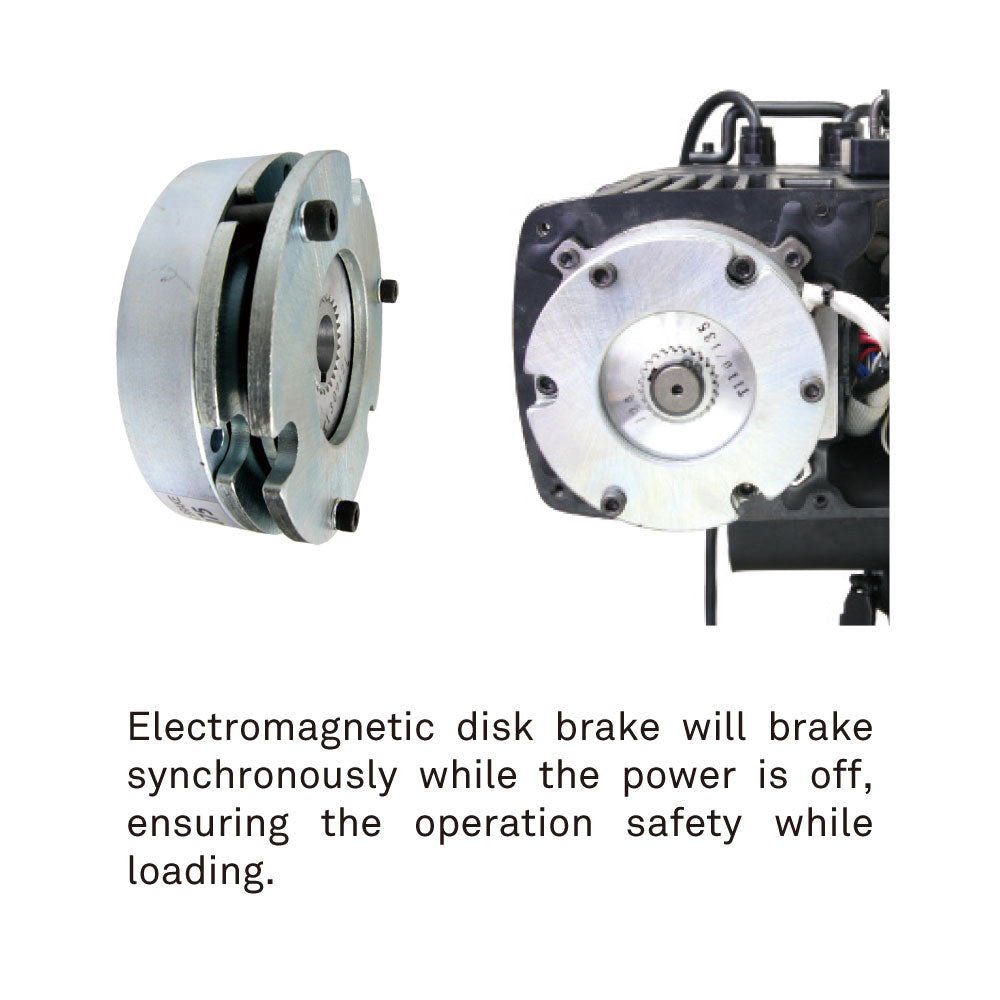

• Brake: Spring-loaded heavy-duty DC brake

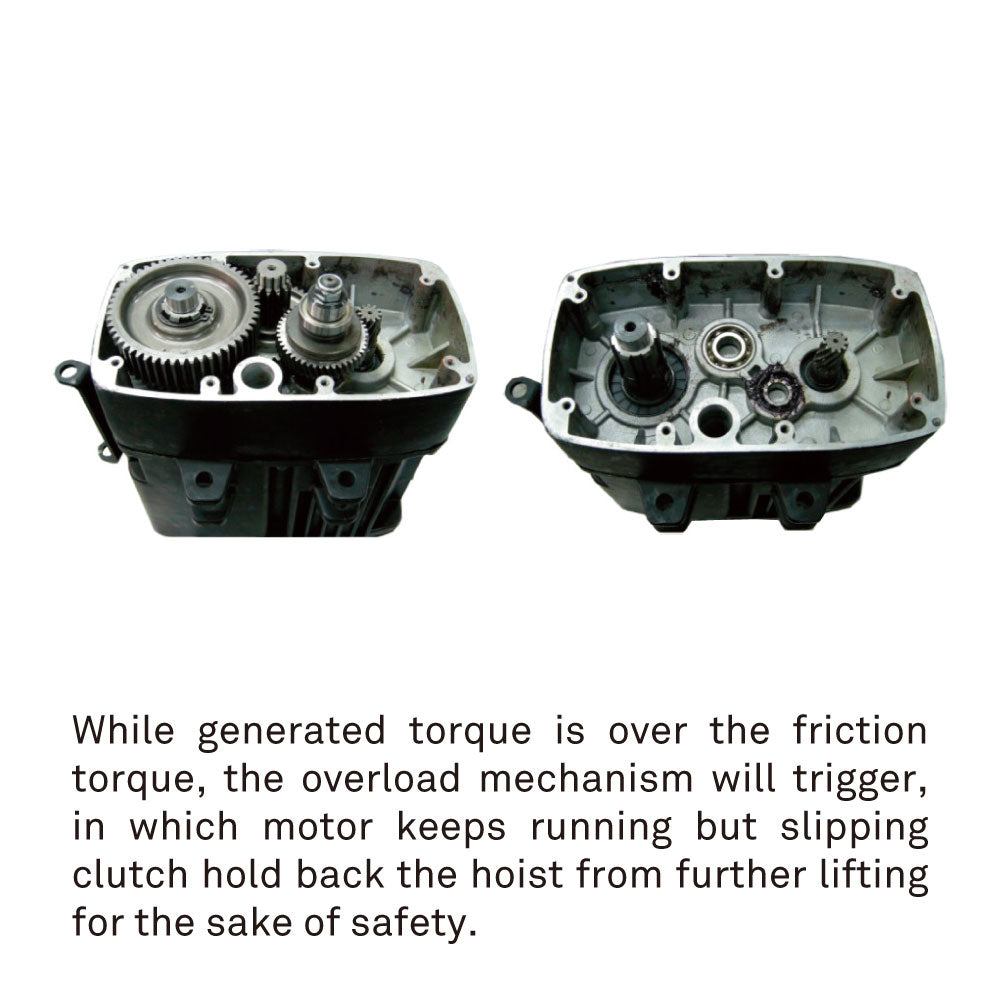

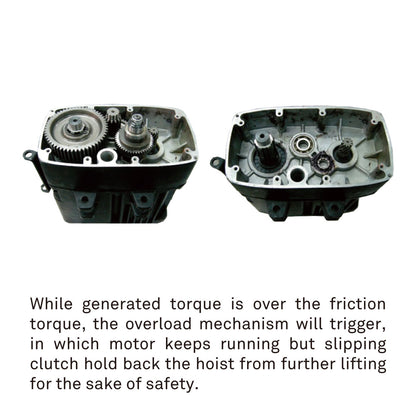

• Friction Clutch: Yes, for overload protection
• Working Noise: 75 dB(A) at 1 m
