Overview

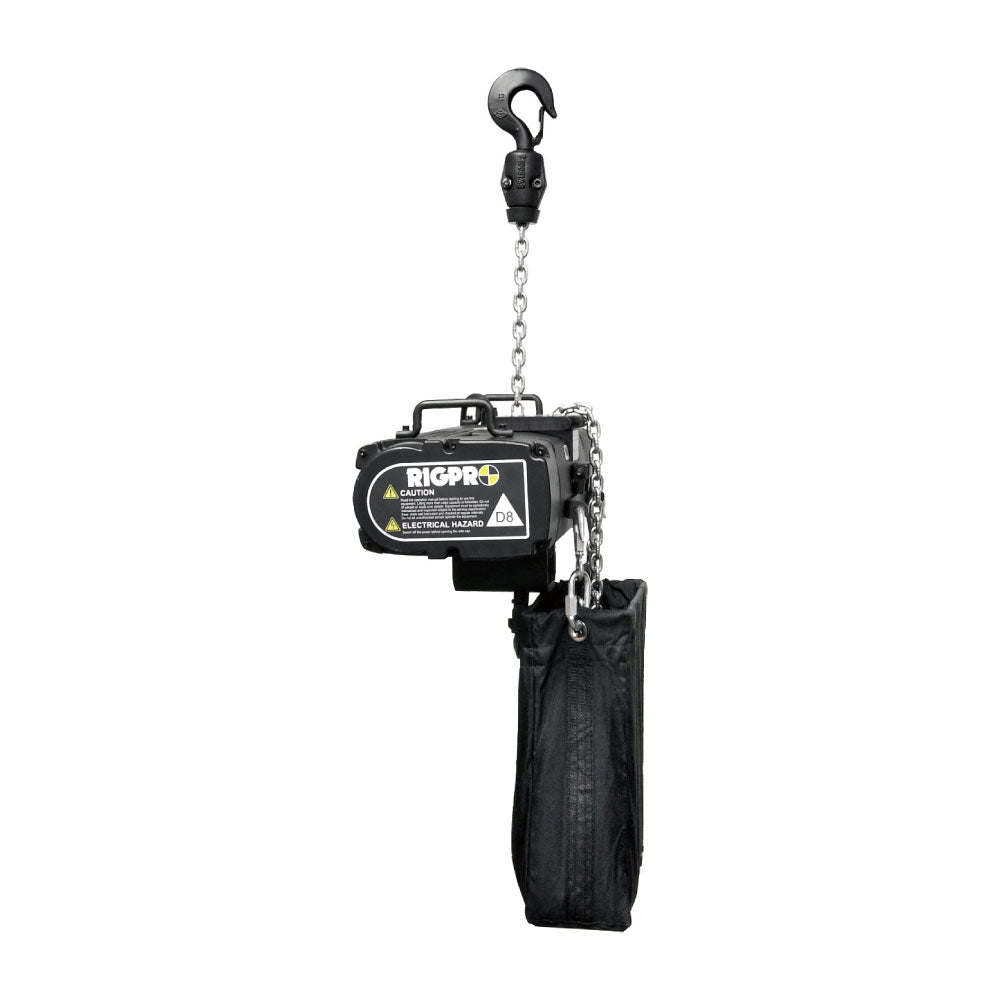

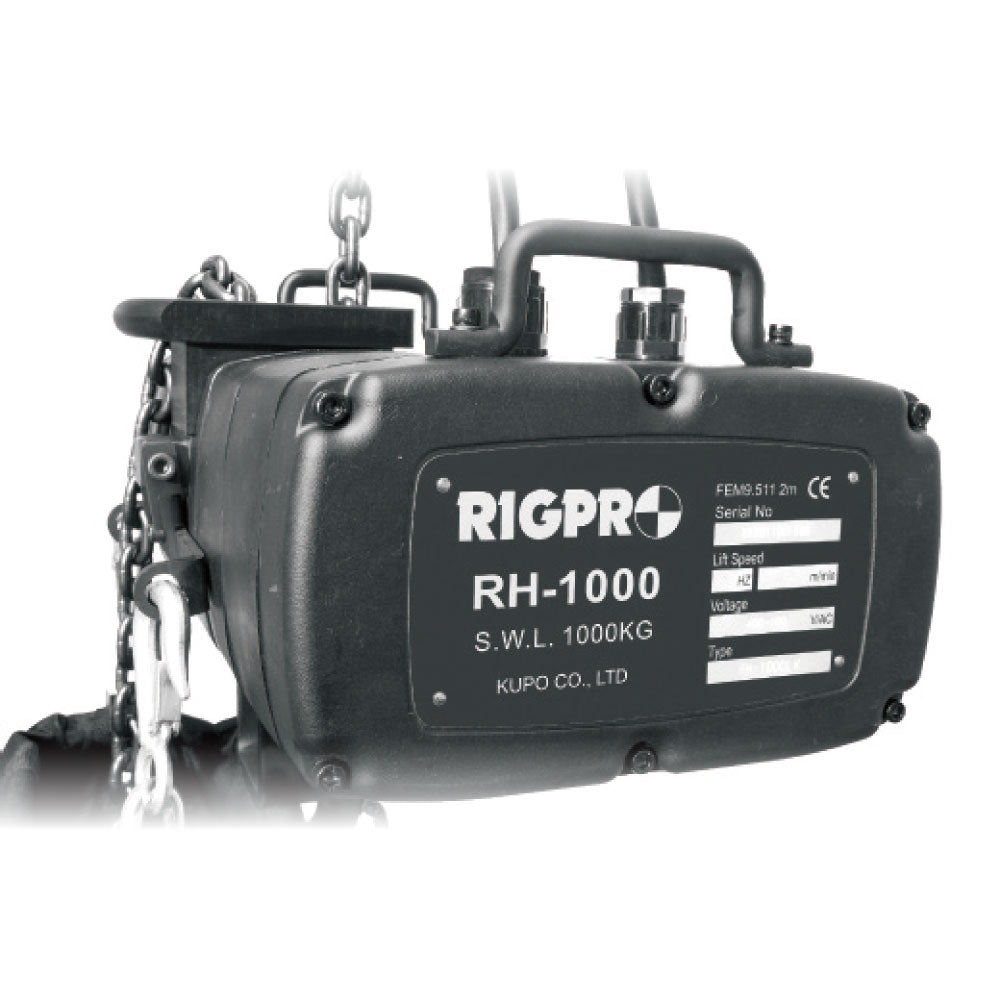

The KUPO RH-1000S8 is the high-speed direct-control version of the 1000 kg RH-1000 hoist, lifting at 8 m/min on 50 Hz and 9.6 m/min on 60 Hz. It uses a 1.5 kW 2-pole motor while keeping the 47 kg hoist body, IP 54 protection, 7.1 x 20.2 mm Grade 80 load chain, and direct-control 4-pin CEE red power connection.

Why It Matters

When time is the pressure, speed changes the day. RH-1000S8 gives crews the faster 1-ton direct-control option without adding MSP or low-voltage control complexity, which is useful for repeated tour cycles and large scenic or lighting moves.

Key Features

• 1000 kg capacity and 8 m/min at 50 Hz, 9.6 m/min at 60 Hz lifting speed suit the intended RIGPRO hoist class.
• Grade 80, 7.1 x 20.2 mm, EN 818-7 compliant load chain gives the hoist the correct chain size for its drive system.
• Spring-loaded heavy-duty DC brake holds the load safely when power is removed or a fault occurs.
• Spring-loaded DC brake, overload friction clutch, and IP 54 chassis protection protects the drive and operator workflow during entertainment rigging use.

Performance & Safety

RH-1000S8 is the high-speed direct-control 1-ton hoist for faster load-in and load-out without MSP.

• Safe working load: 1000 kg.
• Lift speed: 8 m/min at 50 Hz, 9.6 m/min at 60 Hz.
• Motor: 1.5 kW x 2P.
• Duty cycle: FEM 2m / ISO M5, ED 40 %, 240 starts/hr.
• Compliance: BGV D8 / IGVW SQP2 2018.
• Degree of protection: IP 54.

Applications

Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic elements, broadcast stages, venue installs, and controlled overhead lifting where the hoist rating and control type match the rig plan.

Compatibility

Compatible with direct-control chain hoist cabling and controllers using 4-pin CEE red connector, plus RH-1000-1 W flight case and CH-52B jacket.

Additional Technical Notes

• Chain Fall: 1

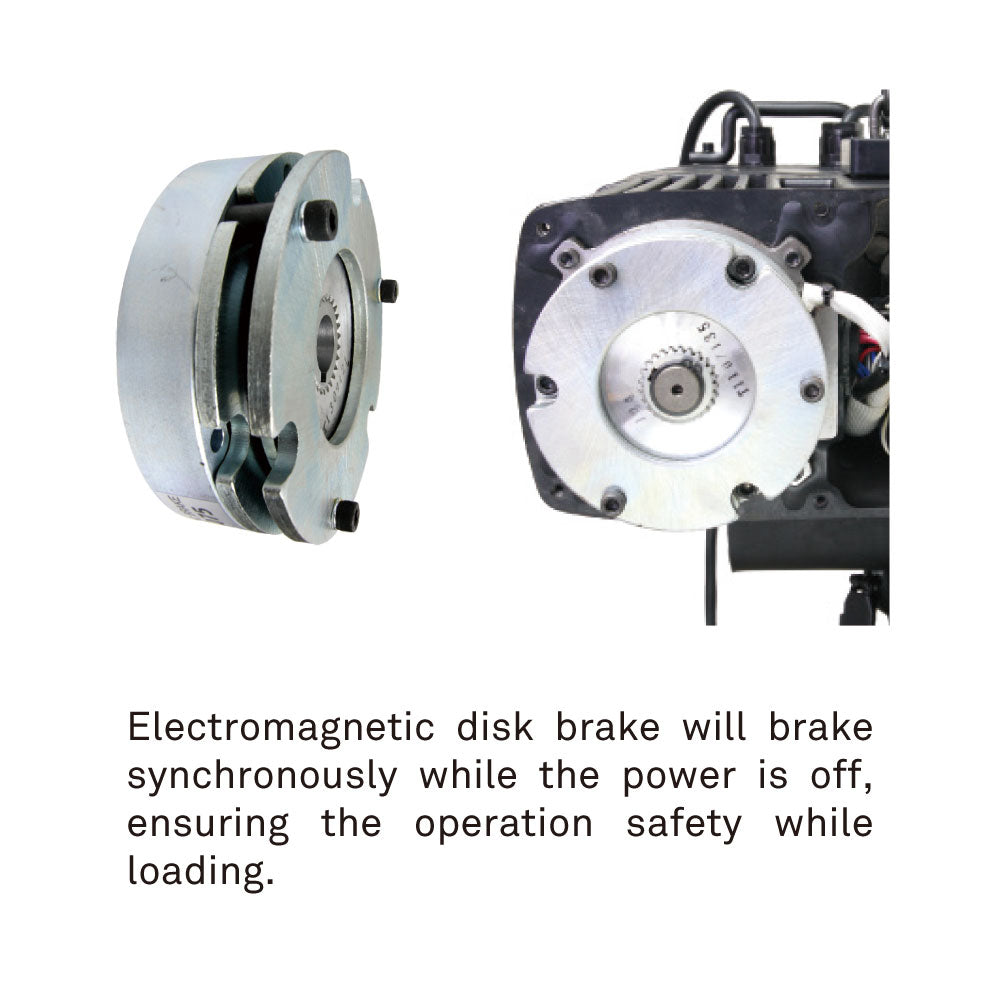

• Brake: Spring-loaded heavy-duty DC brake

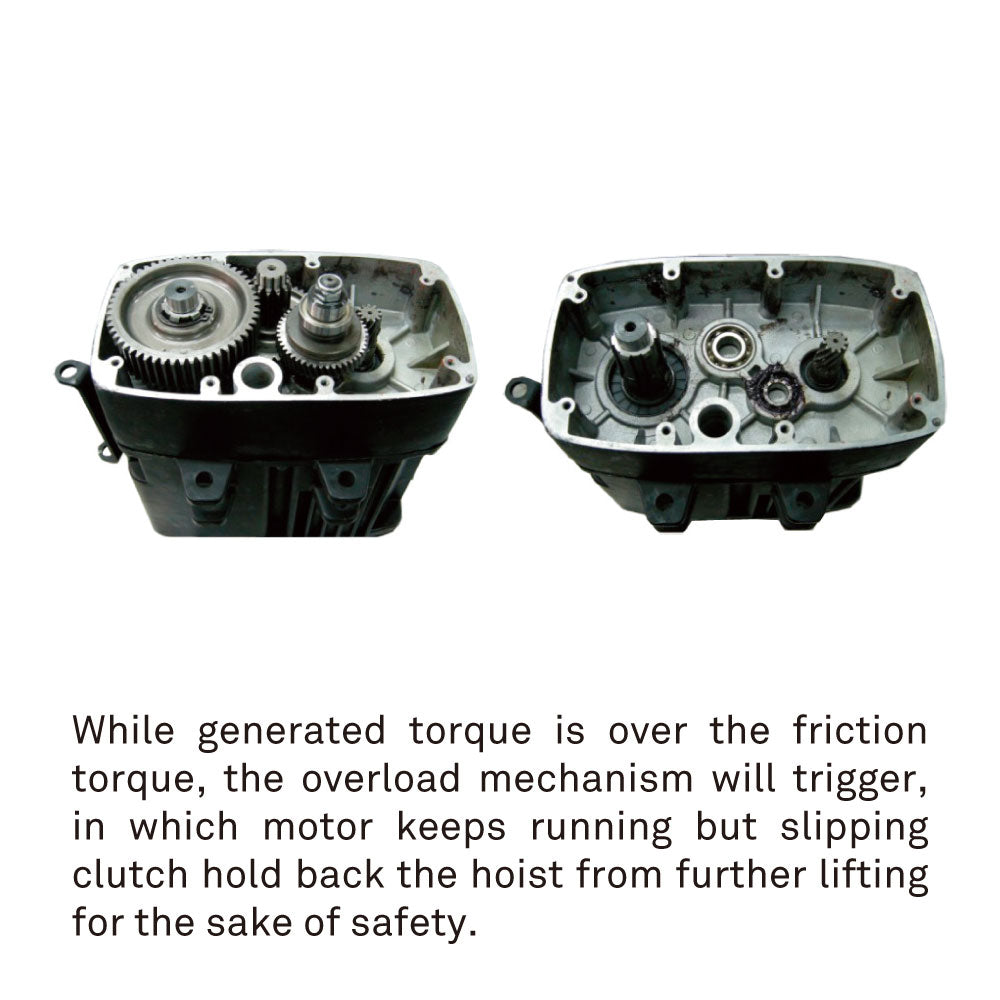

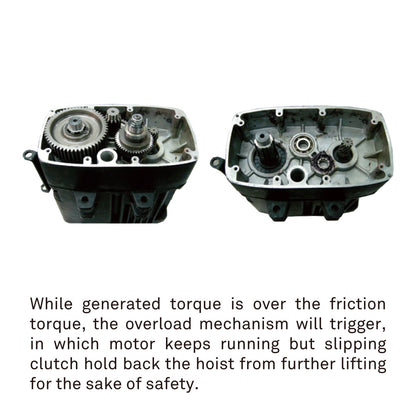

• Friction Clutch: Yes, for overload protection
• Working Noise: 75 dB(A) at 1 m
