Overview

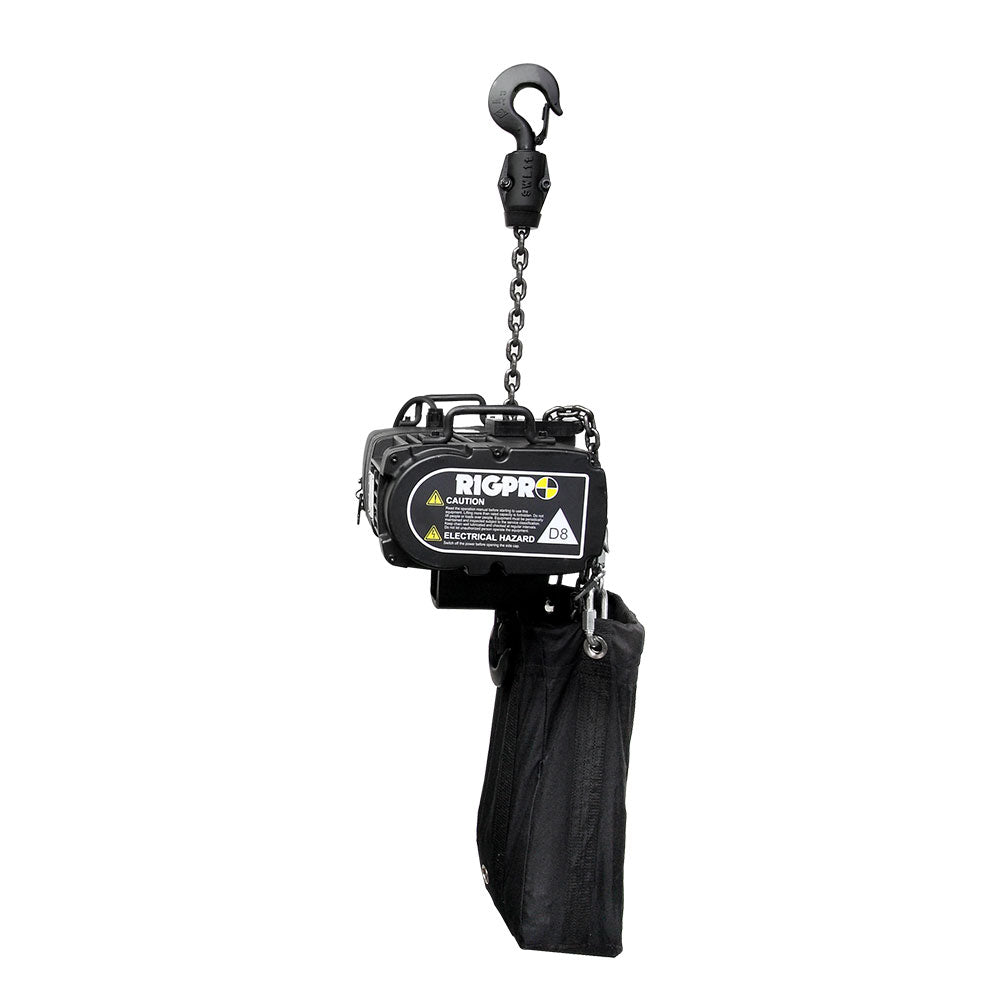

The KUPO RH-500P is a 500 kg direct-control D8 chain hoist with Micro Switch Positioning. It uses the RH-500 half-ton lifting platform, 6.3 x 19.1 mm Grade 80 load chain, 5-pocket chain sprocket, spring-loaded DC brake, and up/down rubber blocks for setting travel limits quickly on the chain.
Why It Matters
RH-500P is the right half-ton choice when crews want direct control but still need MSP. It avoids the complexity of a low-voltage desk while giving faster limit setup than the basic RH-500.
Key Features
- 500 kg capacity and 4 m/min at 50 Hz, 4.8 m/min at 60 Hz lifting speed match the intended rigging workload.
- Grade 80, 6.3 x 19.1 mm, EN 818-7 compliant load chain gives the hoist the correct chain size and pitch for its lift wheel.

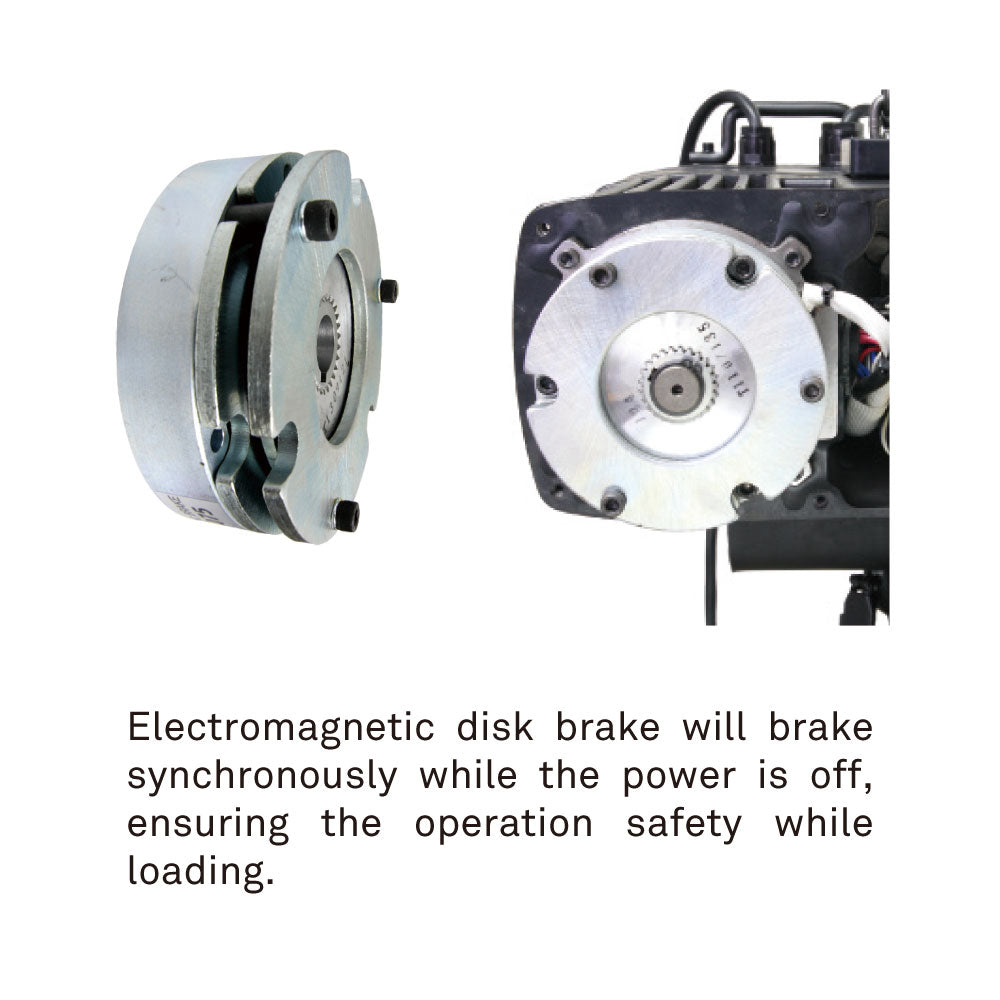

- Spring-loaded heavy-duty DC brake provides the primary holding action when power is removed or a fault occurs.
- Direct control with MSP keeps operation simple while adding chain-mounted limit setup keeps the operator workflow clear for this control version.
Performance & Safety
RH-500P is the direct-control half-ton hoist with MSP for simple operation and fast travel-limit setup.
- Safe working load: 500 kg.
- Lift speed: 4 m/min at 50 Hz, 4.8 m/min at 60 Hz.
- Motor: 0.40 kW x 4P.
- Duty cycle: FEM 2m / ISO M5, ED 40 %, 240 starts/hr.
- Compliance: BGV D8 / IGVW SQP2 2018.
- Degree of protection: IP 20.

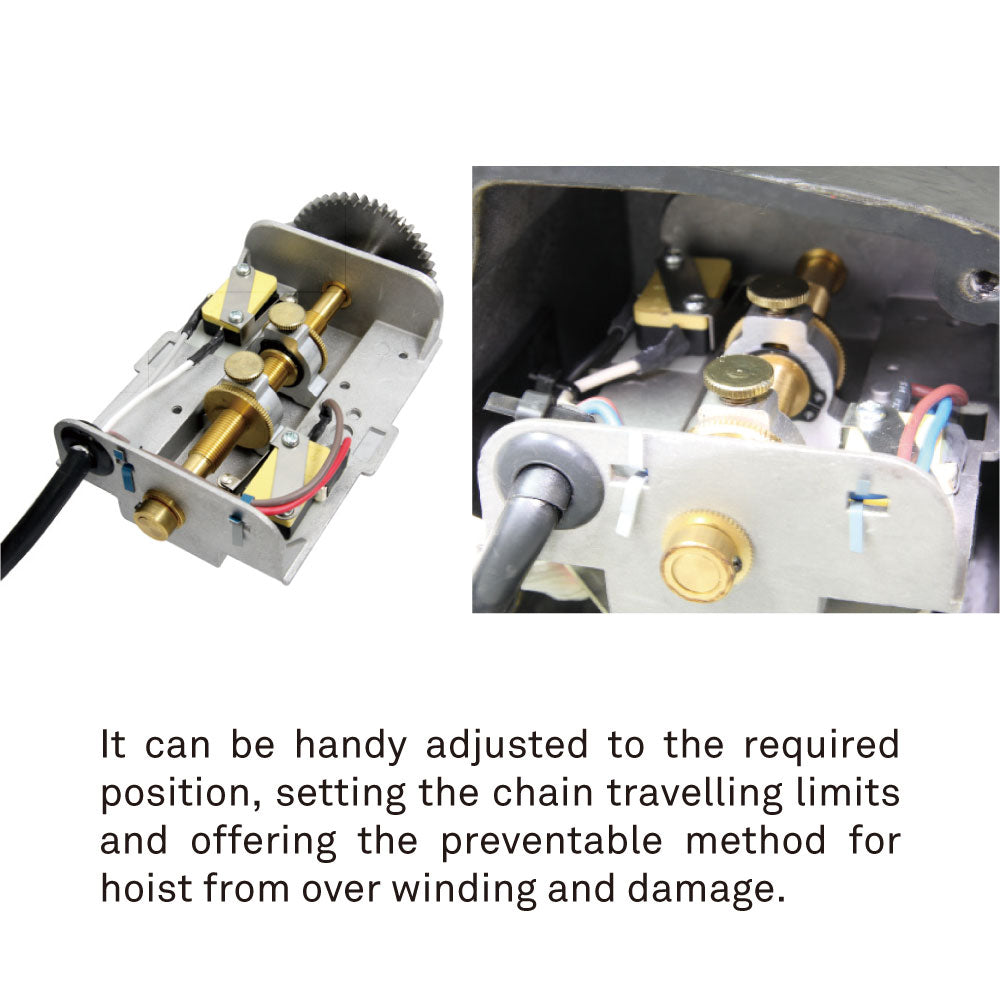

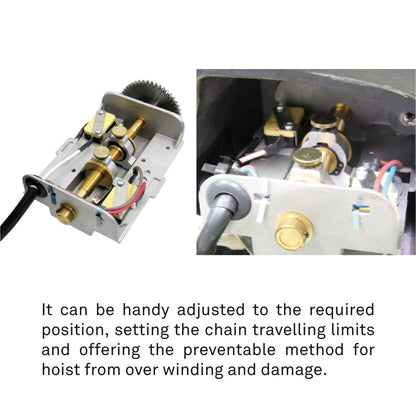

- Positioning: Micro Switch Positioning with up/down rubber blocks.
Applications
Use for entertainment rigging, touring truss systems, lighting grids, line arrays, scenic pieces, broadcast stages, venue installs, and professional overhead lifting where the hoist rating matches the rigging plan.
Compatibility
Use with compatible direct-control RIGPRO controllers and 4-pin CEE cabling for 500 kg D8 hoists.
Additional Technical Notes
- Chain Fall: 1
- Brake: Spring-loaded heavy-duty DC brake

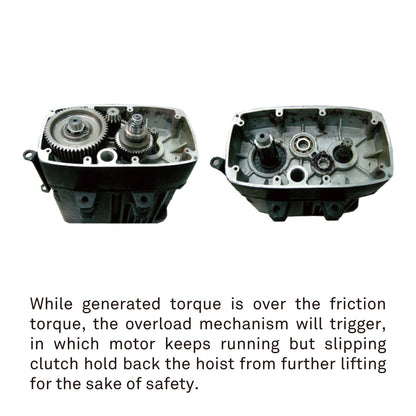

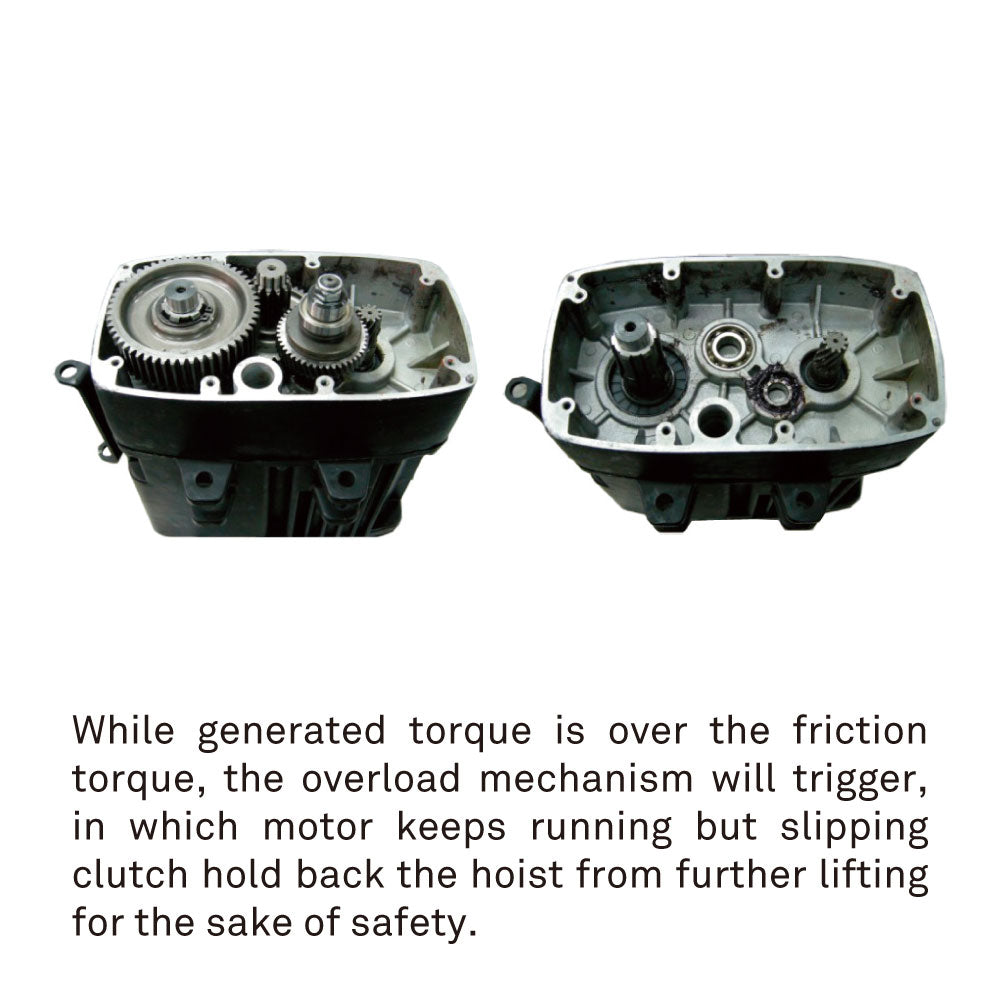

- Friction Clutch: Yes, for overload protection
- Positioning: Micro Switch Positioning with up/down rubber blocks
- Working Noise: 75 dB(A) at 1 m

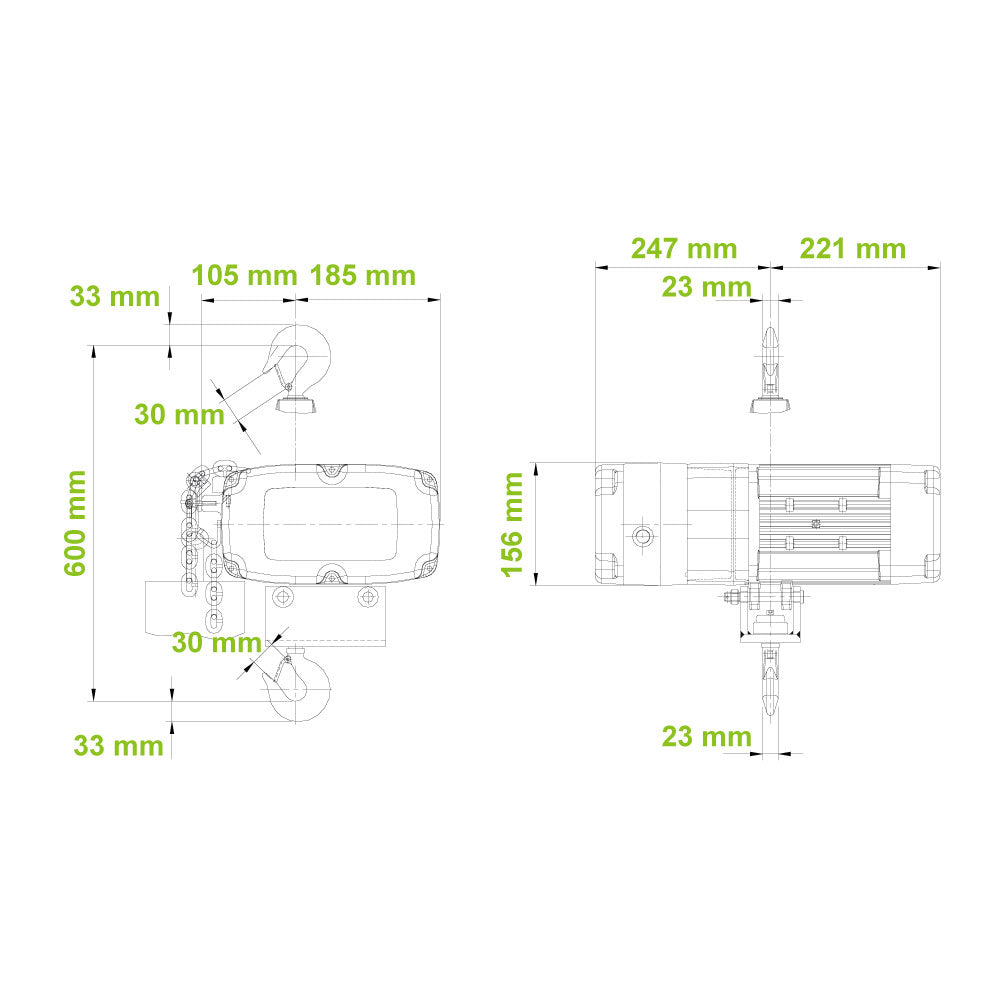

- Dimensions: A 600, B 156, C 23, D 247, F 221, H 33, I 33, J 105, M 30 mm
- Motor Isolation Class: F
- Load Wheel: 5-pocket chain sprocket

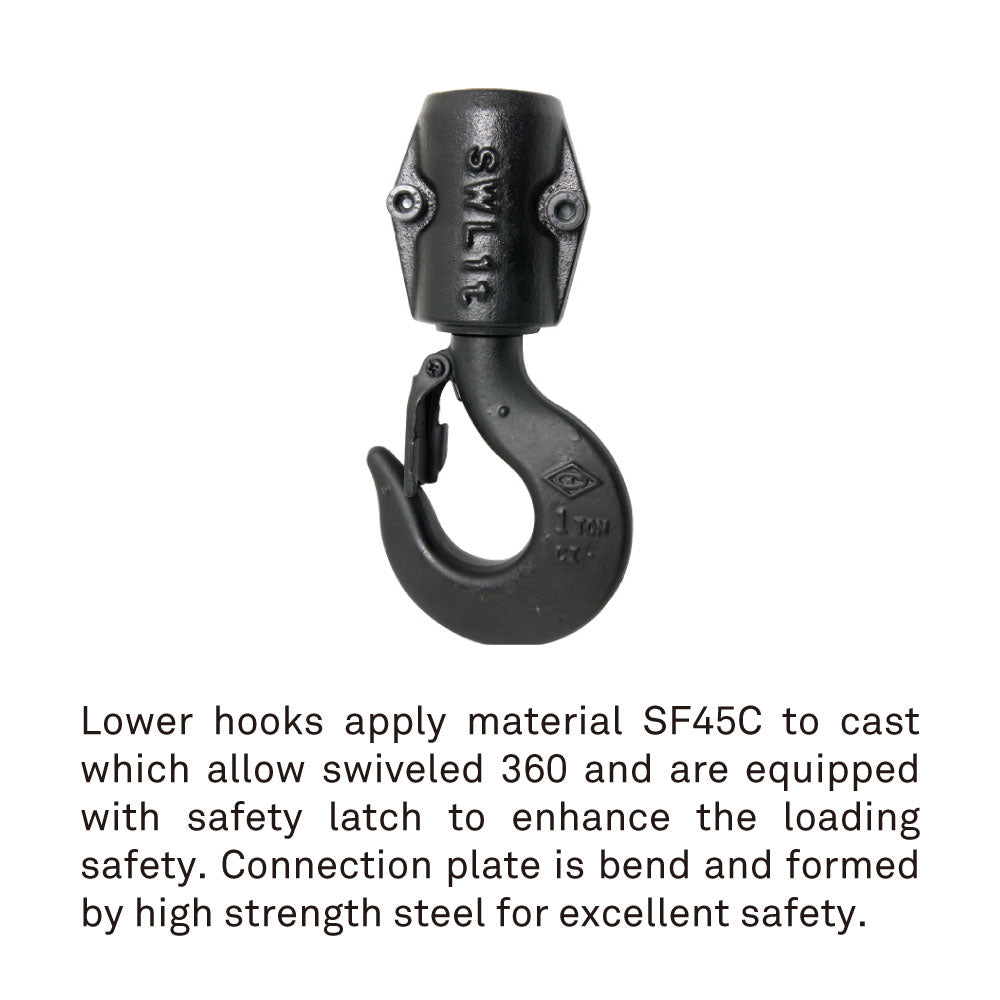

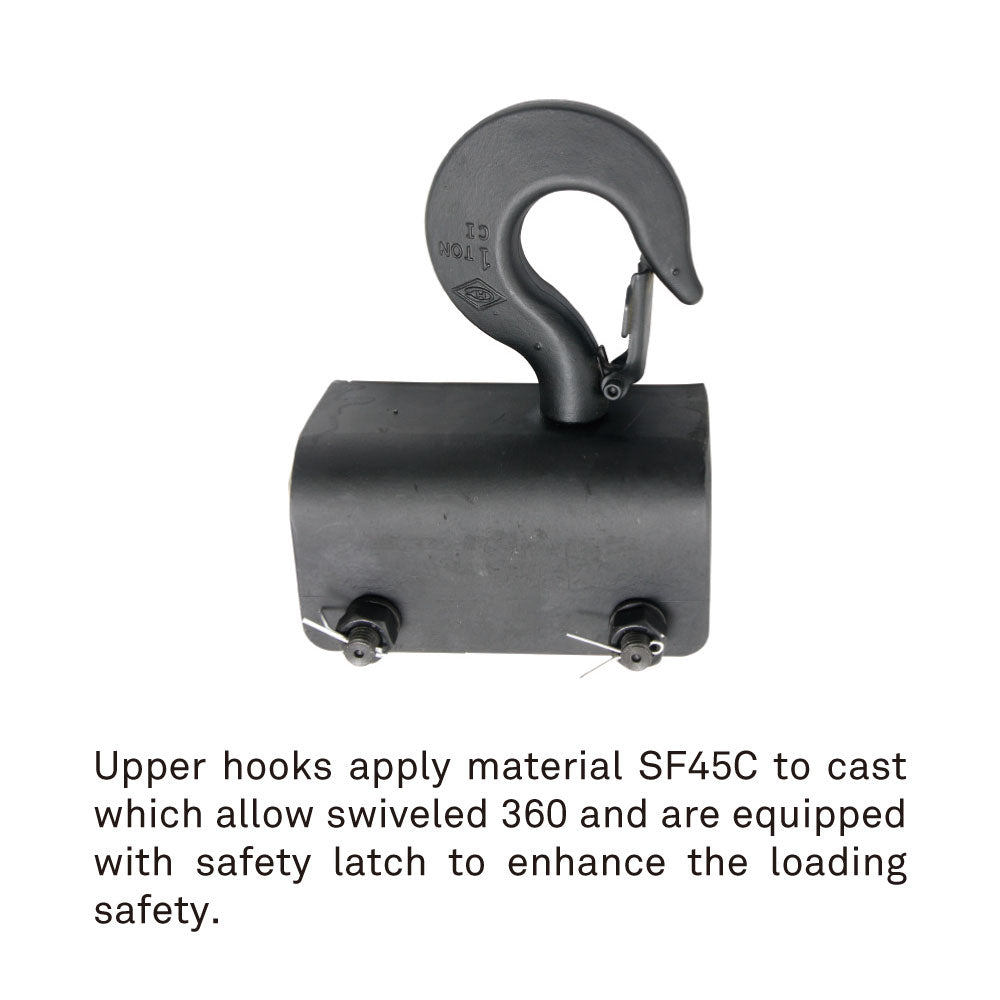

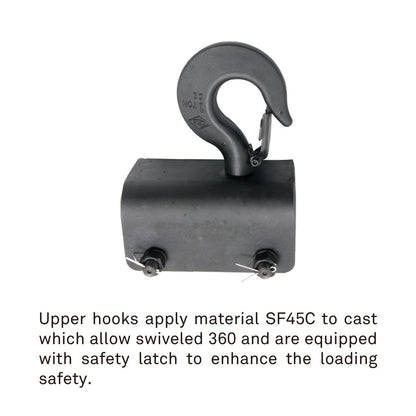

- Suspension: 360° turnable hook suspension with safety latch
- Chain Link Weight: 0.89 kg per meter
Frequently Asked Questions
Is this model for direct control or central controller operation
RH-500P is direct control with MSP. Choose RH-500LVP if low-voltage controller operation is needed.
How is this different from the nearest sister model
Compared with RH-500, this version adds Micro Switch Positioning.
Can I swap to a different load chain size
No. Use the specified Grade 80 EN 818-7 load chain size for the hoist. Chain diameter, pitch, and load wheel geometry must match the hoist design.
